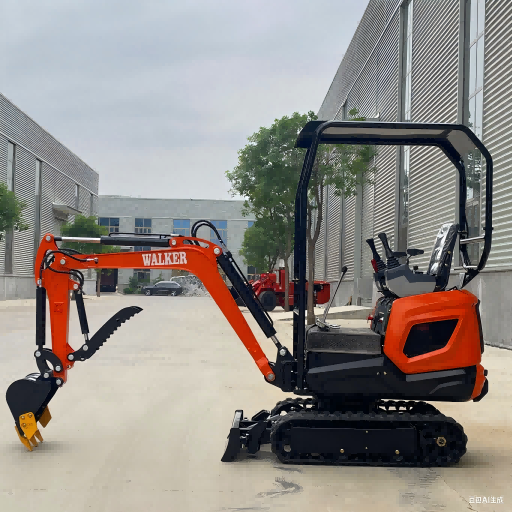

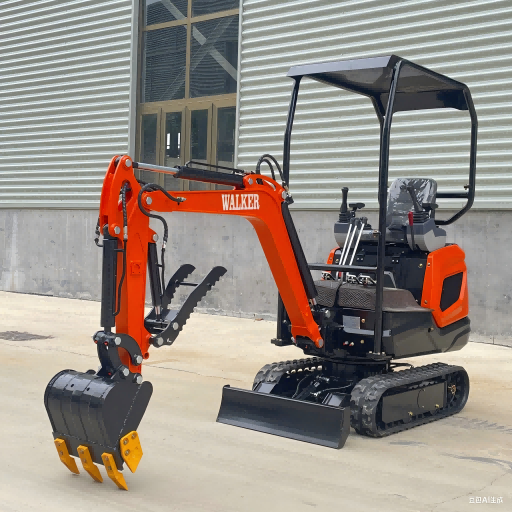

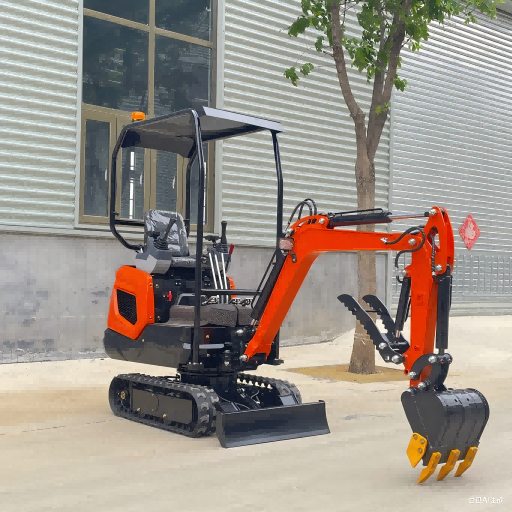

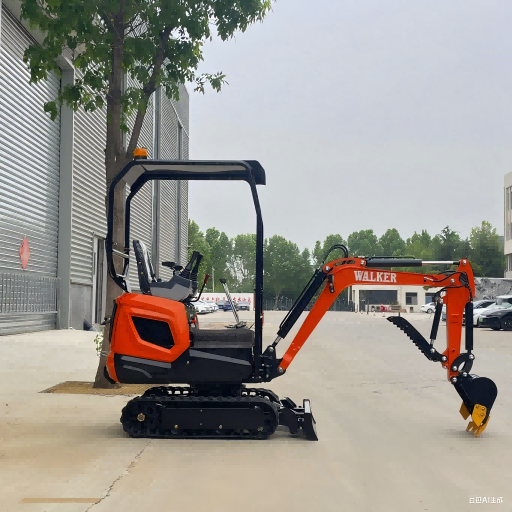

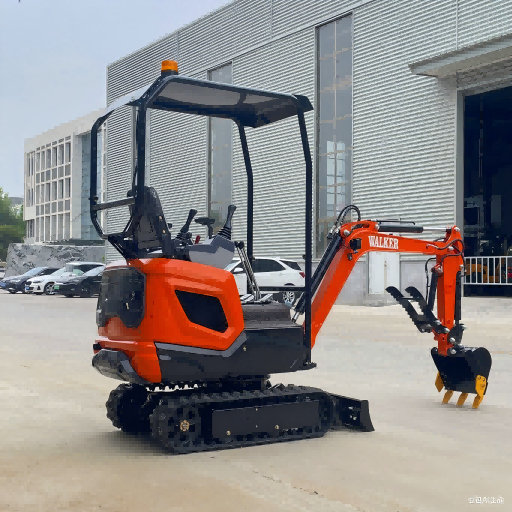

1 ton excavator
1. Bulldozer Bucket: Designed with thickened structure, superior quality, and extended service life.
Ideal for site leveling, material stacking, and backfilling operations. Ensures safer body stabilization during climbing/uphill lifting/spinning maneuvers.
2. Hydraulic Pilot System: Features labor-saving, convenient, and flexible operation, boosting work efficiency while reducing system pressure.

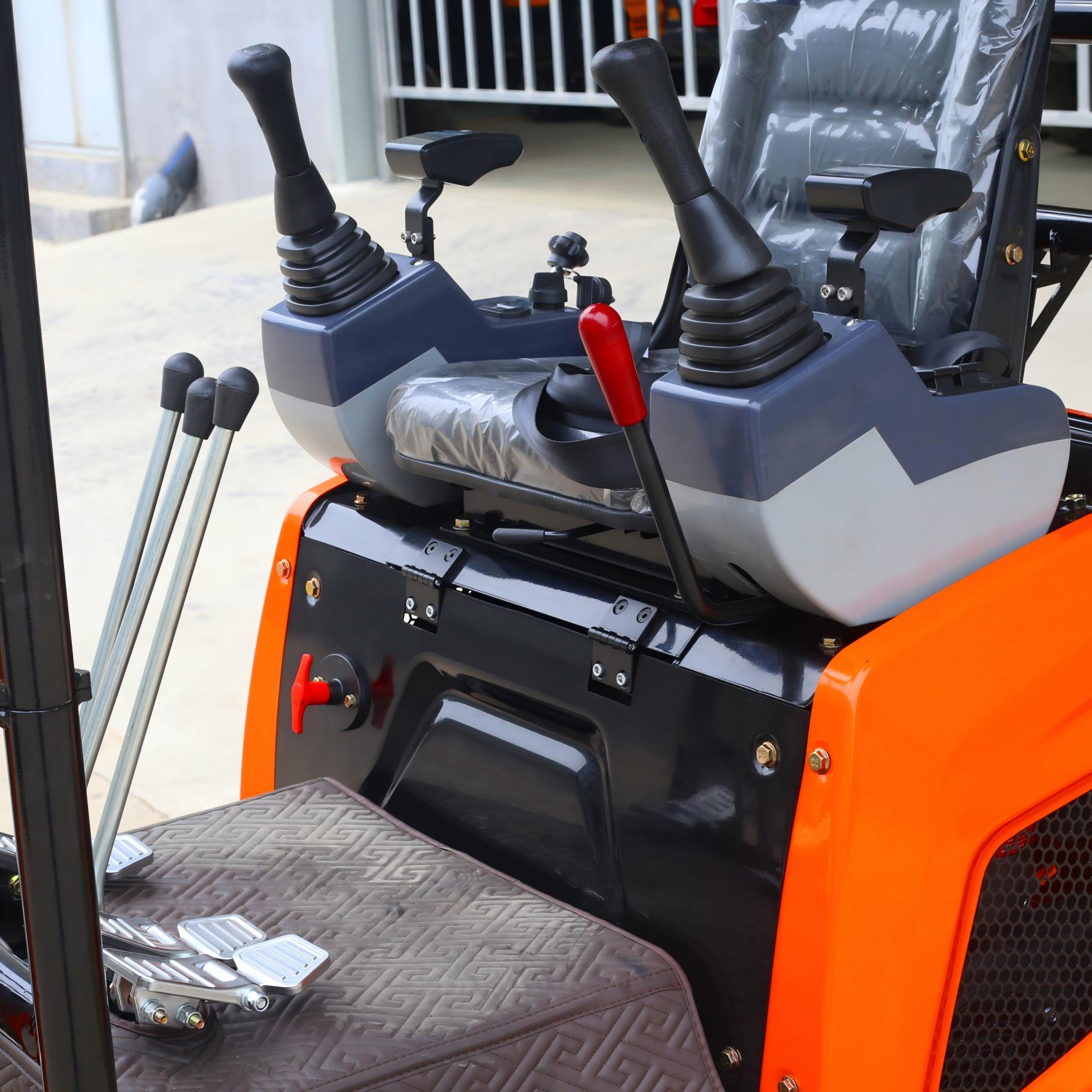

High-End Seating: Spacious and comfortable, ergonomically engineered with an auxiliary control lever for optimized operation.
3. Rubber Tracks: Lightweight design with low vibration, strong adhesion, excellent adaptability, and road-friendly performance (non-damaging).
Introduction to WK10 Mini Excavator I. Flexible Selection of Power and Configuration The power system of the WK10 excavator can be optionally equipped with a KOOP Euro 5 diesel engine or a Briggs & Stratton gasoline EPA engine as needed, suitable for different working conditions and environmental requirements; It is equipped with a front mechanical rod, rubber tracks, as well as a dozer blade, a digging bucket, cylinder guards, and seat armrests as standard. The basic operation configurations are complete. The WK10 excavator can also be optionally equipped with a closed cab, a swing boom, and retractable tracks, flexibly coping with diversified scenarios such as narrow spaces and complex terrains.
II. Quality and After-sales Guarantee Shandong Gongwo Machinery has been deeply engaged in the production of excavators for more than ten years, controlling the whole process from design to packaging, and the product quality is reliable. A 1-year warranty is provided for core components, and a 3-month warranty is also available for wearing parts. The after-sales support is complete, reducing worries in use. III. Suitable for Diverse Construction Scenarios With flexible configurations and a compact body, it is suitable for scenarios such as small-scale engineering construction, municipal maintenance, and agricultural operations. It is a powerful tool for small-scope construction, helping to efficiently complete various operations such as excavation and dozing. - Small and Flexible: The body is narrow, enabling operation in narrow spaces and convenient transportation. - Convenient Operation: Pilot operation + comfortable seat reduce manual fatigue; Quick attachment change is available to expand functions. - Economical and Practical: Low fuel consumption, and the purchase and maintenance costs are lower than those of large excavators, suitable for small projects and individual operators.
Product Specifications
Parameter | Specification |
Operating Weight | 1000 kg |
Digging Bucket Capacity | 0.025 m³ |
Bucket Width | 380 mm |
Engine | KOOP Engine |
Other Engines | Briggs & Stratton gasoline engine |
Heat Dissipation Mode | Single - cylinder, air - cooled |
Rated Power | 7 KW/10 HP |
Travel Speed | 2 km/h |
Chassis Width | 930 mm |
Track Width | 180 mm |
Track Length | 1230 mm |
Minimum Ground Clearance | 135 mm |
Maximum Digging Height | 2610 mm |
Maximum Unloading Height | 1750 mm |
Maximum Digging Radius | 2700 mm |
Maximum Digging Depth | 1600 mm |
Vertical Digging Depth | 1350 mm |
Minimum Turning Radius | 1300 mm |
Turning Speed | 9 r/min |
Maximum Climbing Capacity | 35° |
Working Pressure | 20 MPa |

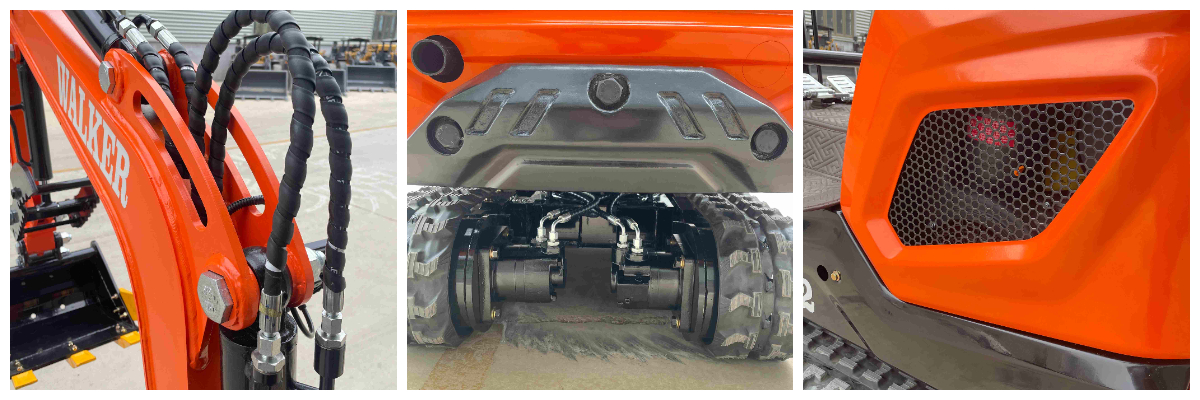

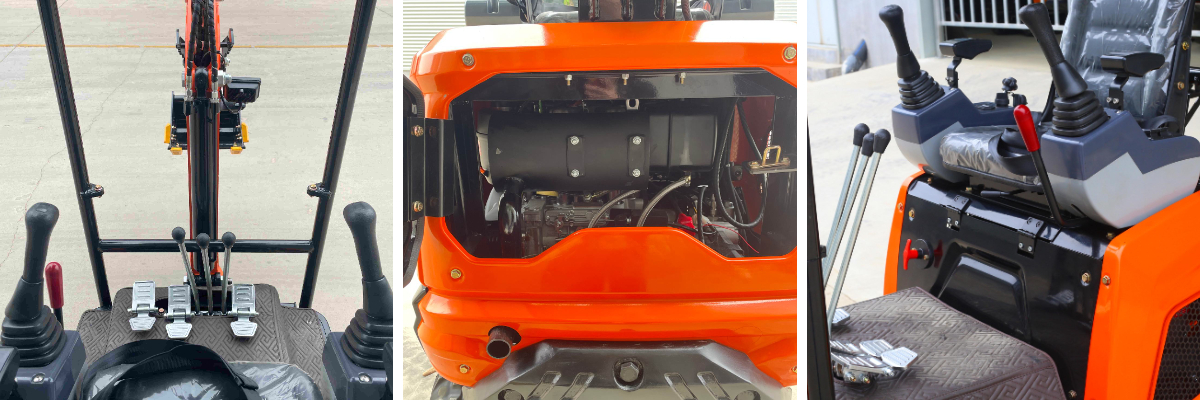

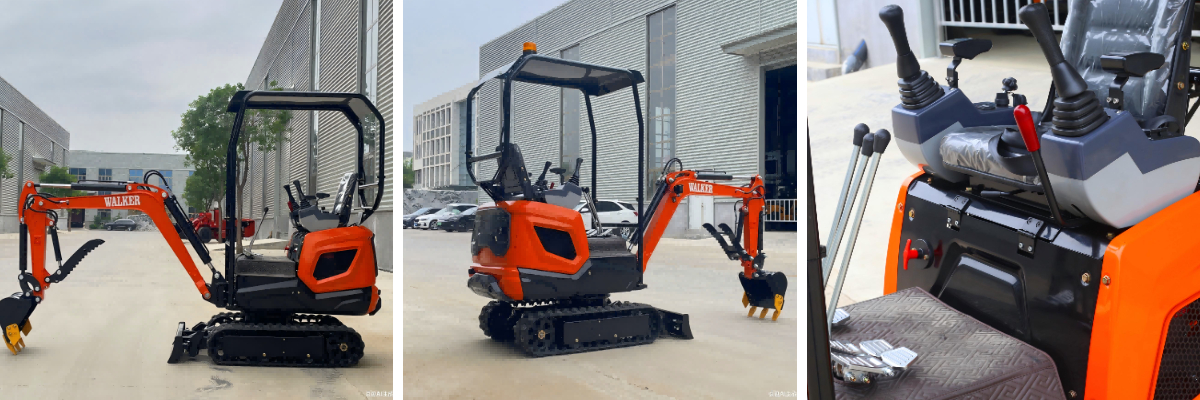

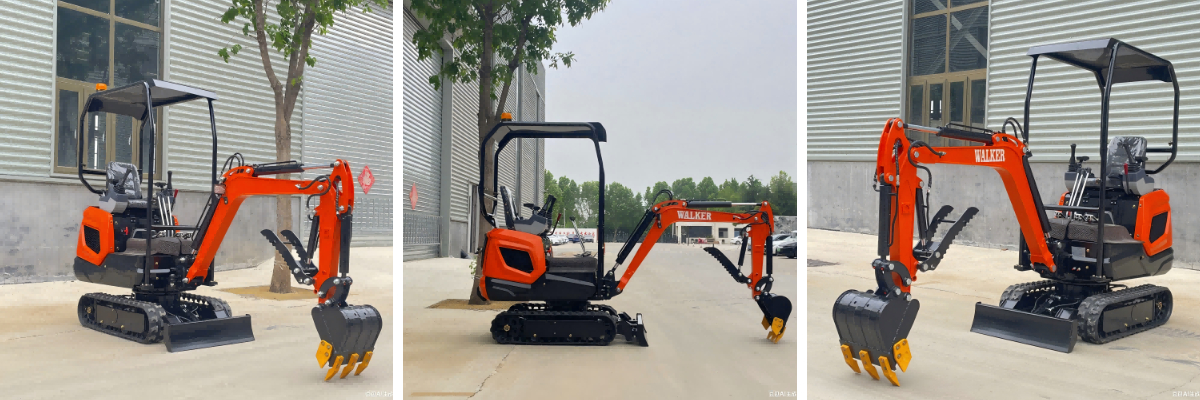

Product Details

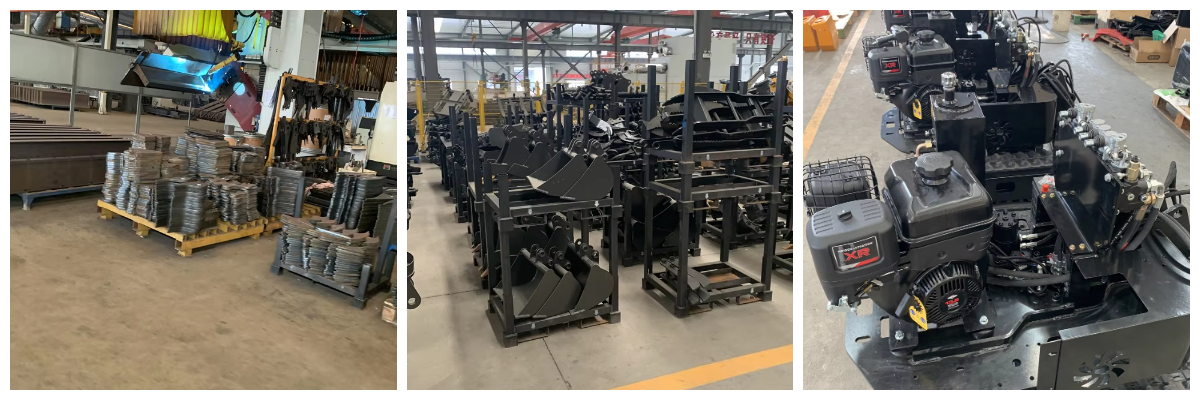

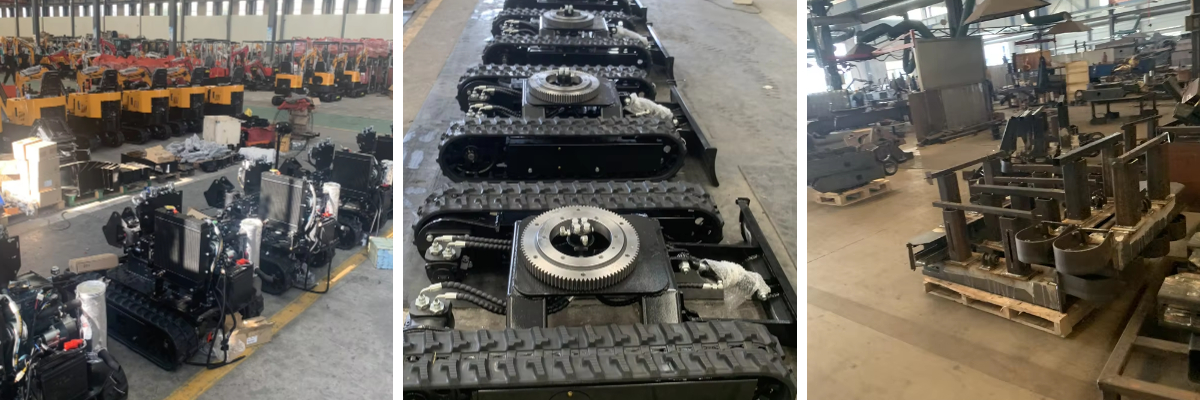

Workshop Display
Company Profile
Shandong Gongwo Machinery Co., Ltd. was founded in 2012. It is an entity factory specializing in the production of small and medium-sized construction machinery and equipment, including small wheel loaders, mini crawler excavators, electric/diesel tricycles, two-wheel drive/four-wheel drive forklifts, etc. The company covers an area of more than 100 mu, has over 100 employees, and the annual sales volume of its products exceeds 20,000 units. Its products are exported to Europe, America, Southeast Asia, Africa, Russia and other countries and regions. Over the past ten years, we have been serving customers worldwide to meet their needs.
