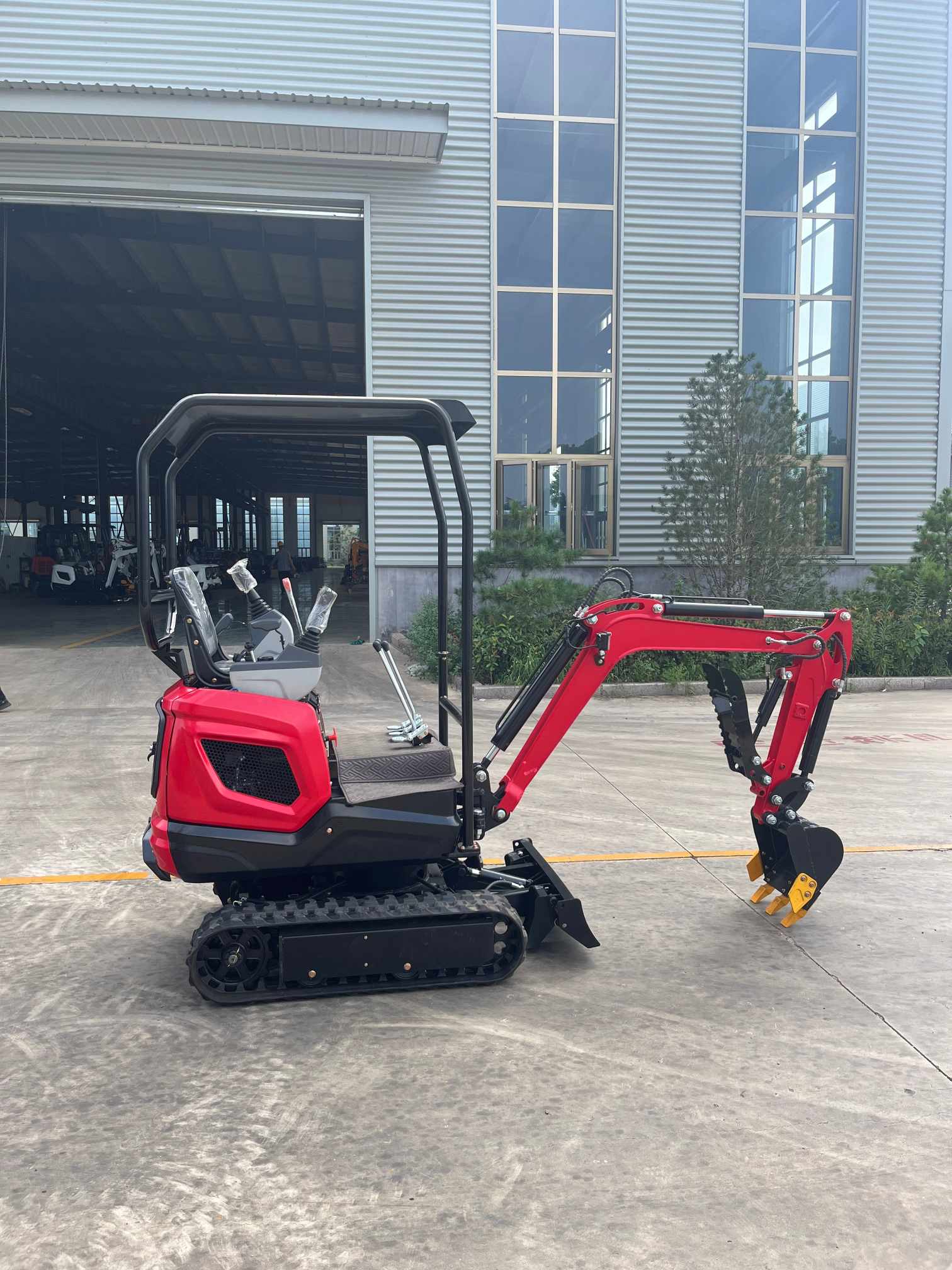

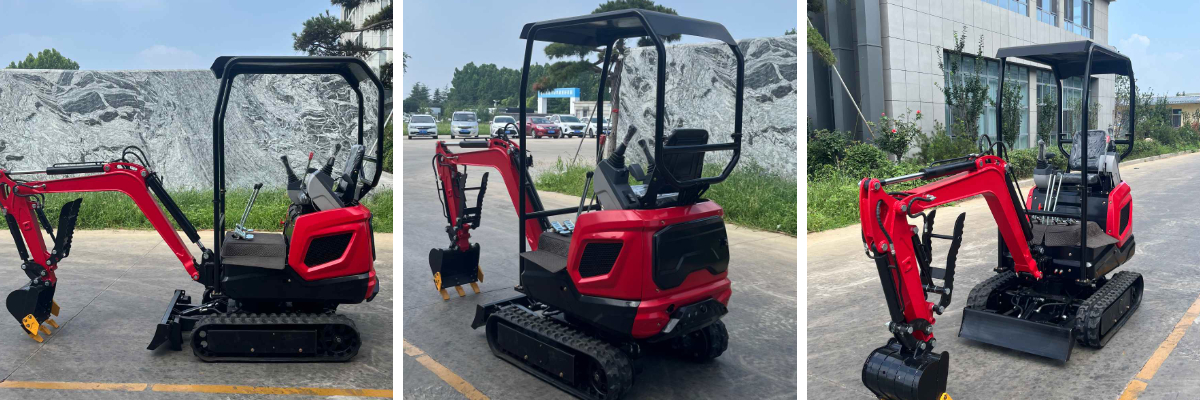

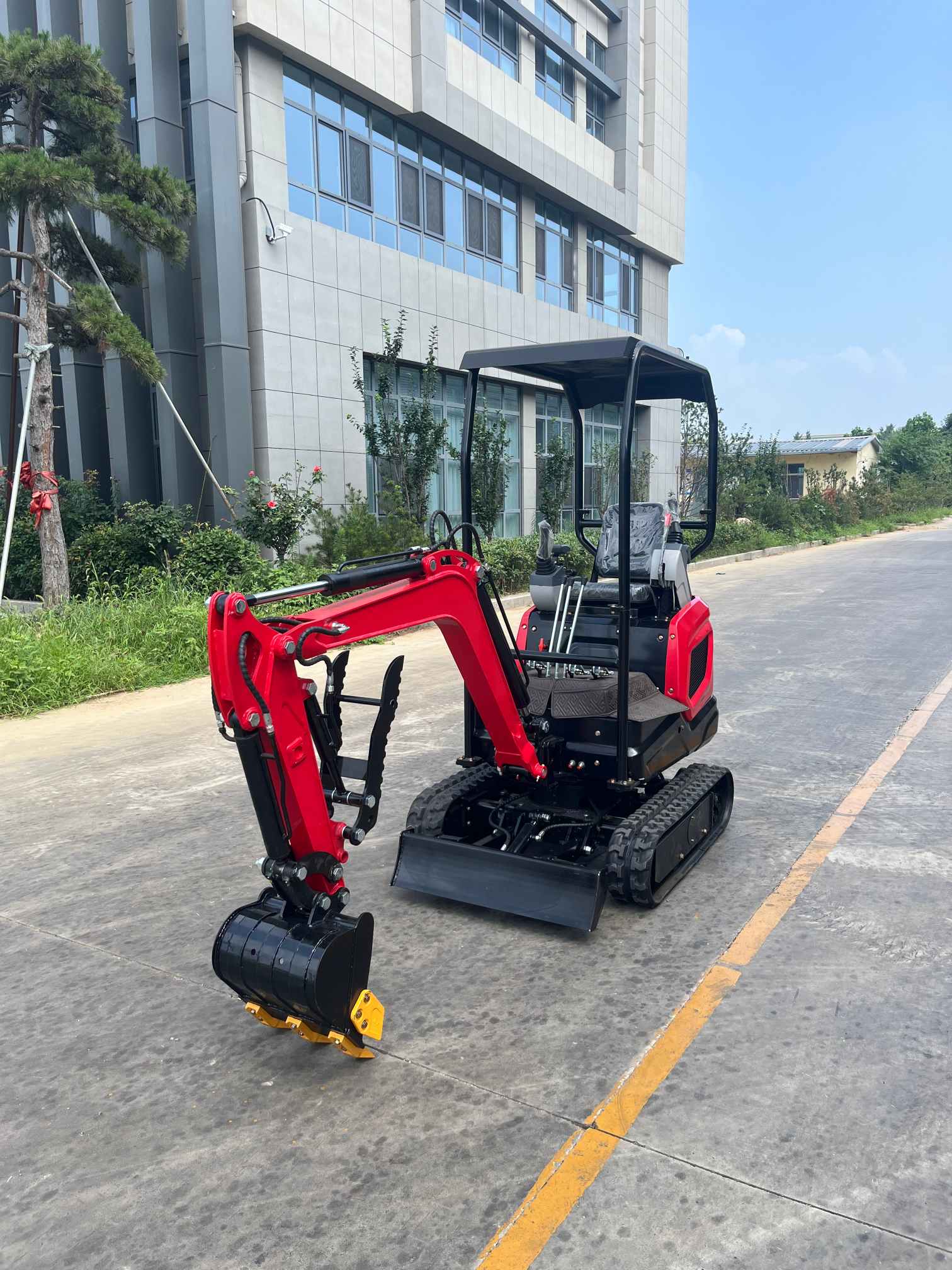

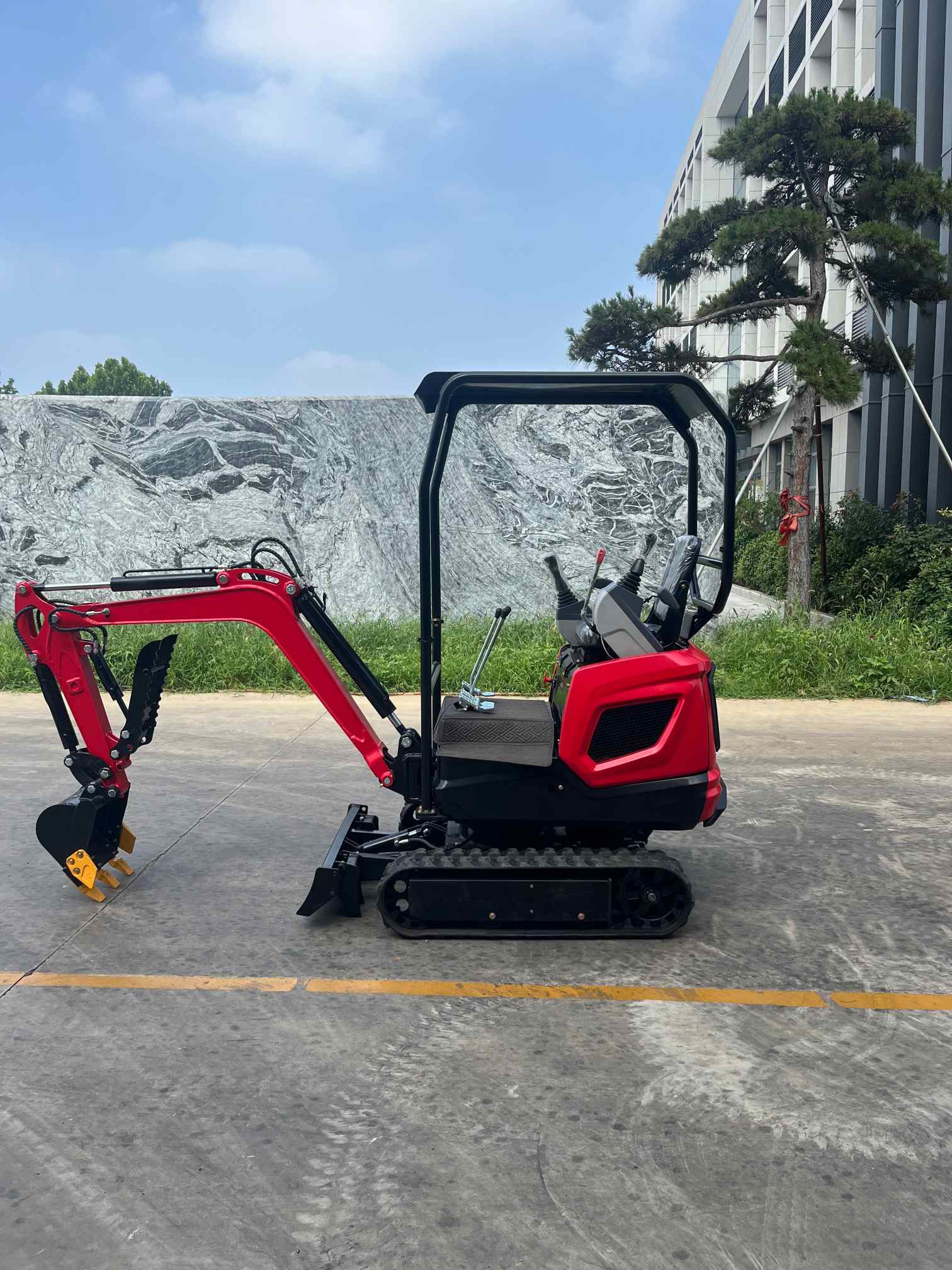

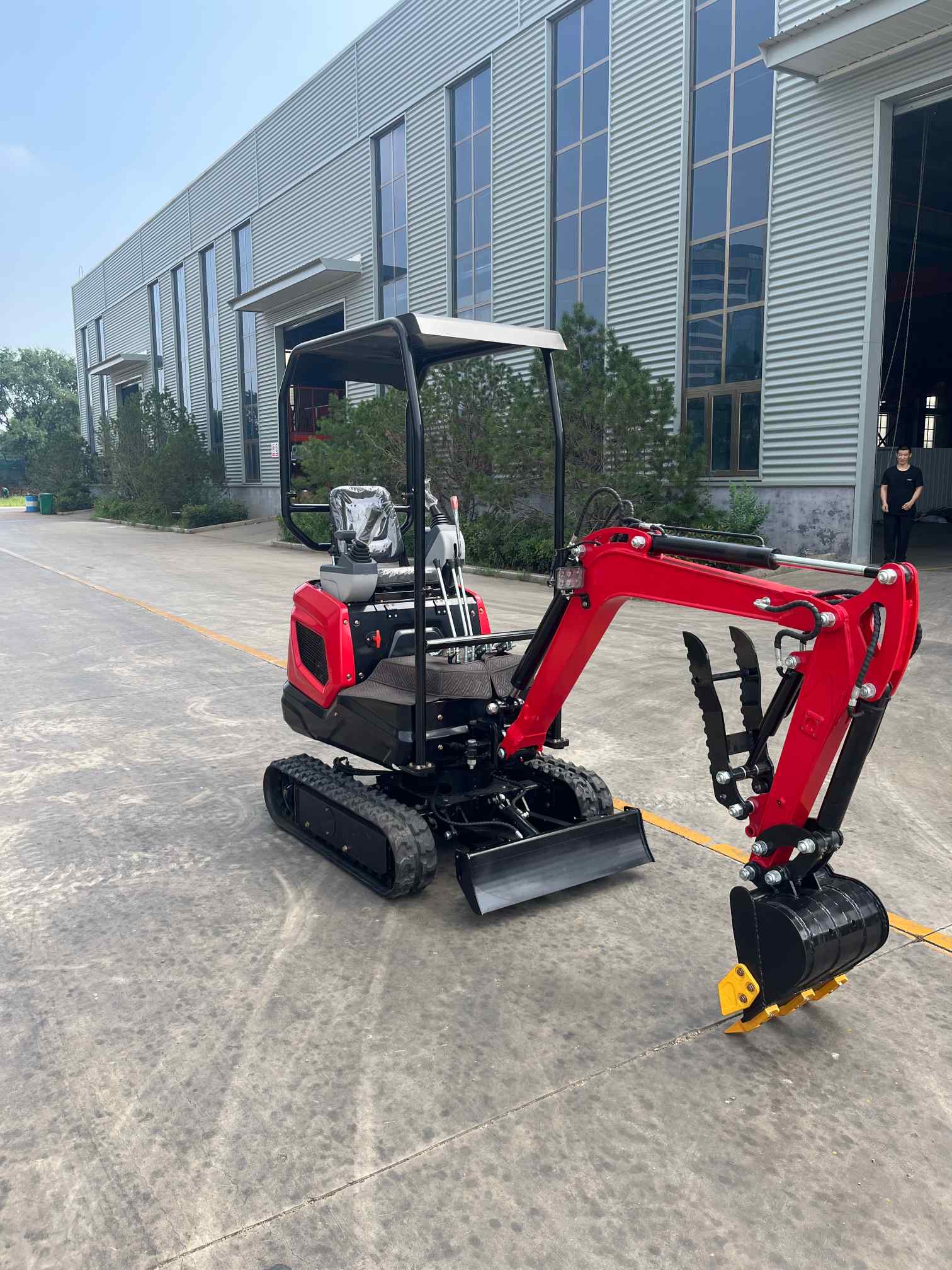

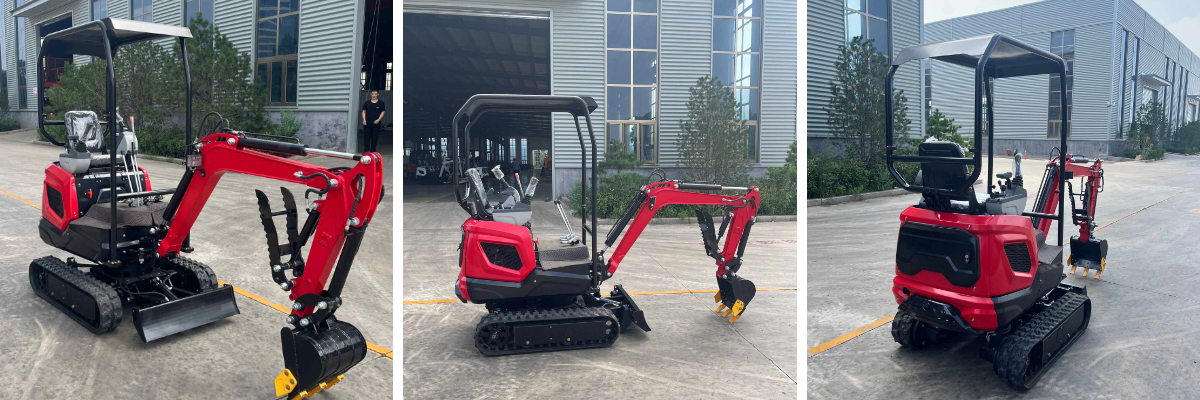

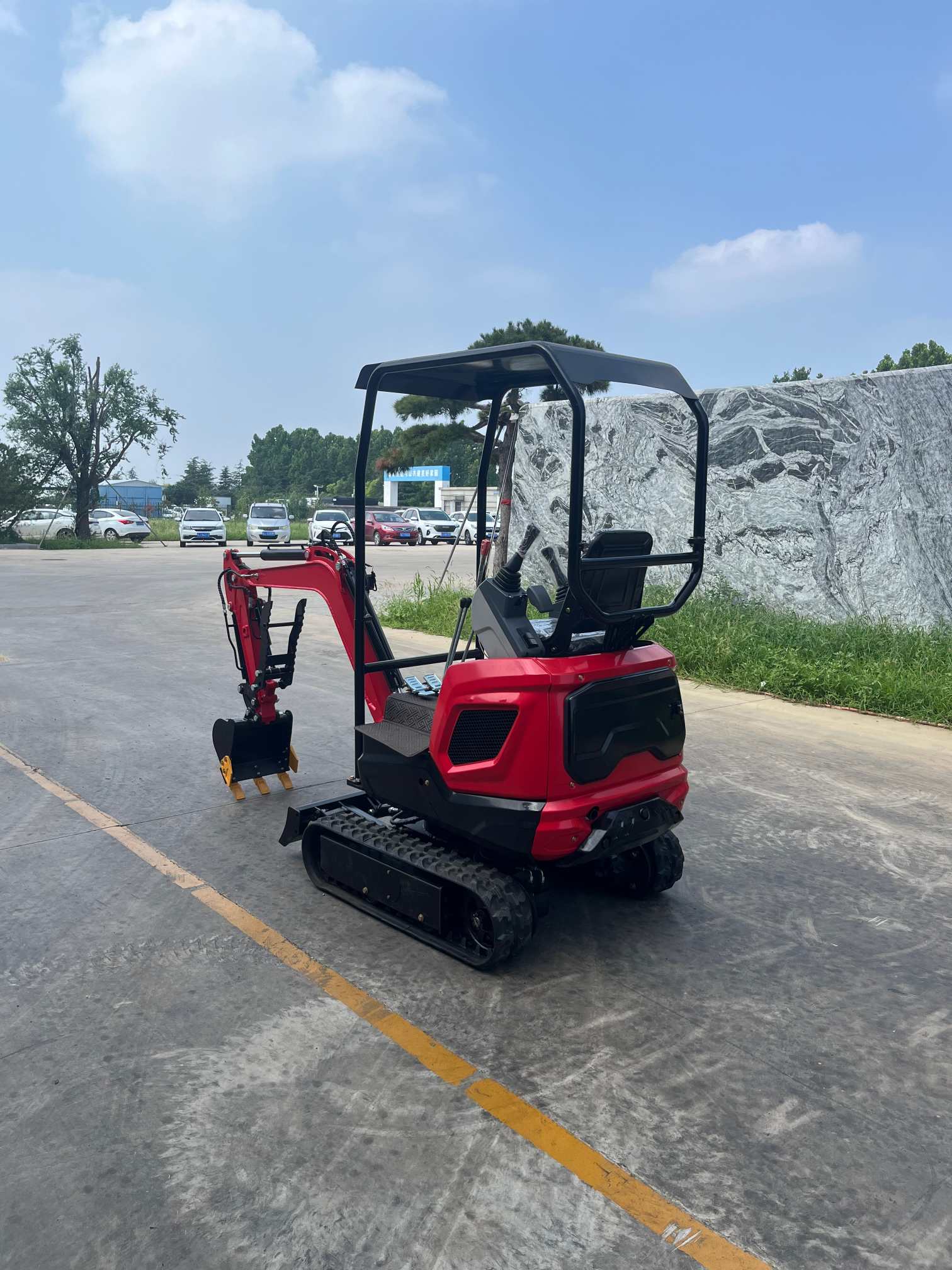

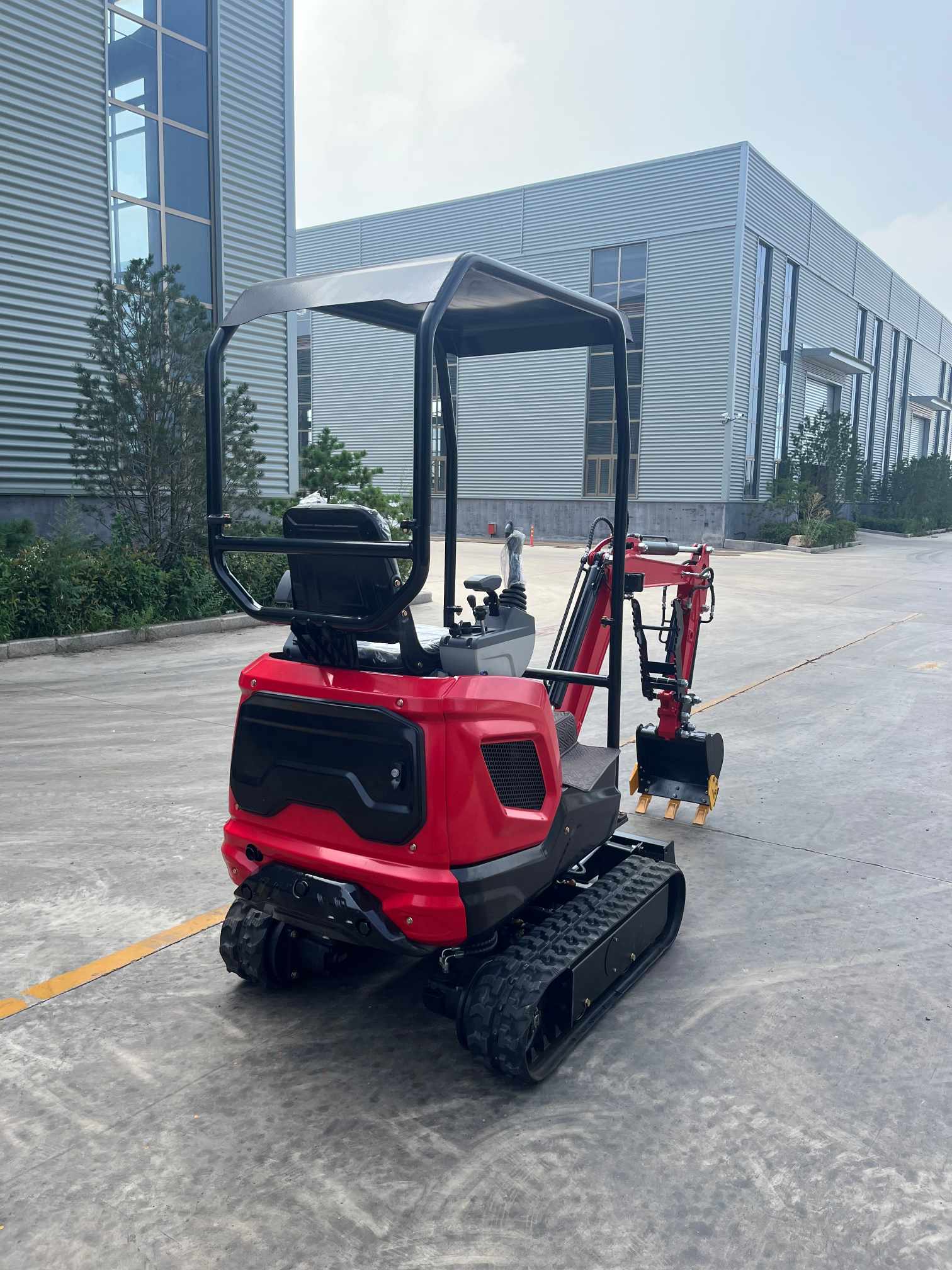

1-Ton Small Excavator

The 1-ton excavator is a high-efficiency equipment specially designed for small-scale engineering and precision operation scenarios. With its compact size and versatility, it has become an ideal choice for micro-projects. With an operating weight of only 1000kg, its ultra-light body provides excellent space adaptability — the 930mm chassis width combined with 180mm track width allows it to easily navigate through confined areas such as narrow lanes, indoor sites and courtyards. Meanwhile, the 135mm minimum ground clearance enables it to handle slightly undulating terrain. It is particularly suitable for scenarios with high requirements for passability, such as rural renovation, indoor demolition and garden trimming.

The power system adopts a KOOP engine (with an option for Briggs & Stratton gasoline engine). The single-cylinder air-cooled heat dissipation design ensures stable operation. The rated power of 7KW/10HP is sufficient to drive various operations while maintaining low fuel consumption. The equipment's travel speed is 2km/h, combined with a turning speed of 9r/min, making the operation precise and controllable, even for beginners to quickly get started. The maximum climbing capacity of 35° ensures operational flexibility on sloped sites.

In terms of operating performance, this excavator demonstrates remarkable practicality: the 0.025m³ digging bucket capacity with a 380mm bucket width can efficiently complete small-scale earth excavation. The maximum digging radius reaches 2700mm, the maximum digging depth is 1600mm, and the vertical digging depth is 1350mm. Coupled with the maximum digging height of 2610mm and the maximum unloading height of 1750mm, it can meet the vertical operation needs of most micro-projects. The hydraulic system has a working pressure of 20MPa, ensuring stable power transmission. It can be equipped with replaceable attachments (such as breakers and grapples) to realize multi-process operations including excavation, crushing and handling, truly achieving multi-purpose functionality with one machine.

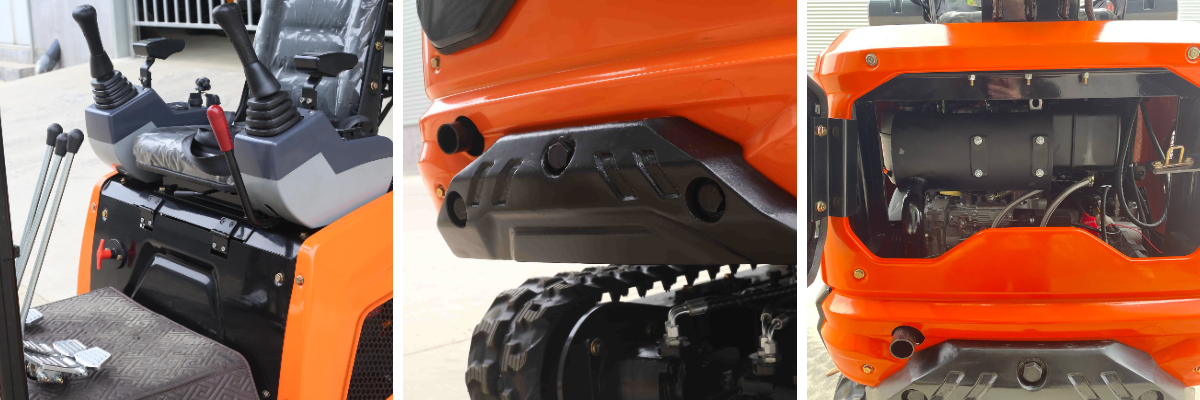

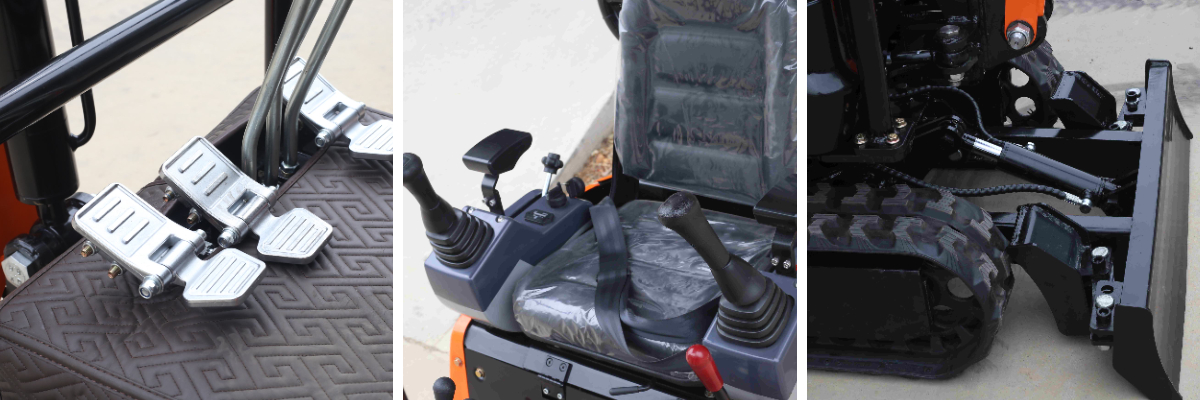

The detailed design of the equipment is also user-friendly: the 1230mm track length enhances ground adhesion and reduces ground pressure, avoiding damage to fragile surfaces such as lawns and floor tiles. Reinforced structural components improve the durability of the machine body. Daily maintenance only requires basic inspection and lubrication, significantly reducing operating costs. Whether it is municipal maintenance, small-scale infrastructure or household projects, this 1-ton excavator can create significant value for users with its efficient, flexible and economical performance.
