1 Tonne Excavator

Product Details of 1-ton Excavator

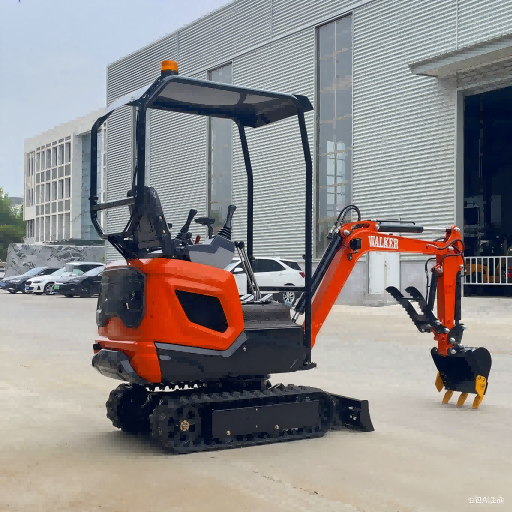

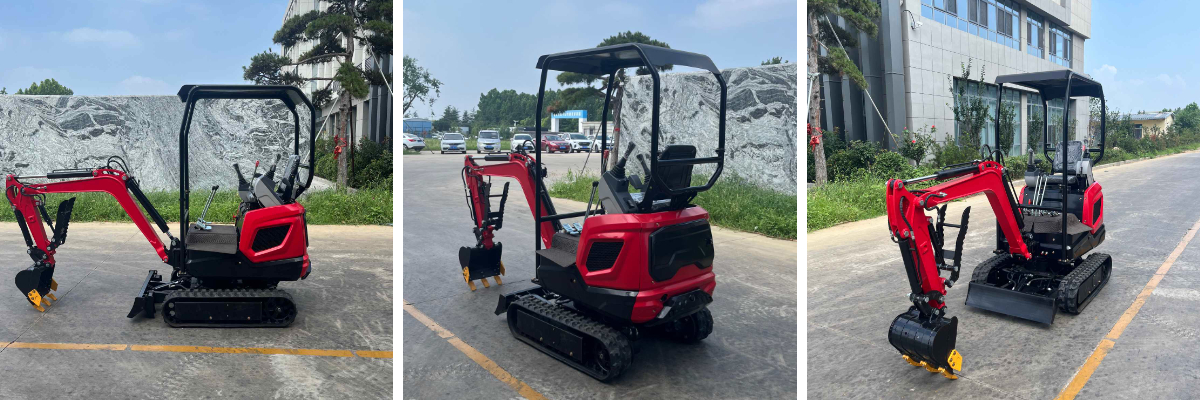

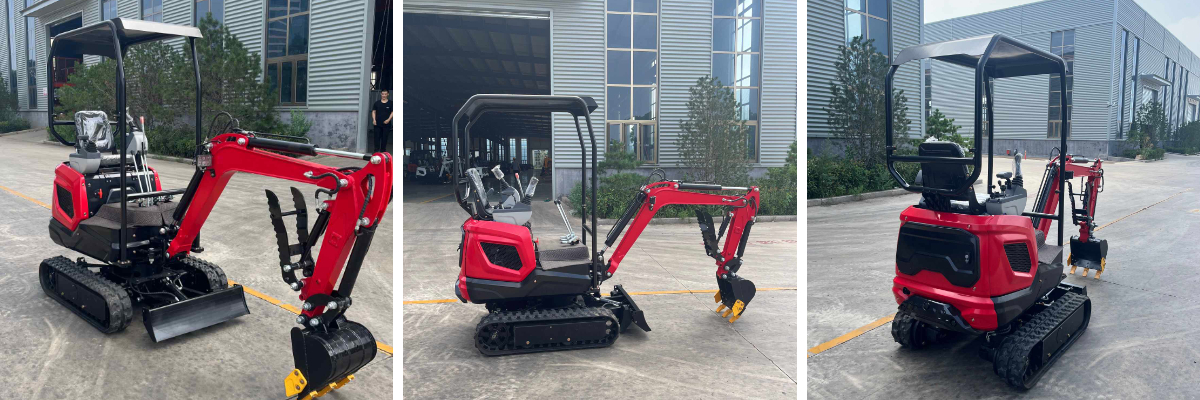

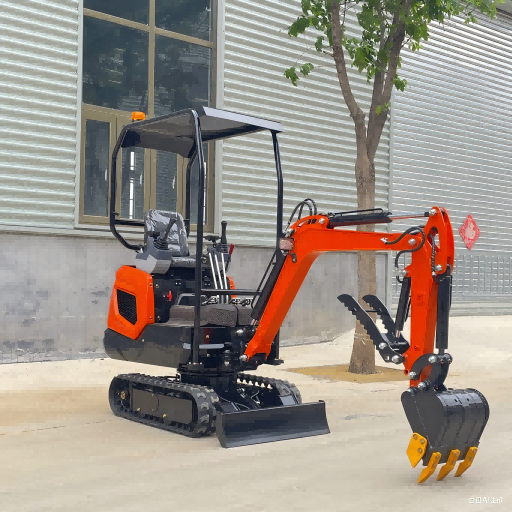

This 1-ton excavator, with an operating weight of 1000 kg, is a compact and efficient engineering equipment, ideal for light construction, gardening, excavation in narrow spaces, and engineering maintenance. Its robust design and optimized dimensions make it a versatile tool that can adapt to space-constrained environments without compromising operational performance.

Core Features of the Equipment

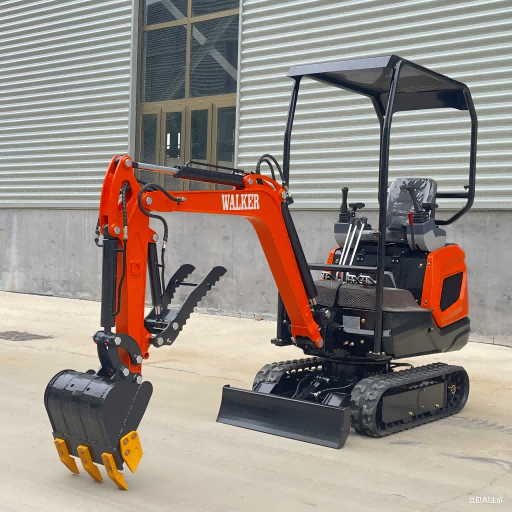

• Digging Bucket: The bucket has a capacity of 0.025 m³ and a width of 380 mm, enabling precise handling of materials such as soil, sand, and gravel. Its sturdy design ensures durability even under harsh working conditions.

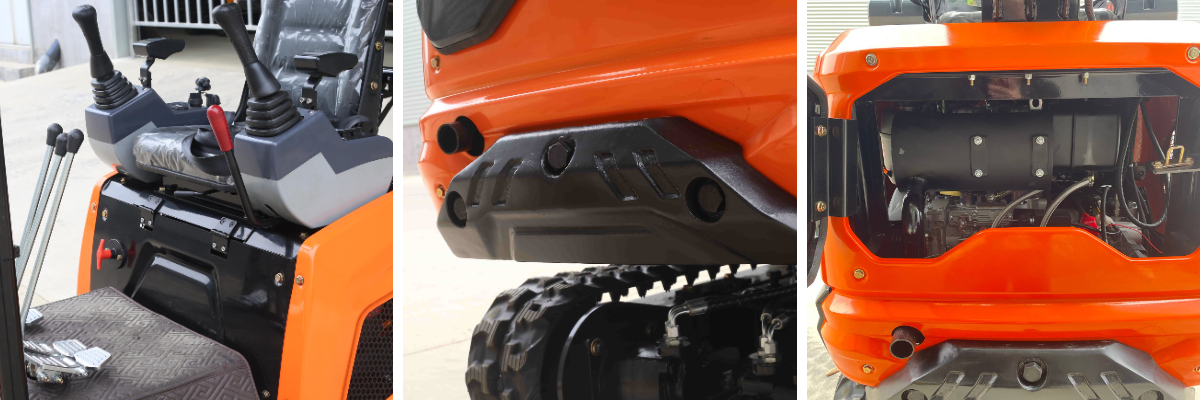

• Power System: Equipped with a standard KOOP engine, and users can choose a Briggs & Stratton gasoline engine according to their needs. Both engines deliver reliable performance, featuring a single-cylinder, air-cooled heat dissipation mode, which ensures stable operation even in high-temperature environments. The rated power reaches 7 KW (10 HP), sufficient to efficiently drive all functions of the equipment.

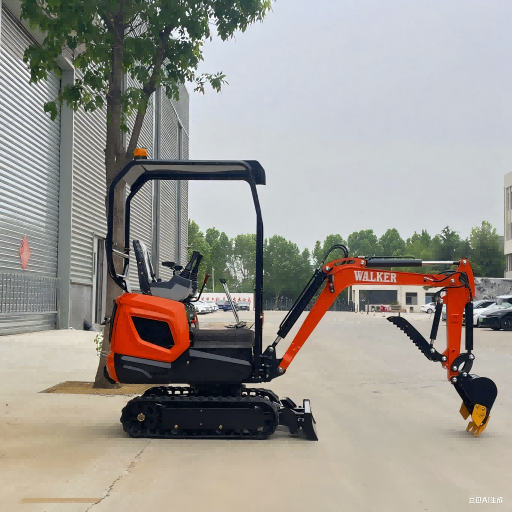

• Mobility and Stability: The chassis width is 930 mm, paired with tracks that are 180 mm wide and 1230 mm long, providing excellent traction on uneven or slippery surfaces. The minimum ground clearance is 135 mm, avoiding unnecessary contact with ground obstacles. The travel speed is 2 km/h, striking a balance between maneuverability and flexibility.

• Digging Performance: It offers a wide range of movements to adapt to various operational needs:

• Maximum digging height of 2610 mm, suitable for high-altitude operations;

• Maximum unloading height of 1750 mm, facilitating the transfer of materials to trucks or piles;

• Maximum digging radius of 2700 mm, allowing access to distant areas without moving the chassis;

• Maximum digging depth of 1600 mm, sufficient for digging pits, trenches, or shallow foundations;

• Vertical digging depth of 1350 mm, ensuring precision in operations requiring verticality.

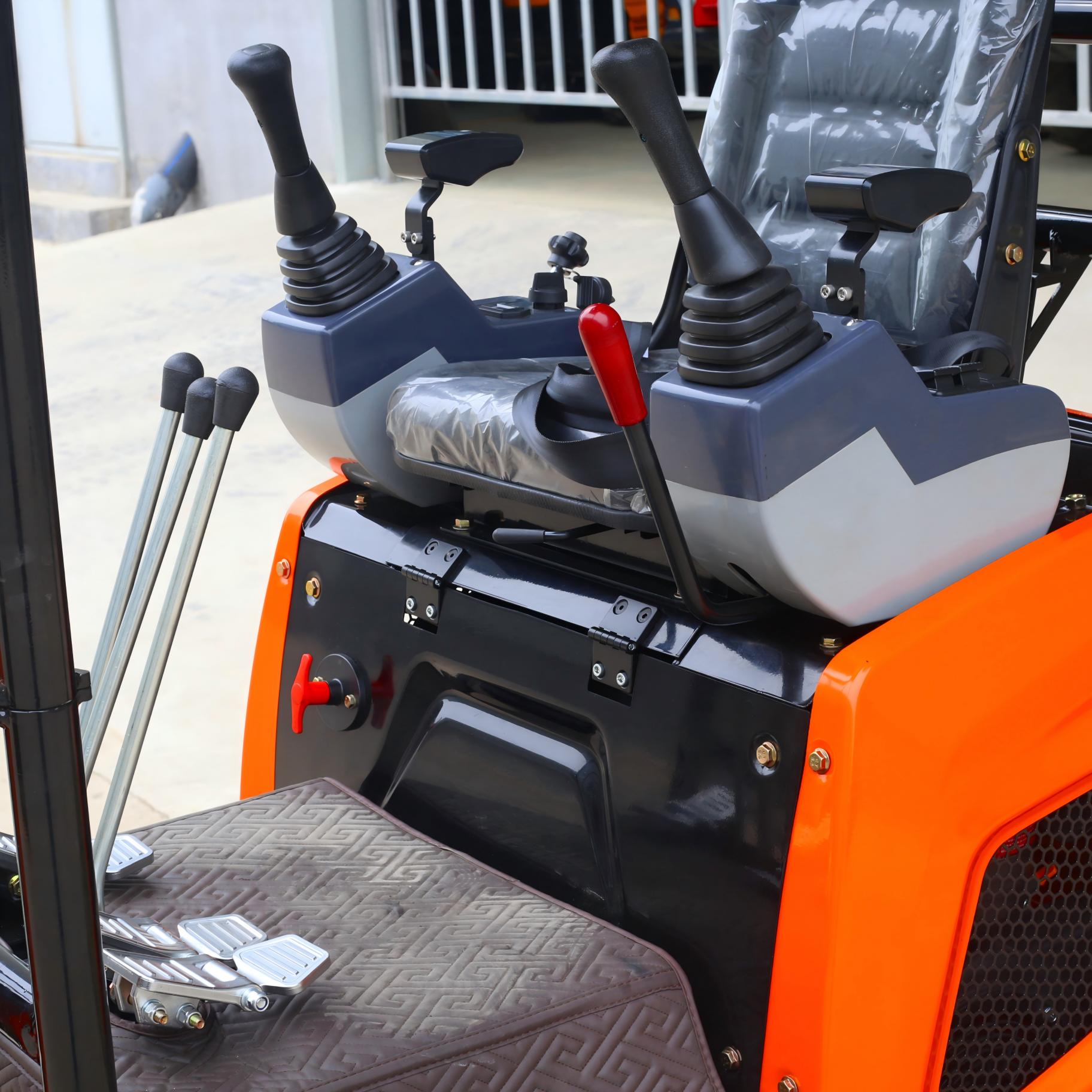

• Operation and Adaptability: The minimum turning radius is 1300 mm, enabling flexible steering in narrow spaces such as between buildings or in gardens. The turning speed is 9 r/min, ensuring smooth and controllable movements. Additionally, its maximum climbing capacity is 35°, allowing stable operation even on sloped surfaces.

• Hydraulic System: With a working pressure of 20 MPa, it efficiently transmits power to moving components such as the bucket, boom, and rotation mechanism, achieving fast and precise operations.

In summary, this 1-ton excavator combines compactness, power, and versatility, making it an ideal choice for professionals. It is robust, easy to operate, and adaptable to various applications in small and medium-sized operations.
