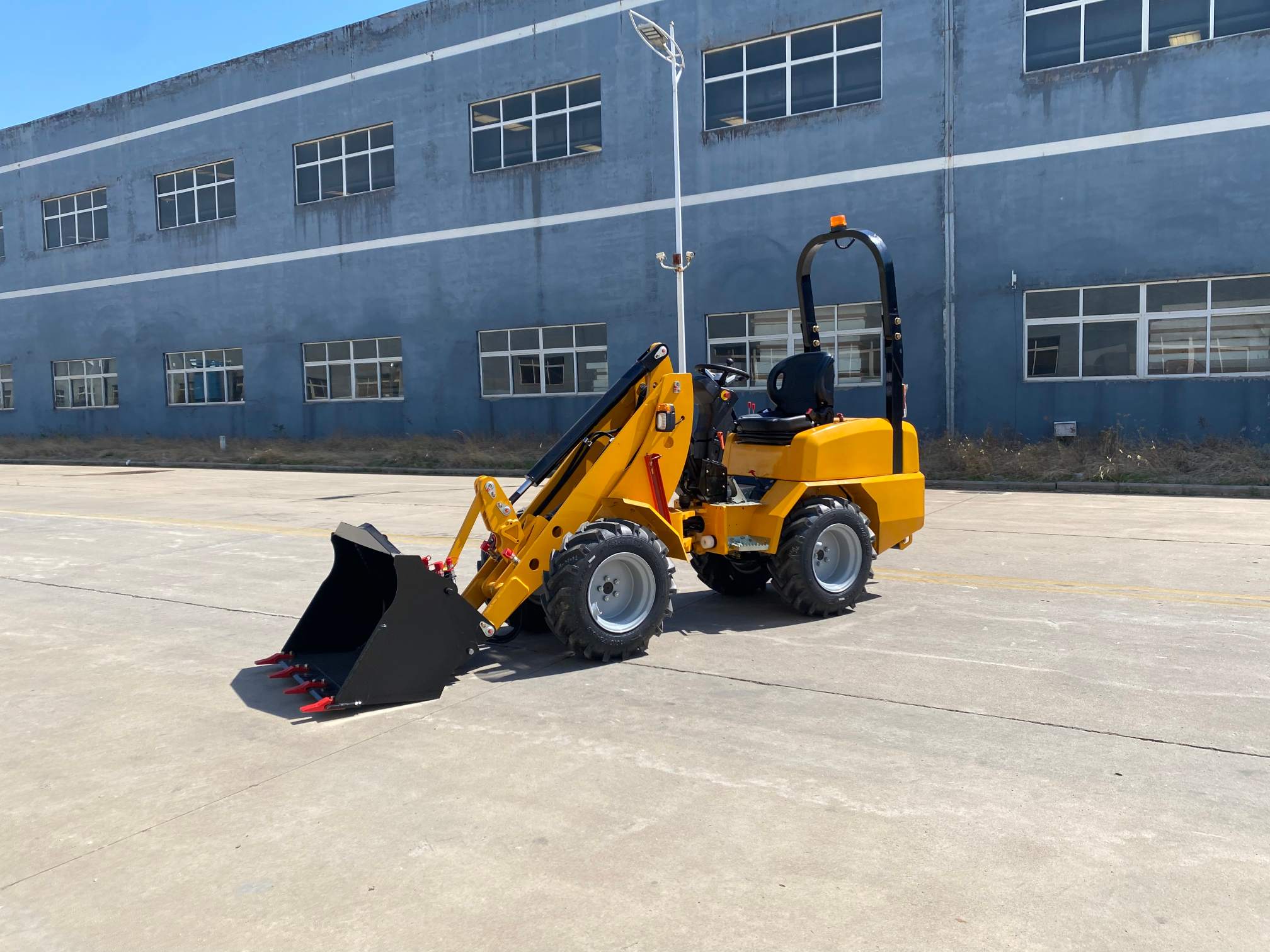

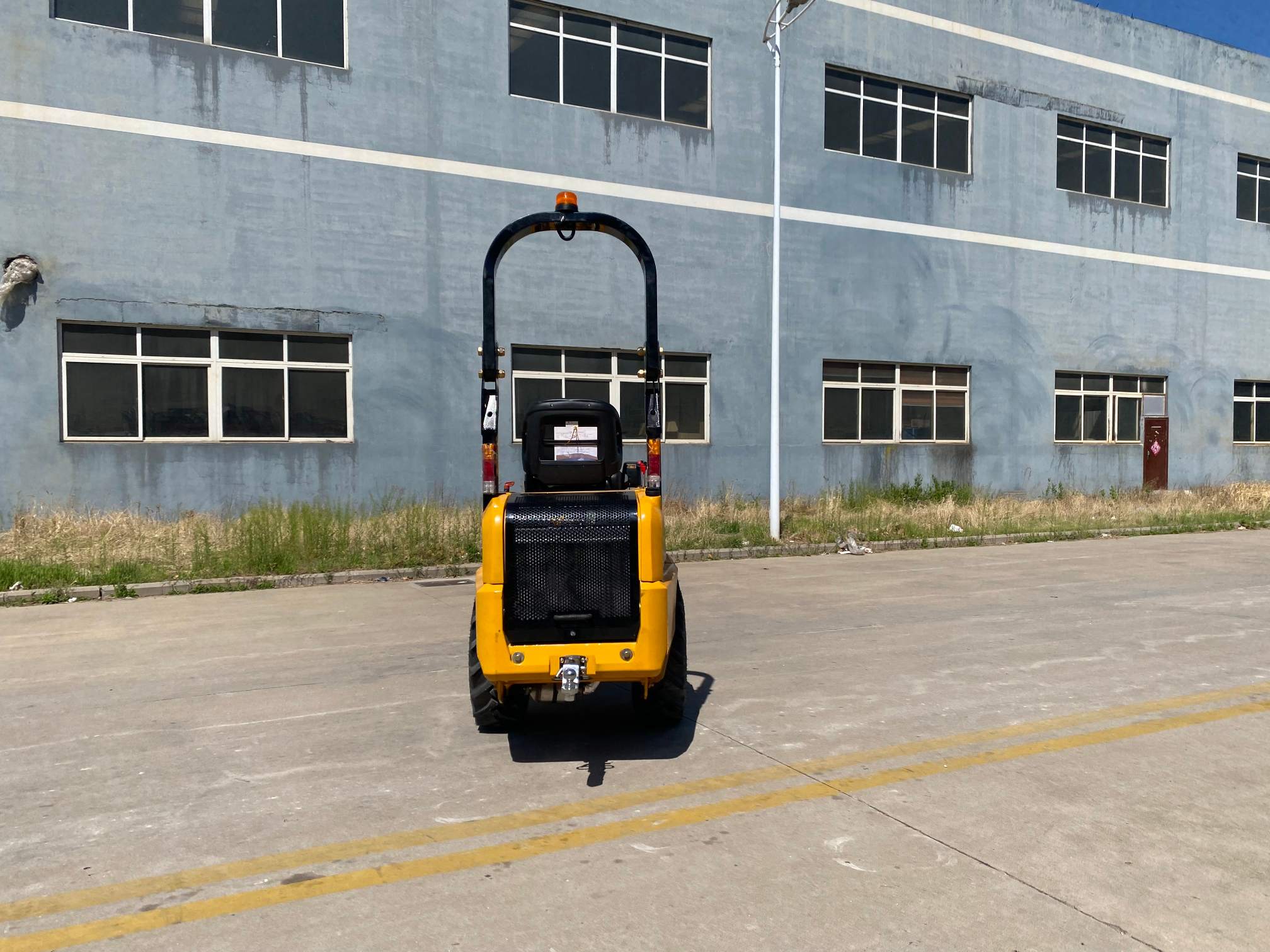

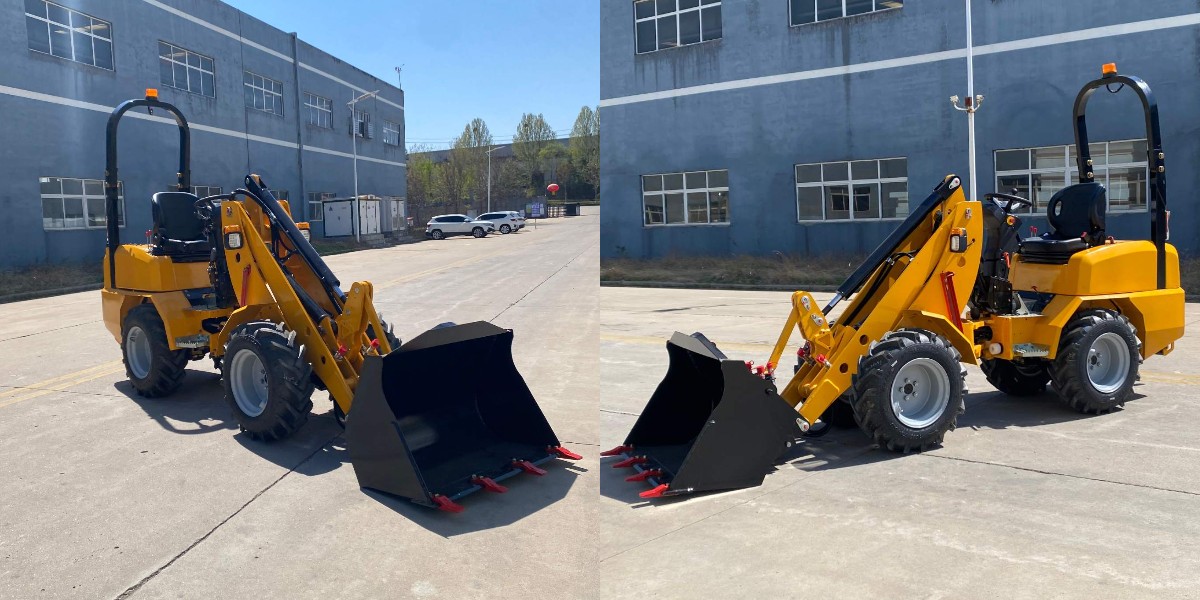

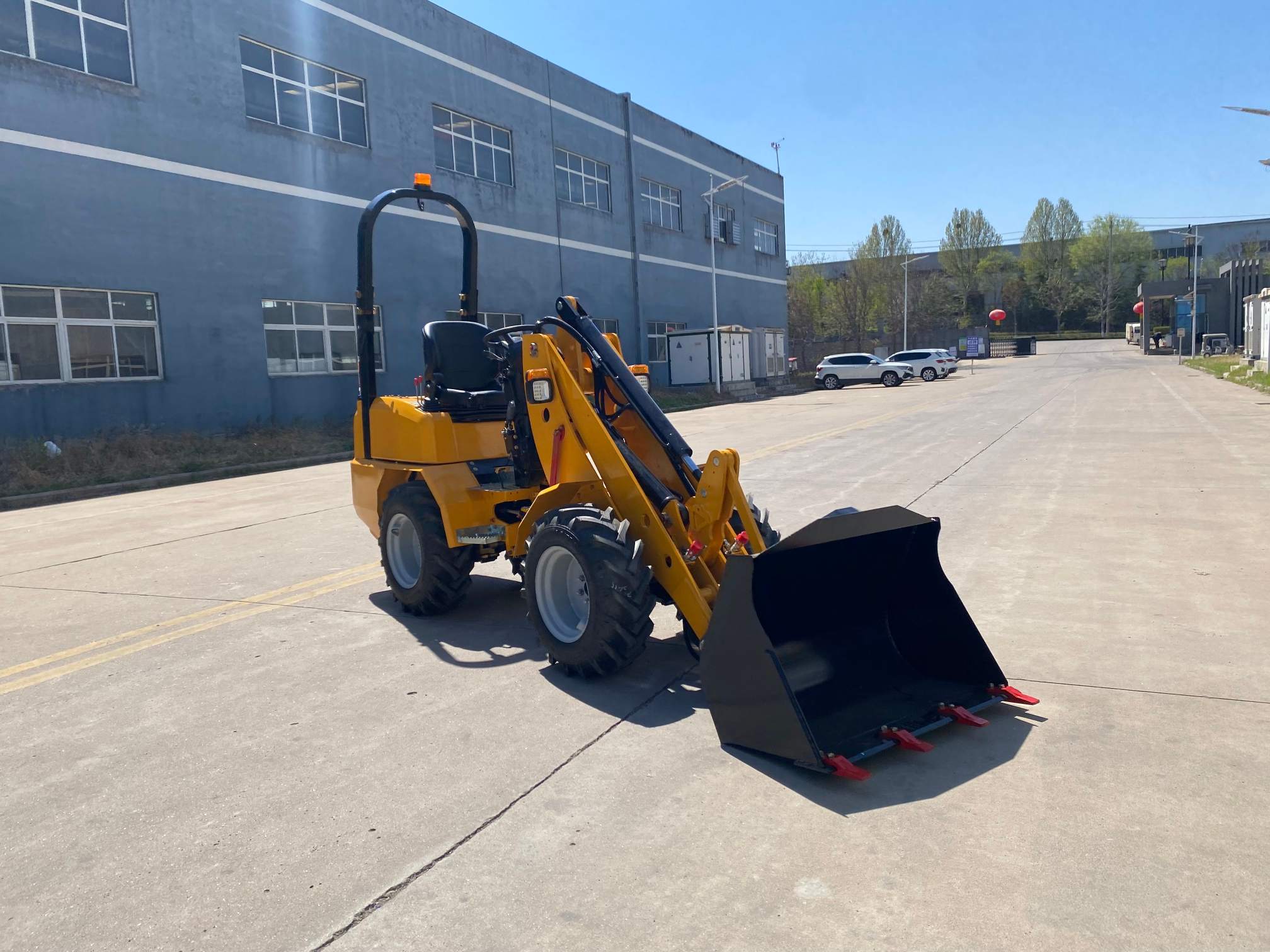

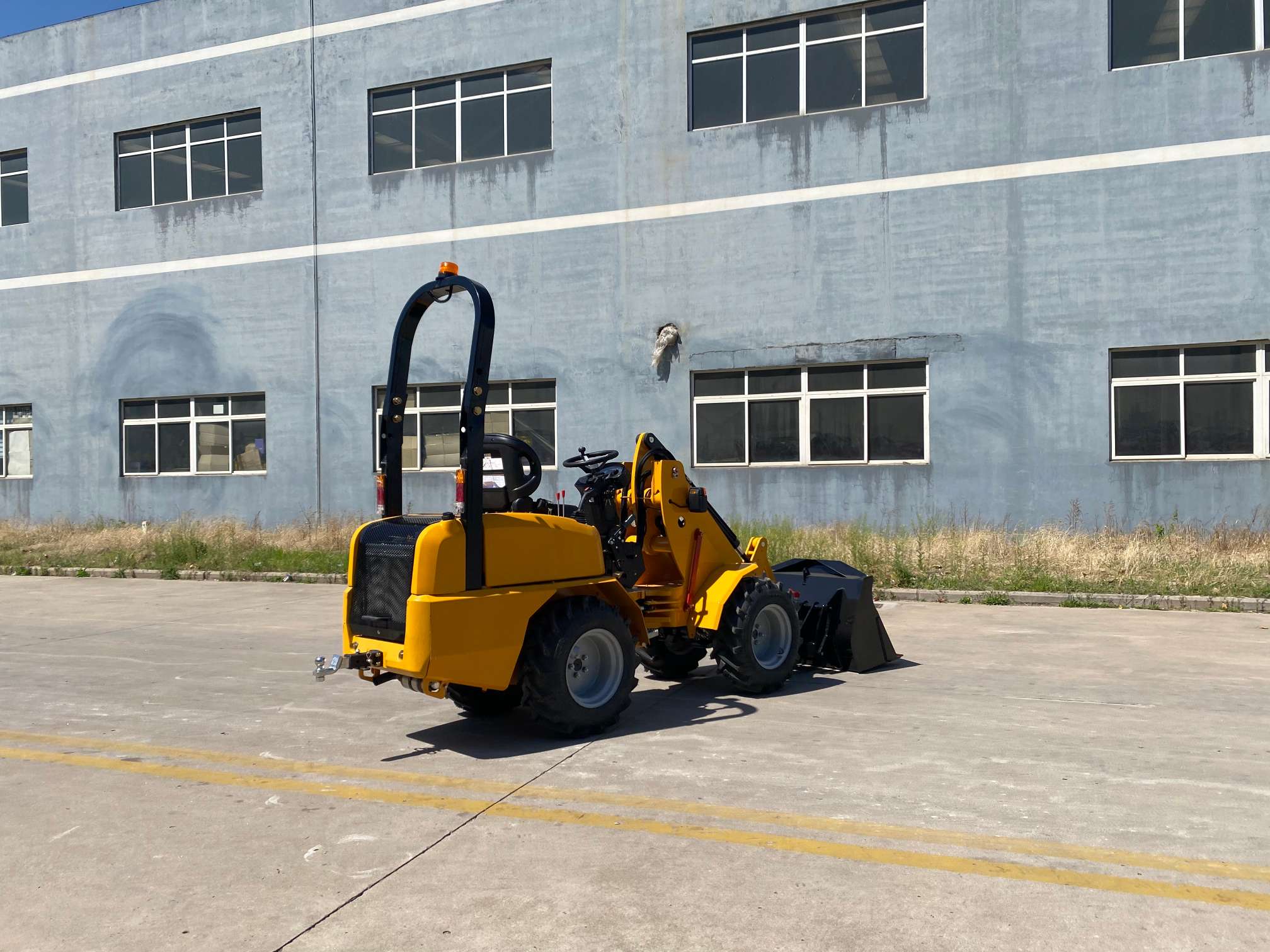

H180 WHEEL LOADER
H180 is latest developed, more compact in construction, lighter in the model and therefore more suitable family farm work as well as narrow place.
1. With compact structure, flexible movement and especially1180mm width, it is particularly helpful and useful in narrow place where it is difficult for large machinery to work.
2. Adopted the original hengyuan hydraulic system of the China, whose system us electric controlling, guarantees smooth
transmission and high reliability.
3. Parallel lifting devices makes the bucket have no angle change in the process of the rising and landing.
4. Whole operable seat and engine hood make it convenient for cleaning and maintenance work.
The advantages of the H180 loader include flexible steering, small turning radius, stable body, low failure rate, and adaptability to narrow field operations.
Product Specifications
Weight | 2000kg |
Rated load | 800kg |
Max. load | 1000kg |
Bucket width | 1150mm |
Bucket capacity | 0.3cbm |
Max. grade ability | 30° |
Min. ground clearance | 200mm |
Wheelbase | 1540mm |
Track base | 872mm |
Steering angle | 49° |
Dump height | 2260mm |
Lift height | 3600mm |
Hinge pin height | 3000mm |
Dump distance | 920mm |
Overall dimension (L*W*H) | 4300x1150x2450mm |
Dump angle | 45° |
Engine brand/model | LAIDONG LL385BT |
Emission standard | EURO5 |
Cooling type | Water cooled |
Rated Power | 18.8kw |
Number of cylinders | 3 |
Optional engine | EPA4/EURO5 Kubota/Perkins/Yanmar |
Transmission type | Hydrostatic(Piston pump+motor) |
Drive type | Four wheel drive |
Oscillation angle | 7.5° |
Max. speed | 20km/h |
Hydraulic system flow rate | 42L/min |
Max. hydraulic system pressure | 200bar |
Voltage | 12V |
Starter type | Electric |
Standard tyre model | 10.0/75-15.3 |
Optional tyre model | 31*15.5-15 or 400/60-15.5 |
Hydraulic oil tank capacity | 45L |
Fuel tank capacity | 45L |
Warranty time | 1 year or 1200 working hours,whichever comes first. |
Packing quantity | 3Units(1*20HQ) 7Units(1*40HC) |
