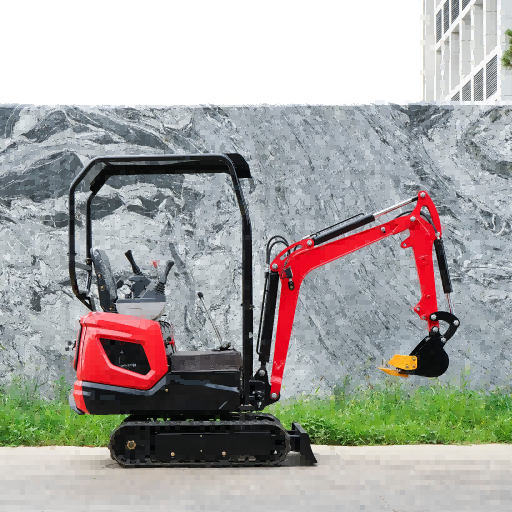

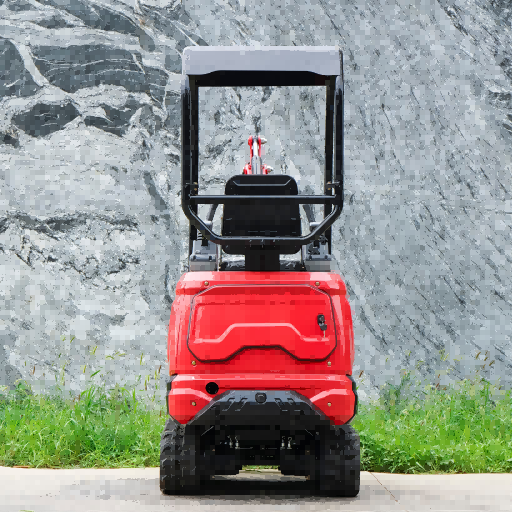

1.2-Ton Compact Excavator
1、The Gongwo WK12 Mini Excavator offers multiple models for selection.
2、It is equipped with an imported engine and an excellent hydraulic system, delivering more powerful power and ensuring smoother operation.
3、The 1.2 Ton Mini Excavator is powered by renowned engines from Briggs & Stratton, Kubota, and Koop, all meeting EPA and Euro5 emission standards for superior performance and eco-compliance.
4、It comes with standard features including an upperarm feature.
5、Boasting a durable design, it has an upgraded, more powerful structure with a one-piece cast iron construction, built on excellent quality.
6、The luxury cabin features an ergonomically designed driver's seat, providing a luxurious and comfortable operating environment to enhance productivity.
7、Optional features include a cabin, side swing, extendable chassis, as well as air conditioning and heating, for improved comfort and efficiency.
As a 1.2-ton excavator, the WK12 features a 1200kg lightweight body as its core advantage, precisely adapting to narrow-space operation scenarios.
The power system comes standard with a KOOP192 engine, boasting 7KW rated power and air-cooled heat dissipation for stable and efficient performance. An optional Kubota D722 engine (10.2kw power) is available to meet higher power demands. With a travel speed of 2.1km/h, it balances operational efficiency and energy consumption control.
Excavation configurations focus on precision work: a 0.018m³ small bucket (400mm wide), combined with a maximum digging height of 2283mm, maximum digging radius of 2507mm, and maximum digging depth of 1436mm, ensures high accuracy in vertical digging. A maximum dumping height of 1698mm guarantees convenient unloading, making operations in narrow spaces effortless.
The chassis design enhances passability: 934mm chassis width + 180mm track width + 197mm minimum ground clearance, along with a 15° maximum climbing capacity, allows easy handling of complex terrains. A 3000rpm rotation speed enables flexible and smooth turning and positioning, eliminating pressure in confined spaces.
Optional swing arms, extendable tracks, and enclosed cabs further expand applicable scenarios. Whether for the precise work of garden maintenance, flexible operations in small municipal projects, or space adaptation in indoor demolition, the WK12, with its "small size + strong performance + high adaptability", stands as a practical choice among 1.2-ton excavators, providing efficient solutions for small-scale operations.
Product parameter
Model | WK12 |
Operating weight | 1200kg |
Digging bucket capacity | 0.03m³ |
Bucket width | 400mm |
Engine | KOOP192 |
Heat dissipation mode | Air Cool |
Rated power | 7.6KW |
Optional engine | KOOP 292F 14KW , Kubota D722,10.2KW |
Travel speed | 2.1km/h |
Chassis width | 934mm |
Track width | 180mm |
Minimum ground clearance | 197mm |
Maximum digging height | 2283mm |
Maximum unloading height | 1698mm |
Maximum excavation radius | 2507mm |
Maximum digging depth | 1750mm |
Vertical digging depth | 1436mm |
Minimum radius of tum | 1371mm |
Turning speed | 3000pm |
Maximum climbing capacity | 15° |
Working pressure | 16MPa |
Optional | Swing boom ,telescopic tracks,Enclosed cabin |

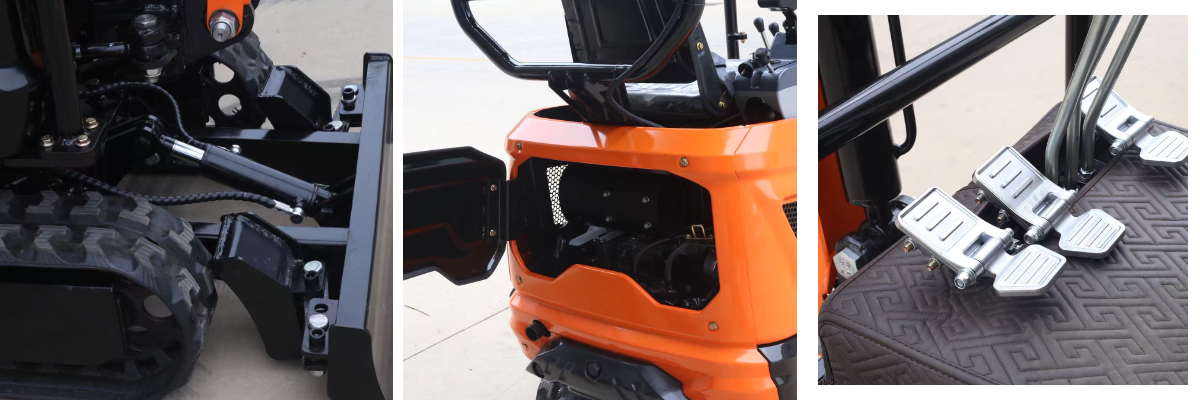

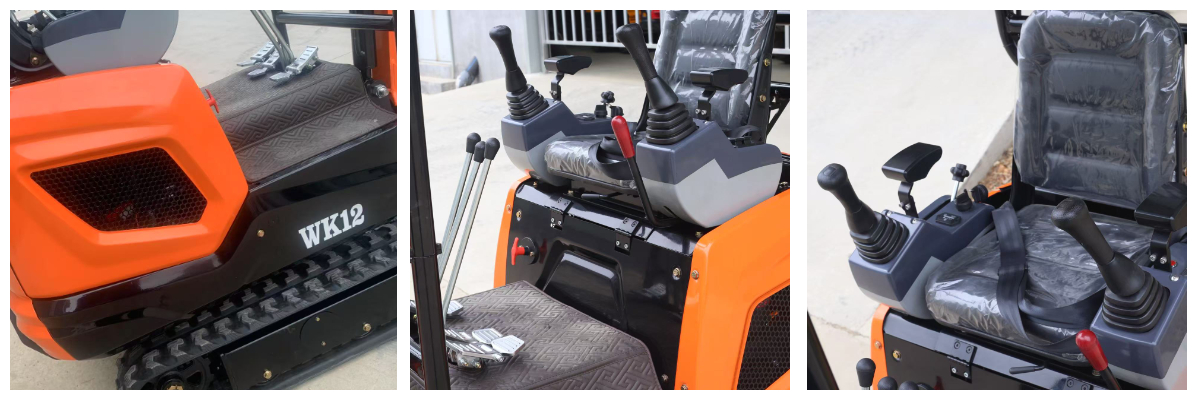

Product Details

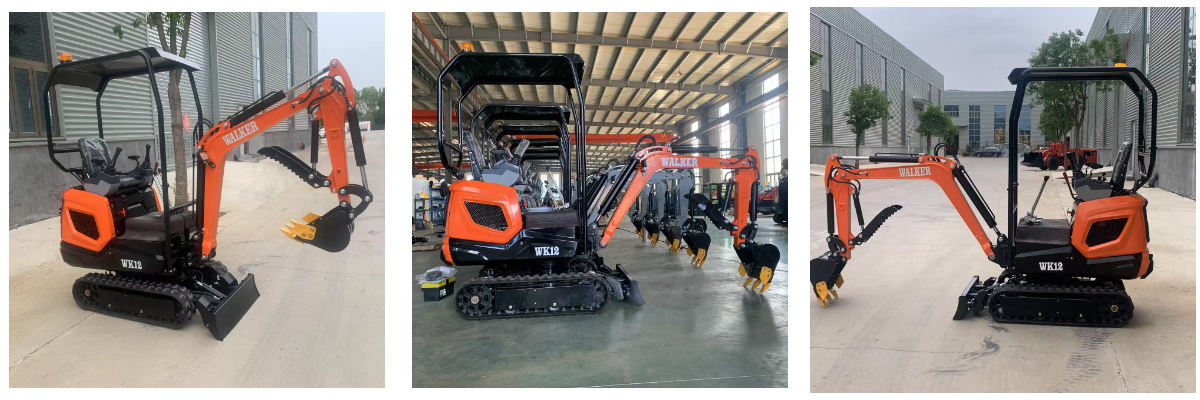

Product Show

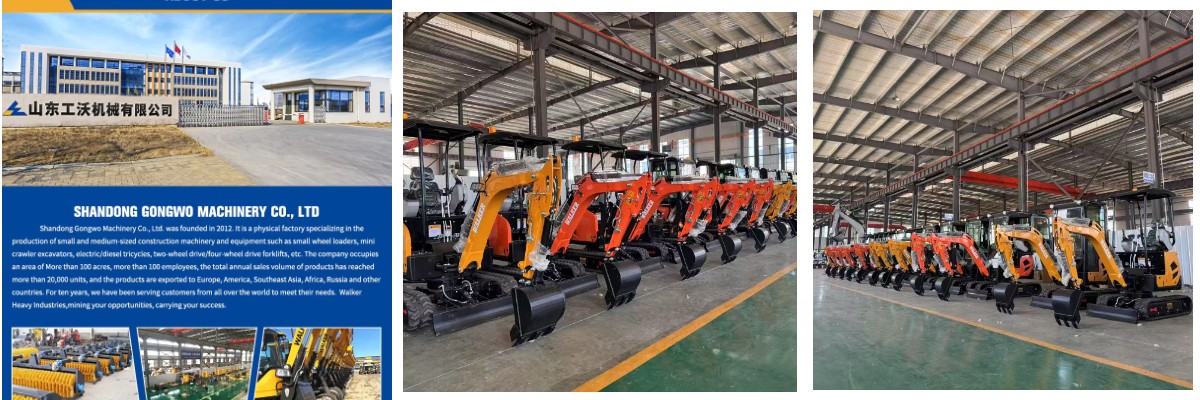

Company
