1.5-ton mini excavator

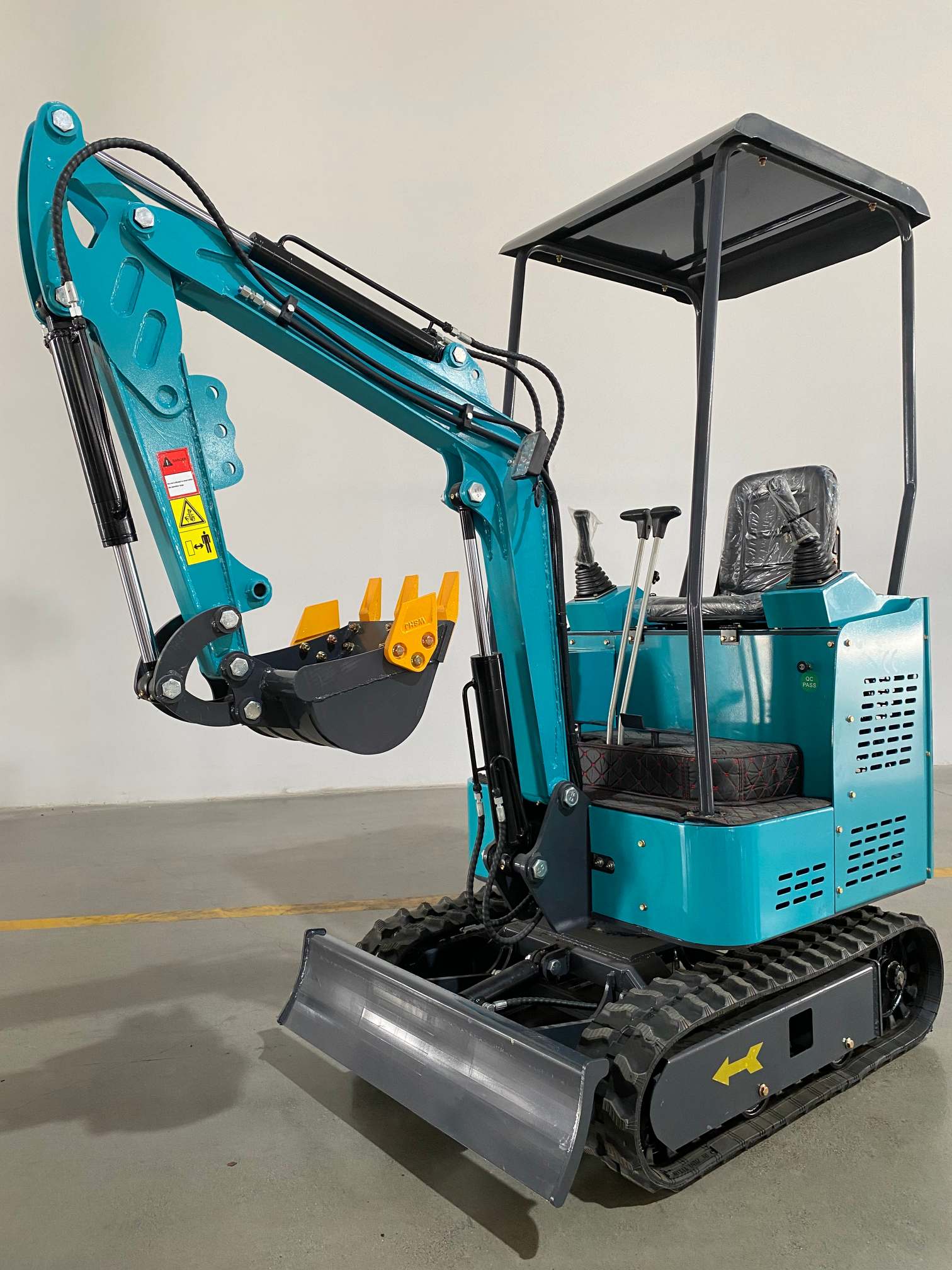

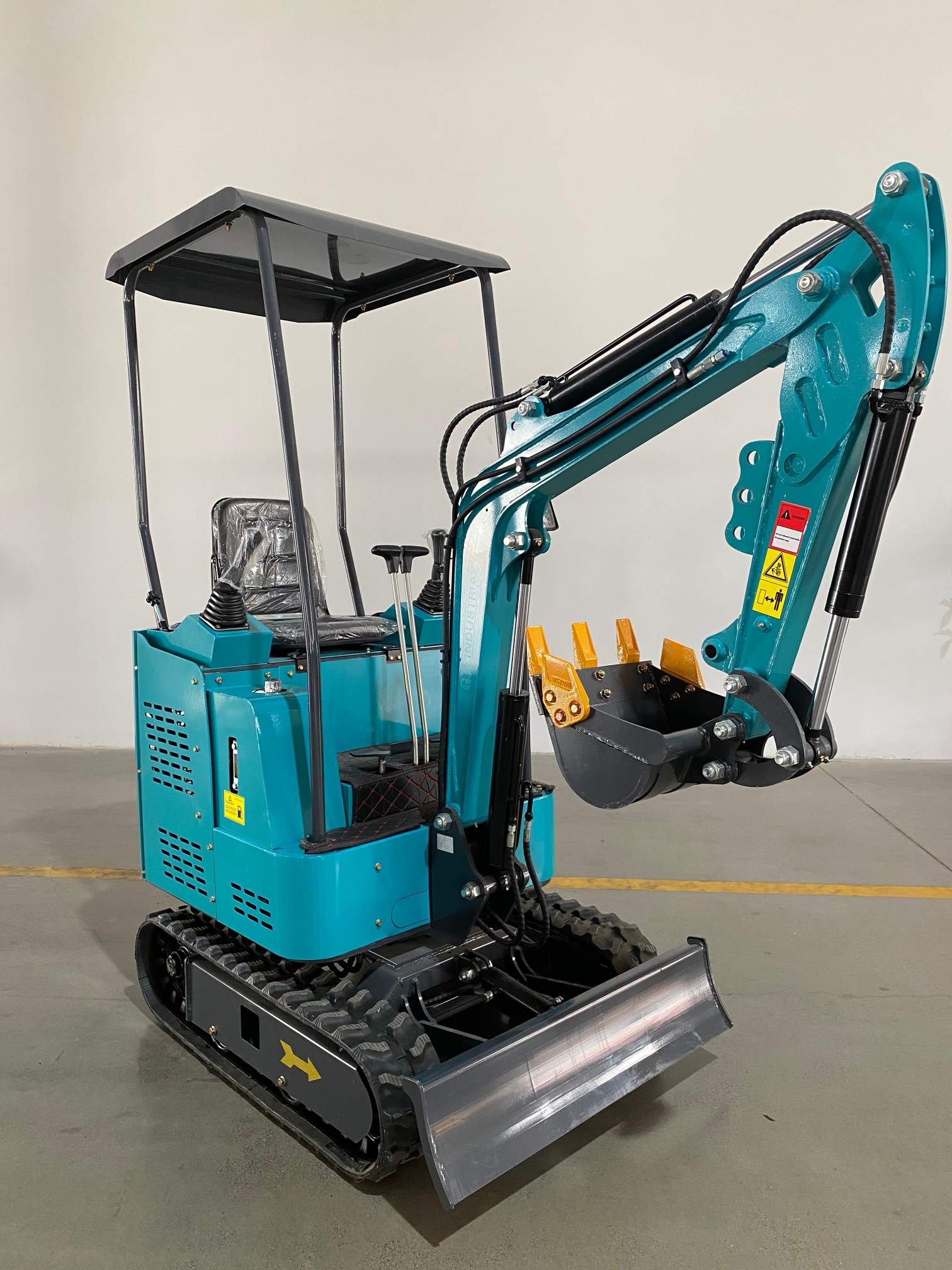

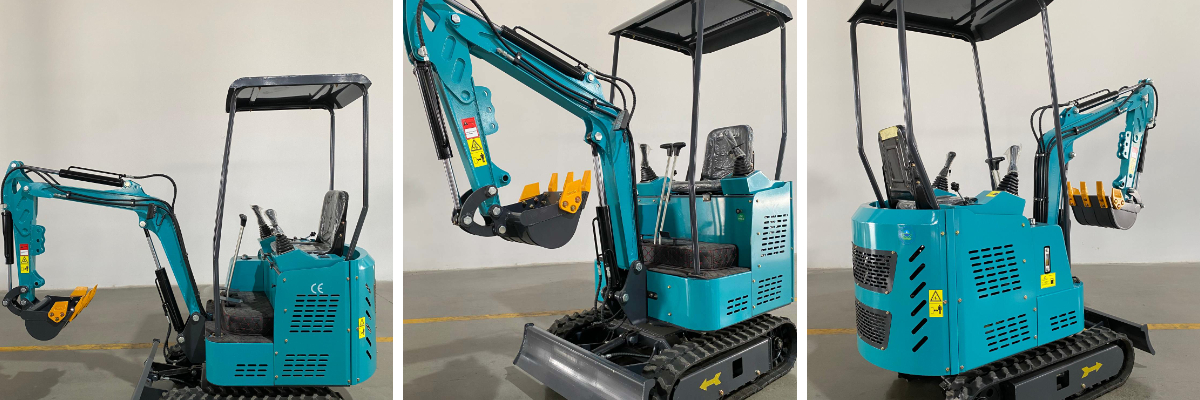

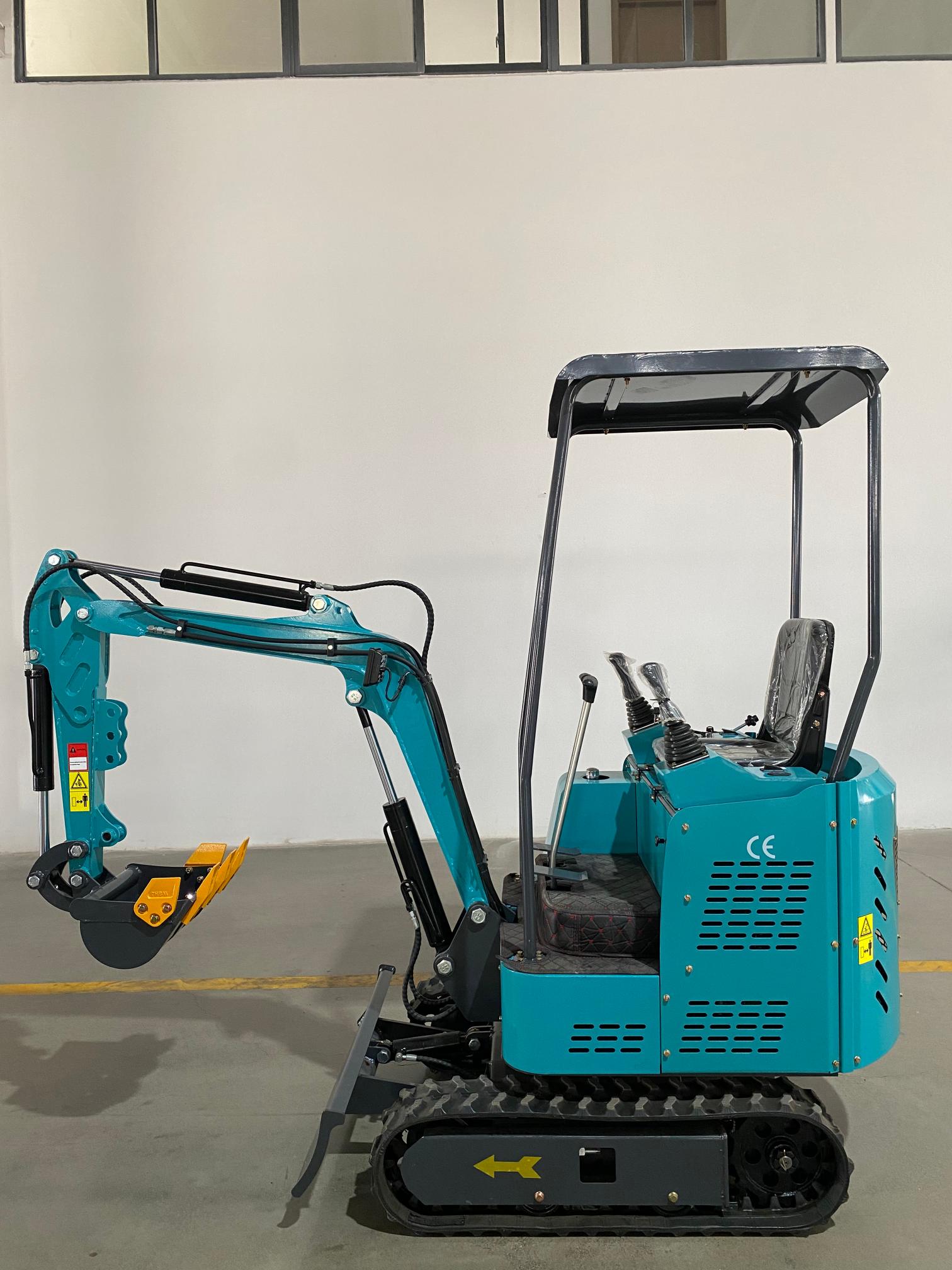

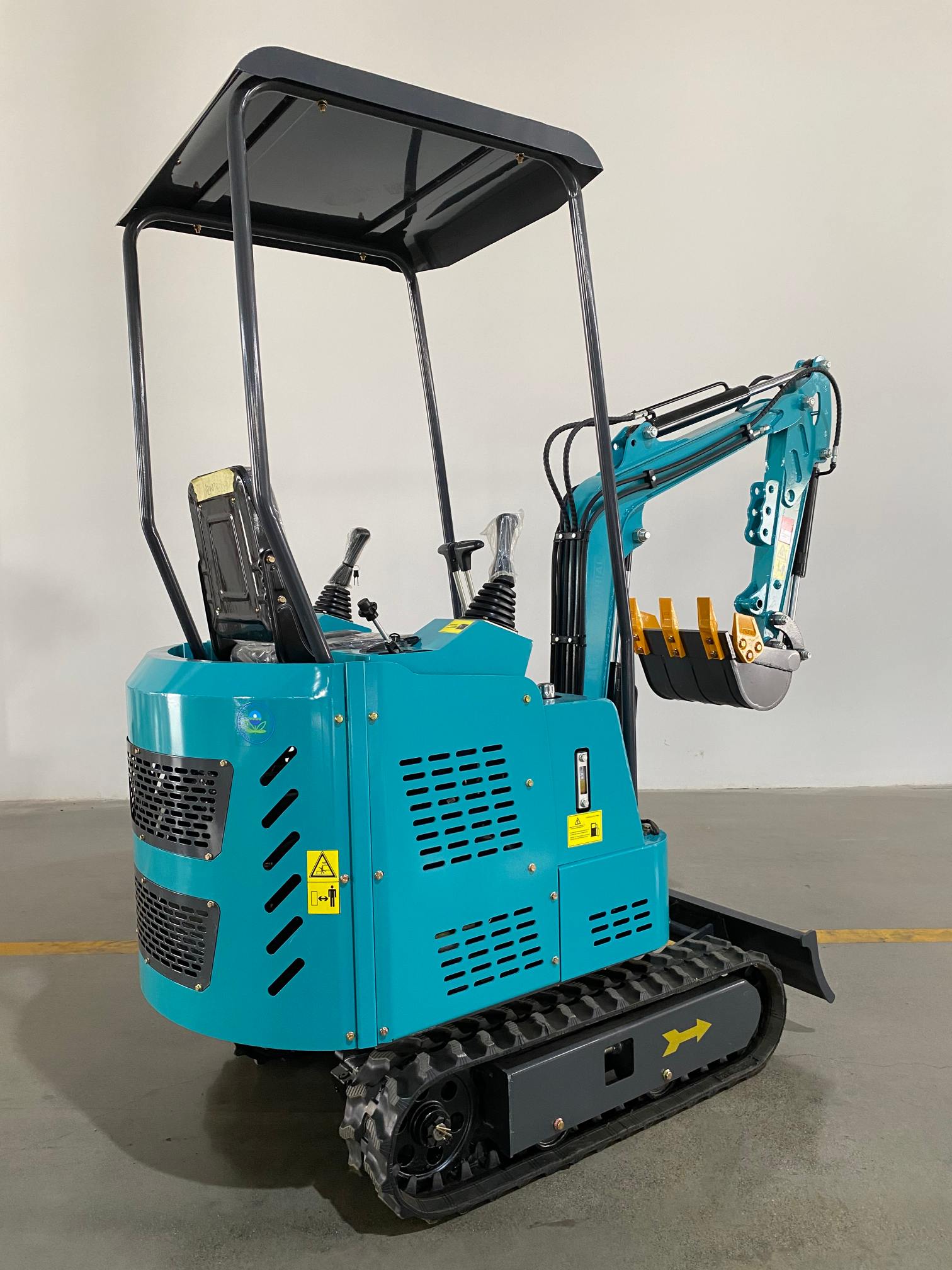

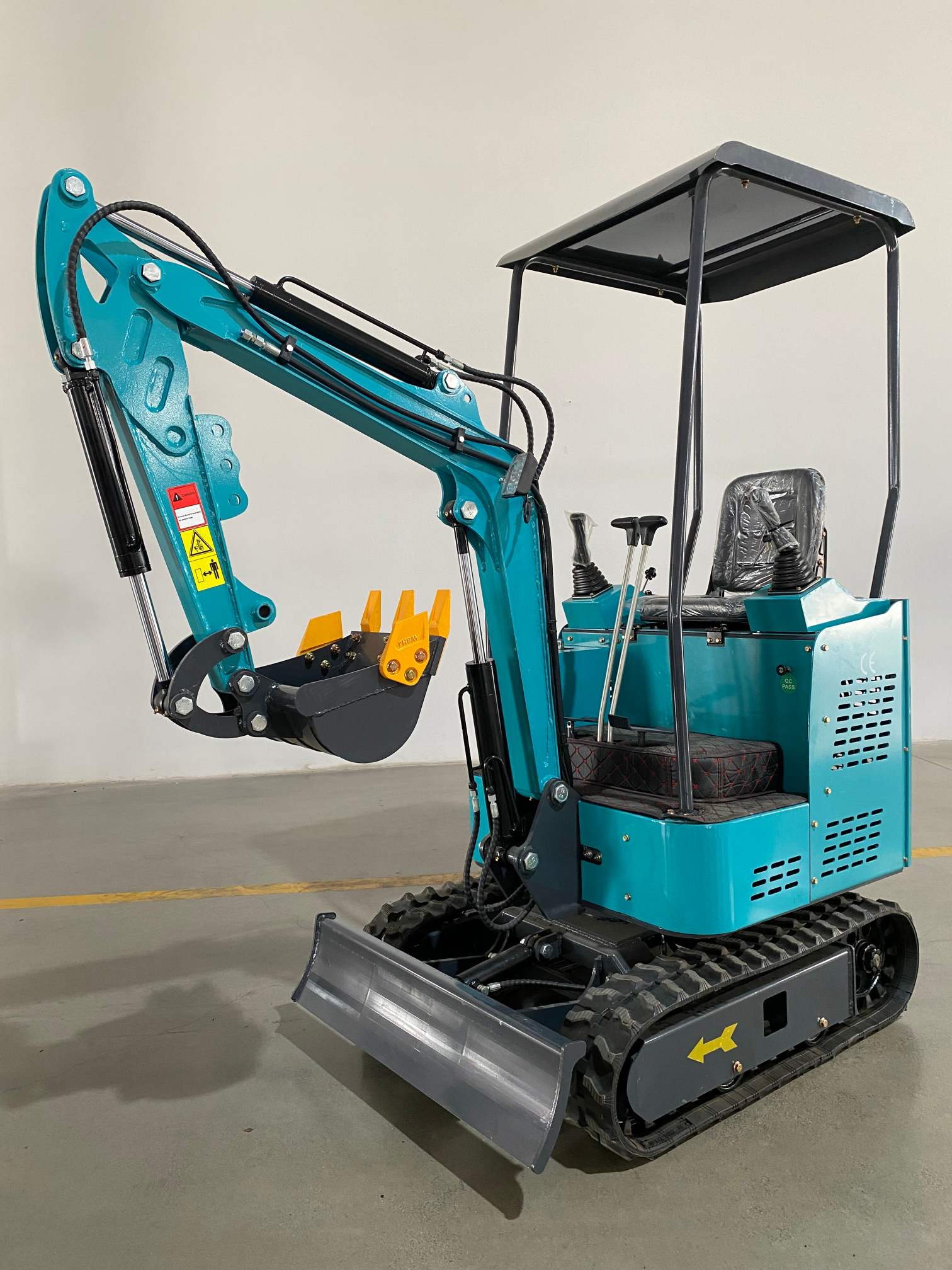

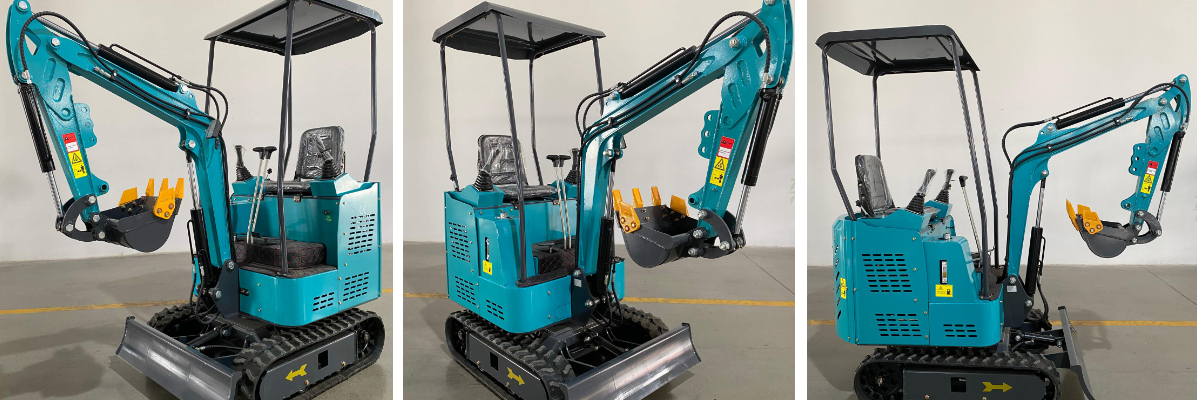

WK15 1.5-ton Excavator Product Details

The WK15 1.5-ton excavator, with its perfect integration of a compact body and reliable performance, stands as an ideal choice for small-scale engineering operations. With an operating weight precisely controlled at 1500kg, it not only ensures operational stability but also can be easily towed by an ordinary pickup truck, significantly reducing transportation costs for cross-site operations.

The power system is equipped with the internationally renowned KUBOTA engine, with a rated power of 10.2kW. Meanwhile, Briggs & Stratton gasoline engines and KOOP engines are available as alternative options to meet usage habits and environmental protection requirements in different regions. The three-cylinder water-cooled heat dissipation design ensures the equipment maintains stable working conditions during continuous operation. Combined with a travel speed of 2.5km/h, it balances movement efficiency and operational safety.

It excels in spatial adaptability: with overall dimensions (length×width×height) of 2450×1100×2200mm and a minimum rotation radius of 1330mm, it can flexibly maneuver even in narrow environments such as alleyways in urban villages and courtyards. The 740mm platform back turning radius enables nearly zero-tail safe operation, greatly reducing the risk of collisions. The 1050mm chassis width, 180mm track width, and 135mm chassis ground clearance ensure stable passage on complex terrains like mud and gravel, while the 1230mm total track length further enhances the machine's anti-overturning capability.

Its operational performance can be described as "small body with great power": the maximum digging depth reaches 1750mm, easily handling tasks such as small foundation excavation and ditch cleaning; the maximum digging height of 2650mm and maximum dumping height of 1850mm meet the needs of material transfer and stacking; the maximum digging radius on the ground of 2850mm expands the operation coverage, and the maximum climbing capacity of 35° is sufficient for sloped working scenarios such as rural hillsides and orchard terraces.

The equipment comes standard with a reinforced bucket with a capacity of 0.03m³ and a width of 400mm, made of high-strength wear-resistant steel, suitable for various working conditions. Through the quick-change interface, it can quickly switch between attachments such as breakers and grapplers, realizing multi-task conversion including excavation, crushing, tree planting, and pipeline laying. Whether it is municipal maintenance, garden renovation, agricultural planting, or indoor demolition, the WK15 1.5-ton excavator can create greater value for users with its efficient, flexible, and reliable performance.
