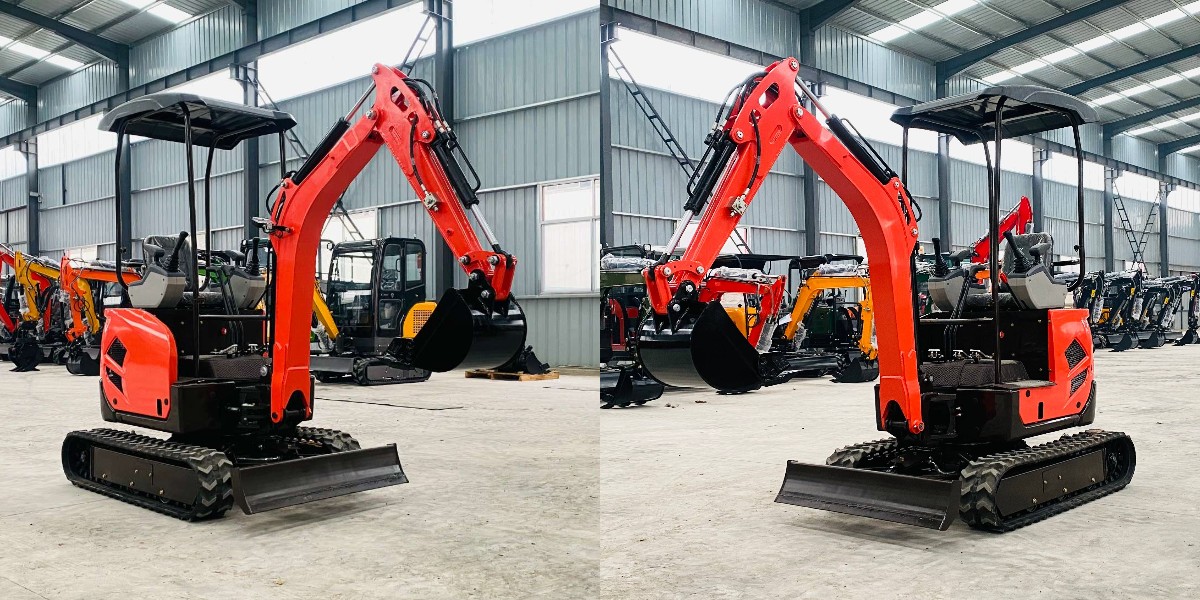

1.8 Ton Mini Excavator
1. Adopting the renowned domestic Laitong 385 engine, three-cylinder, diesel, 26HP (optional :Kubota engine )
2. Upper arm pull-up.
3. Upper arm side swing.
4. Reserve hydraulic tool interface.
5. Check valve.
6. Hydraulic pilot operation.
7.230mm engineering rubber caterpillar.
8. Standard 4-leg roof (replaceable cab).
9. Maximum digging height: 2900mm, maximum unloading height: 1800mm, maximum digging depth: 2200mm

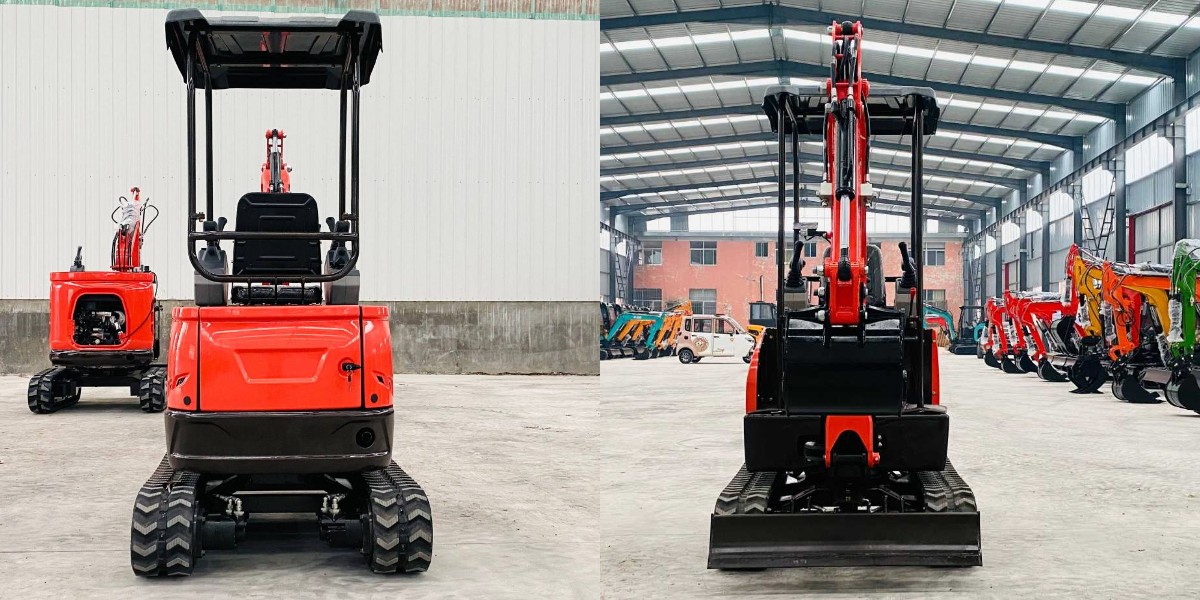

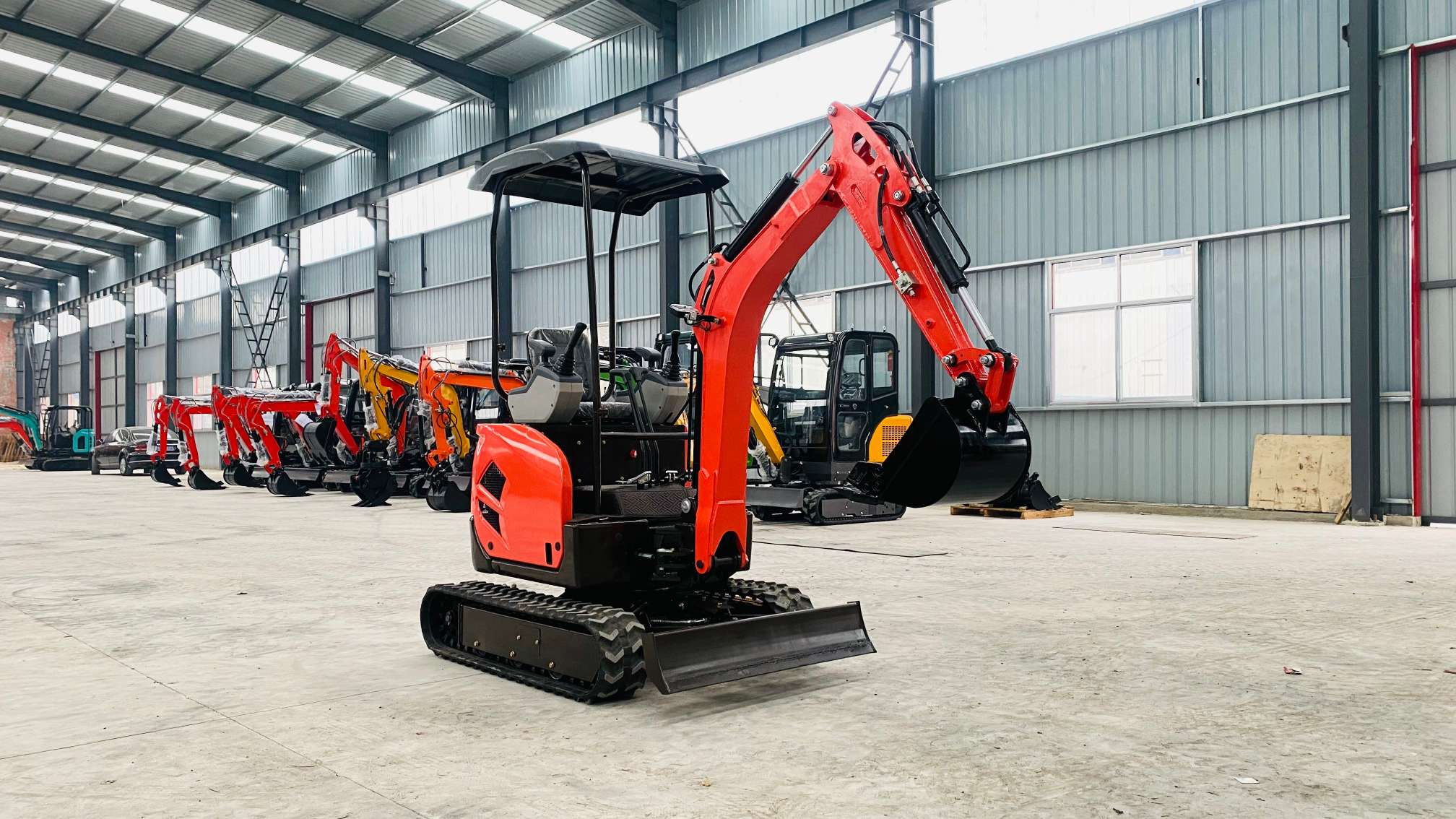

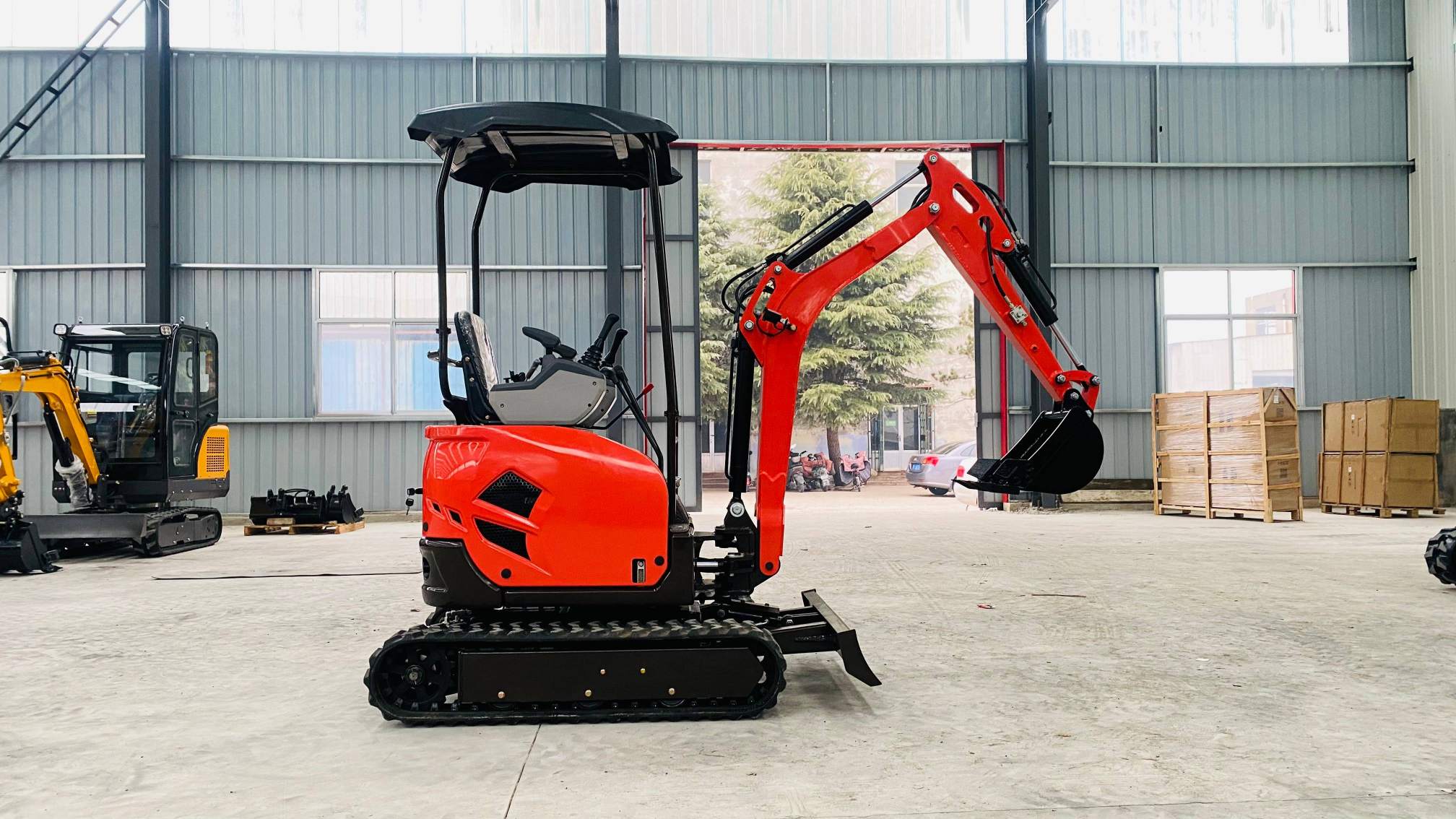

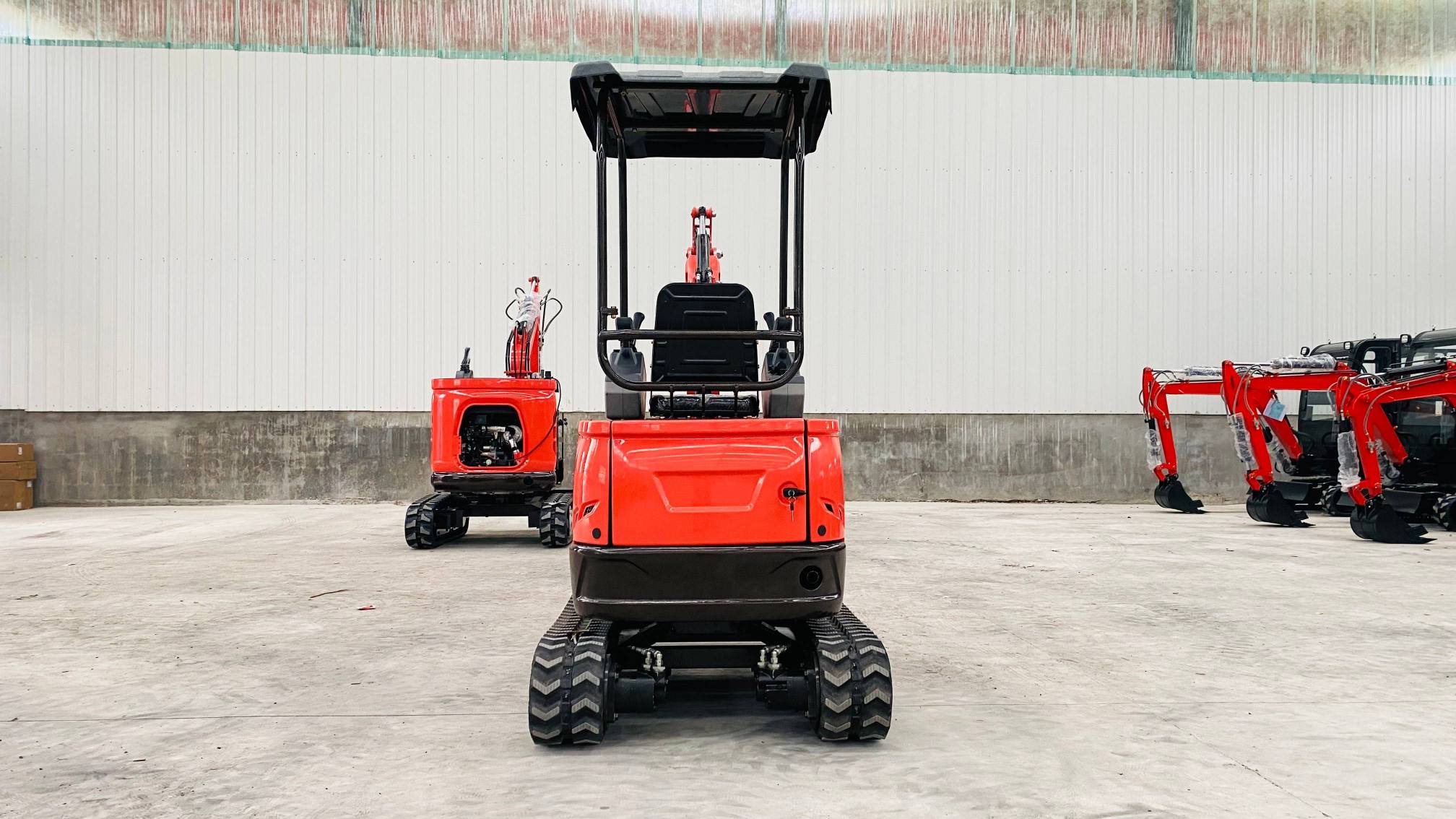

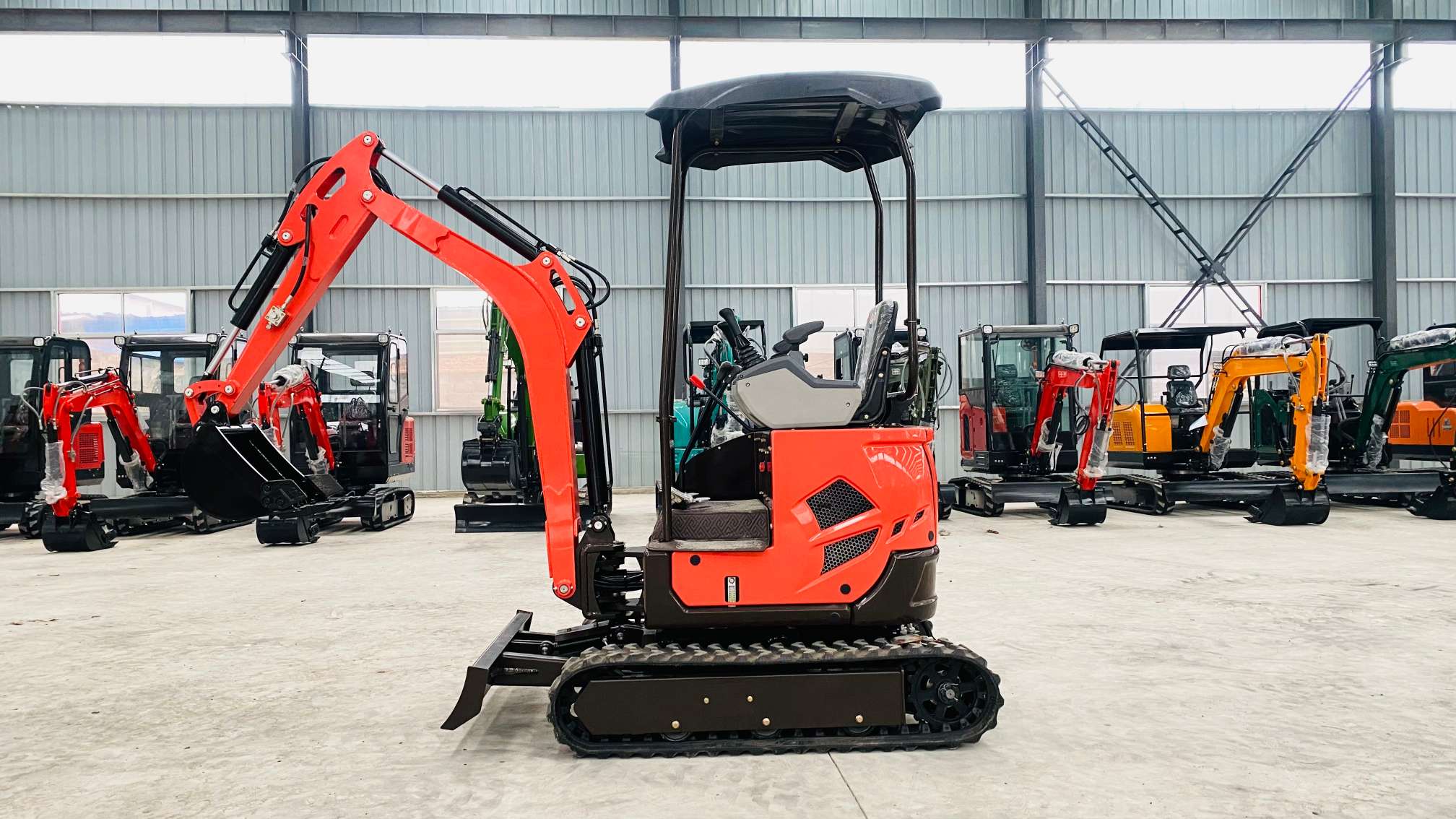

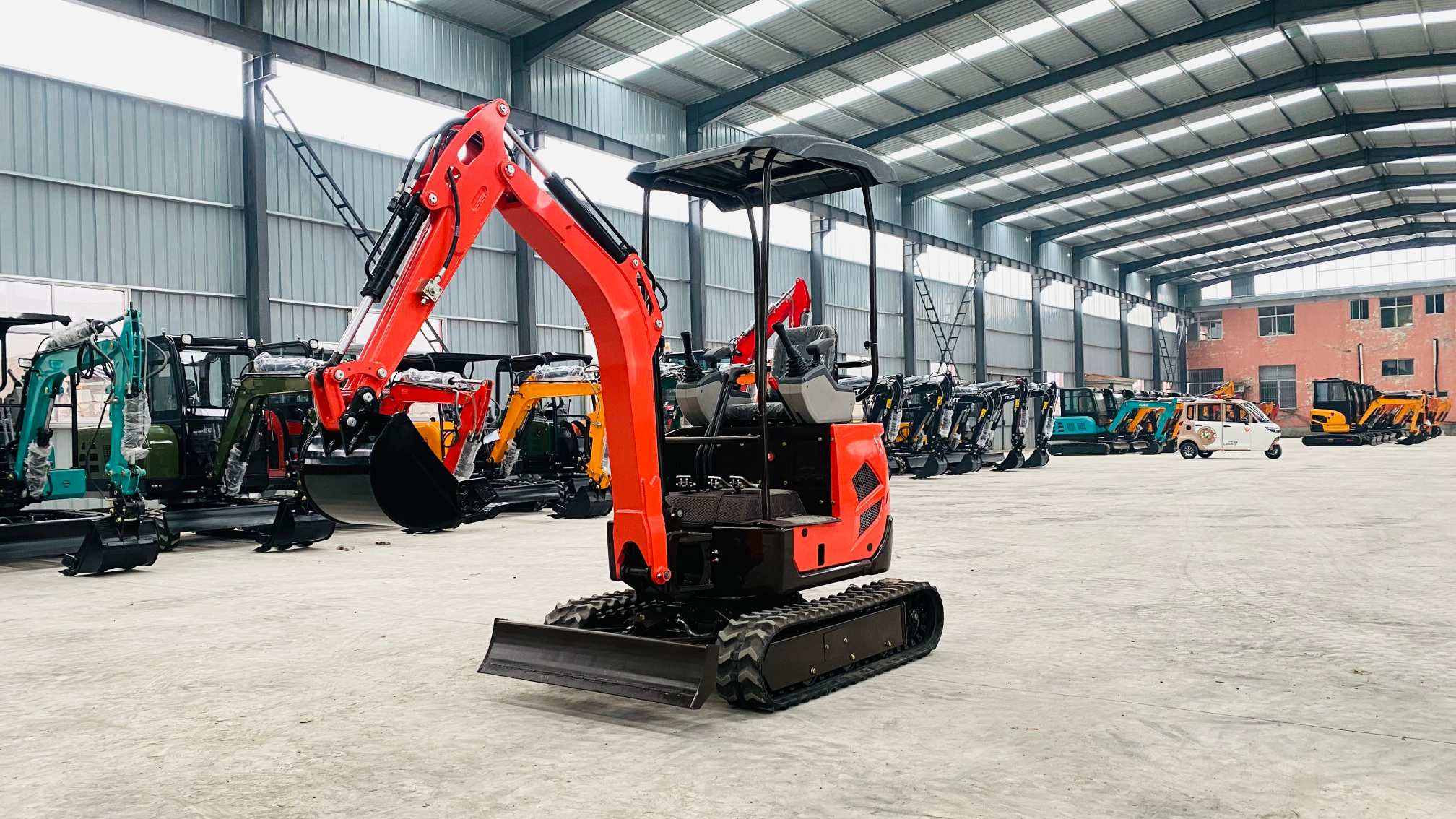

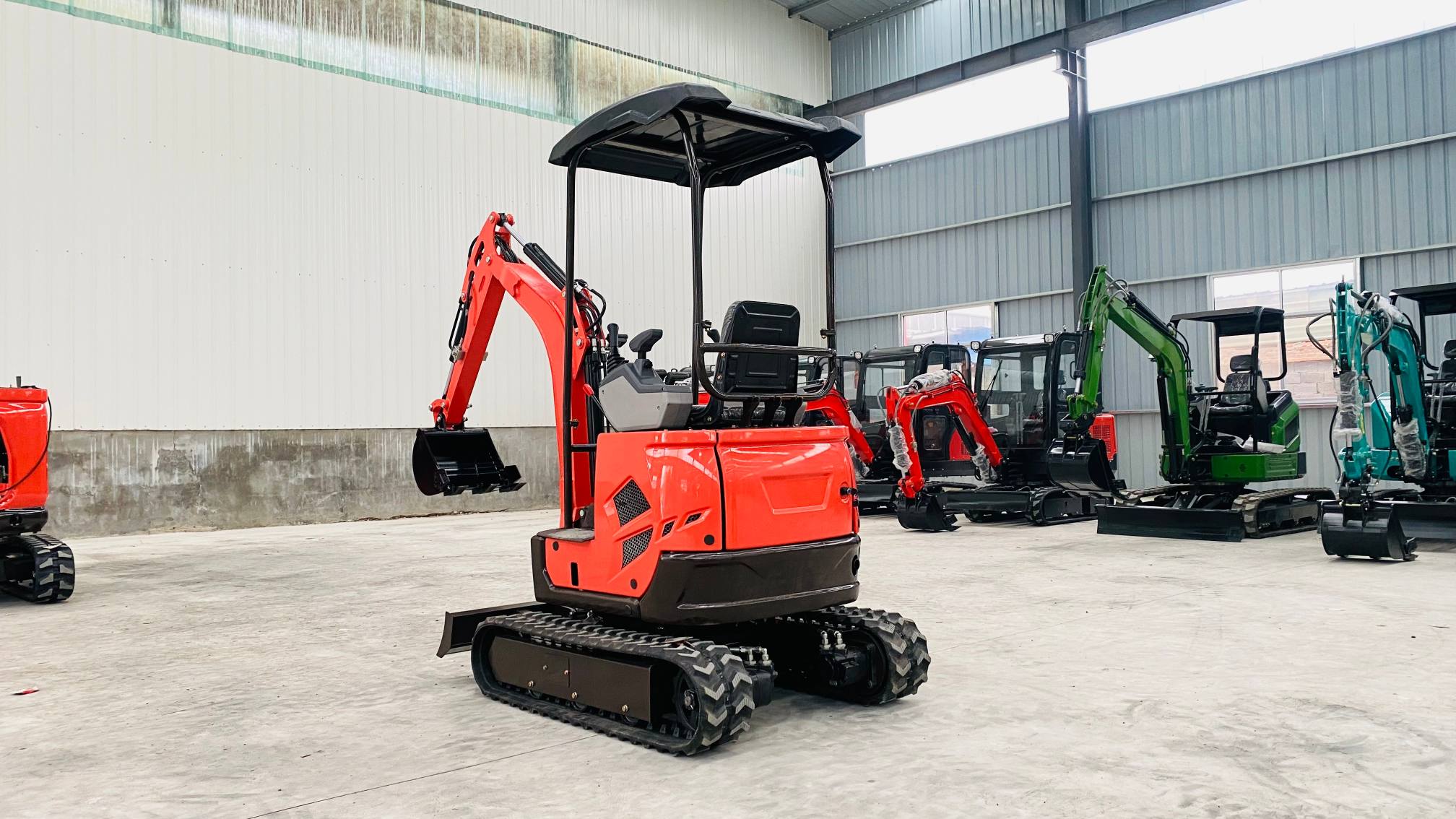

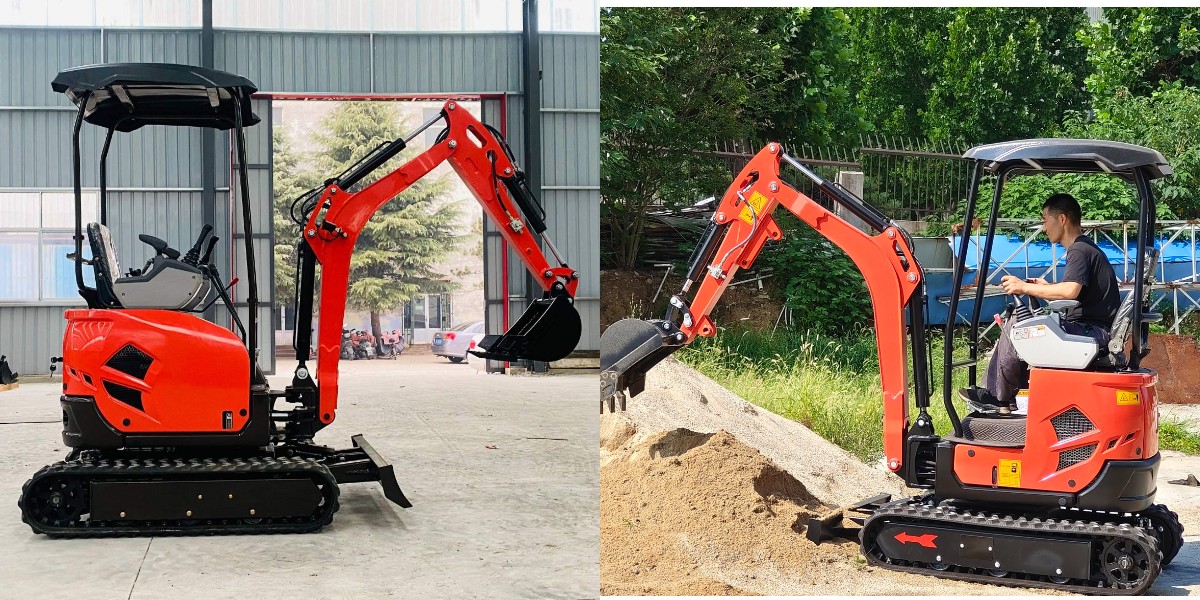

Product Display
1. Adopting the renowned domestic Laitong 385 engine, three-cylinder, diesel, 26HP (optional :Kubota engine )
2. Upper arm pull-up.
3. Upper arm side swing.
4. Reserve hydraulic tool interface.
5. Check valve.
6. Hydraulic pilot operation.
7.230mm engineering rubber caterpillar.
8. Standard 4-leg roof (replaceable cab).
9. Maximum digging height: 2900mm, maximum unloading height: 1800mm, maximum digging depth: 2200mm
Machine parameters
Model | WK18 |
Operating weight | 1800kg |
Digging bucket capacity | 0.04m³ |
Bucket width | 400mm |
Engine | Laidong 385(Euro 5) |
Rated power | 18.1kw |
Optional engine | Kubota D722,kubota D902 |
Travel speed | 2.1km/h |
Track length | 934mm |
Track width | 230mm |
Minimum ground clearance | 380mm |
Maximum digging height | 2900mm |
Maximum dumping height | 1780mm |
Maximum excavation radius | 2507mm |
Maximum digging depth | 2200mm |
Bulldozer Maximum Depth | 325mm |
Minimum radius of tum | 3500mm |
Angle of roll | 45° |
Swing Angle | 360° |
Working pressure | 18MPa |
Standard | Swing boom ,upper arm |
Optional | Telescopic tracks,Enclosed cabin |

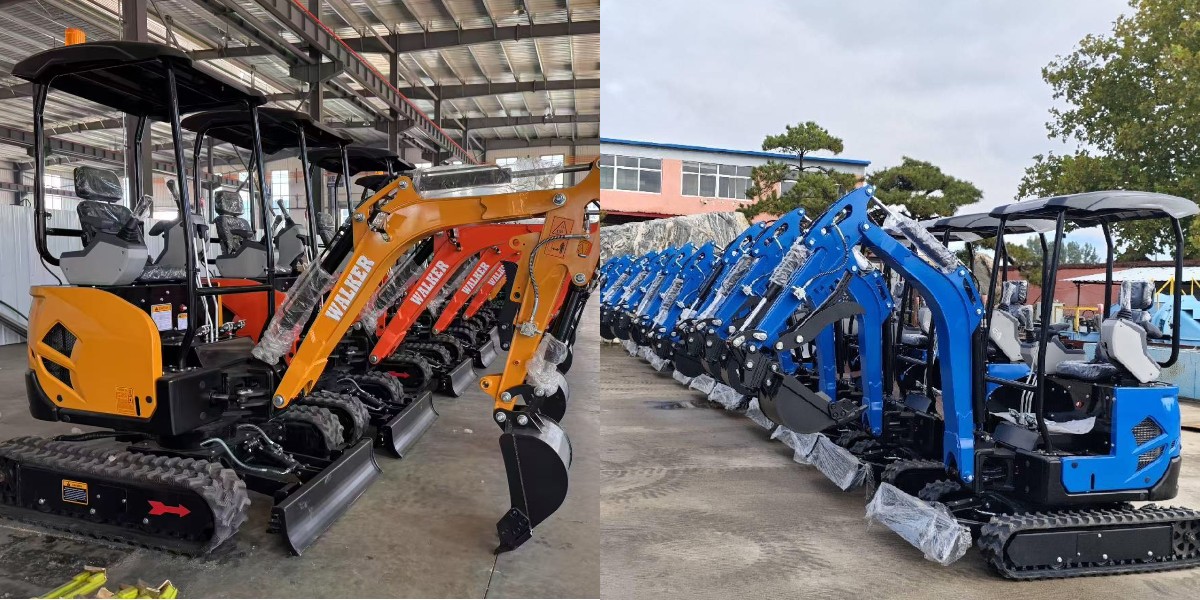

Workshop

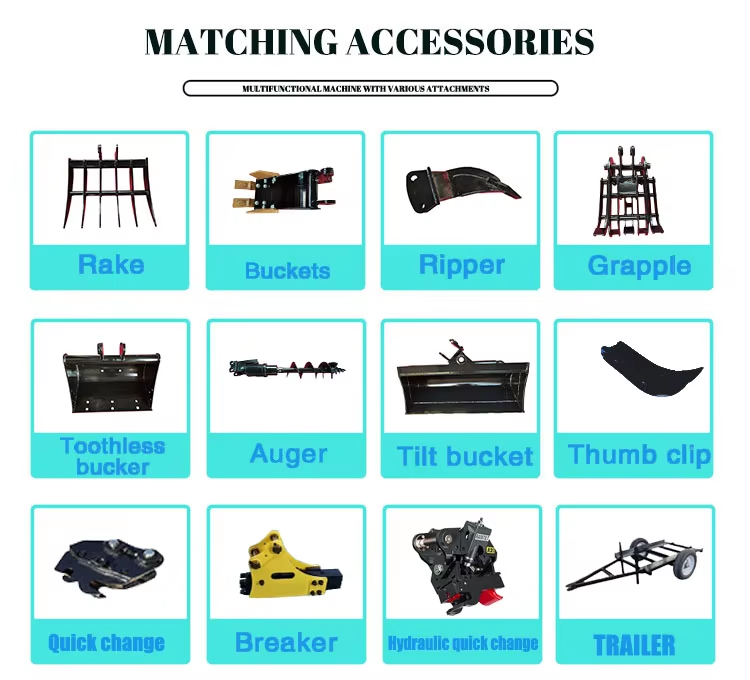

Attachments
