2 ton excavator

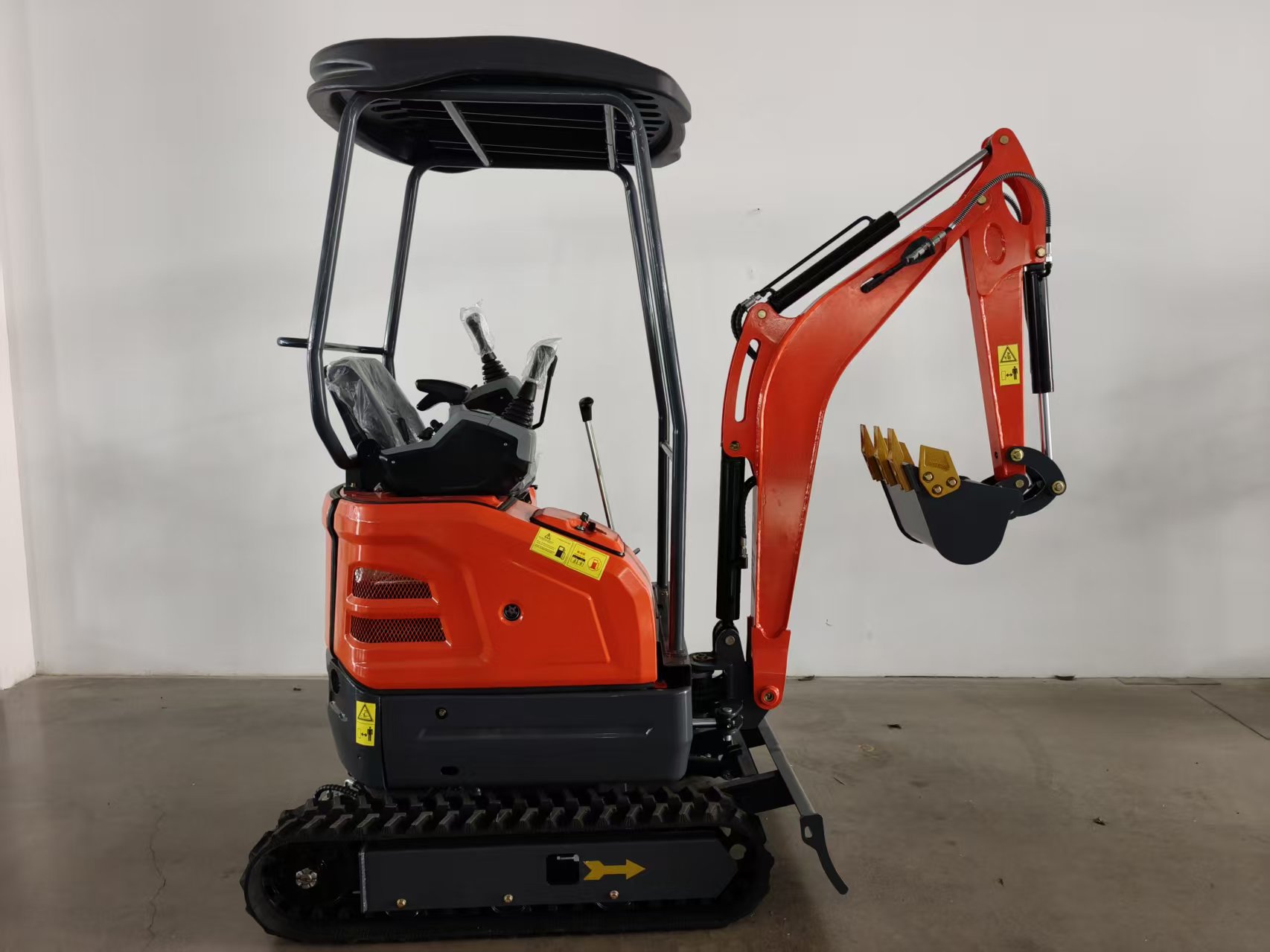

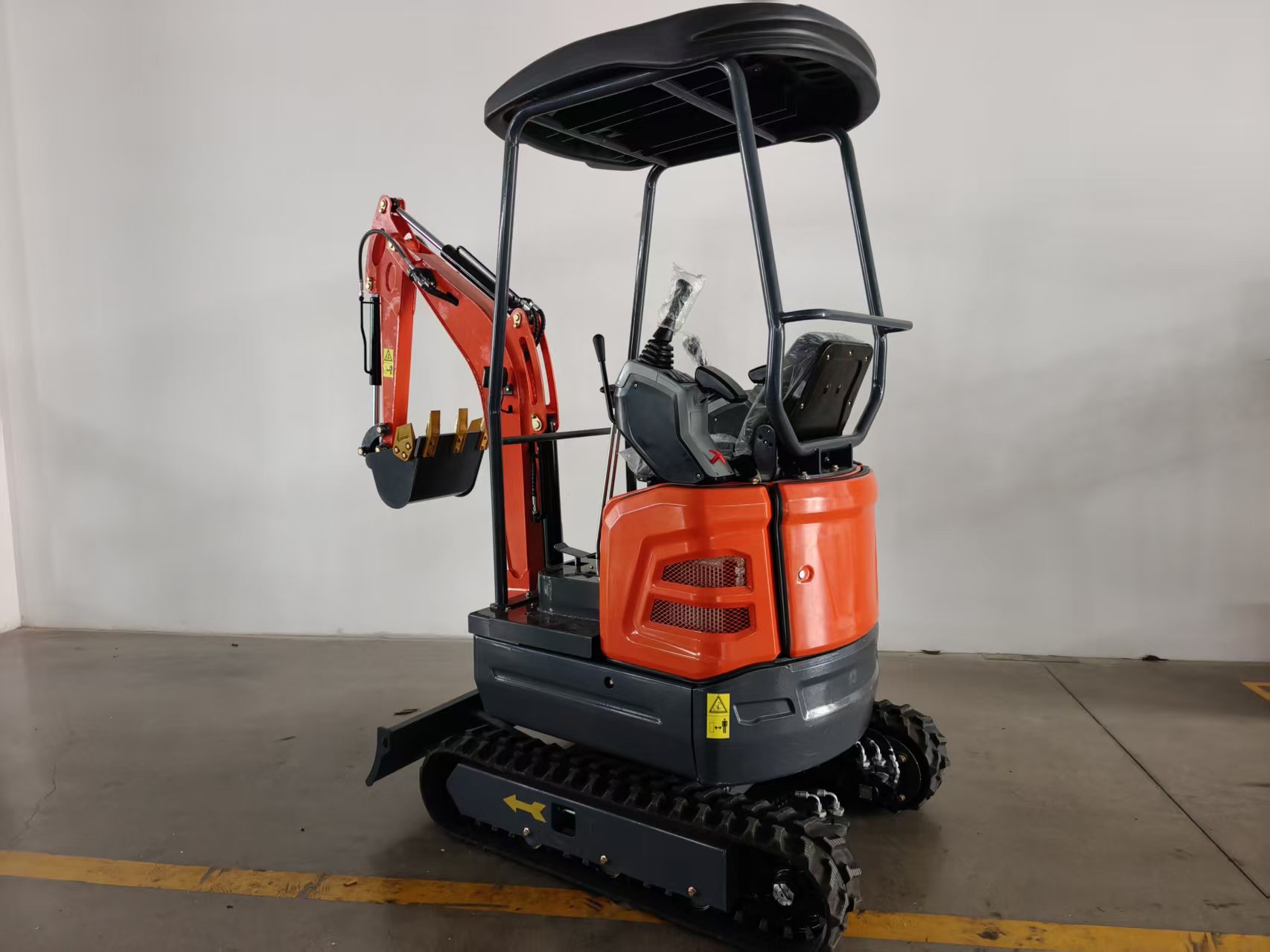

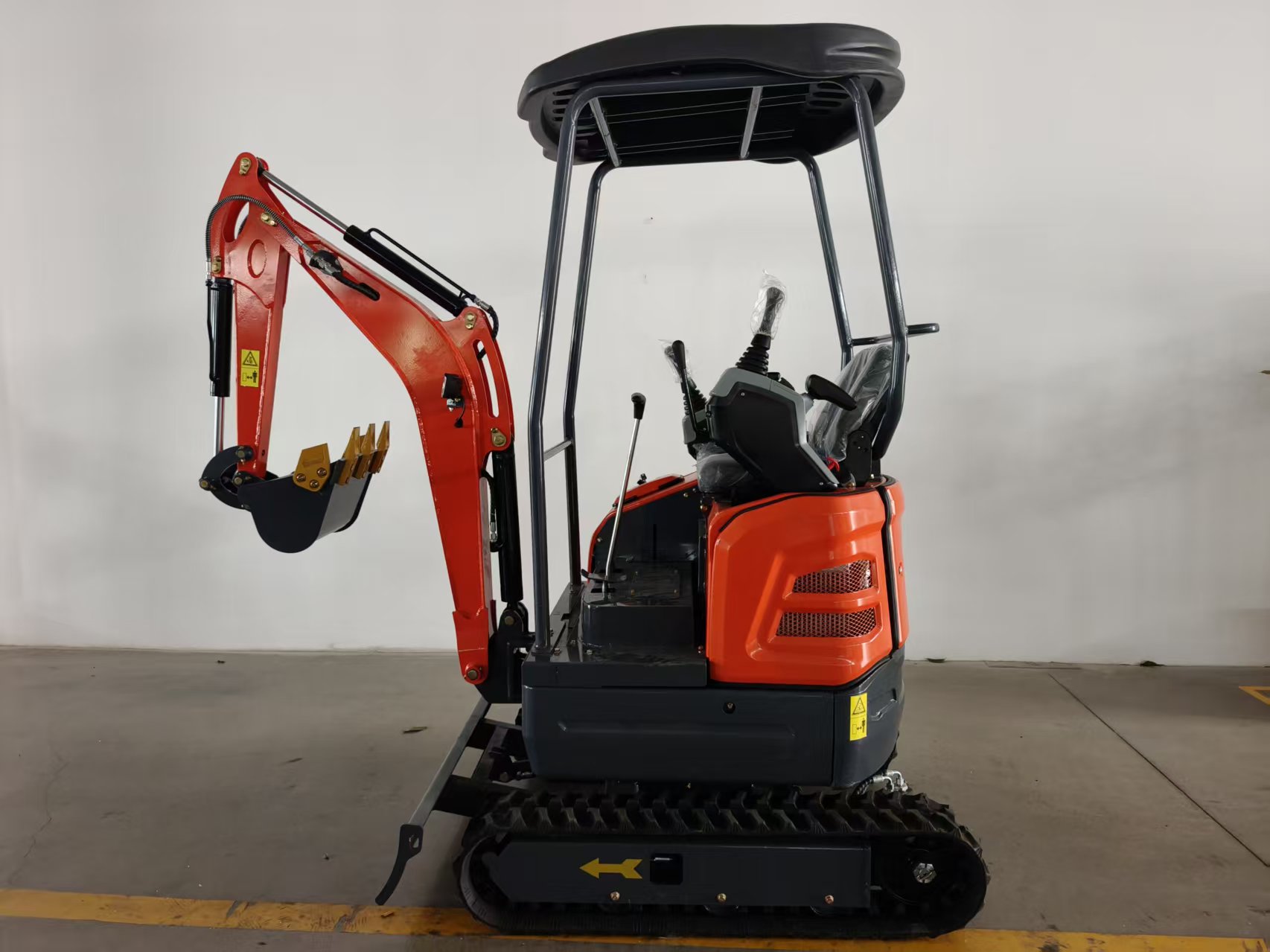

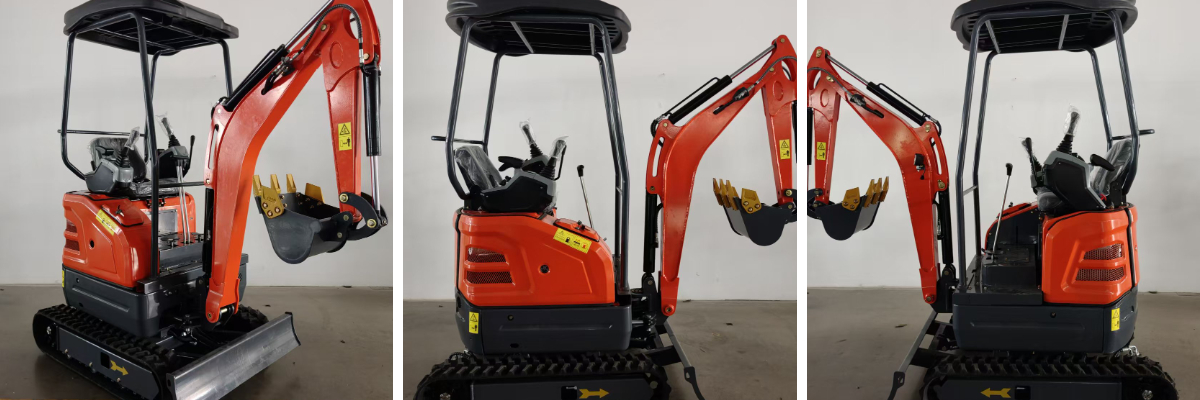

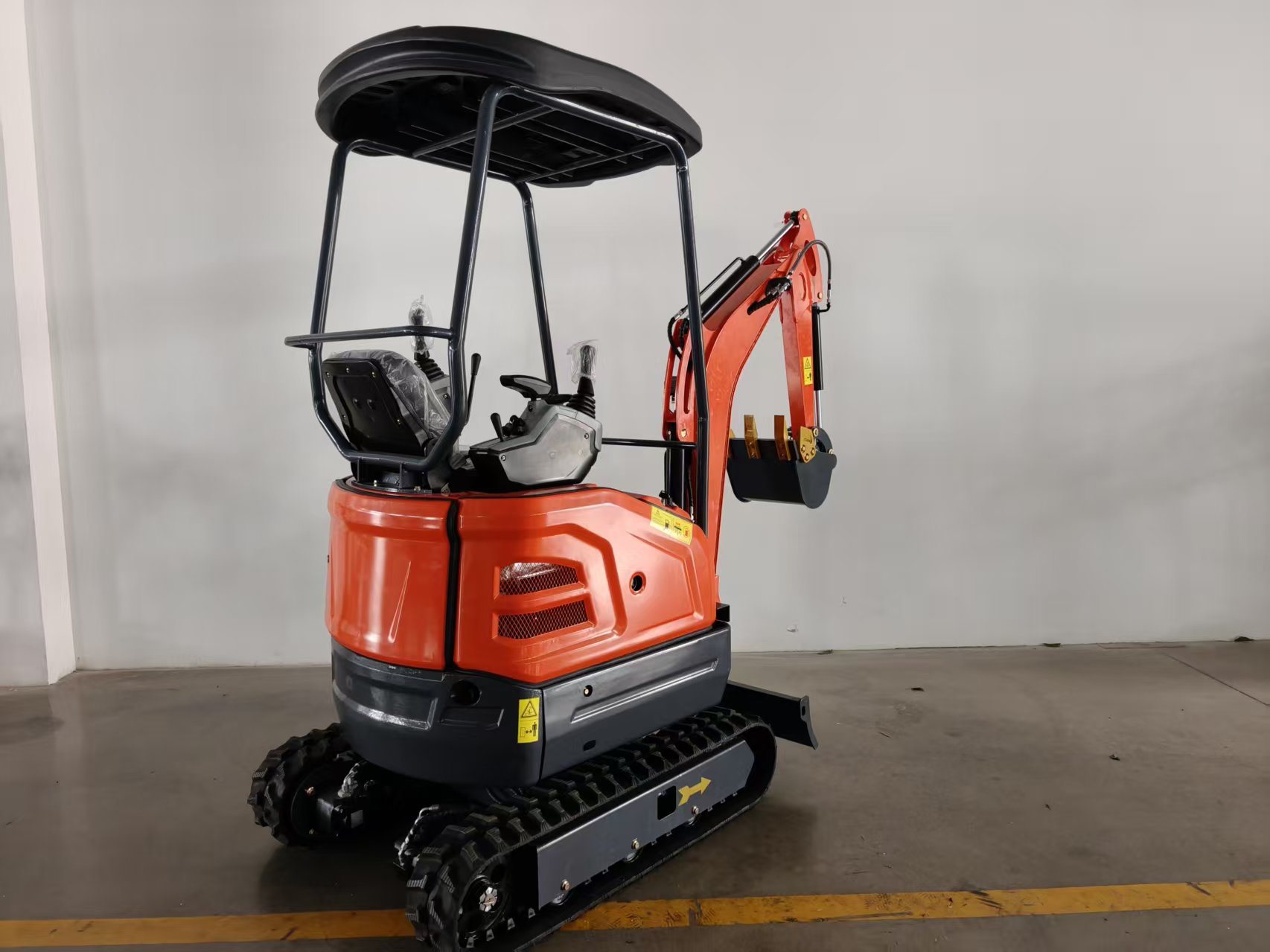

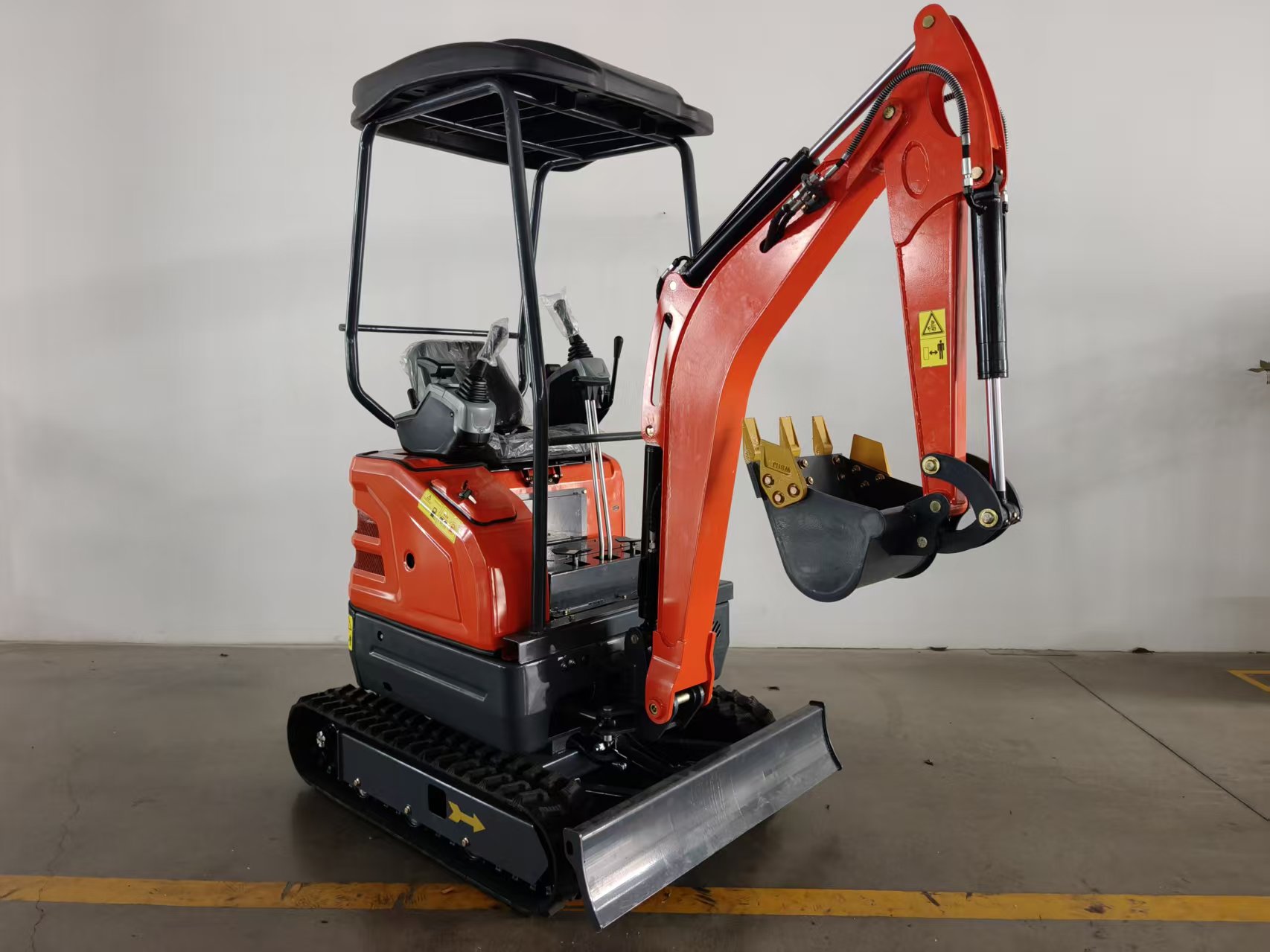

This 2-ton excavator is a high-efficiency equipment specially designed for complex working conditions and diverse operating scenarios. Integrating strong performance, flexible control and practical design, it fully meets the core needs of small and medium-sized projects.

In terms of core performance, its standard bucket capacity of 0.06m³ and operating weight of 2000kg achieve an exquisite balance. It not only ensures the loading efficiency of a single operation, but also adapts to the needs of lightweight transportation and site transfer. The swing speed of 9 rpm makes the body turn flexibly, and combined with the maximum climbing ability of 35°, it can work stably without slipping even on sloping sites such as hilly orchards and mountain slopes. The power output is particularly remarkable: the maximum bucket digging force of 14KN and the maximum arm digging force of 10KN are sufficient to easily handle various types of soil such as clay and sandstone. Moreover, the hydraulic system pressure of 18Mpa provides continuous and stable power support for digging actions, ensuring that each operation is precise and powerful.

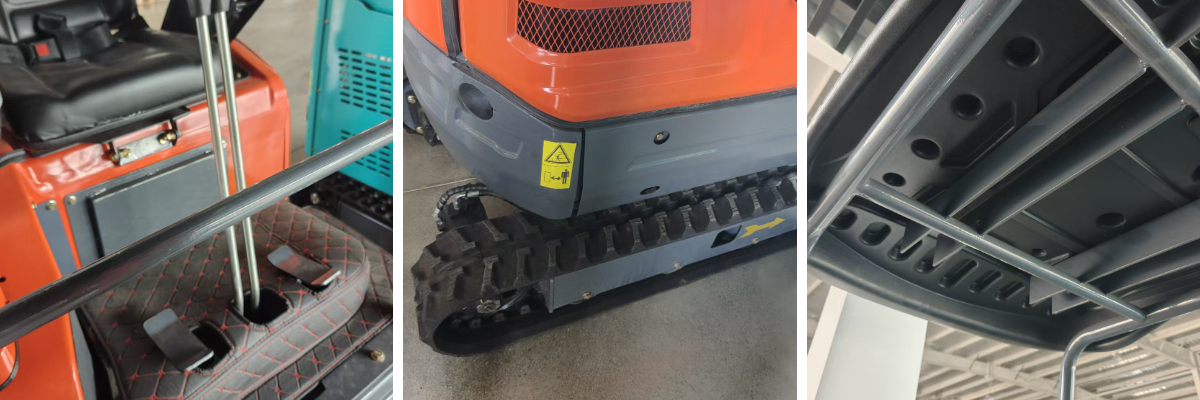

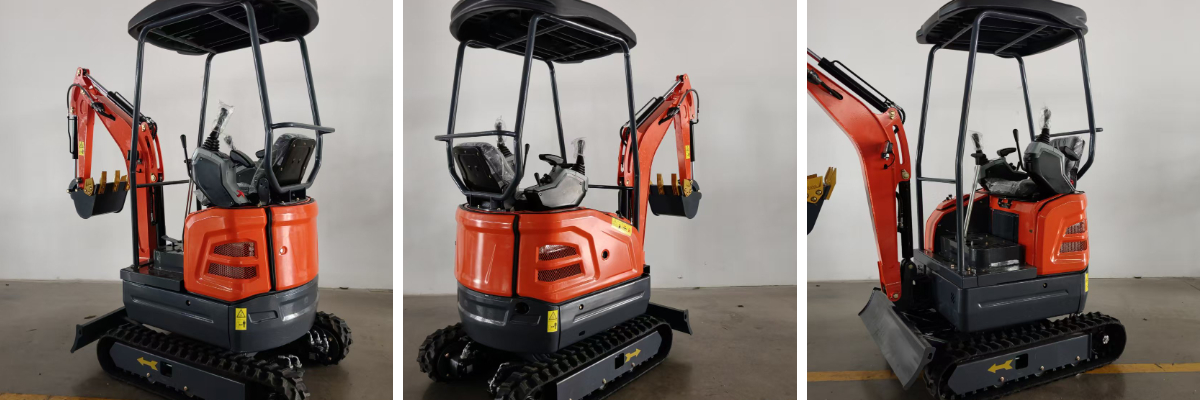

In terms of body design, the overall dimension of 3665mm×1050mm×2260mm can be called a "space master". The width of 1050mm allows it to move freely in narrow areas such as rural alleys and indoor decoration sites. The wheelbase (track length on the ground) of 1230mm and track gauge of 820mm enhance the ground adhesion. Coupled with the minimum ground clearance of 210mm, it can easily cross obstacles such as gravel and shallow ditches. What's more noteworthy is the tail swing radius of 955mm, which greatly reduces the space occupation during operation. When working in restricted areas such as beside walls and buildings, there is no need to frequently adjust the body position, which significantly improves the operational safety.

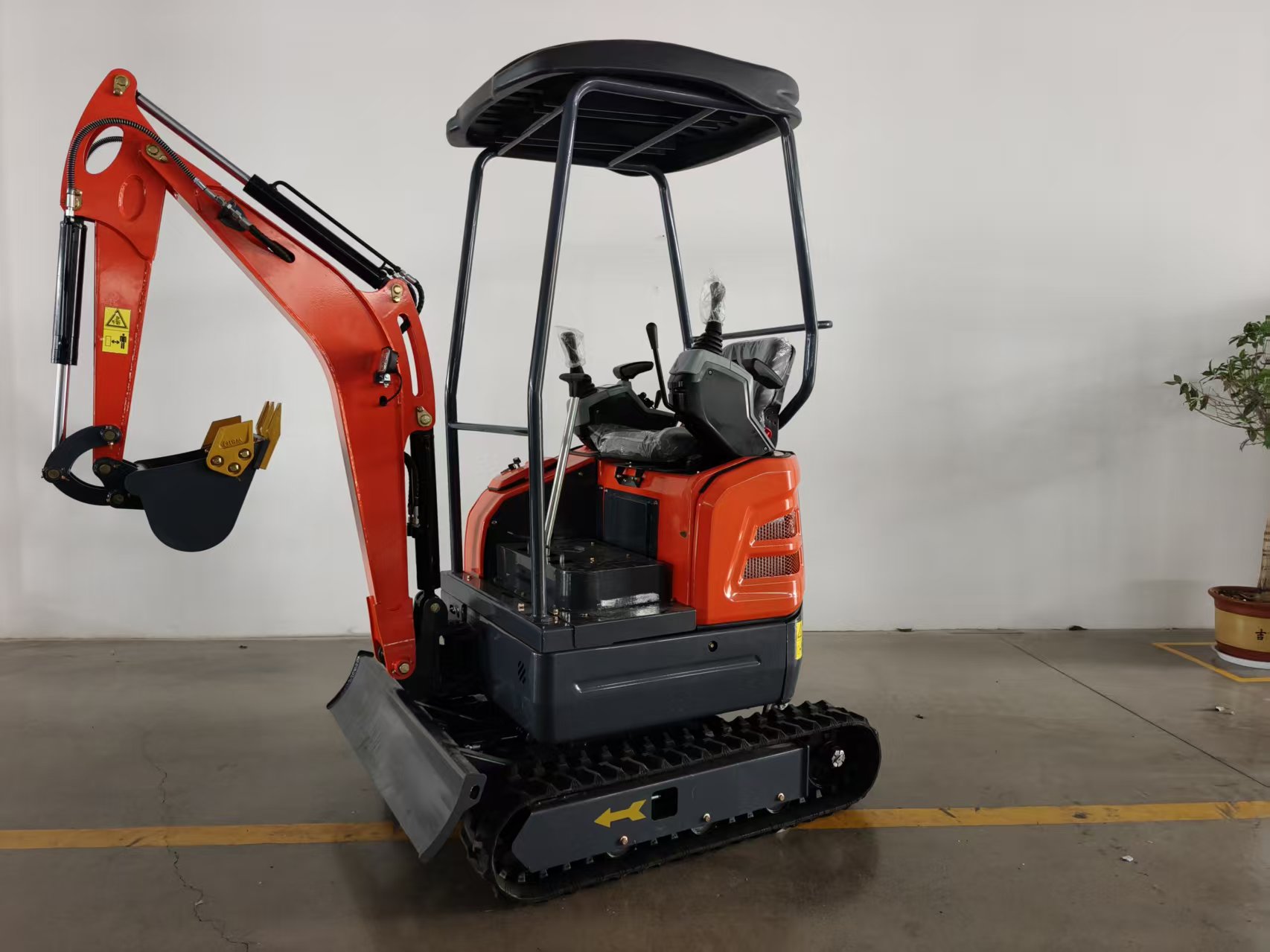

The breadth and precision of the working range are also impressive. The maximum digging height of 3365mm can meet the needs of high-altitude operations such as stacking light materials and building low walls; the maximum dumping height of 2385mm is suitable for loading small and medium-sized trucks, reducing the link of material transfer; the maximum digging depth of 2050mm and the maximum vertical digging depth of 1725mm are sufficient for deep operations such as foundation excavation and ditch construction, while the maximum digging radius of 3860mm expands the horizontal working range and reduces the number of body movements. The design of the blade is also considerate: the maximum lifting height of 230mm can easily clean up site debris, and the maximum lowering depth of 275mm can quickly level the ground, helping to improve operational efficiency.

In addition, the flexible adjustment of the boom is its "secret weapon" for dealing with special working conditions: the left swing angle of 75° and right swing angle of 45° allow the equipment to complete precise digging in extreme positions such as close to walls and corners without moving the body significantly. It is especially suitable for space-constrained projects such as urban old area reconstruction and indoor demolition. Whether it is municipal maintenance, agricultural planting or small-scale building construction, this 2-ton excavator can become a reliable partner on the job site with its all-round performance.
