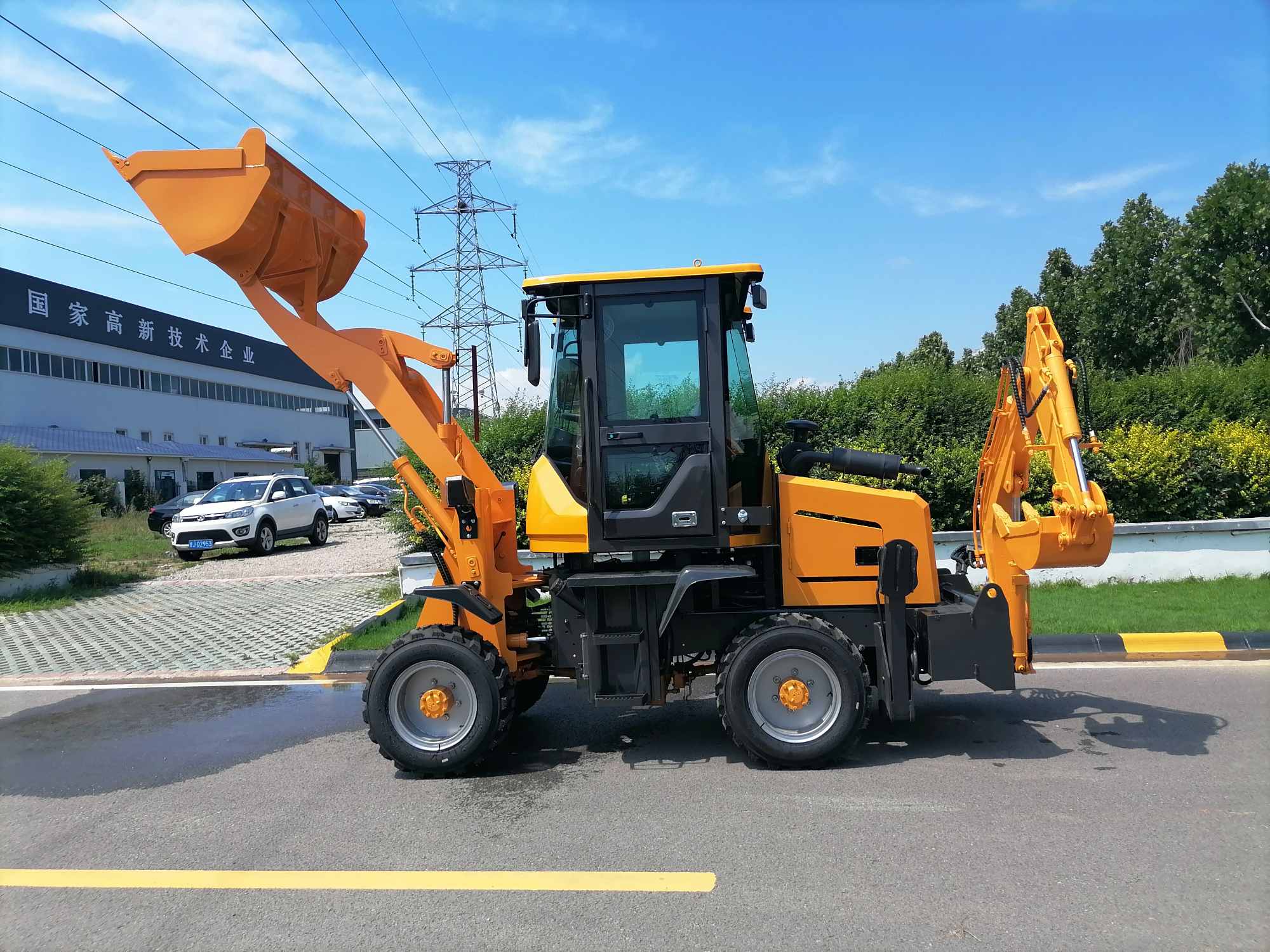

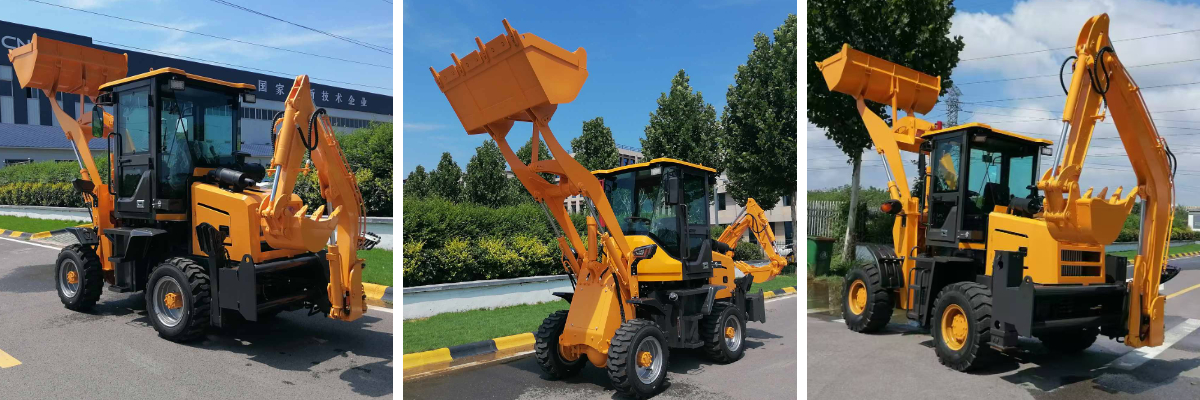

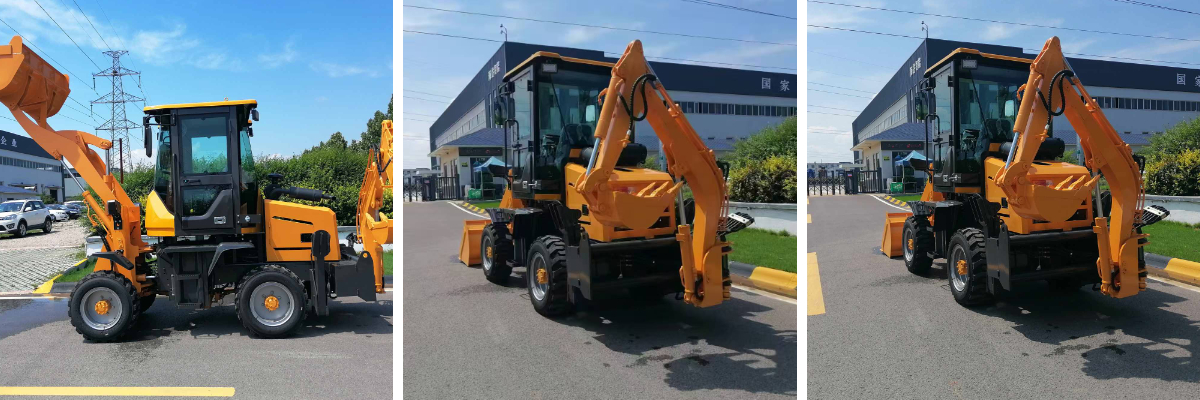

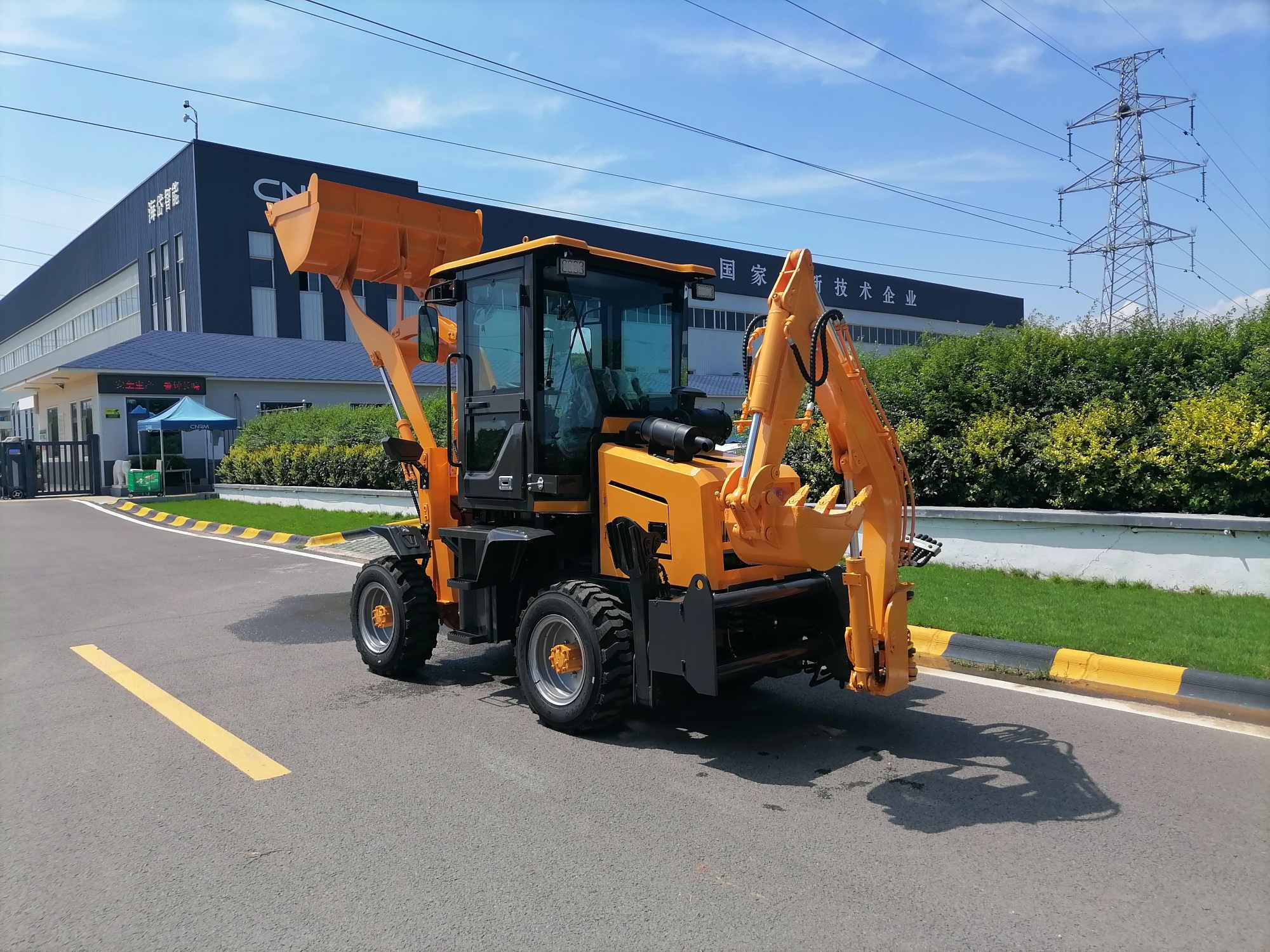

2.5-Ton Rear - End Loader

In scenarios such as municipal pipeline emergency repairs, farmland irrigation ditch excavation, rural homestead leveling, and material transfer at small construction sites, the 2.5-ton backhoe loader, with its core advantage of "integrated excavating and loading dual functions", has become an ideal choice for small and medium-sized engineering teams. This equipment combines the earthwork capability of an excavator with the material handling function of a loader. Its compact size of 5100mm×1350mm×2580mm allows it to flexibly navigate through narrow rural lanes while meeting the operational intensity requirements of the 2.5-ton class, providing an "all-in-one machine" solution for diverse construction scenarios.

In scenarios such as municipal pipeline emergency repairs, farmland irrigation ditch excavation, rural homestead leveling, and material transfer at small construction sites, the 2.5-ton backhoe loader, with its core advantage of "integrated excavating and loading dual functions", has become an ideal choice for small and medium-sized engineering teams. This equipment combines the earthwork capability of an excavator with the material handling function of a loader. Its compact size of 5100mm×1350mm×2580mm allows it to flexibly navigate through narrow rural lanes while meeting the operational intensity requirements of the 2.5-ton class, providing an "all-in-one machine" solution for diverse construction scenarios.

Power Core: Strong and Stable, Efficient and Low-Consumption

The equipment is equipped with a 490-type four-stroke engine, with a rated power of 37KW and a rated speed of 2400r/min, delivering strong and continuous stable power output. The four-cylinder 90mm bore design ensures sufficient combustion, reducing fuel consumption by approximately 15% compared to models of the same class. The 20L fuel tank capacity can support 8 hours of continuous operation, minimizing downtime for refueling.

The transmission system adopts a fixed-shaft power shift gearbox, with a gear configuration of 2 forward + 2 reverse gears. Combined with the ZL28F torque converter, it can not only provide sufficient torque during heavy-load operations but also improve transfer efficiency with a maximum travel speed of 20Km/h. The 4×4 four-wheel drive mode, paired with 825-16 specification tires, offers strong grip. The maximum climbing ability of 25° allows it to easily handle complex terrains such as hills and mountains, ensuring no slippage in muddy or sloped working conditions.

Excavation Performance: Precise and Efficient, Adaptable to Multiple Scenarios

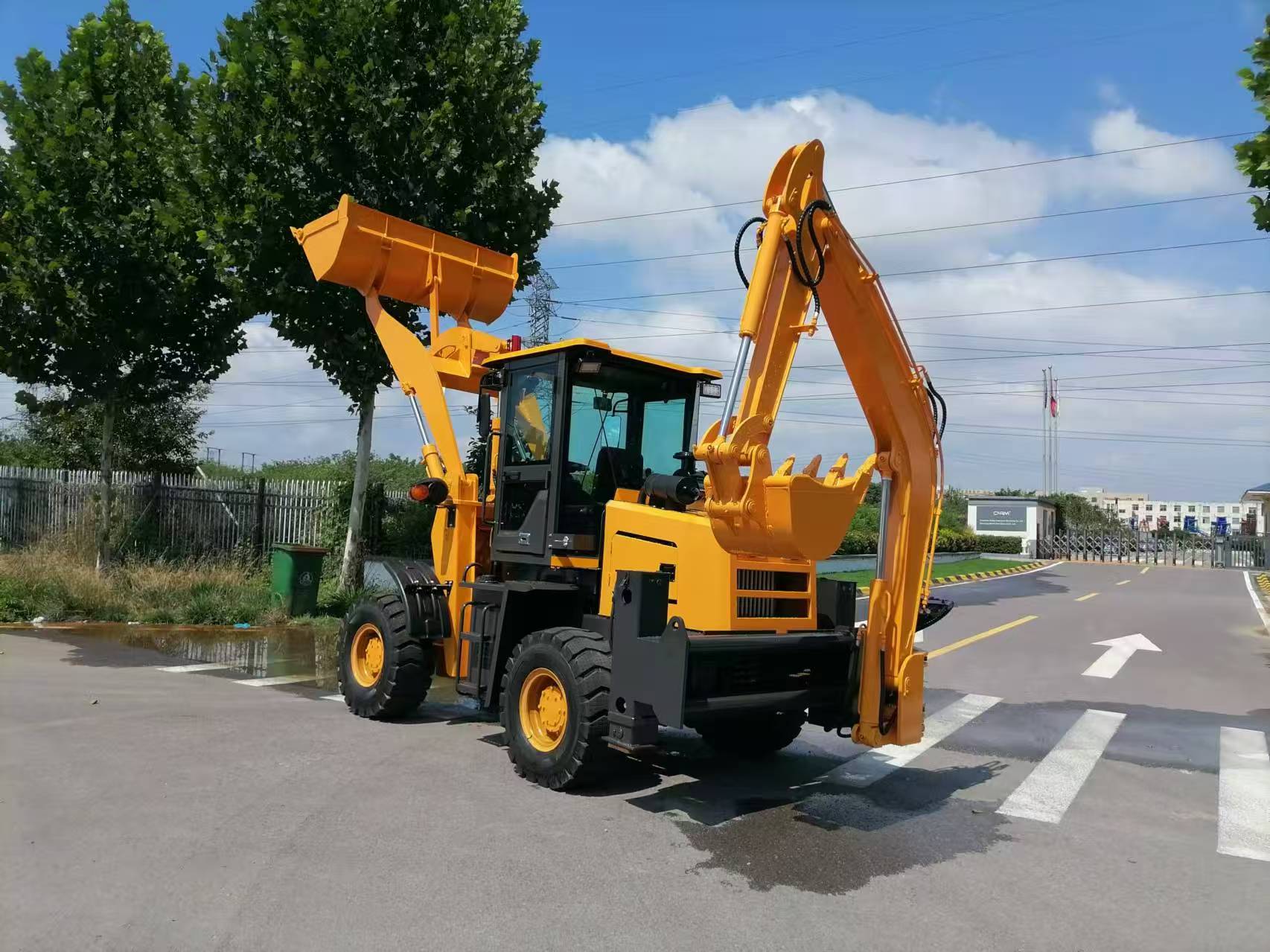

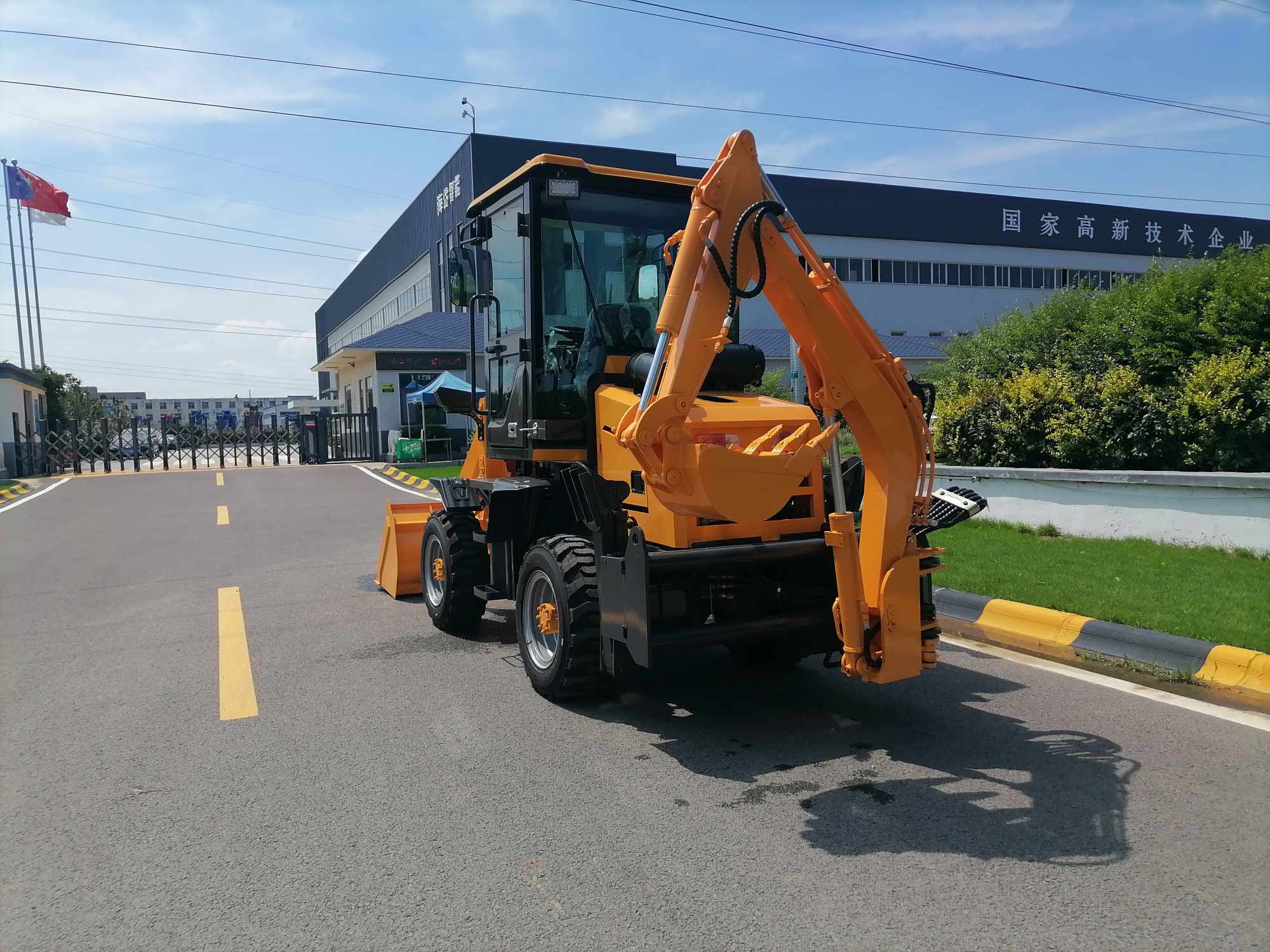

The excavating device demonstrates excellent operational capabilities: a maximum excavation force of 25KN can easily break hard soil and small stones; a maximum excavation depth of 1500mm meets the needs of excavating rural drainage ditches and small foundations; the 0.08m³ bucket capacity is suitable for small-scale earthwork transfer, and the 350mm bucket width is ideal for fine trimming of narrow ditches.

The 180° swing angle of the excavator bucket eliminates the need for frequent movement of the machine body during single-side operations. A maximum excavation height of 2600mm enables high-position operations such as low wall masonry and tree planting, while an excavation unloading height of 1500mm can directly load earth into light trucks. The maximum excavation radius of 2000mm expands the operational coverage, and combined with the total front shovel operation time of 12 seconds, the processes of loading, lifting, and unloading are smoothly connected, achieving an hourly earthwork handling capacity of up to 30 cubic meters.

Loading Efficiency: Stable Lifting Under Heavy Load, Outstanding Efficiency

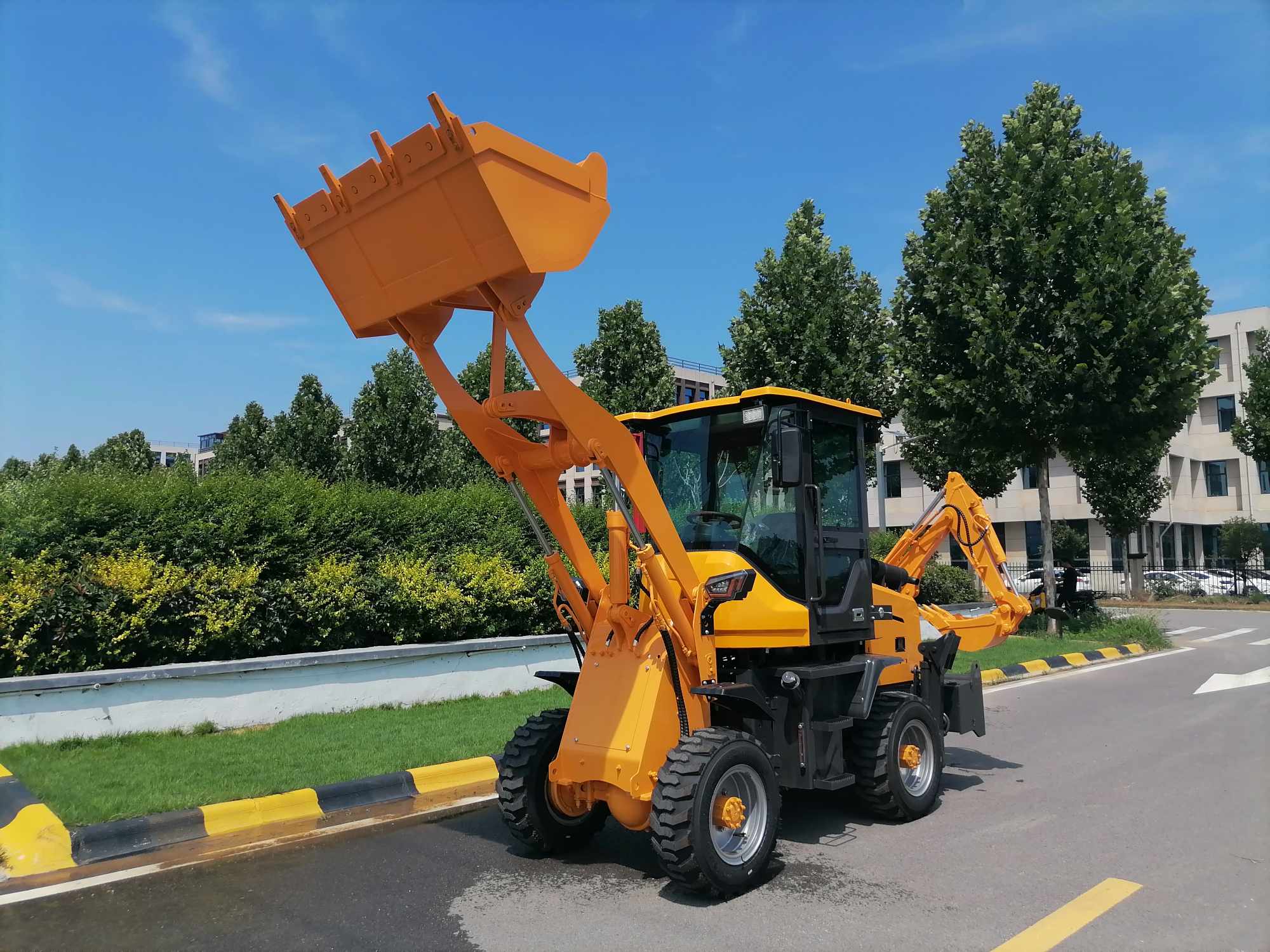

The loading function also performs impressively: the 0.4m³ loading bucket capacity can load 600kg of materials at a time (approximately 20 bags of cement), and the 1300mm bucket width ensures efficient large-area material collection; a maximum breakout force of 28KN prevents jamming when shoveling high-density materials such as wet clay and sand, and a maximum loading lift height of 3000mm can connect to 3-meter-high truck compartments or material piles.

The maximum unloading height of 2200mm and unloading distance of 800mm are reasonably designed to avoid material spillage. Combined with a 33° steering angle, it can accurately align with the unloading point even in narrow spaces. The fixed-shaft power shift gearbox responds quickly, and the acceleration process from rest to full speed is stable, reducing material shaking and spillage during loading.

Flexible Passage: Compact Size, Smooth Navigation in Narrow Areas

The wheelbase of 1910mm and minimum turning radius of 3000mm allow the equipment to flexibly turn on rural paths and construction site enclosures; the track width of 1100mm and minimum ground clearance of 250mm ensure no scraping of the chassis when driving on uneven roads. The overall vehicle width of 1350mm can easily pass through 1.5-meter-wide passages, solving the problem of large equipment being "unable to enter or turn".

The articulated full-hydraulic steering system is easy to operate, with a 33° steering angle making U-turns and position adjustments more flexible; the 825-16 tires balance wear resistance and shock absorption. The front and rear tire pressure setting of 250KPa not only protects rural hardened roads but also ensures sufficient load-bearing capacity, and the 280mm tail length reduces the risk of collision during steering.

Structure and Maintenance: Durable and Reliable, Cost-Controllable

The overall machine weight of 2500Kg provides a stable operational foundation for the equipment. Key structural components are made of high-strength steel, and the hinge points of the excavating arm and loading arm are quenched, increasing wear resistance by 50%; the 130 Bell-type braking system responds sensitively, with a braking distance of 3000mm ensuring safety during heavy-load driving.

The maintenance design is user-friendly: the engine inspection hatch opens at an angle of 90°, making vulnerable parts such as filters and oil pipes clearly visible, and daily maintenance does not require professional tools; the working pressure of the hydraulic system is 16MPa, which is in a stable range, reducing the risk of pipeline aging; key bearings are reserved with centralized lubrication points, and weekly lubrication can ensure flexible operation. Ordinary technicians can independently complete maintenance, saving nearly 3000 yuan in maintenance costs annually.

Comprehensive Advantages: Dual Functions in One Machine, Reducing Costs and Increasing Efficiency

The core value of the equipment lies in the integration of "excavating + loading" dual functions: using the excavating device to dig foundations in the morning and switching to loading mode to transfer building materials in the afternoon, eliminating the need to deploy two devices, thus reducing site occupation and labor costs. Through a unified hydraulic control system, switching between the two operation modes takes only 3 minutes, and with 2 forward + 2 reverse gears, it can quickly transition between excavating and loading working conditions.

Whether it is the integrated "foundation digging + material transporting" operation for rural self-built houses or the continuous "road breaking + slag cleaning" construction for municipal emergency repairs, the 2.5-ton backhoe loader, with its "small but comprehensive" features, can reduce equipment investment by more than 30% and increase operational efficiency by 40% for small and medium-sized engineering teams, serving as an efficient bridge connecting small-scale manual work and large machinery.
