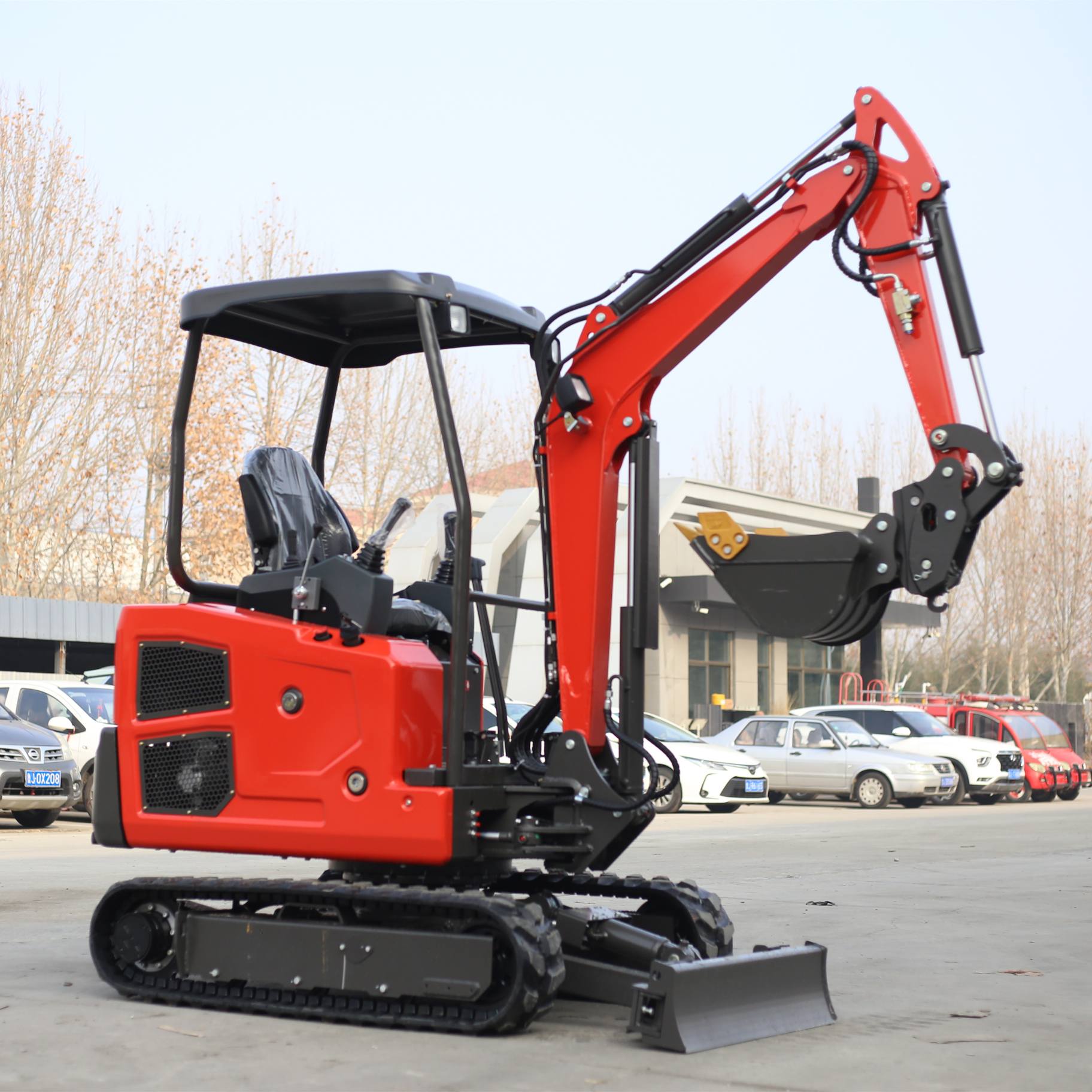

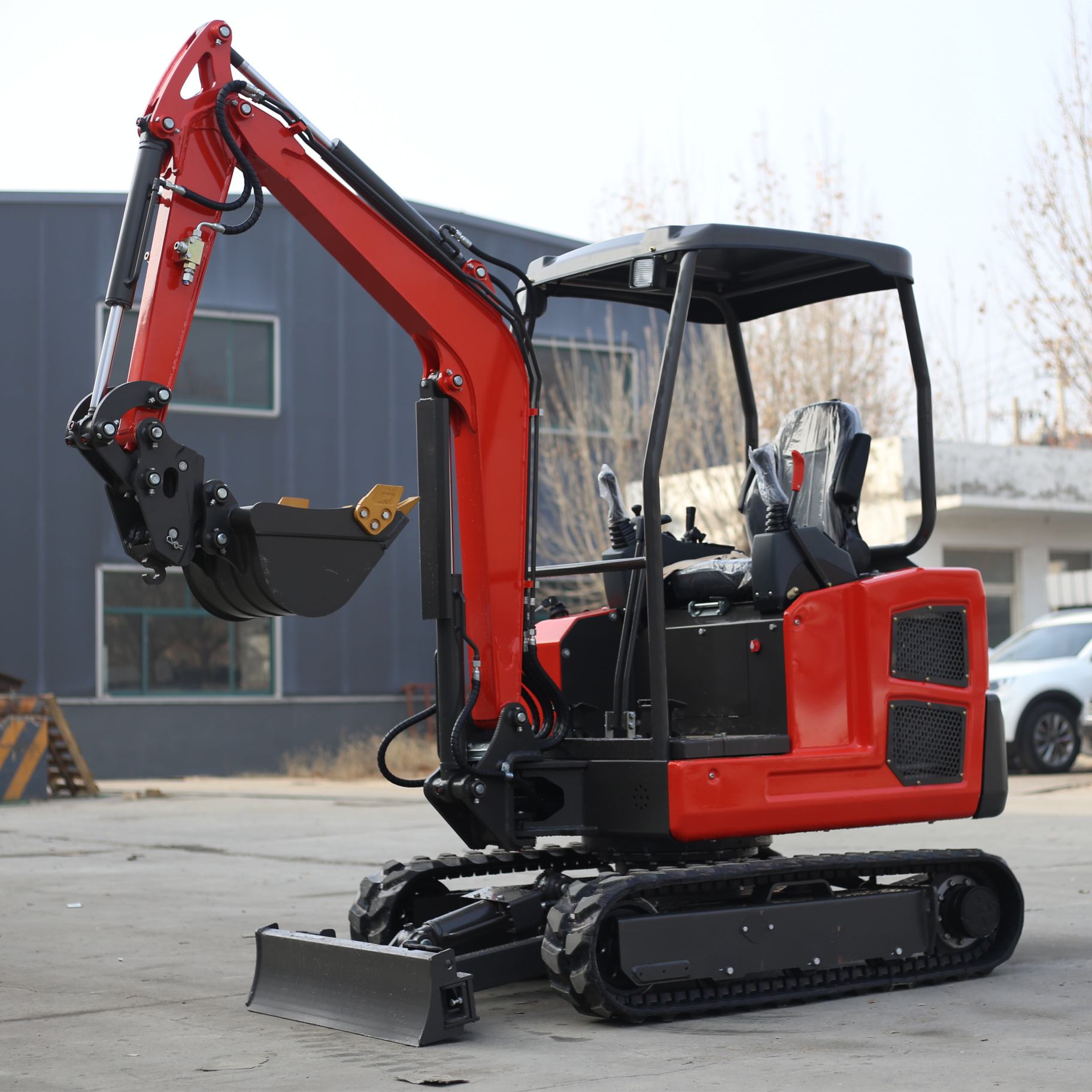

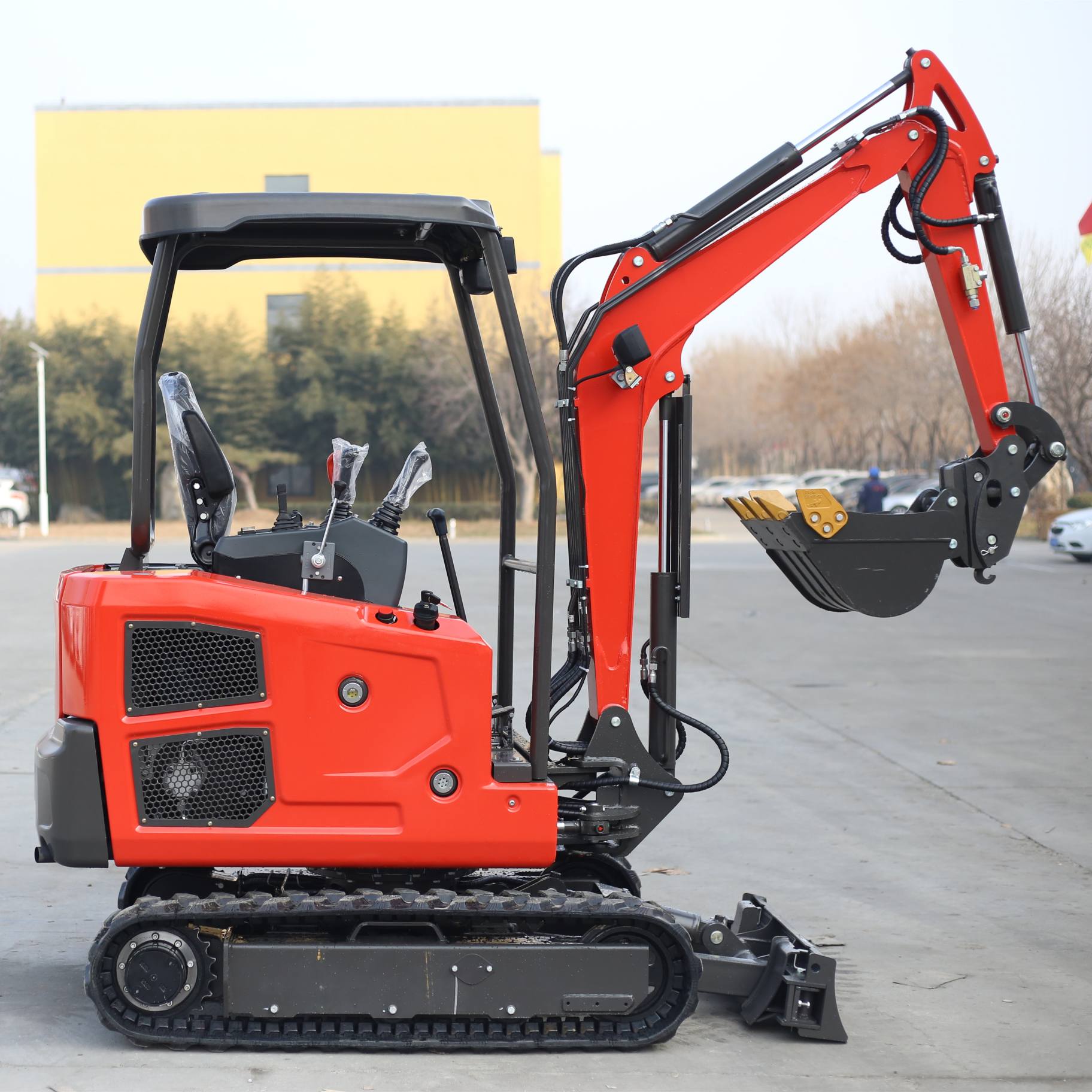

2.5 Ton Excavator
2.5 Ton Mini Excavator
1.Engine: Powered by renowned engines from Kubota, and Laidong, all meeting EPA and Euro5 emission standards for superior performance and Eco-compliance.
2.Standard with swing boom feature enhances maneuverability.
3.Durable Design: Features an upgraded, more powerful design with a one-piece cast iron construction, built on a foundation of excellent quality.
4.Luxury Cabin :The driver's seat is designed with ergonomics in mind, offering a luxurious and comfortable operating cabin for enhanced productivity.
5.The zero tail design ensures safer operation and greater convenience in tight spaces.
6.Optional Cabin,extendable chassis, high or low speed, and air conditioning, heating for improved comfort and efficiency.

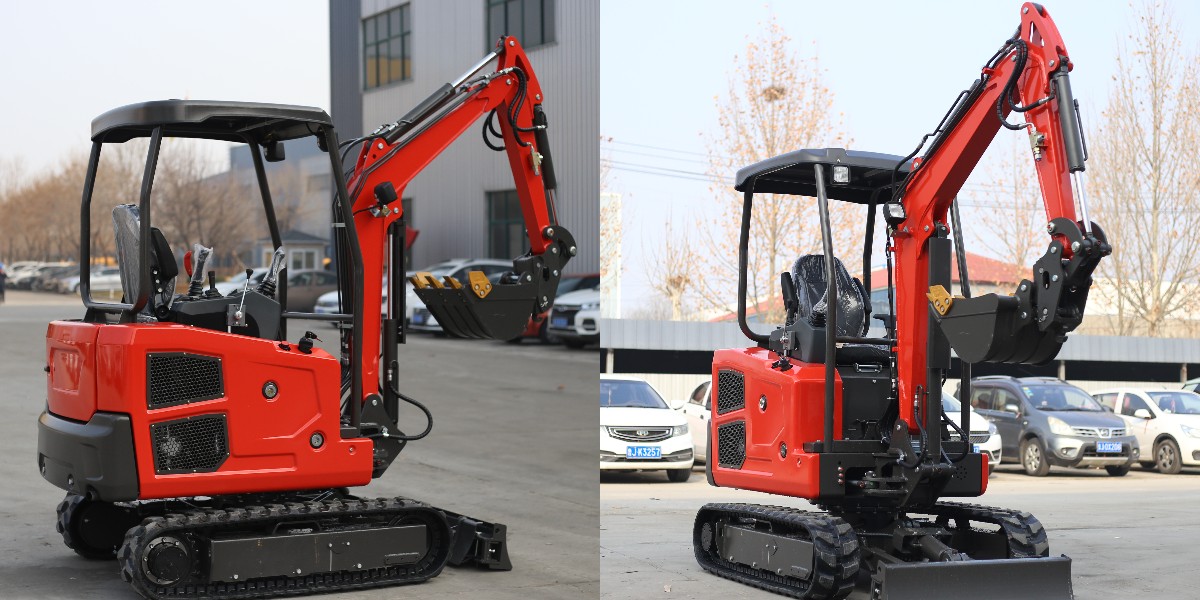

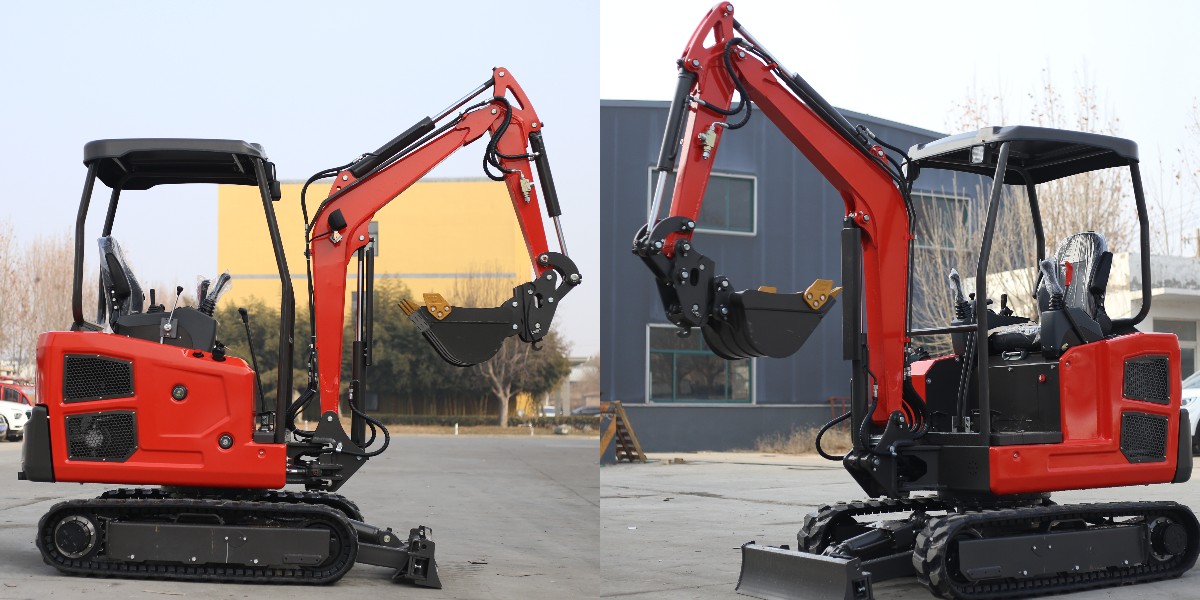

2.5 Ton mini excavator Kubota Engine
Brand new WK25 Mini Digger — compact, powerful, and perfect for landscaping, groundwork, utilities & tight-access jobs.
Product Details

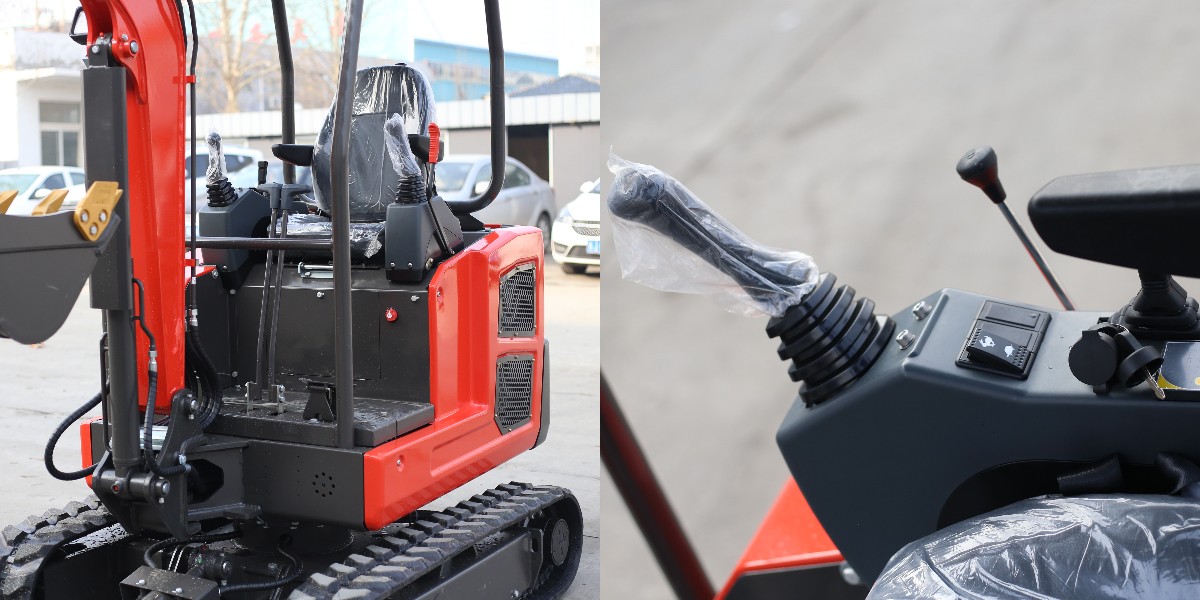

Hydraulic pilot on both sides of the seat More convenient operation The action is silky
Comfortable seat,Levers on both sides of the seat, seat with armrests, LCD screen

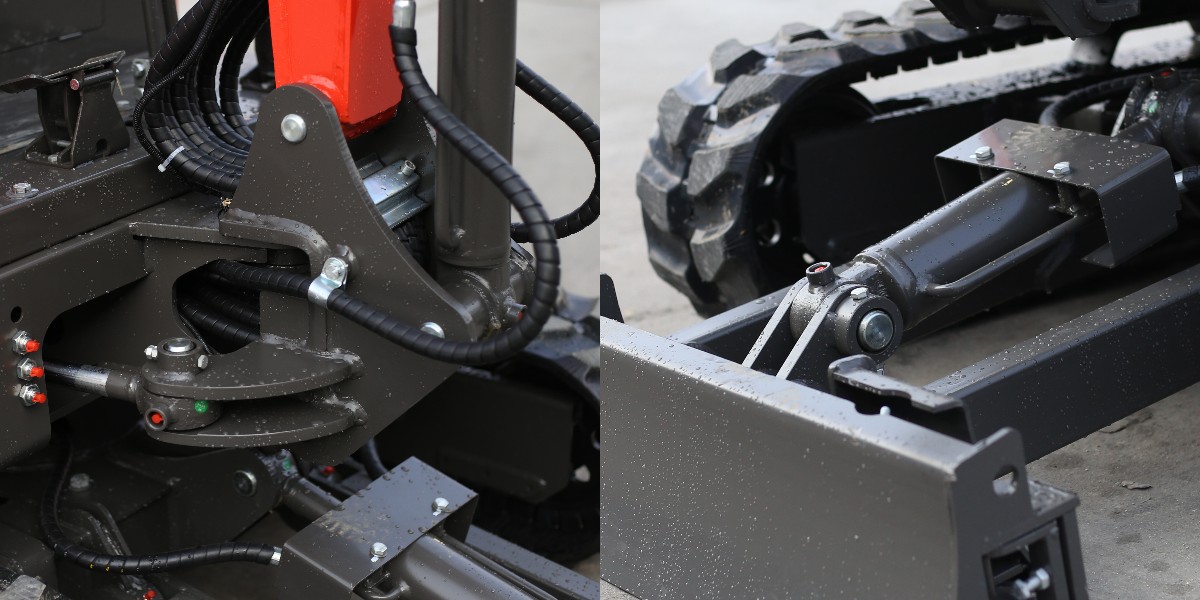

3.Swing boom function is Standard configuration,the big arm can swing to left and right，to have a large operating range.

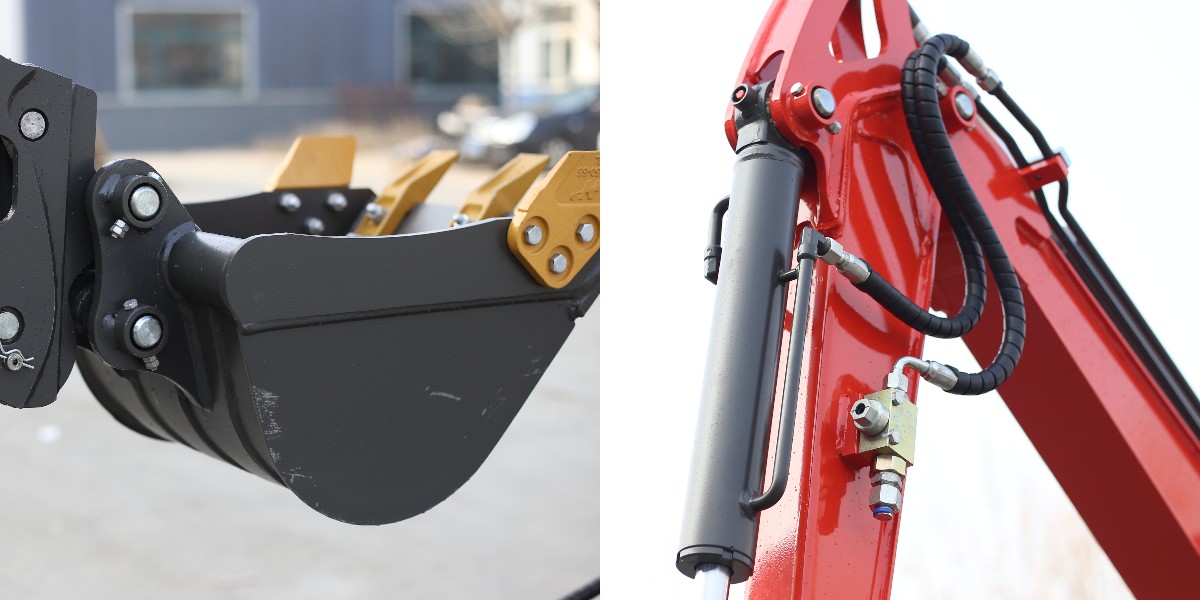

4.Stong bucket ,Design of oil cylinder baffle to protect the oil cylinder
Machine parameters
ENGINE | |
Emission Standard | Euro V /EPA |
Make /Model | Laidong/ KUBOTA |
Power /Rotation speed | 385/D1105 |
Number of cylinder | 3 |
TRACK SYSTEM | |
Maximum Travel speed | 2.5km/h |
Width of track shoe(Rubber &steel track) | 230mm |
Number of track shoe per side(steel track only) | 38pcs |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.06m³ |
Swing speed | 10-12rpm |
Maximum Grade ability | 35° |
Maximum Bucket digging force | 14KN |
Maximum Arm digging force | 10KN |
Hydraulic system pressure | 18Mpa |
Working weight | 2500kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 3655mm*1050mm*2232mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 1070mm |
Minimum Ground clearance | 230mm |
Swing radius at tail | 1000mm |
WORKING RANGE | |
Maximum Digging height | 3391mm |
Maximum Dumping height | 2290mm |
Maximum Digging depth | 21250mm |
Maximum Vertical digging depth | 1771mm |
Maximum Digging radius | 3860mm |
Minimum swing radius | 1720mm |
Maximum Lifting height of blade | 240mm |
Maximum Cutting depth of blade | 310mm |
Boom swing angle(Left/Right) | 45°/45° |

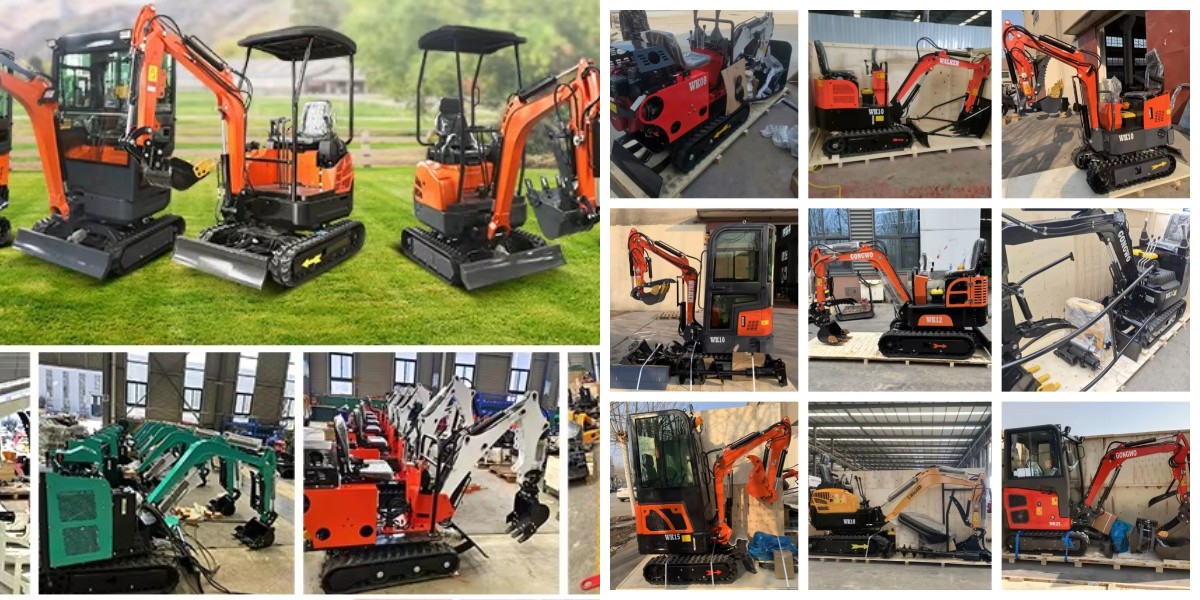

Workshop and Packing
Certificate
FAQ
Become our customer you will get video factory inspection video explanation (free): 1. Video explaining product details (special models) 2. Free operation teaching/advice on the advantages and disadvantages of customized configuration/OEM detailed customization 3. Export the standard package 4. Roof (two or four legs or anti-roll beam) 5. Free machine toolbox and whole car filter element (please remind the sales manager) 6. After-sale special accessories will be delivered by the fastest air. 7. After buying the machine, if you have other goods, we provide the site and provide loading service (free of charge) 8. Minimum advance payment (20%) and balance after video confirmation of all order items. 9. Provide website materials and configuration details required by customers (free of charge) 10. According to customer requirements, provide one-stop shopping service, you just need to sit at home and wait for the machine to be delivered to your door.
