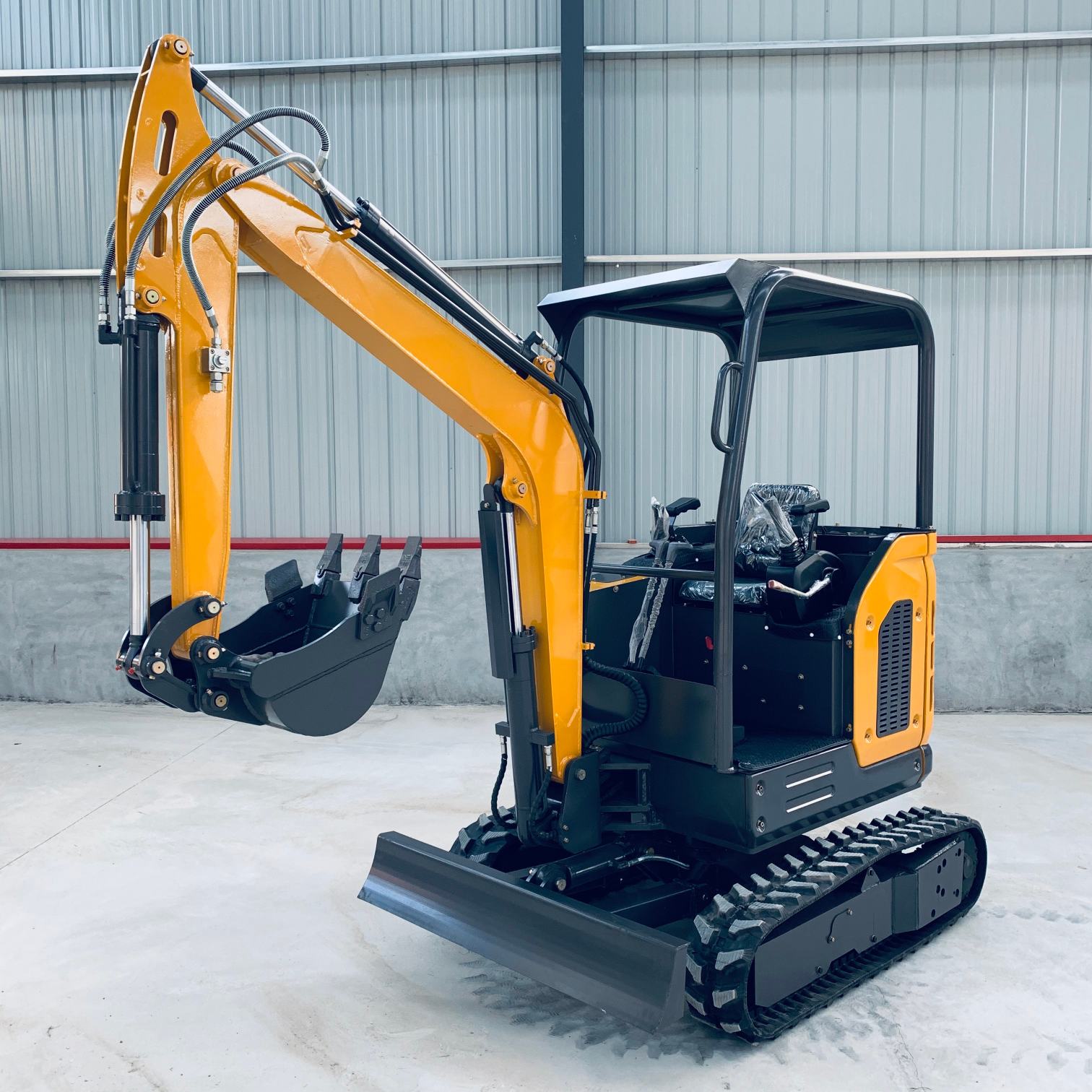

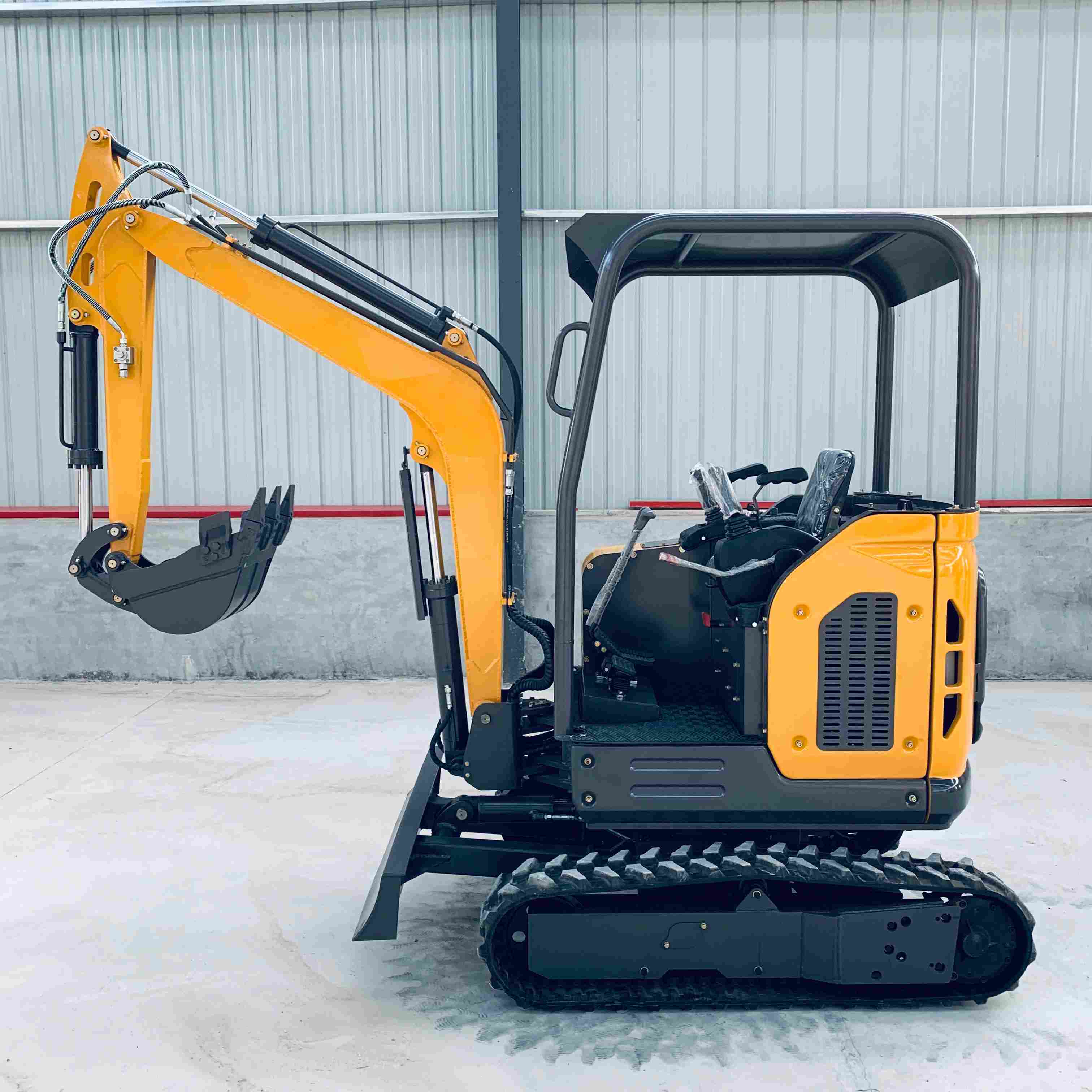

2.5 ton excavator
Bulldozer Bucket：Thickened structural design ensures superior quality and extended service life. Ideal for site leveling, material stacking, and backfilling operations, it guarantees safer and more stable machine performance during climbing/uphill lifting/swiveling maneuvers.
Hydraulic Pilot System：Features labor-saving, convenient, and flexible operation, enhancing work efficiency while reducing system pressure.
High-End Cab：Spacious and comfortable, with wind and rain protection to significantly improve safety. Ergonomically designed and equipped with auxiliary control levers to optimize the operating experience.
Versatile Functionality：Comprehensive functions, compatible with various attachments to support diversified operational needs.
I. Flexible Selection of Power and Configuration
The power system of the WK25 excavator can be optionally equipped with Changchai engine, Changchai 390BT engine (CE-certified), Perkins 403j-11 engine, or Kubota 1105 engine based on requirements, meeting different working conditions and environmental standards. Standard configurations include front mechanical linkage, rubber tracks, bulldozer blade, digging bucket, cylinder guards, seat armrests, gear pump, Northern multi-way valve, Danfoss travel motor, and boom side swing function, ensuring complete basic operating configurations. In addition, optional closed cab, air conditioning, retractable tracks, and various accessories to meet different operation needs enable flexible adaptation to diversified scenarios such as narrow spaces and complex terrains.
II. Suitable for Diverse Construction Scenarios
With flexible configurations and a compact body, the WK25 is ideal for small-scale engineering construction, municipal maintenance, agricultural operations, and other scenarios. As a powerful tool for small-range construction, it can efficiently complete various tasks such as excavation and dozing.
Compact and Flexible: Narrow body design supports operation in tight spaces and convenient transportation.
Easy to Operate: Pilot control + comfortable seat reduce manual fatigue; quick attachment replacement expands functional capabilities.
Economical and Practical: Low fuel consumption, with purchase and maintenance costs lower than large excavators, making it suitable for small projects and individual operators.
III. Quality and After-sales Guarantee
Shandong Gongwo Machinery has more than a decade of experience in excavator production, controlling the entire process from design to packaging to ensure reliable product quality. Core components are provided with a 1-year warranty, and wearing parts are covered by a 3-month warranty. Complete after-sales support eliminates concerns about usage.
Item | Detail |
Emission Standard | Euro 5 / EPA4 |
Engine | KUBOTA |
Make | Japan KUBOTA D1105 engine |
Model | D1105 |
Power (Rotation speed) | 14KW |
Number of cylinder | 3 |
Maximum Travel speed | Maximum Travel speed |
Width of track shoe | Width of track shoe |
Standard Bucket capacity | 0.06m³ |
Swing speed | 9 rpm |
Max. Grade ability | 35° |
Maximum Bucket digging force | 14KN |
Maximum Arm digging force | 10KN |
Hydraulic system pressure | 18Mpa |
Operating weight | 2500kg |
Overall dimension (LWH) | 3665mm1050mm2260mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 820mm |
Min.Ground clearance | 210mm |
Swing radius at tail | 955mm |
Maximum Digging height | 3365mm |
Maximum Dumping height | 2385mm |
Maximum Digging depth | 2050mm |
Maximum Vertical digging depth | 1725mm |
Maximum Digging radius | 3860mm |
Minimum swing radius | 1720mm |
Maximum Lifting height of blade | 230mm |
Maximum Cutting depth of blade | 275mm |
Boom swing angle(Left) | 75° |
Boom swing angle(Right) | 45° |

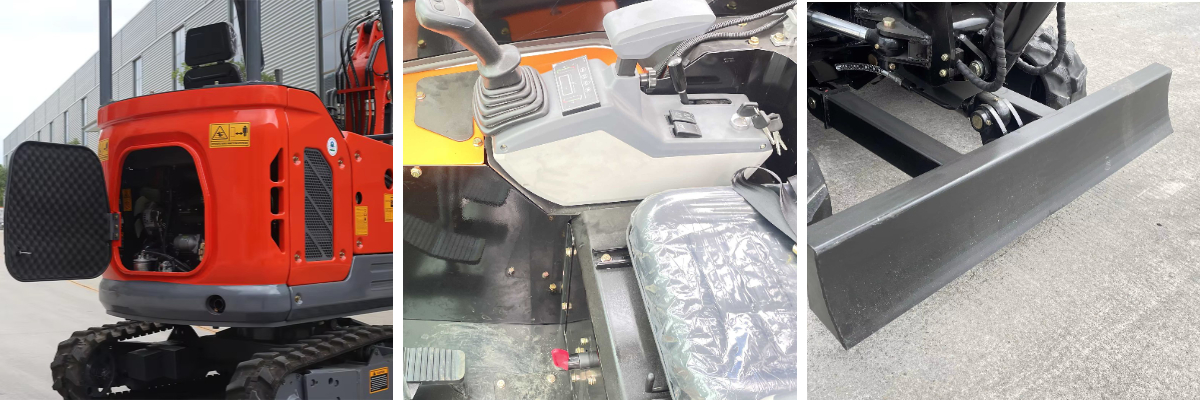

Product Details

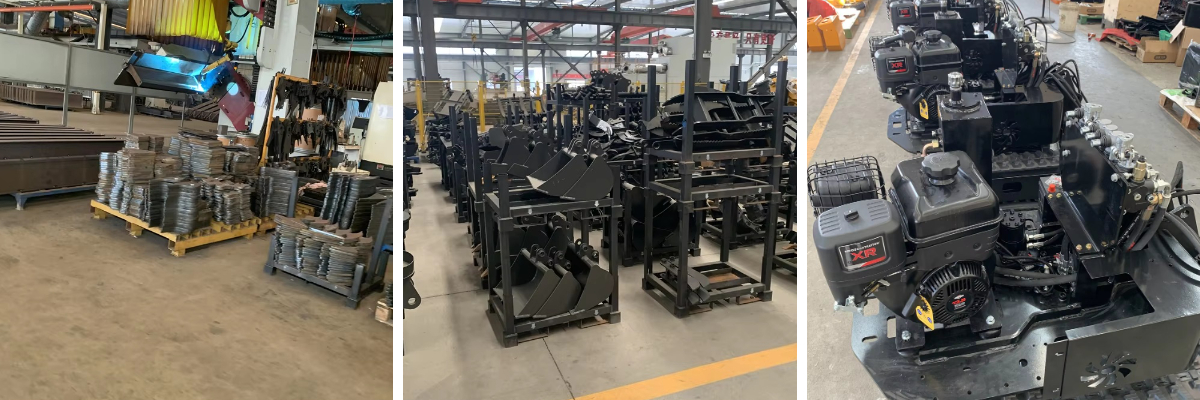

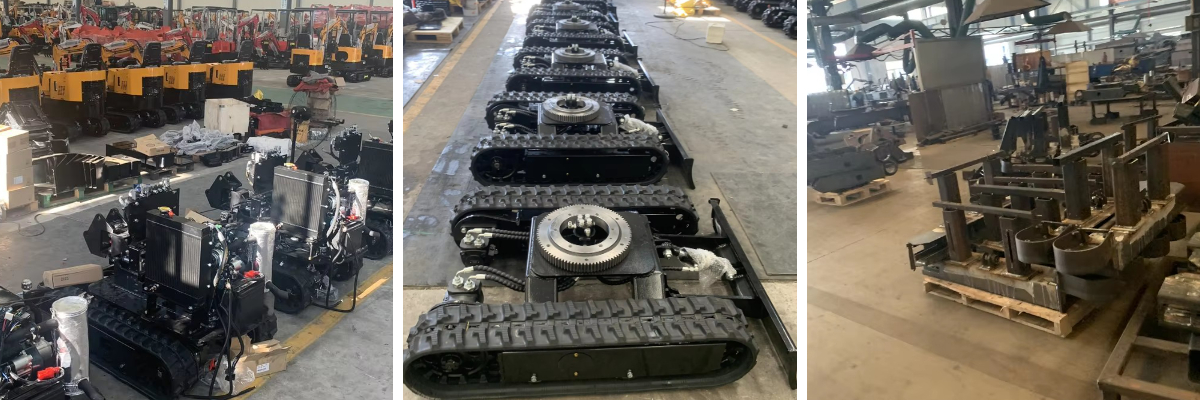

Workshop Display
Company Overview
Founded in 2012, Shandong Gongwo Machinery Co., Ltd. stands as a leading manufacturer specializing in medium and small construction machinery. Our diverse product range encompasses compact wheel loaders, mini crawler excavators, electric/diesel tricycles, and 2WD/4WD forklifts. Our machinery is distributed globally, reaching customers across Europe, the Americas, Southeast Asia, Africa, Russia, and various other regions. With more than ten years of experience, we remain committed to meeting the unique needs of international clients and delivering reliable solutions for their operations.
