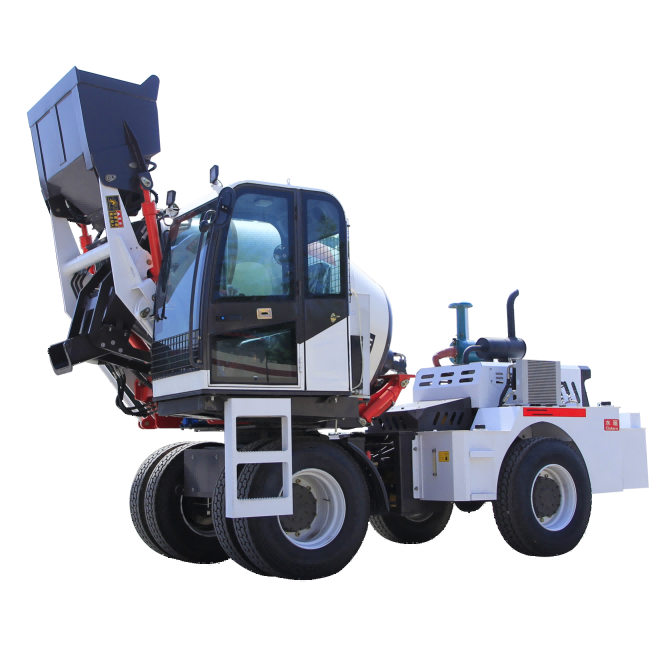

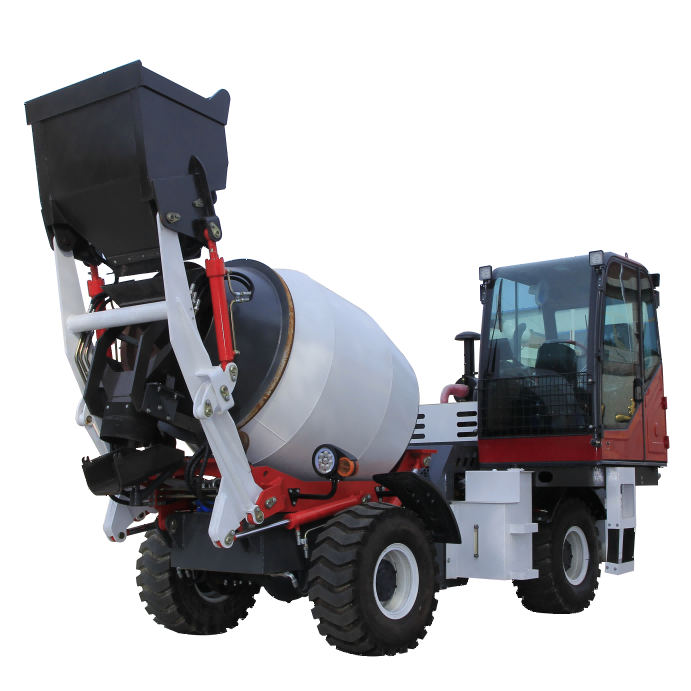

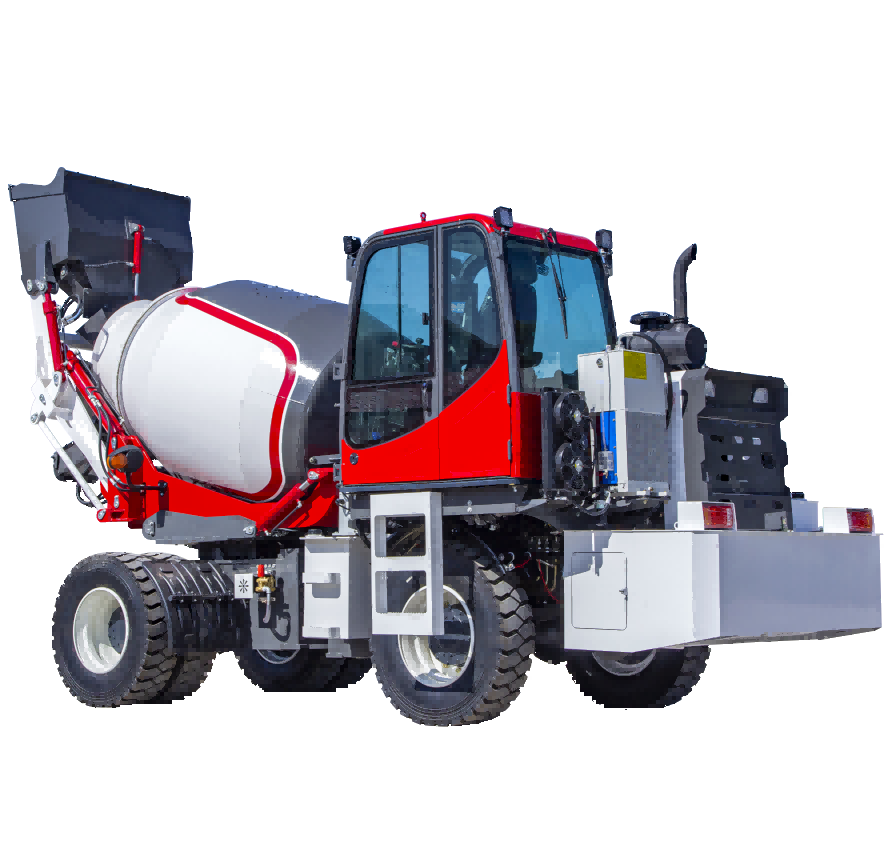

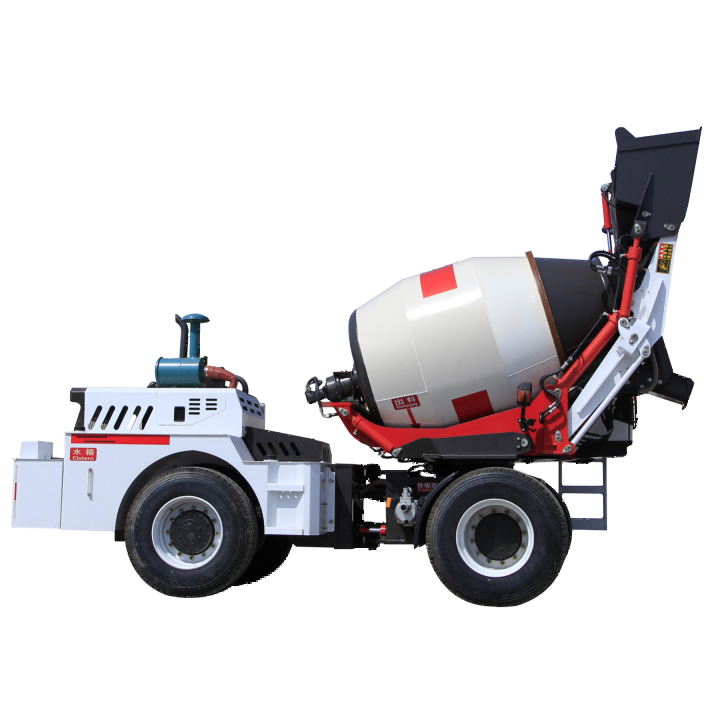

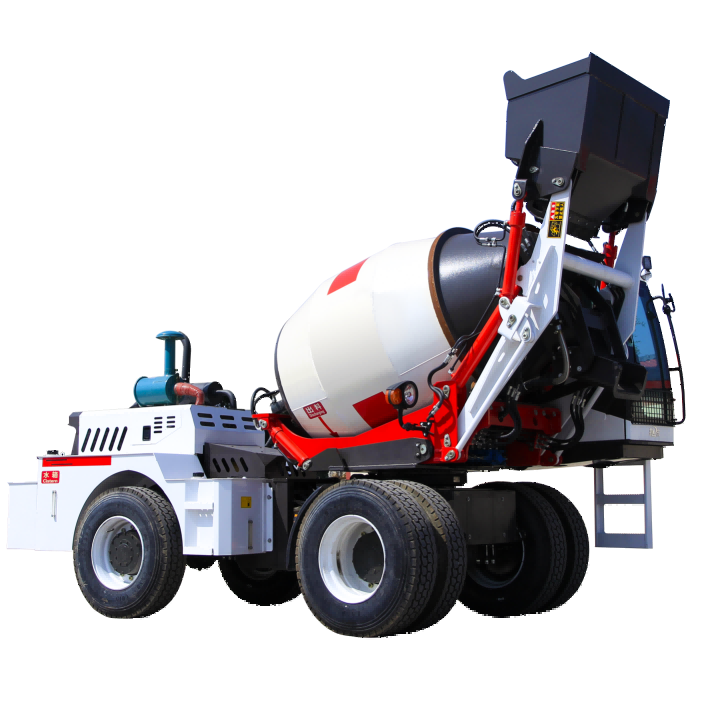

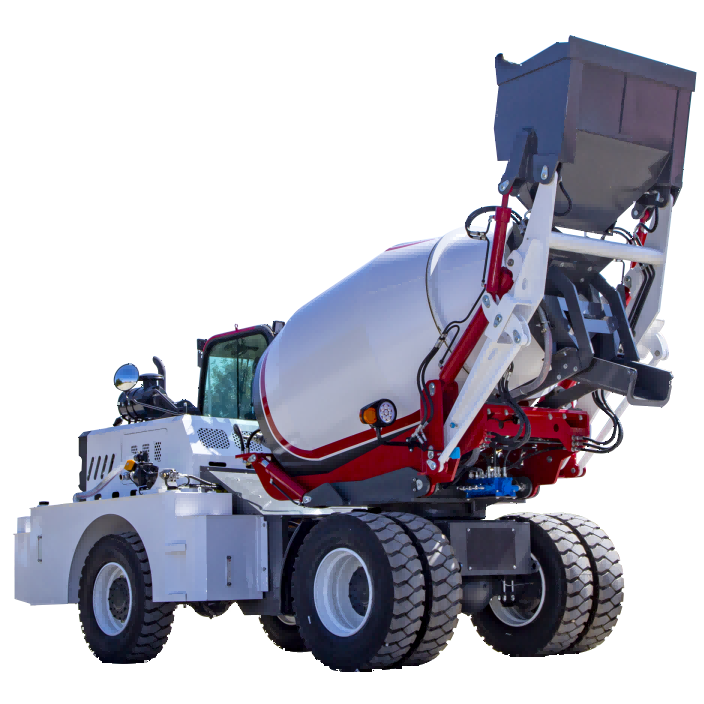

1-cubic - meter mixer truck
1、The 1-cubic-meter self-loading mixer truck, with an integrated design, is an efficient assistant for small-scale projects.
2、Integrates loading, mixing, transporting and unloading; one unit completes the entire concrete process, boosting continuity.
3、Compact and flexible, it navigates rural roads, community side areas easily and turns flexibly in complex terrains.
4、Equipped with 4×4 drive, it enhances passability on muddy ground, slopes and other complex road conditions.
5、Operation is convenient: simplifies traditional processes, no need for professional team, one person can operate, reducing labor costs.
6、Mixing is uniform and stable to ensure concrete quality; unloading is precise and controllable to reduce material waste.
7、Avoids resource waste of large equipment, more efficient than manual mixing, balancing practicality and economy for small projects.
In scenarios such as small-scale construction, rural renovation, and municipal maintenance, the flexibility, efficiency, and versatility of equipment often determine the project progress and cost control. The 1-cubic-meter self-loading mixer truck, with its precise parameter design and all-round operational capabilities, has become an ideal choice for such scenarios. It not only avoids the resource waste caused by large-scale equipment but also breaks through the efficiency bottleneck of manual operations.

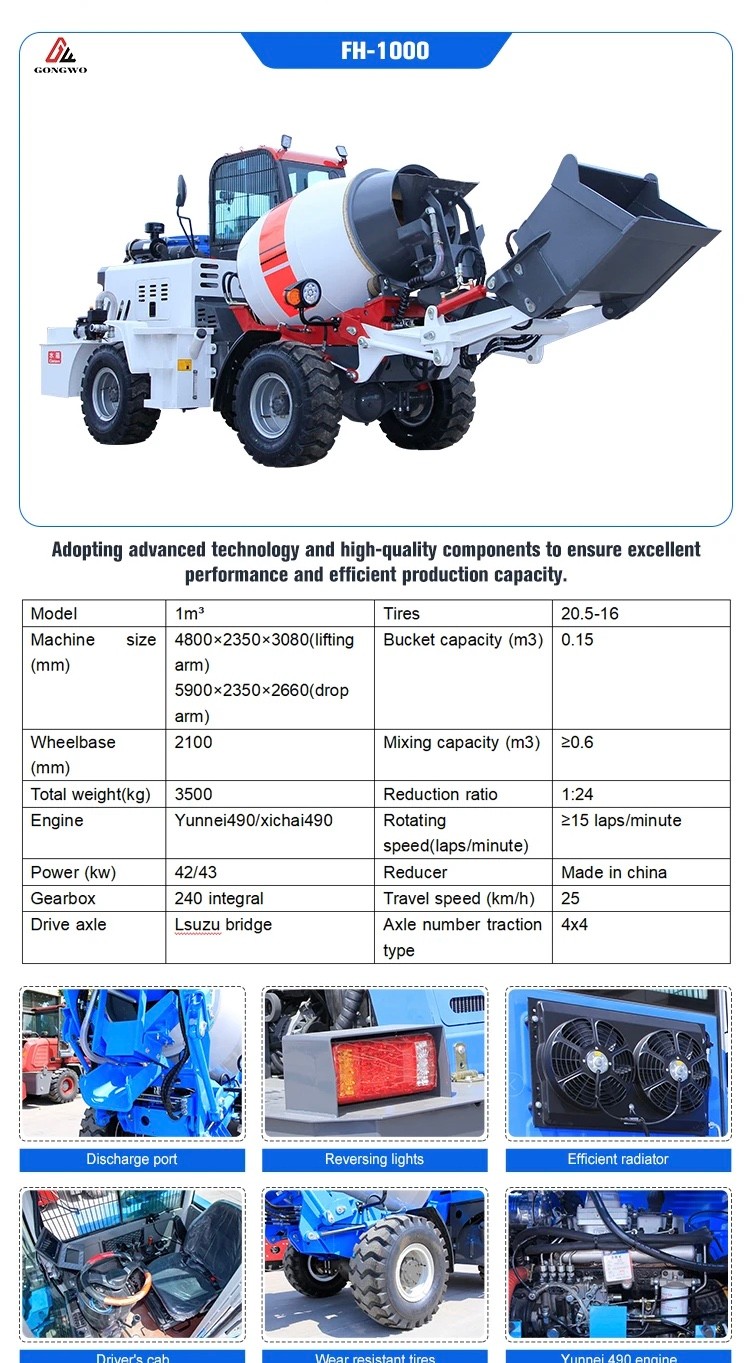

Power core: Stable output, adapting to multiple working conditions
This mixer truck is equipped with the industry-renowned Yunnei 490 or Xichai 490 engine, with a rated power of 42-43KW, providing strong and continuous power support for the entire machine. Whether it is the bucket operation during loading, the rotation of the drum during mixing, or driving on complex terrain, it can maintain stable performance. Equipped with a 240 integral gearbox, the shifting is smooth and fluent, and the power transmission is efficient. Combined with the solid structure of the Isuzu drive axle, the reliability of the power system is further improved, ensuring that it is not prone to failures during long-term operations.
Operational performance: Precise parameters, balancing efficiency and quality
In terms of core operational parameters, this mixer truck demonstrates a precise design logic. The bucket capacity is 0.15 cubic meters, which is suitable for the material loading needs of small-scale projects. It can quickly complete the grabbing of raw materials such as sand, gravel, and cement, while avoiding increased energy consumption caused by excessive loading. The effective mixing capacity of the mixing drum is ≥0.6 cubic meters. With a reduction ratio of 1:24 and a rotation speed of ≥15 laps per minute, it ensures that the concrete is evenly stressed during mixing, with stable slump, effectively preventing segregation and ensuring construction quality.
The unloading process is also efficient. Thanks to the optimized hydraulic control system, the unloading process is precise and controllable, reducing material residue and leakage, and lowering raw material waste. The driving speed of 25km/h makes the equipment more flexible when moving between different operating points, reducing non-operational time consumption.
Body design: Compact and flexible, breaking through site restrictions
Aiming at the site characteristics of small-scale projects, this mixer truck has an ingenious size design. The overall dimensions of the machine are 4800×2350×3080mm in the lifting arm state and 5900×2350×2660mm in the drop arm state. The compact body can easily pass through narrow spaces such as rural roads and areas beside community buildings. The 2100mm wheelbase design balances driving stability and steering flexibility. The minimum turning radius is adapted to the steering needs of complex sites, solving the problem that large equipment "cannot move or turn" in confined spaces.
The 4×4 axle traction type combined with 20.5-16 tires endows the vehicle with excellent off-road performance. Whether it is a muddy rural dirt road or a sloped construction site, it can maintain stable grip, ensuring the passability of the equipment under various complex road conditions and greatly expanding the applicable scenarios.
Practical details: Lightweight design, balancing durability
The total weight of the vehicle is controlled at 3500kg. The lightweight design not only reduces the requirements for ground bearing capacity, making it suitable for operations on fragile ground such as rural self-built house foundations and small sites but also reduces fuel consumption and lowers operating costs. At the same time, key components such as the drive axle and gearbox all adopt mature brand products, and the reducer is a high-quality domestic component. While ensuring lightweight, it also takes into account the durability of the equipment, extending the service life of the entire machine.
Applicable scenarios: "All-round assistant" for small-scale projects
Whether it is the mixing and transportation of concrete for rural self-built houses, the local material handling in municipal road maintenance, or the foundation pouring in garden renovation, this 1-cubic-meter self-loading mixer truck can rely on its integrated function of "loading - mixing - transporting - unloading" to reduce dependence on external equipment. It enables a single person or a small team to complete the entire process of operations, significantly improving construction efficiency, reducing labor and equipment coordination costs, and becoming a preferred equipment with both practicality and economy in small-scale projects
