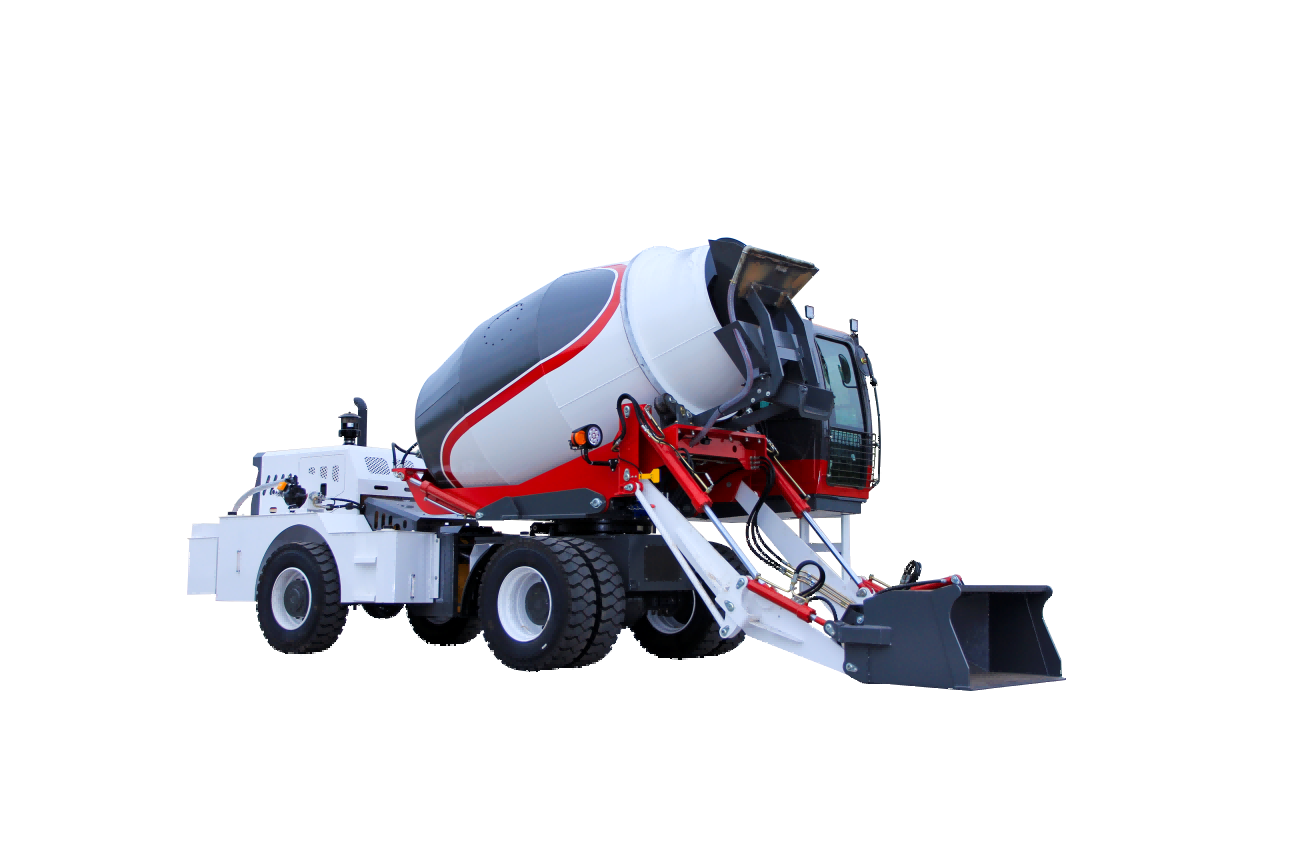

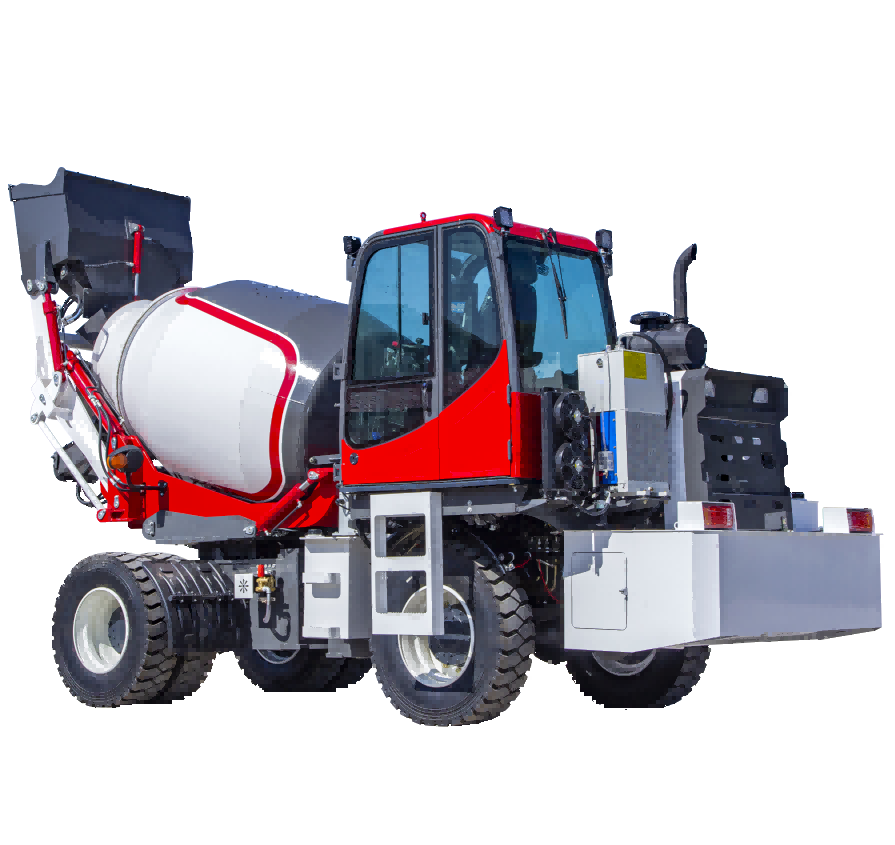

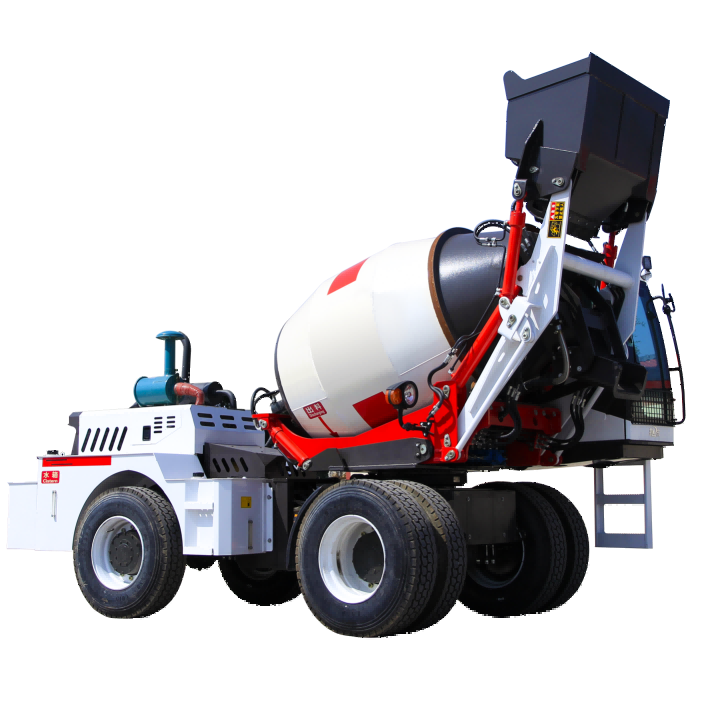

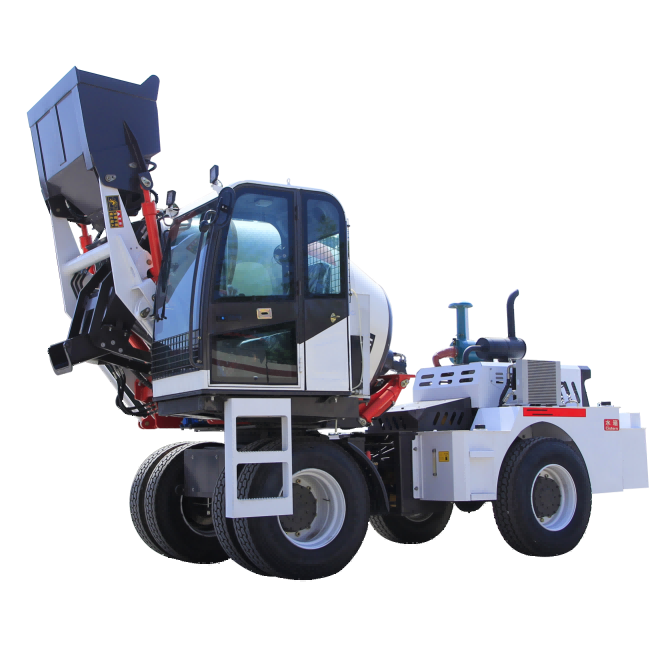

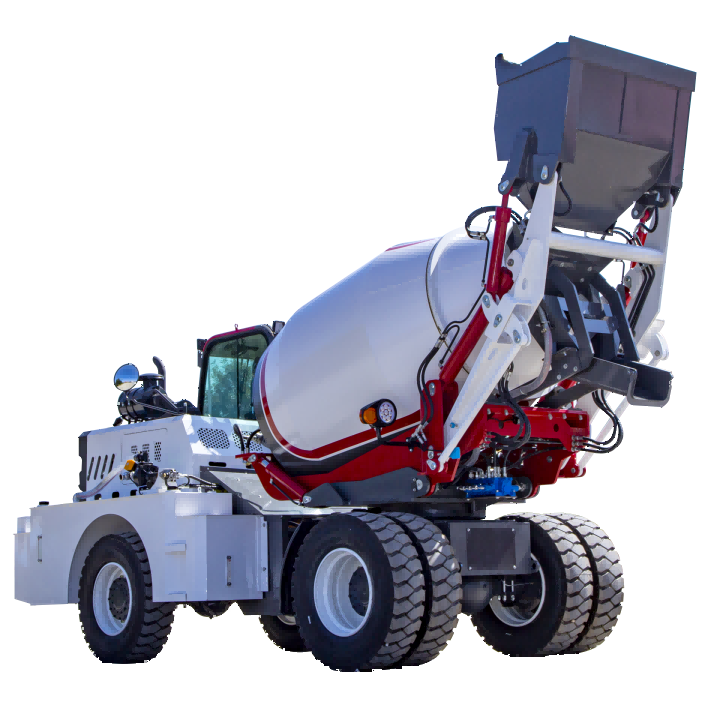

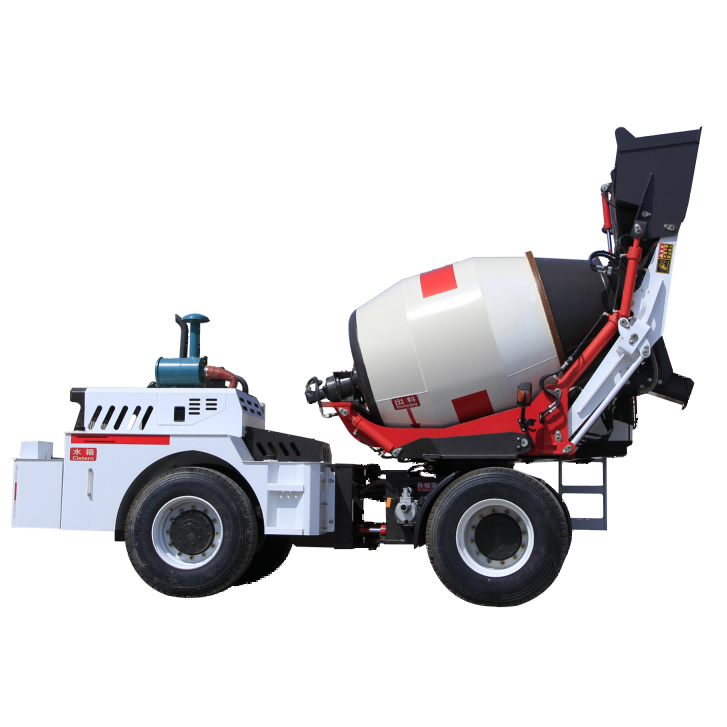

2.5-cubic - meter mixer truck

In fields such as medium-sized construction projects, municipal road expansion, and large-scale agricultural facility construction, the performance and adaptability of construction equipment directly determine the progress and cost-effectiveness of the project. The 2.5-cubic-meter self-loading mixer truck, with its core advantages of "large capacity and high efficiency", has become an ideal choice for such scenarios. It cleverly avoids the problem of resource idleness of large-scale equipment while breaking through the efficiency bottleneck of traditional manual operations.

I. Powerful and Stable Power Output

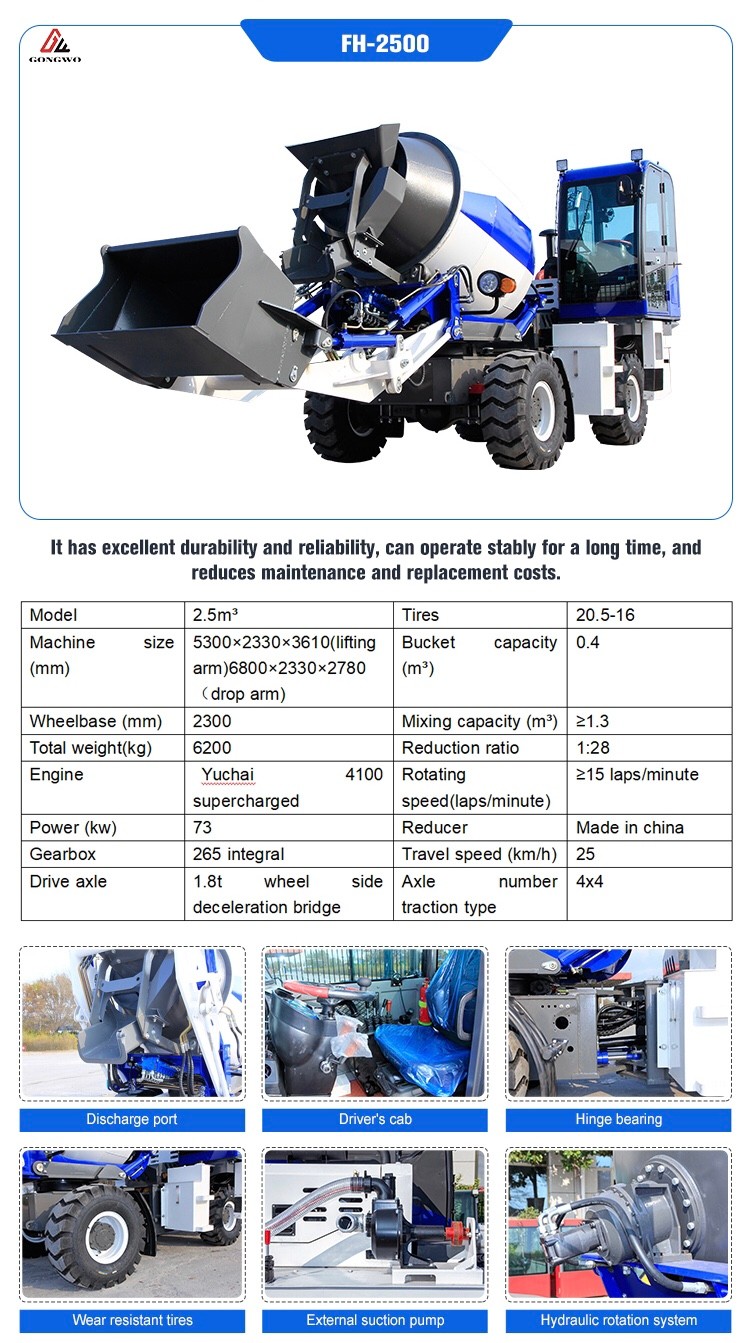

This mixer truck is equipped with a Yuchai 4100 supercharged engine, with a power of up to 73 kilowatts, providing strong and long-lasting power support for the entire machine. Whether it is the flexible operation of the bucket when loading materials, the stable rotation of the tank during mixing, or the smooth driving on complex terrain, it can maintain stable performance output. The matched 265 integral gearbox ensures smooth shifting and efficient power transmission. Combined with the solid structure of the 1.8-ton wheel-side reduction axle, the reliability of the power system is further enhanced, ensuring that it is not prone to failures during long-term operations.

In terms of key operating parameters, the design of this mixer truck is very precise. Its bucket capacity is 0.4 cubic meters, which is well-suited for material loading needs in medium-sized projects. It can quickly grab raw materials such as sand, gravel, and cement, while avoiding increased energy consumption due to overloading. The effective mixing capacity of the mixing drum is ≥1.3 cubic meters. With a reduction ratio of 1:28 and a rotation speed of ≥15 revolutions per minute, it ensures that the concrete is evenly stressed during mixing, maintains stable slump, and effectively prevents segregation, thus ensuring construction quality.

The unloading process is also efficient. Thanks to the optimized hydraulic control system, the unloading process is precise and controllable, reducing material residue and leakage, and lowering raw material waste. The driving speed of 25 kilometers per hour makes the transfer of the equipment between different operating points more flexible and convenient, reducing the consumption of non-operating time.

II. Flexible Design for Diverse Scenarios

Considering the site characteristics of medium-sized projects, this mixer truck features an ingenious size design. The overall dimensions of the machine are 5300×2330×3610 mm when the arm is lifted, and 6800×2330×2780 mm when the arm is lowered. The compact body can easily navigate through urban and rural roads, construction site lanes, and other spaces. The 2300 mm wheelbase design balances driving stability and steering flexibility, and the minimum turning radius can adapt to the steering needs of complex sites, solving the problem that large equipment "cannot move or turn" in confined spaces.

The 4×4 axle traction type paired with 20.5-16 tires endows the vehicle with excellent off-road performance. Whether it is a muddy rural dirt road or a sloped construction site, it can maintain stable grip, ensuring the equipment's passability under various complex road conditions and greatly expanding its applicable scenarios.

III. Practical Details Balancing Durability and Economy

The total weight of the vehicle is controlled at 6200 kg. This design ensures load-bearing capacity while taking into account the requirements for ground bearing capacity, making it suitable for operations in various construction sites. At the same time, key components such as the drive axle and gearbox are all mature brand products, and the reducer is a high-quality domestic component, which ensures performance while taking into account the durability of the equipment and extending the service life of the entire machine.

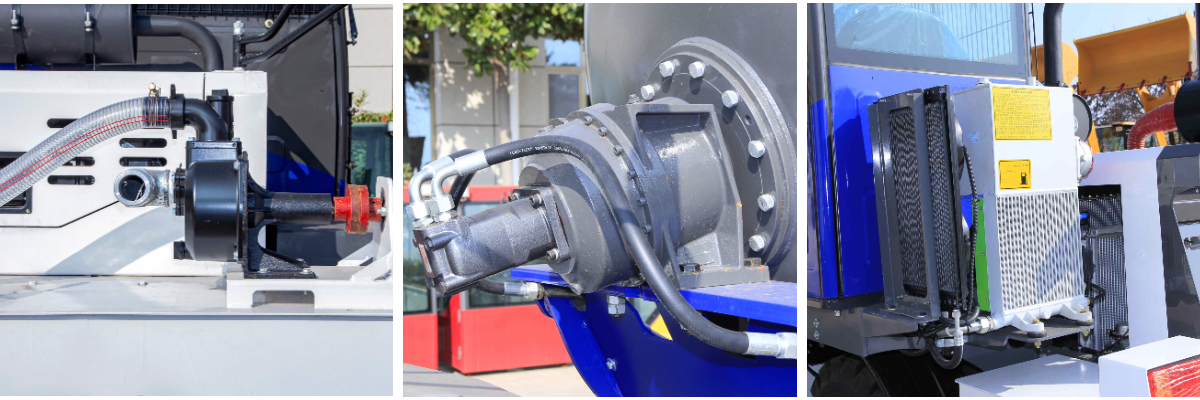

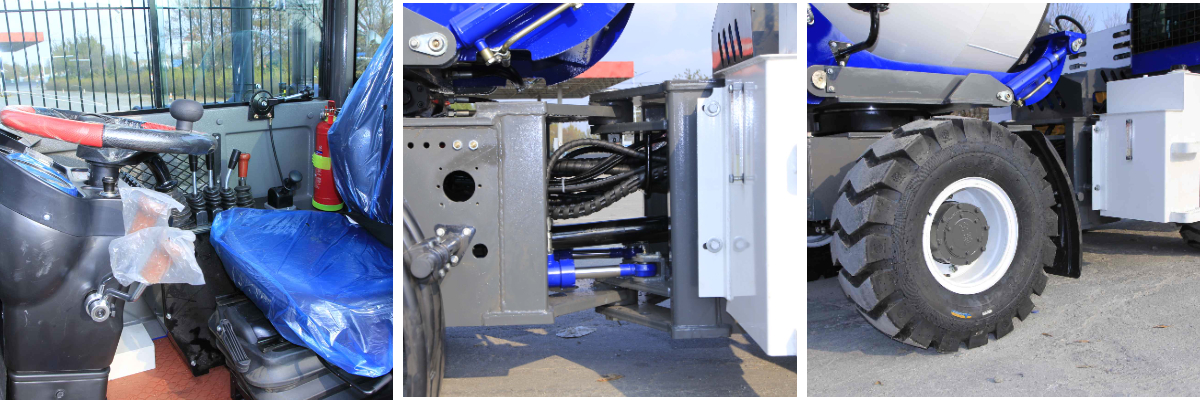

In addition, the vehicle is made of high-strength steel and wear-resistant materials, which can withstand harsh working conditions and heavy loads. The cab provides a comfortable working environment for the operator; the large-capacity bucket improves loading efficiency; the optimized discharge port design reduces material residue; the hinge bearings and external oil pumps ensure stable operation and convenient maintenance of the equipment; the hydraulic rotation system achieves precise control.

IV. Wide Application as an All-round Assistant

Whether it is medium-sized real estate construction, county-level road construction, or foundation pouring for large-scale agricultural facilities, this 2.5-cubic-meter self-loading mixer truck can rely on its integrated functions of "loading - mixing - transporting - unloading" to reduce dependence on external equipment. It enables a single person or a small team to complete the entire operation process, significantly improving construction efficiency, reducing labor and equipment coordination costs, and becoming a preferred equipment with both practicality and economy in medium-sized projects.
