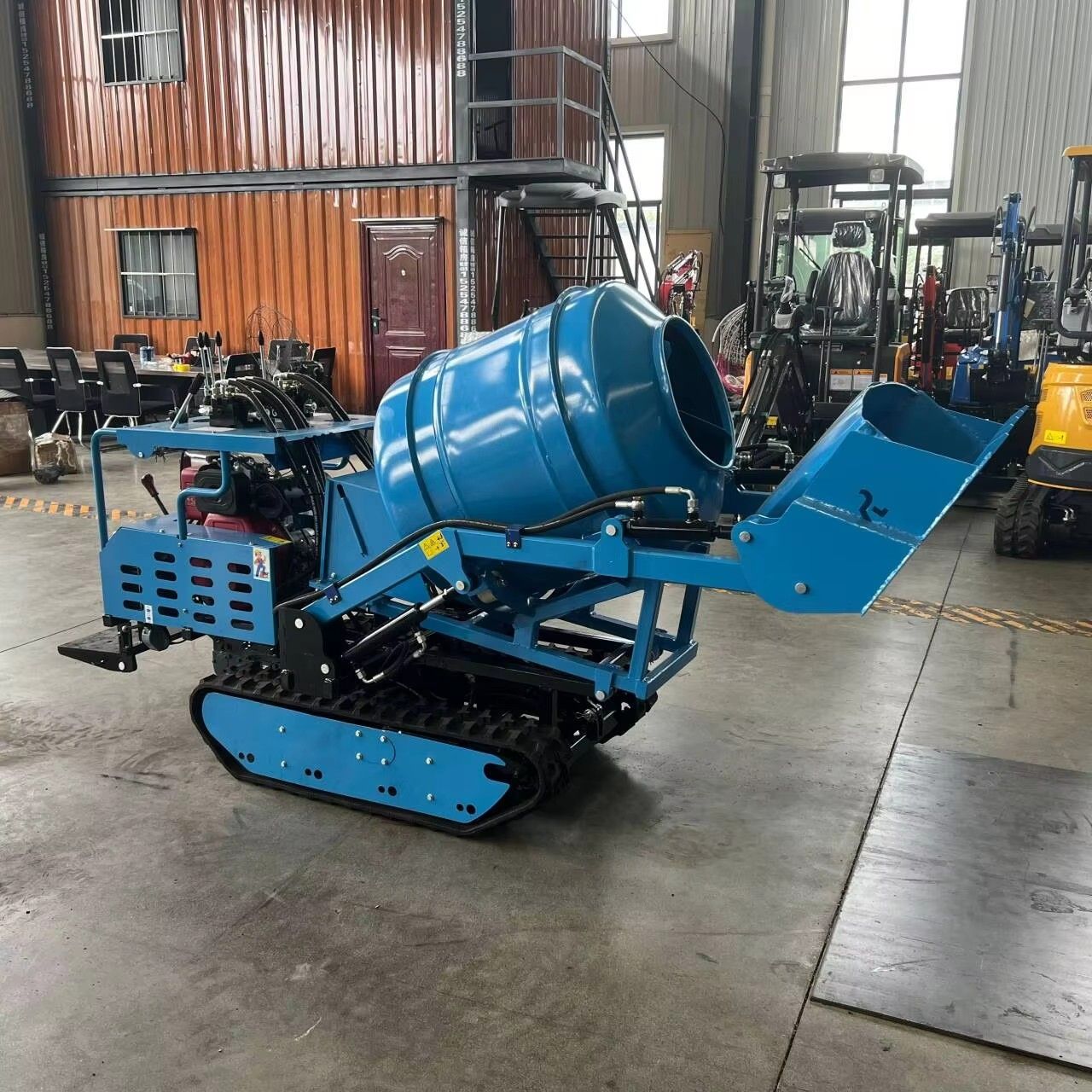

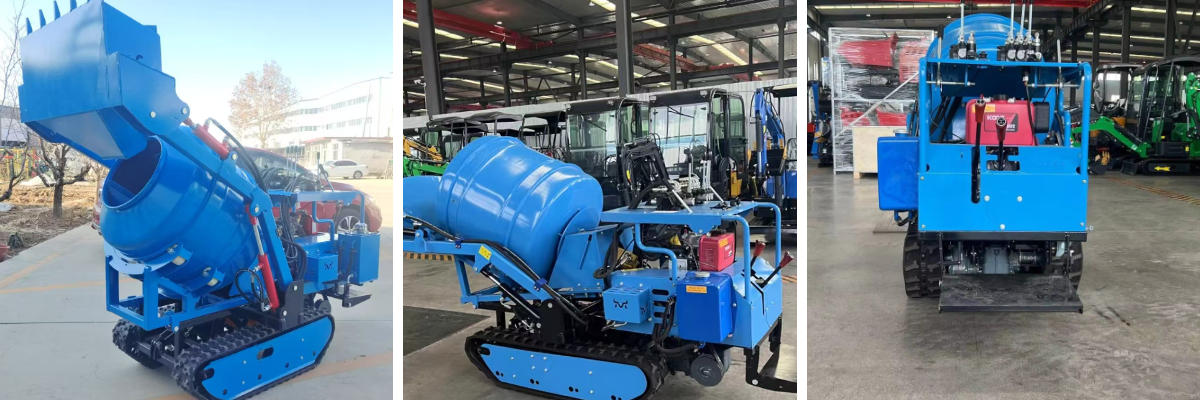

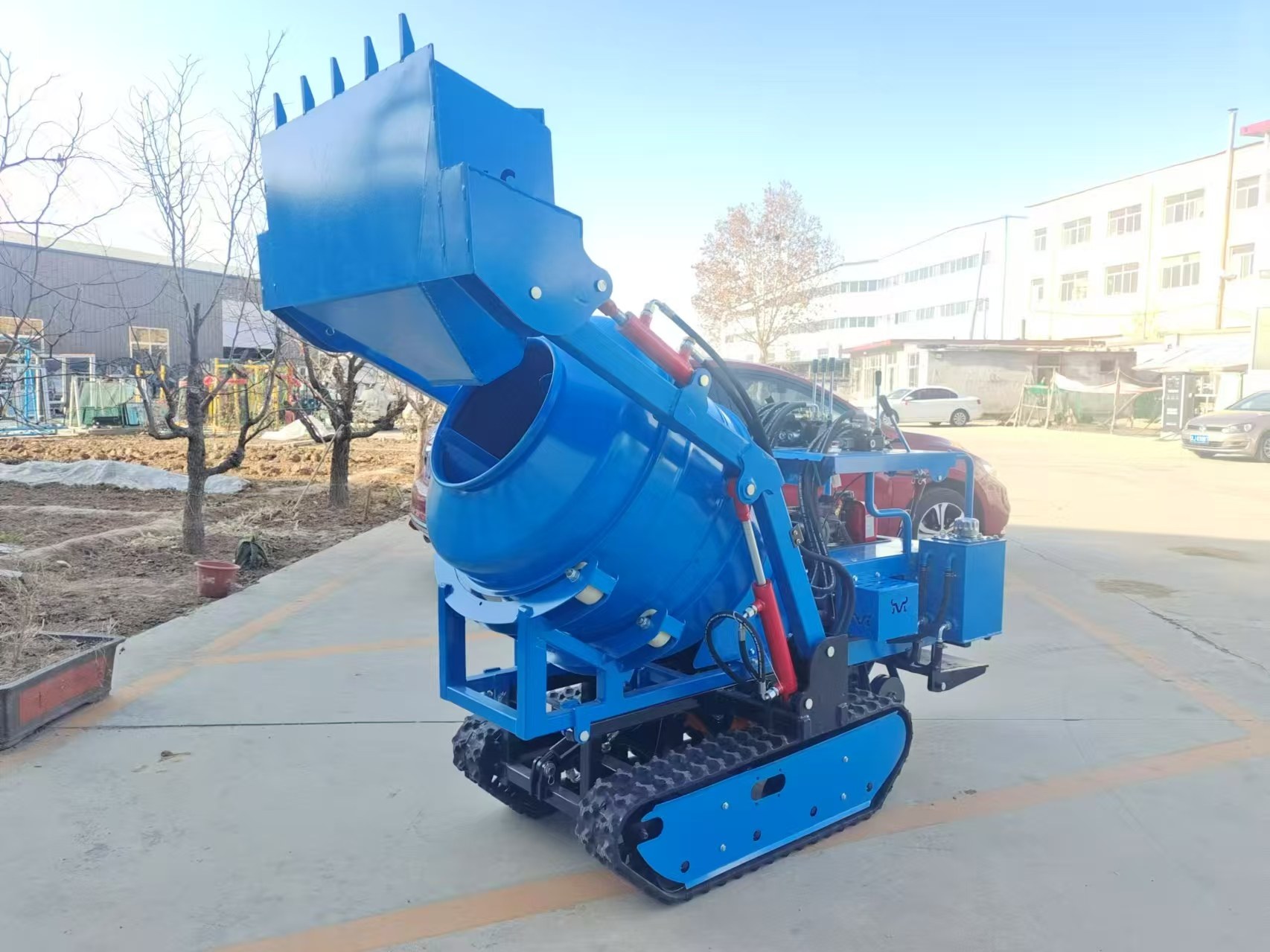

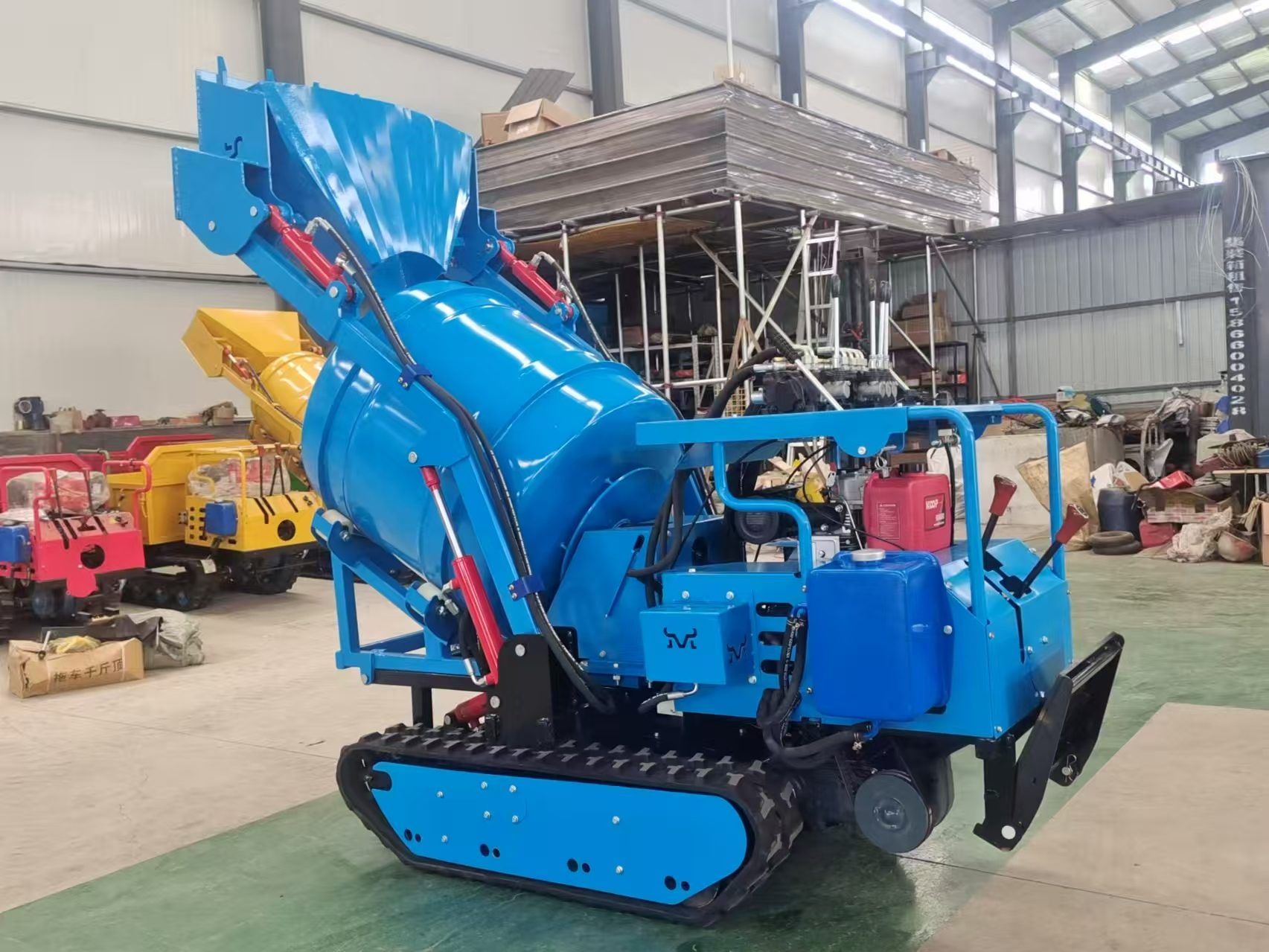

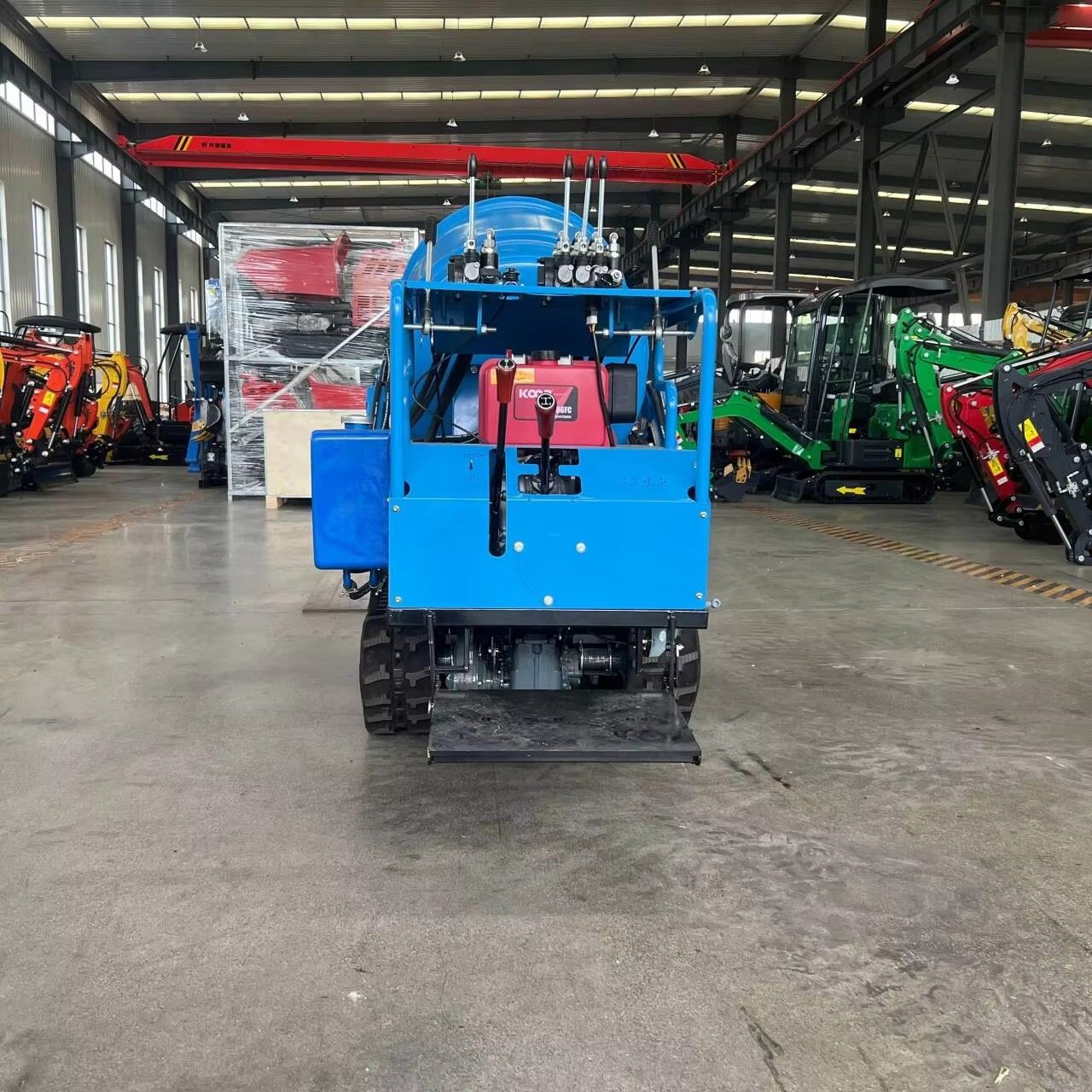

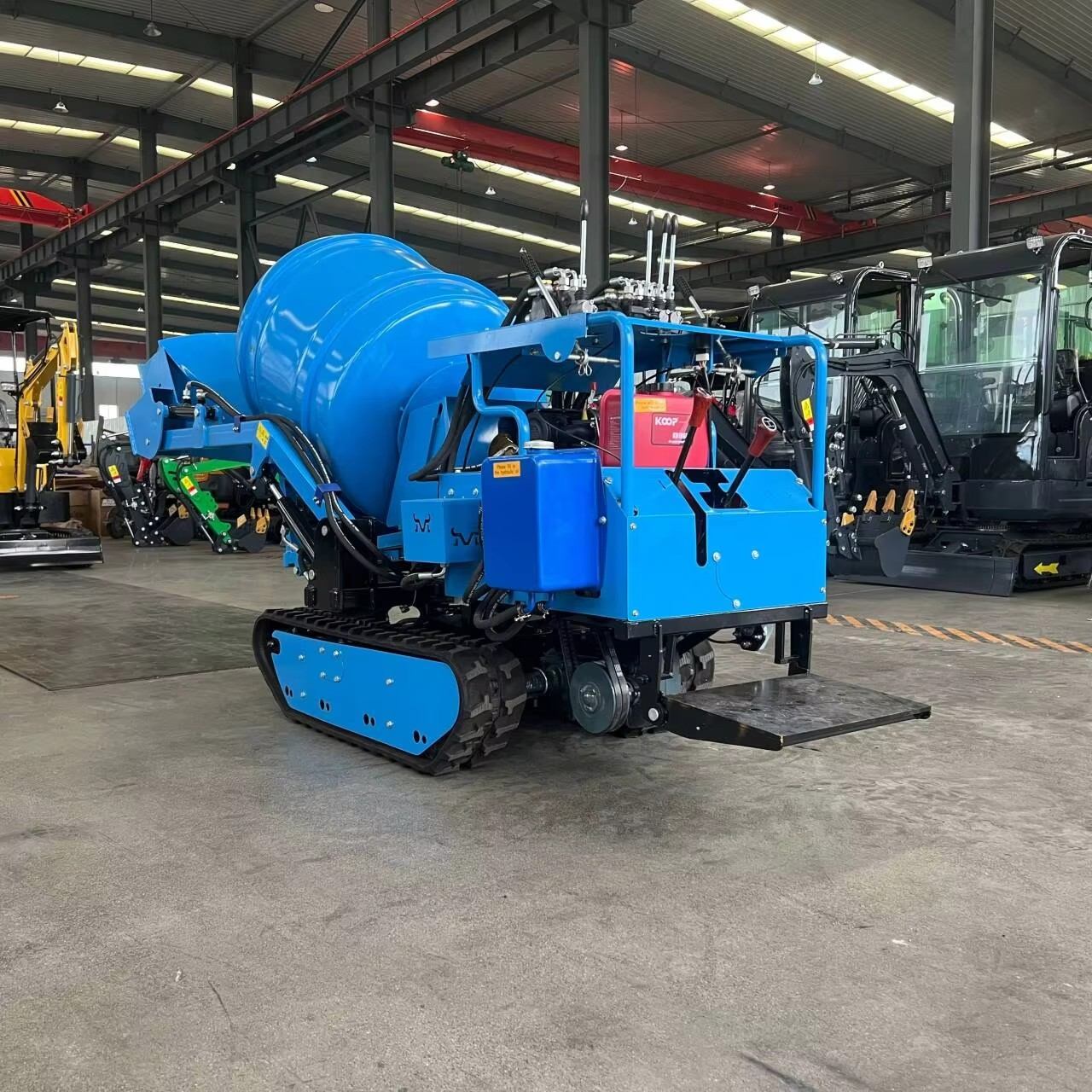

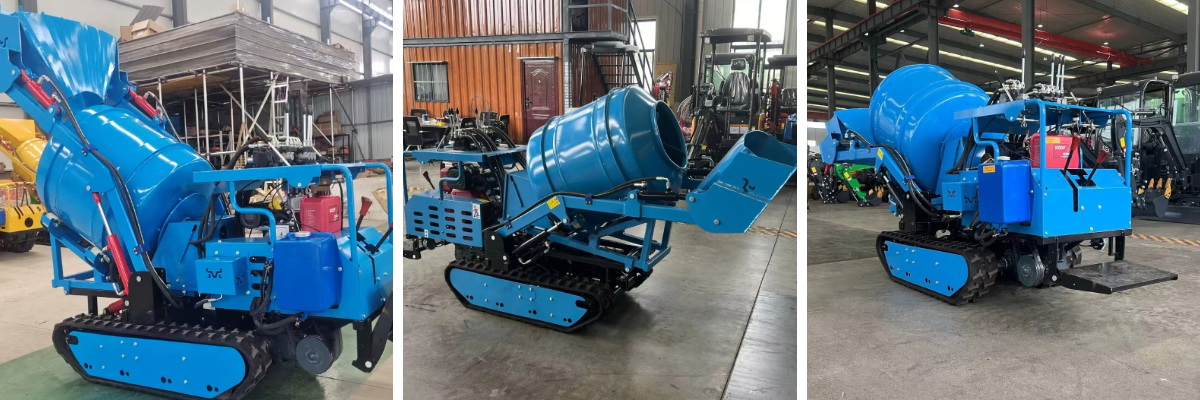

280L mixer truck

In the field of small-scale construction projects, the 280L mixer truck, with its compact size and practical performance, has become an ideal choice for scenarios such as rural self-built houses, courtyard renovations, and indoor partial pouring. This equipment integrates flexible operation with efficient work, providing small construction teams with a solution that balances cost and quality.

Power and Transmission: A Small yet Powerful Core Configuration

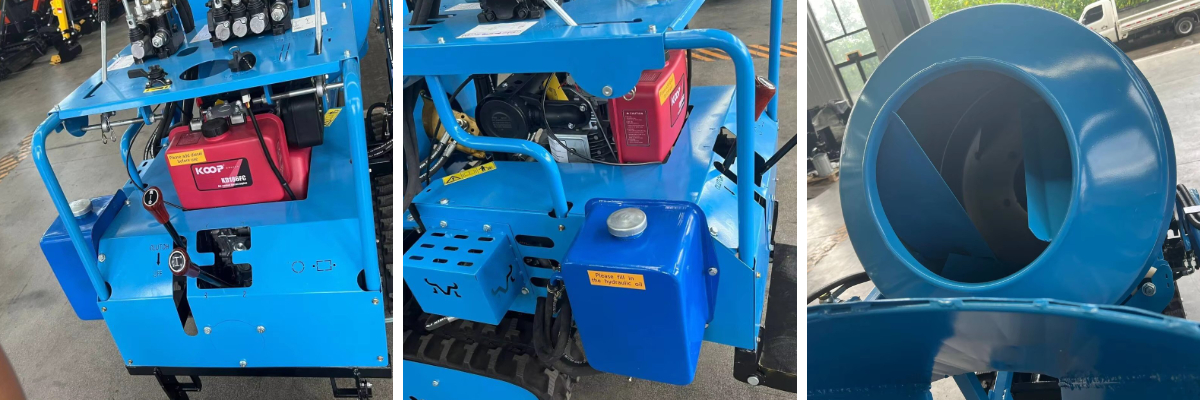

The vehicle is equipped with a Changchai 173 diesel engine with an output power of 5 horsepower, adopting an air-cooled design. It can maintain stable operation during continuous work without a complex water-cooling system, making it particularly suitable for water-scarce or outdoor environments. Power transmission is handled by a GL-10 gearbox, featuring 3 forward gears and 1 reverse gear. Combined with manual lever operation, it allows the driver to flexibly switch speeds according to the site slope and load conditions, enabling even novice operators to get started quickly.

Operating System: Precisely Adapting to Small-Scale Construction Needs

The shovel has a capacity of 0.06 cubic meters, and the single material taking amount exactly matches the 280L discharge specification, avoiding waste caused by material accumulation. The feeding capacity is no less than 300L, providing sufficient space for material mixing during the stirring process; while the discharge capacity is controlled within 280L, precisely meeting the dosage requirements of partial pouring. Whether it is wall pointing, ground leveling, or small component pouring, it can realize efficient use of materials.

The mixing drum has a size of Φ660 mm × 820 mm, with an optimized blade layout inside. When rotating, it can form a spiral stirring trajectory, allowing cement, sand, gravel, and water to fully mix, effectively preventing segregation and ensuring the homogeneity of concrete. Unloading is driven by hydraulic pressure, and the unloading speed and angle can be controlled by the lever. Combined with the adjustable height of the discharge port, it can adapt to the needs of different pouring positions and reduce manual transfer links.

Walking and Passability: A Flexible Respondent to Complex Sites

The entire vehicle adopts a rubber crawler design. The crawler size is 150 mm × 60 mm × 38 mm, and the grounding length reaches 800 mm, which can not only disperse the equipment weight to protect the ground (especially suitable for newly hardened sites or courtyard floor tiles) but also provide sufficient grip. The walking speed of 0-8 km/h ensures efficient and safe movement in the construction area.

With a maximum climbing capacity of 30° and a vertical obstacle-surmounting capacity of 200 mm, the vehicle can easily cope with common obstacles on construction sites such as soil slopes and brick piles; the wading depth of 300 mm enables it to work normally in muddy sites after rain. The overall size of 2000 mm × 1000 mm × 1450 mm, combined with a compact turning radius, can even pass through narrow alleys or indoor doorways to achieve close-range operations.

Durability and Adaptability: Balancing Cost and Practicality

The equipment has a net weight of 480 kg and a total weight of 550 kg, with a compact yet sturdy structure. The key components of the mixing system are made of wear-resistant materials, combined with a simple lubrication device. Daily maintenance only requires regular oil filling, which greatly reduces maintenance difficulty and cost.

To adapt to different usage scenarios, the vehicle supports the choice of diesel or gasoline power and meets Euro 5 or EPA environmental certification standards. Whether it is for rural construction in China or exported to overseas markets, it can meet local emission requirements. The packaging uses plywood boxes, with a single set size of 2000 mm × 1020 mm × 1620 mm. A 20-foot container can hold 6 sets, and a 40-foot container can hold 14 sets, facilitating long-distance transportation and batch distribution.

From power configuration to operation details, the 280L mixer truck always takes "exclusive for small-scale projects" as the core design concept. With precise capacity control, flexible site adaptability, and simple operation and maintenance, it provides an efficient and economical concrete mixing solution for small-scale construction
