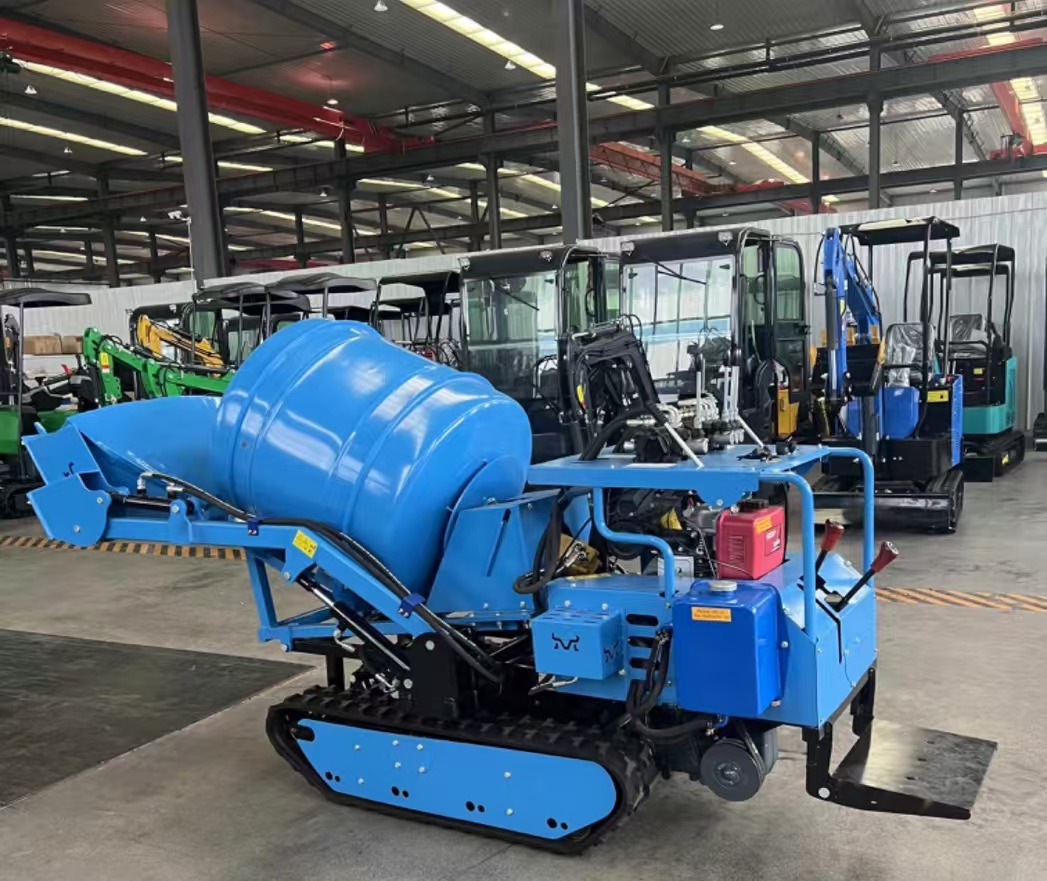

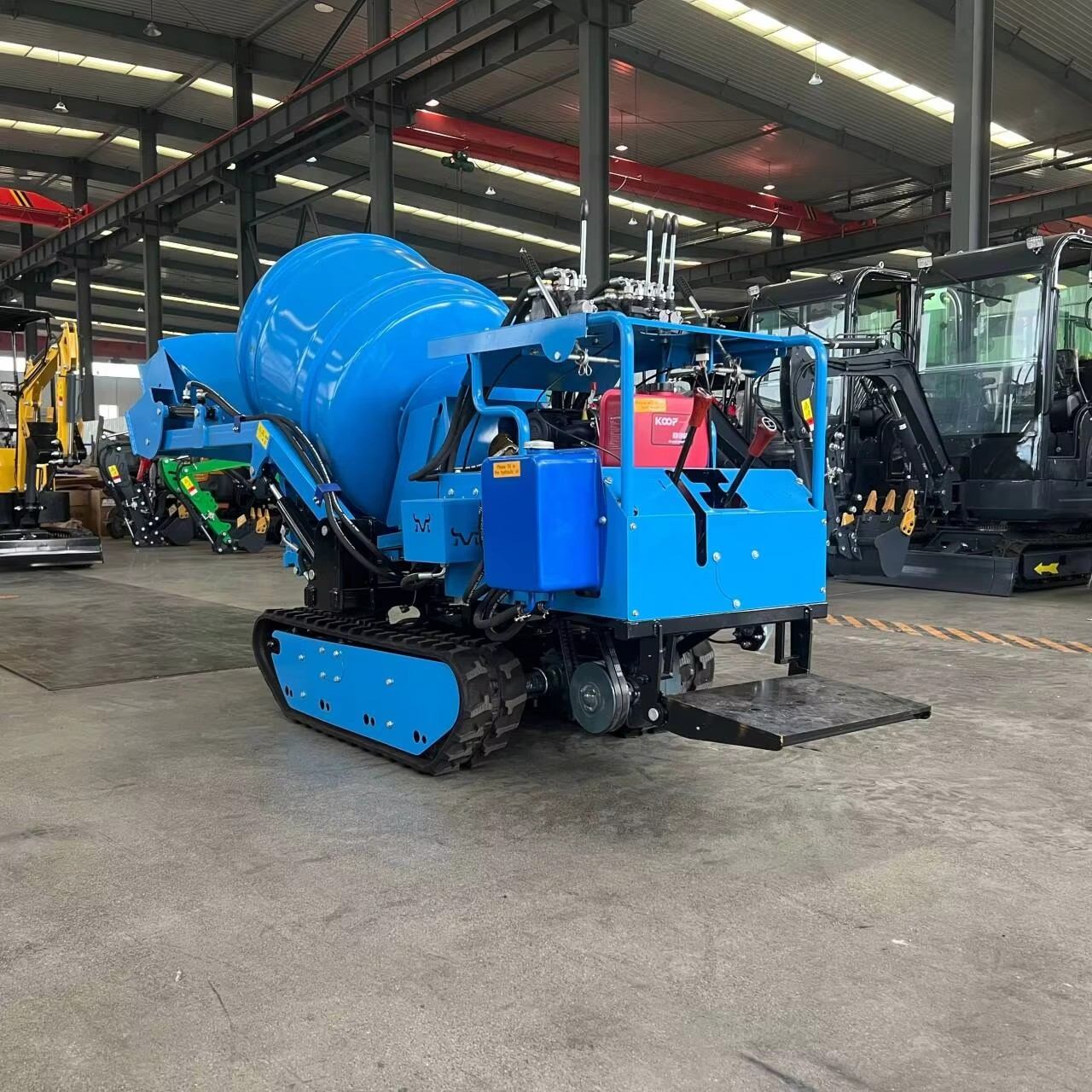

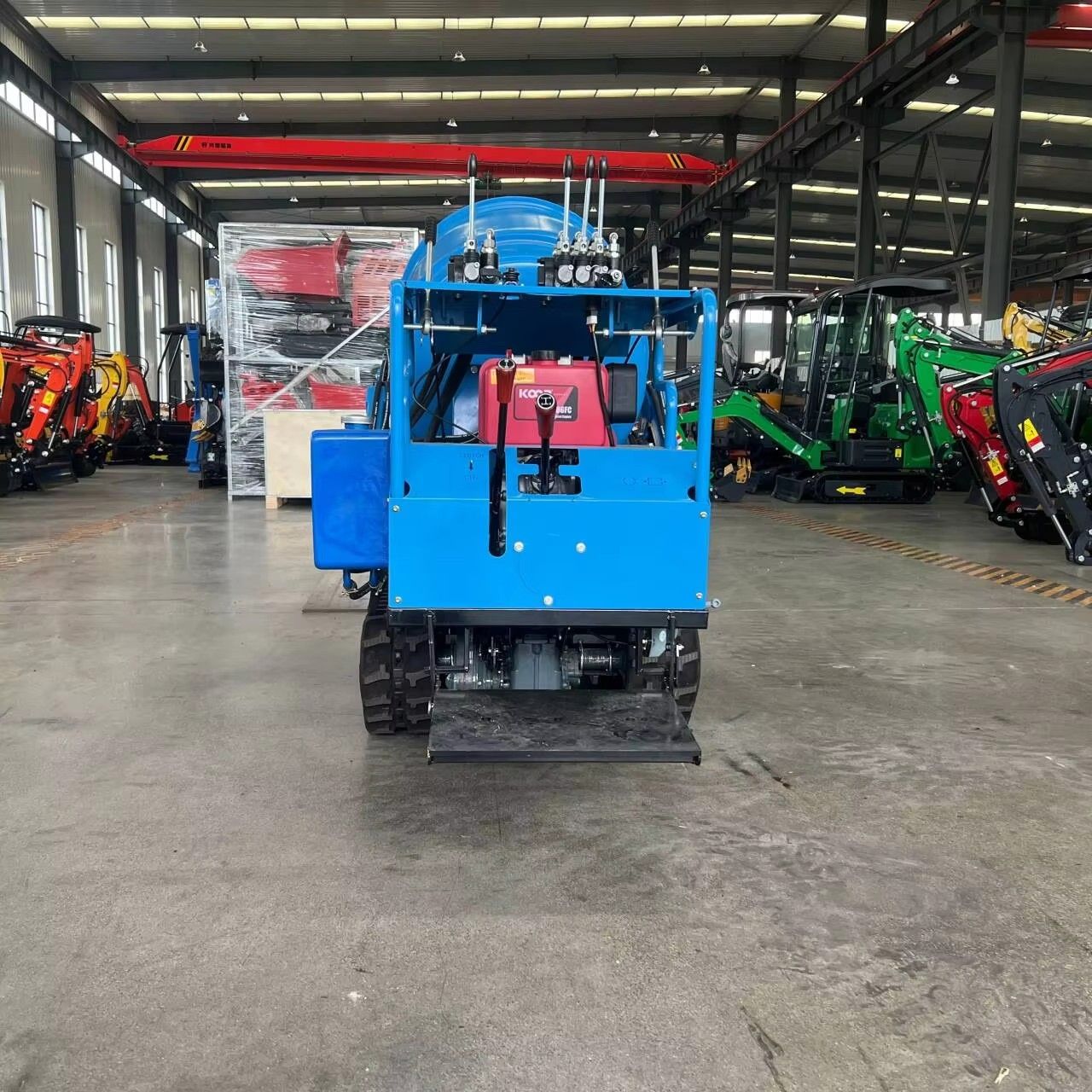

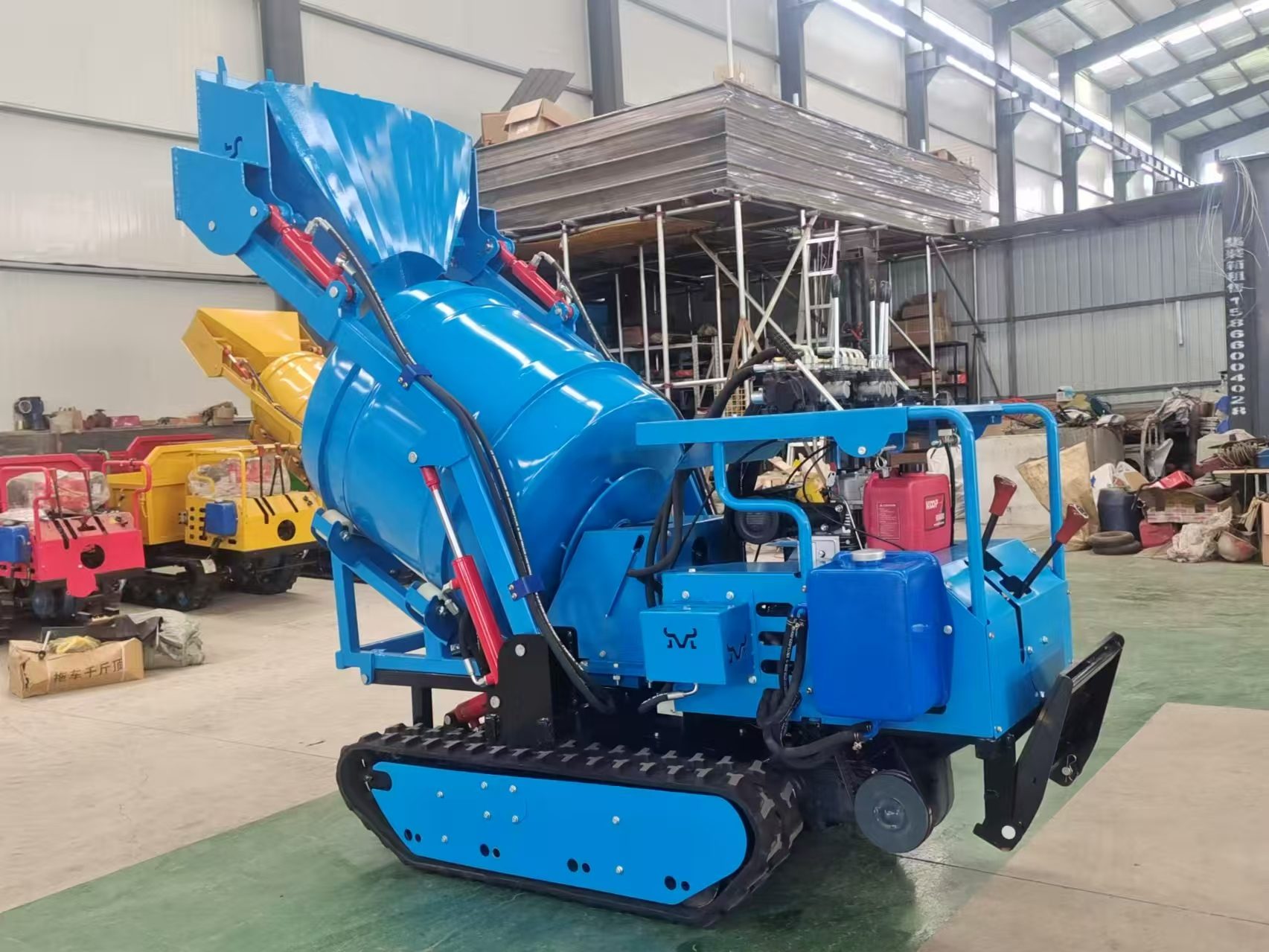

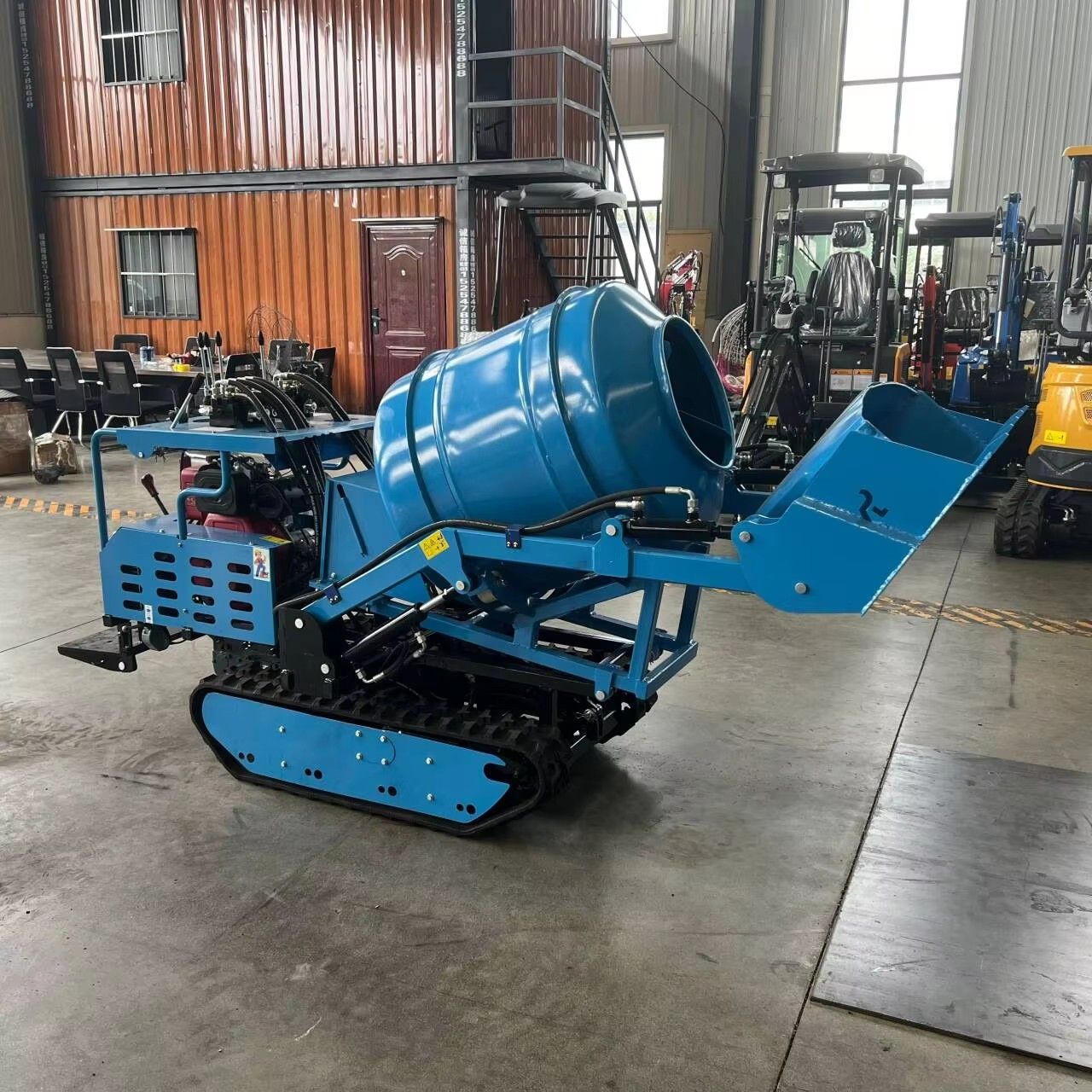

350L mixer truck

In the field of small and medium-sized construction projects, the 350L mixer truck has become an efficient choice for scenarios such as rural self-built houses, foundation pouring in small construction sites, and municipal maintenance, thanks to its balanced operating capacity and flexible adaptability. This equipment not only balances productivity and maneuverability but also focuses on optimizing construction costs, providing reliable concrete mixing solutions for small and medium-sized construction teams.

Power and Transmission: Stable and Efficient Core Configuration

The vehicle is equipped with a Changchai 178 diesel engine, featuring a 4-stroke design with an output power of 5.5 horsepower. It is paired with an air-cooled system, which allows it to maintain stable operation during continuous work without the need for a complex water-cooling device, making it particularly suitable for outdoor construction environments with water scarcity or heavy dust. Power transmission is handled by a GL-10 gearbox, with a gear combination of 3 forward gears and 1 reverse gear. Combined with manual lever operation, it enables operators to flexibly adjust the speed according to the site slope and material load. Even novice operators can quickly master the operating essentials, ensuring operational safety and efficiency.

Operating Efficiency: Precisely Matching the Needs of Small and Medium-Sized Projects

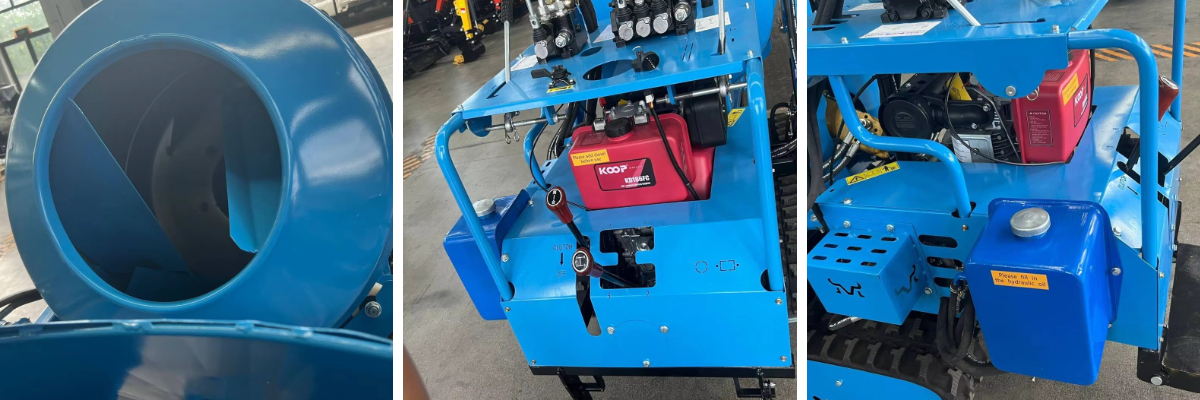

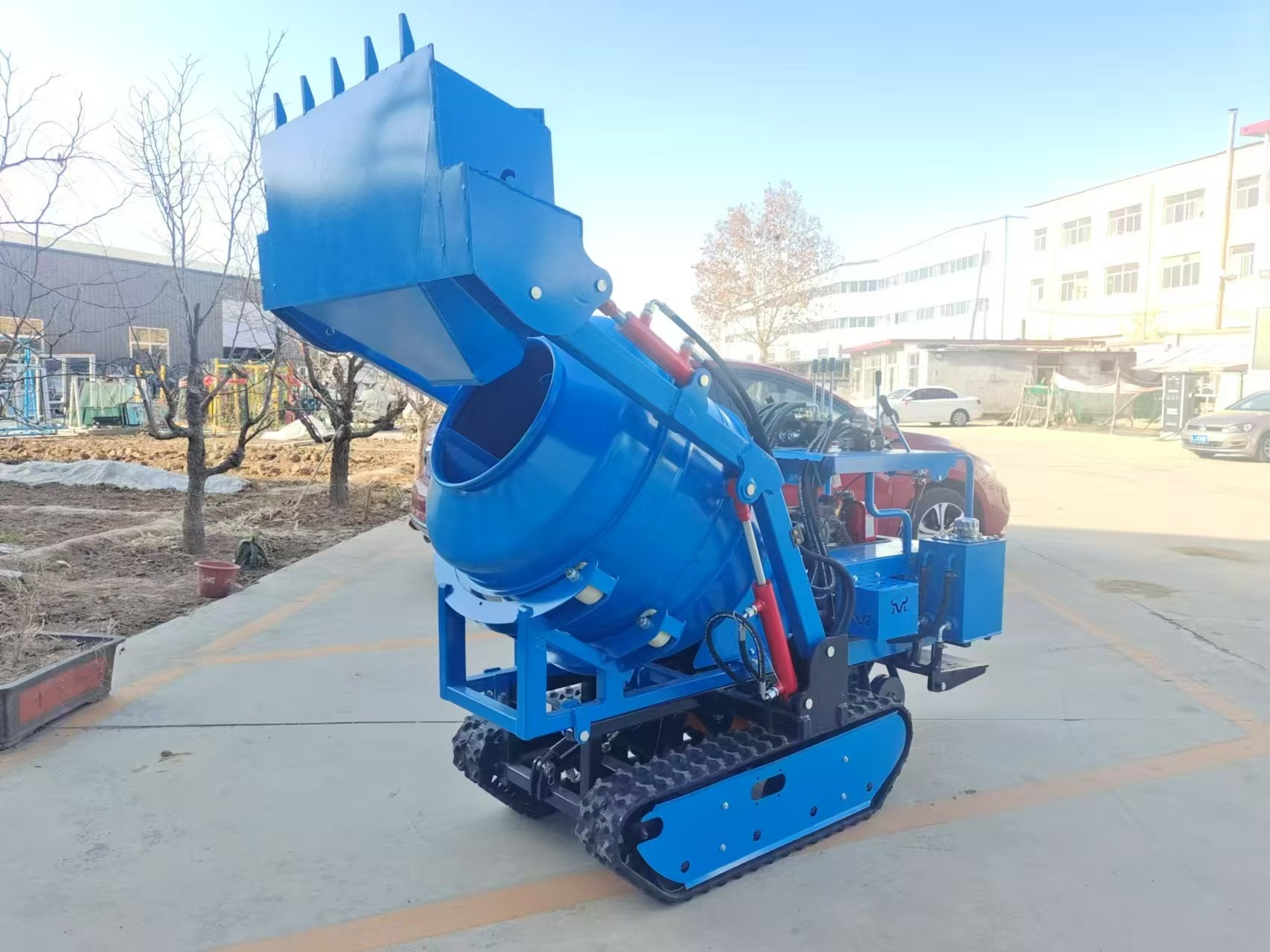

The shovel of the equipment has a capacity of 0.08 cubic meters, and the single material taking amount is highly compatible with the mixing process. Combined with a feeding capacity of ≥450L, it reserves sufficient mixing space for the standard 350L discharge volume, effectively avoiding waste caused by material overflow. The mixing drum offers two size options: Φ760×820 mm or Φ660×920 mm. It adopts an optimized spiral blade design inside, which can form a three-dimensional mixing trajectory when rotating, ensuring full integration of cement, sand, gravel, and water, significantly reducing the risk of concrete segregation, and guaranteeing the uniformity of pouring quality.

The unloading system is hydraulically driven, and the unloading speed and angle can be precisely controlled through the lever. Cooperated with the adjustable height of the discharge port, it can meet the needs of different pouring positions. Whether it is wall pouring or ground leveling, it can achieve precise material distribution, reducing losses in the manual transfer process.

Flexible Passability: Efficient Response to Complex Sites

The overall size of the machine is 2500×1080×1500 mm, and its compact shape allows it to easily pass through restricted spaces such as narrow alleys and courtyard gates. It is equipped with a rubber crawler design (size 150×60×44 mm, ground contact length 900 mm), which can not only disperse the equipment weight to protect hardened ground or floor tiles but also provide sufficient grip. The walking speed of 2-8 km/h can be flexibly adjusted according to the size of the construction area, balancing movement efficiency and operational safety.

The equipment has a maximum climbing capacity of 30° and a vertical obstacle-surmounting capacity of 200 mm, enabling it to easily cope with common obstacles on construction sites such as soil slopes and brick piles. The wading depth of 300 mm allows it to work normally in muddy sites after rain, significantly reducing construction delays caused by weather impacts.

Durability and Maintenance Convenience

The equipment has a net weight of 580 kg and a total weight of 650 kg. Its structural design balances compactness and sturdiness. Key components, especially the inner wall of the mixing drum and the blades, are made of wear-resistant materials, effectively extending the service life. The equipment is equipped with a simple lubrication device, and daily maintenance only requires regular oil filling, which greatly reduces maintenance difficulty and costs, making it suitable for independent maintenance by construction teams.

Multiple Adaptability and Transportation Convenience

To adapt to different usage scenarios, the equipment supports the choice of diesel or gasoline power and meets Euro 5 or EPA environmental certification standards. Whether it is for rural construction in China or exported to overseas markets, it can meet local emission requirements. The packaging adopts a plywood box, with a single set of packaging dimensions of 2100×1080×1600 mm. A 20-foot container can hold 6 sets, and a 40-foot container can hold 12 sets, facilitating batch transportation and cross-border distribution, and providing convenient logistics solutions for dealers and construction enterprises.

From the precise capacity design to the flexible site adaptability, the 350L mixer truck takes "balanced efficiency" as its core, providing concrete mixing solutions that balance quality, efficiency, and cost for small and medium-sized projects, helping construction teams achieve the goal of reducing costs and increasing efficiency
