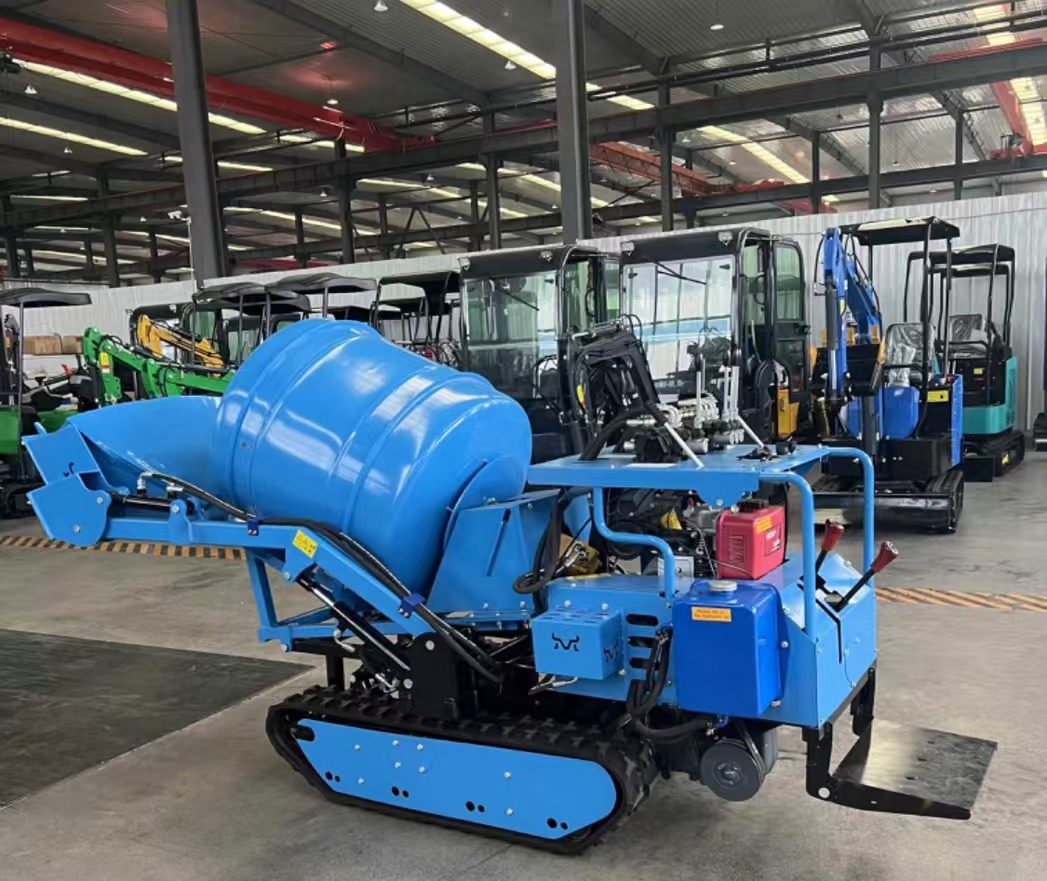

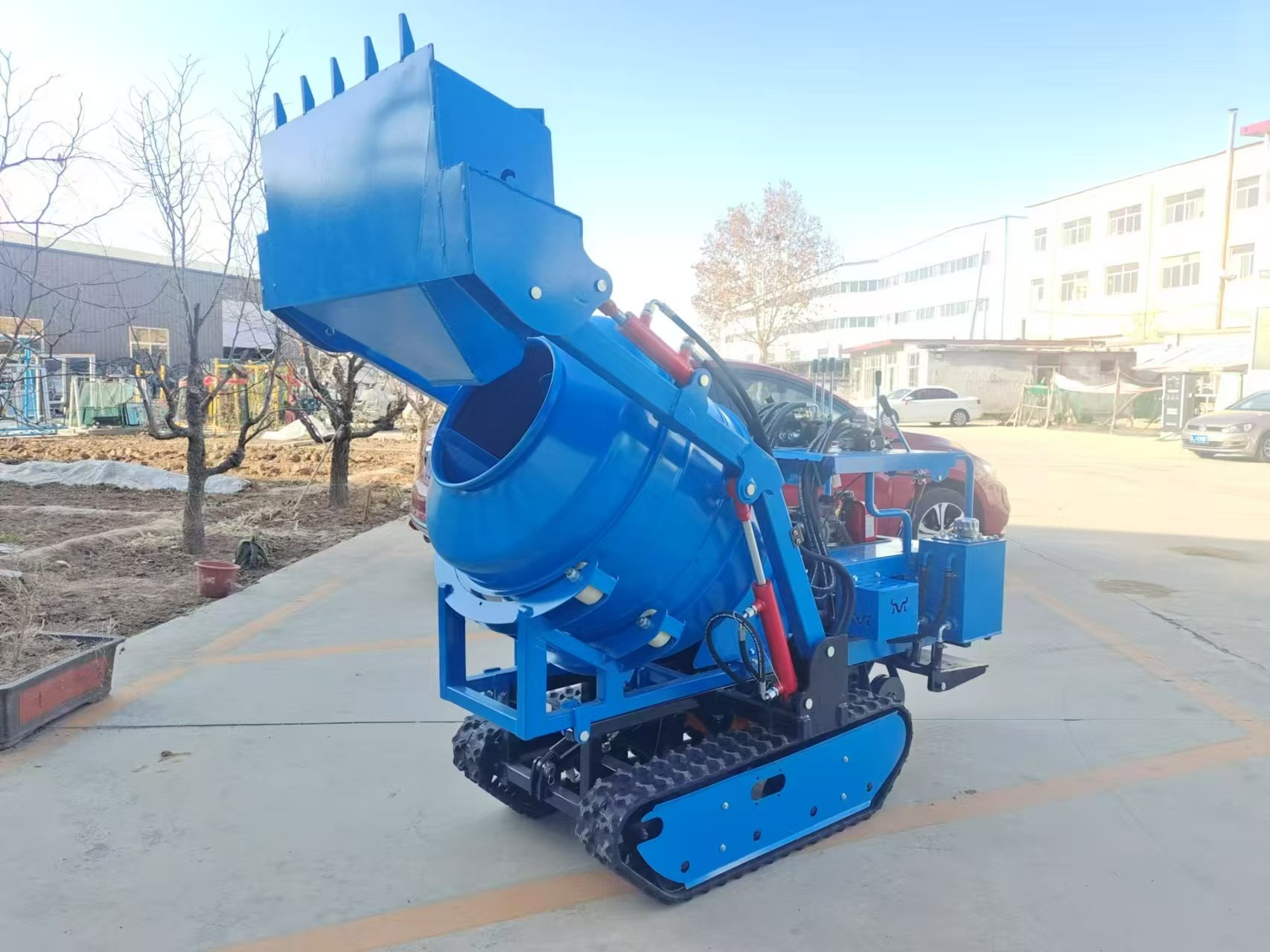

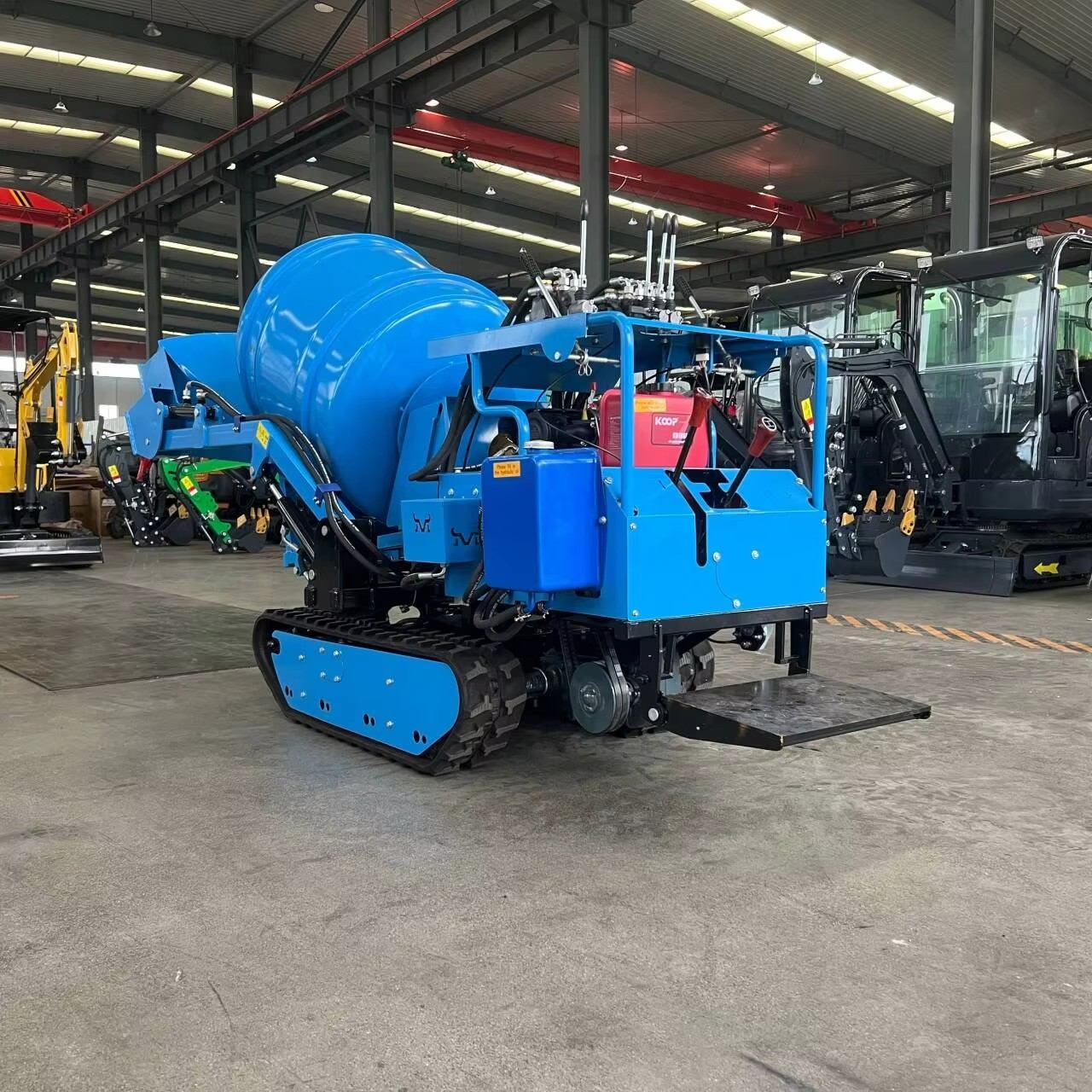

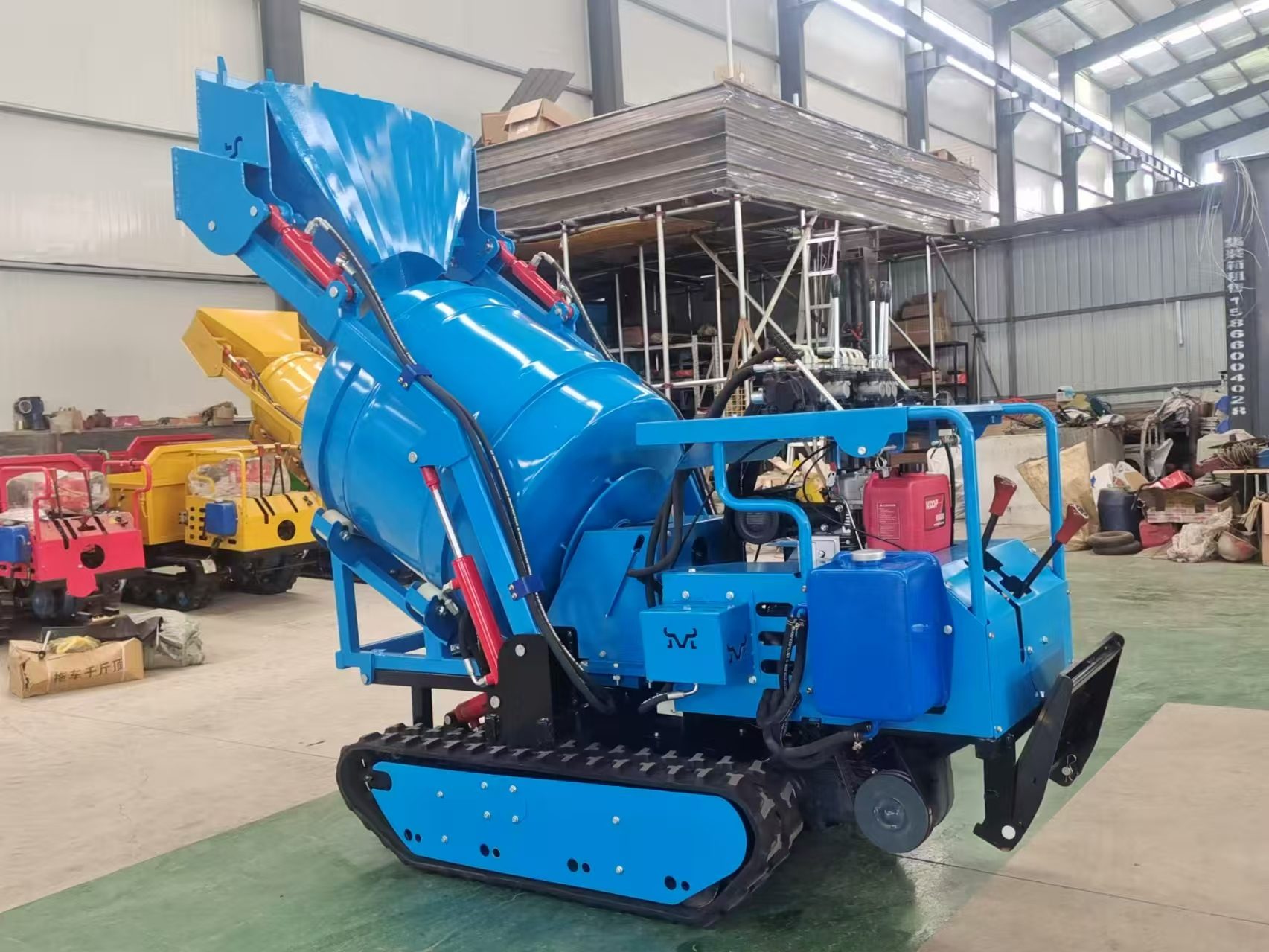

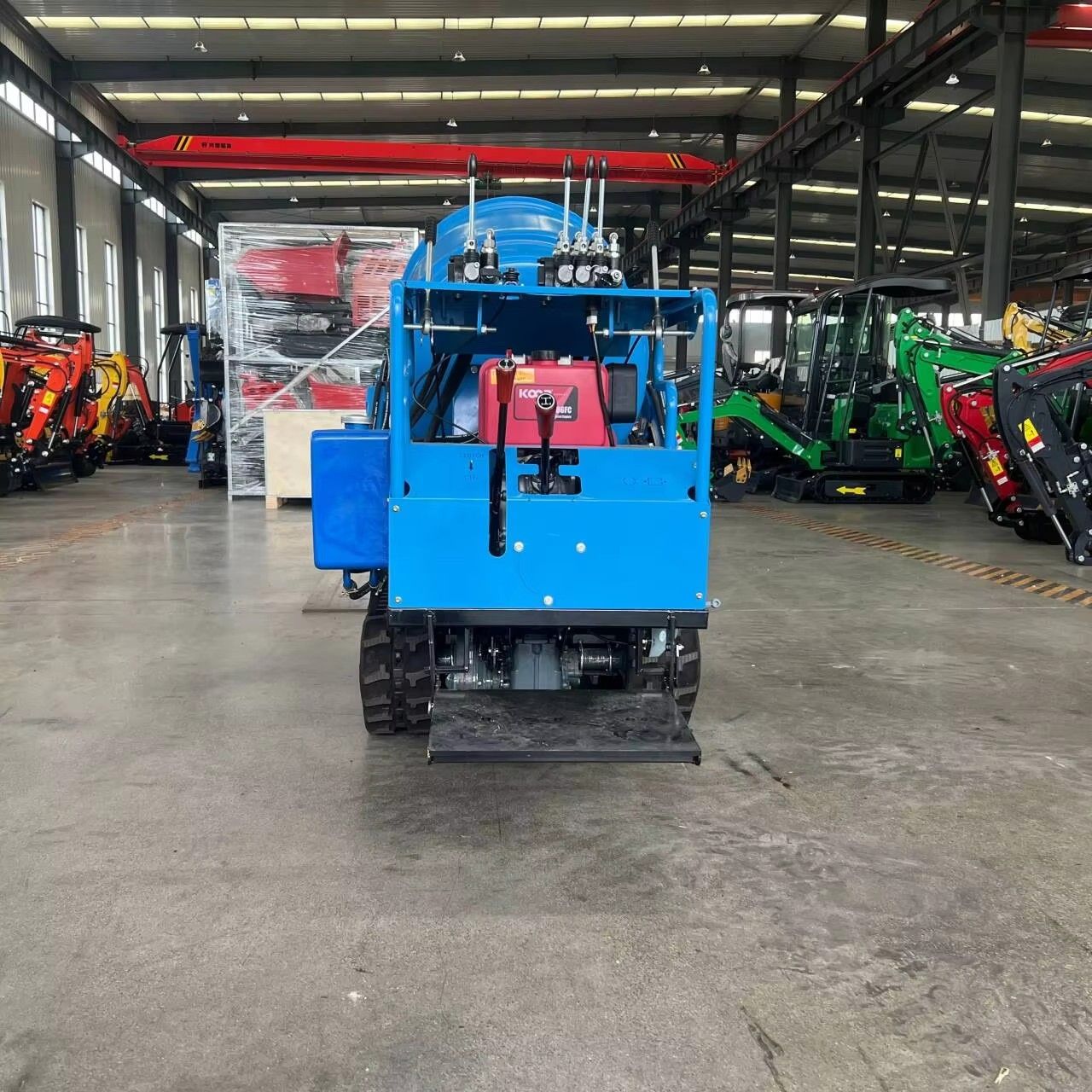

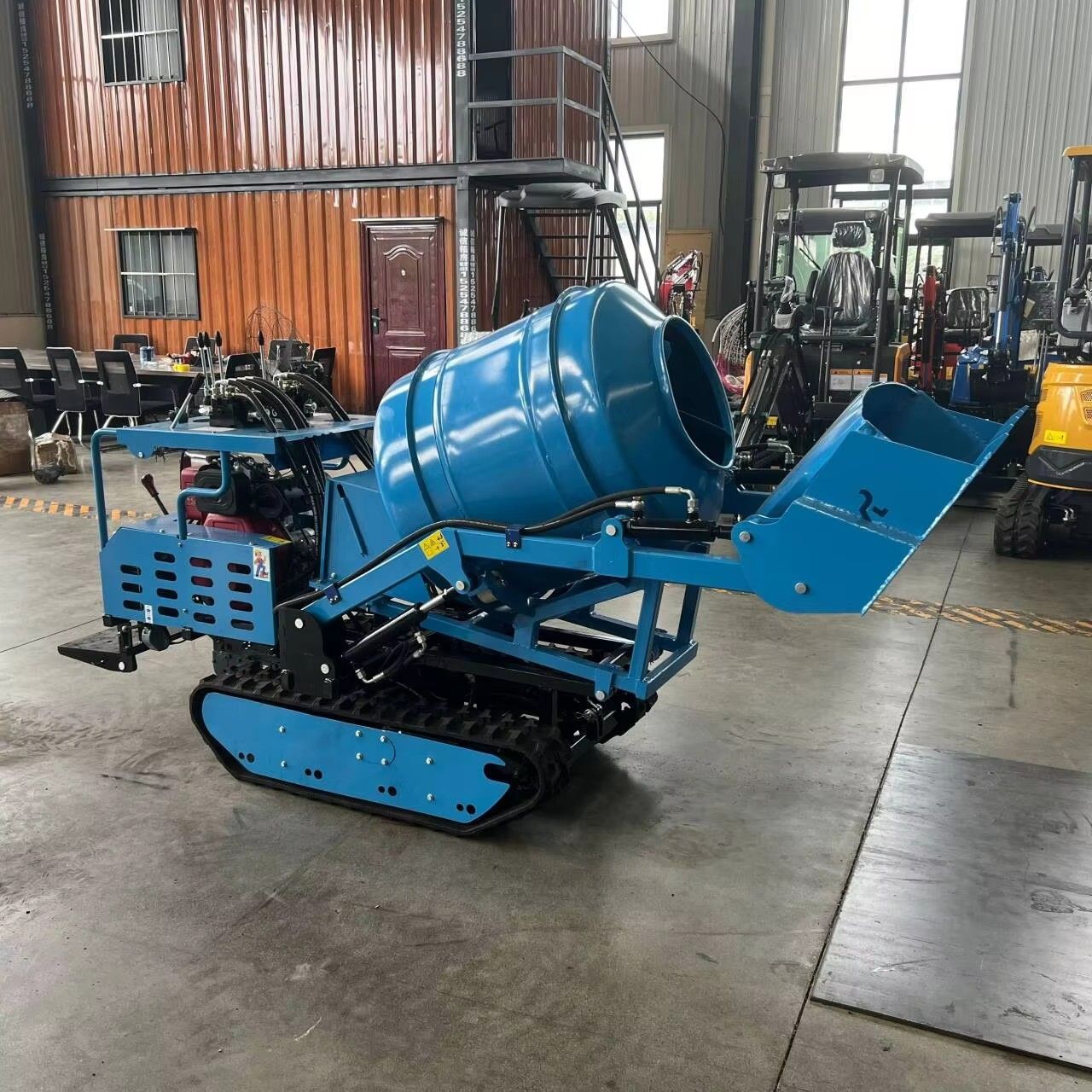

400L mixing tank
The 400L mixing tank, with precisely calibrated capacity, suits small-medium operations—balancing efficient handling and convenience, reducing buildup and manual interventions to boost daily productivity.
A robust power system and high-performance transmission ensure thorough, consistent mixing across materials with energy efficiency. Hydraulic discharge simplifies unloading, saving labor and time.
Compact for maneuvering in tight spaces, it’s built with durable, wear/corrosion-resistant materials for long life and low maintenance. Reliable, flexible, and cost-effective, it meets needs in construction, agriculture, and small manufacturing.
1. Power System
Equipped with the Changchai 186F diesel engine, featuring 10 HP and a 4 - stroke air - cooled design. It delivers strong and stable power, adaptable to various complex working conditions. Whether in hot weather or dusty environments, the air - cooling system ensures the engine runs smoothly. Meanwhile, it meets Eurp.5 or EPA standards, boasting excellent environmental performance. Diesel or gasoline power can be selected as needed to satisfy the usage requirements of different regions and customers.
2. Transmission and Operation
Comes with a GL - 10 gearbox, having 3 forward gears and 1 reverse gear. Gear shifting is smooth, allowing flexible responses to different working scenarios and driving needs. The manual control lever operation method is simple and easy to understand; even beginners can quickly get started and precisely control all actions of the mixing tank.
3. Working Performance Parameters
Bucket Capacity: 0.09 m³. The well - designed bucket size enables efficient material loading and reduces feeding time.
Feeding and Discharging Capacity: Feeding capacity ≥ 500 L, discharging capacity ≤ 350 L. The balanced feeding and discharging efficiency allows for quick material mixing and output, improving work efficiency.
Mixing Drum Size: Diameter 760 mm, length 930 mm. This - sized mixing drum can fully mix materials, ensuring uniform mixing and meeting the mixing requirements of various materials.
4. Structure and Dimensions
Weight: The mixer weight ≤ 750 KG, with a net weight of 670 KG and a gross weight of 775 KG. The overall weight design balances the stability and portability of the equipment.
Dimensions: The overall dimensions are 2700×1080×1650 mm. It has a compact structure, occupying little space, and can operate flexibly even in narrow construction sites. The package size (single unit) is 2250×1080×1800 mm, facilitating transportation and storage.
Rubber Tracks: The rubber track size is 180×72×38 mm, with a track ground contact length of 900 mm. It provides good grip and stability, and the traveling speed is 2 - 8 KM/h. It has a certain off - road capability, capable of crossing a maximum 30° slope and a 200 mm vertical obstacle, with a wading depth of 350 mm, suitable for various terrain conditions.
5. Loading, Unloading, and Transportation
Adopts a hydraulic discharging method. The discharging process is stable and efficient, enabling quick output of mixed materials. In terms of transportation, a 20 - foot container can load 5 units, and a 40 - foot container can load 10 units, facilitating batch transportation and reducing transportation costs.
Item | Details |
Engine | Changchai 186F Diesel Engine, 10 HP, 4-Stroke, Air-Cooled |
Transmission | GL-10 Gearbox: 3 Forward + 1 Reverse Gears |
Operation Method | Manual Control Lever |
Discharge Method | Hydraulic |
Bucket Capacity | 0.09 m³ |
Feeding Capacity | ≥500 L |
Discharging Capacity | ≤350 L |
Mixer Weight | ≤750 kg |
Drum Size | φ760 × 930 mm (Diameter × Length) |
Overall Dimensions | 2700 × 1080 × 1650 mm (L × W × H) |
Net/Gross Weight | 670 kg / 775 kg |
Rubber Track Size | 180 × 72 × 38 mm |
Track Ground Contact Length | 900 mm |
Travel Speed | 2–8 km/h |
Obstacle Clearance | Max. 30° Slope, 200 mm Vertical Obstacle |
Wading Depth | 350 mm |
Single Package Dimensions | 2250 × 1080 × 1800 mm (L × W × H) |
20'/40' Container Loading Capacity | 5 Units / 10 Units |

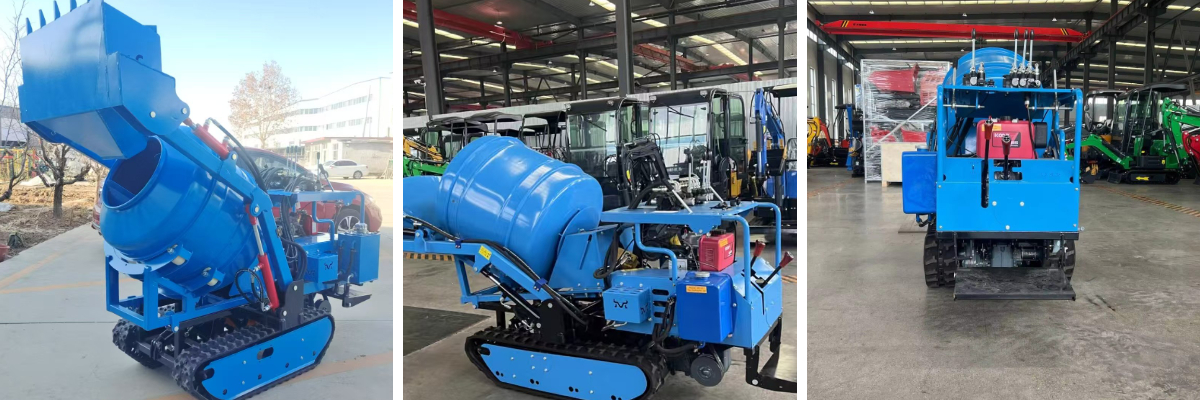

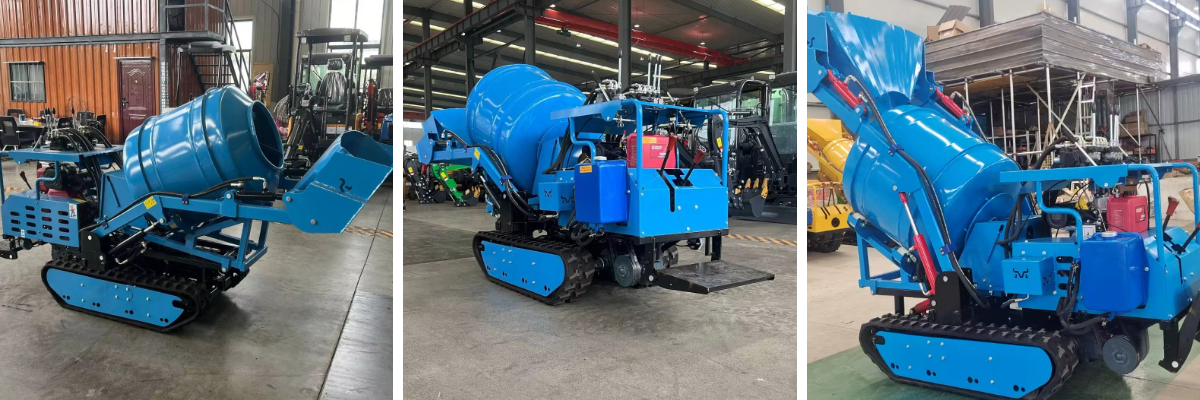

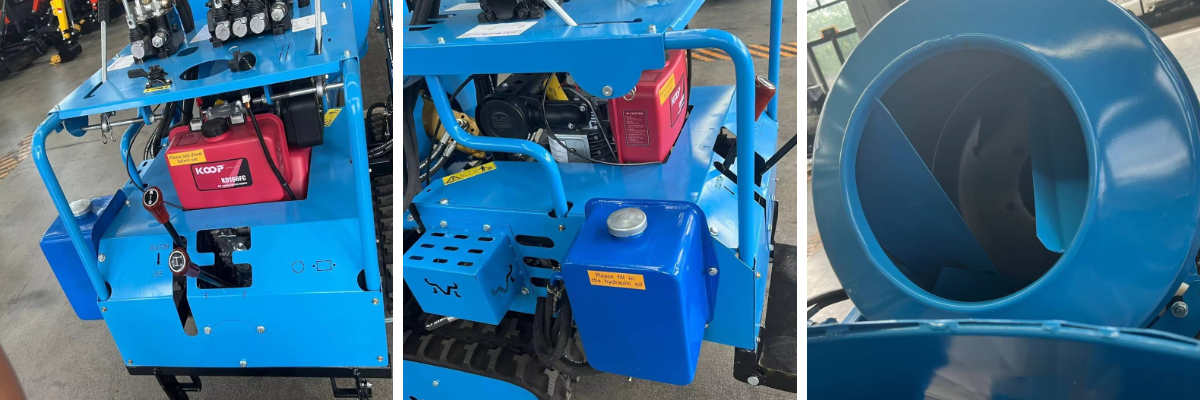

Detailed display
Company Profile
Established in 2012, Shandong Gongwo Machinery Co., Ltd. has grown into a top producer of light and medium-duty construction equipment. Our extensive product lineup includes compact wheel loaders, small crawler excavators, electric and diesel utility vehicles, along with 2WD and 4WD forklifts. For over ten years, we’ve been offering customized equipment solutions to clients spanning five continents—from Europe and the Americas to Southeast Asia, Africa, Russia, and beyond. Our aim is to create durable machinery that caters to the ever-changing needs of our global customer base.
