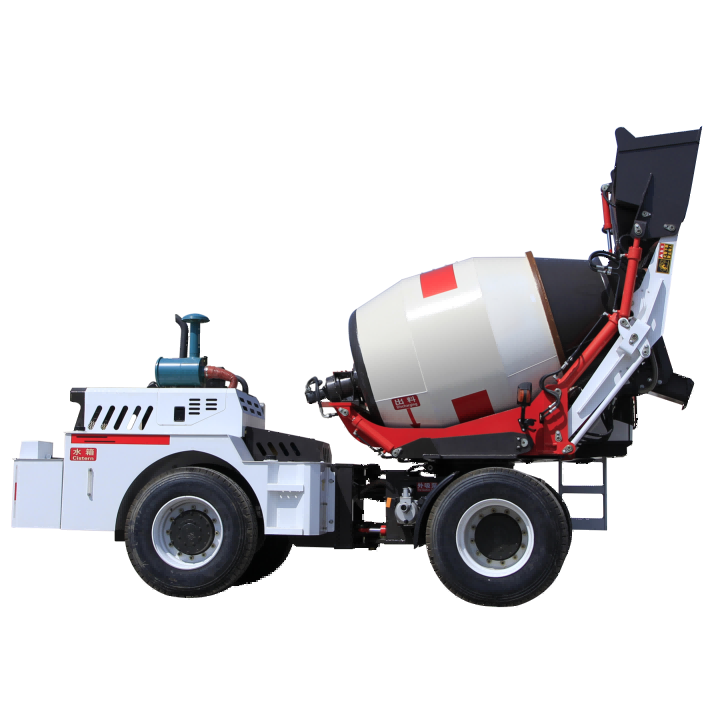

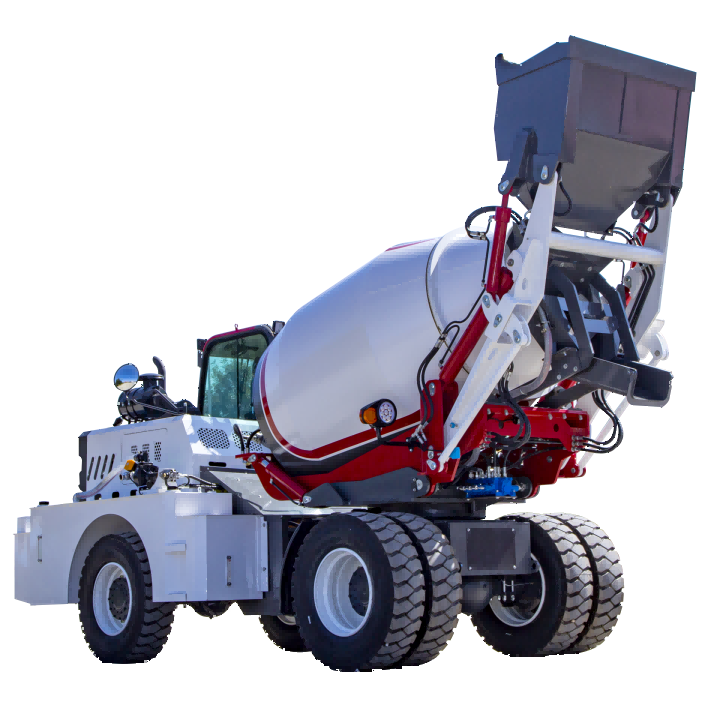

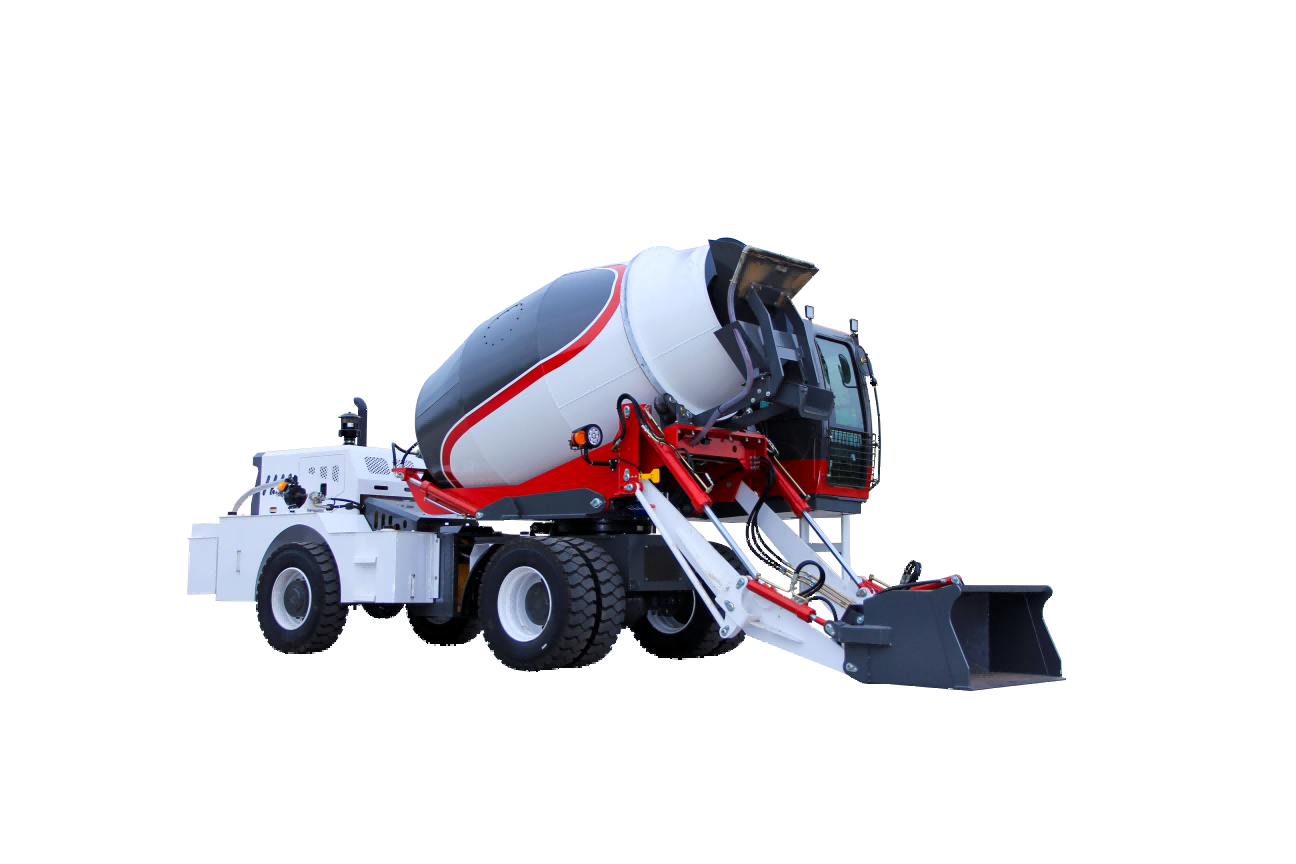

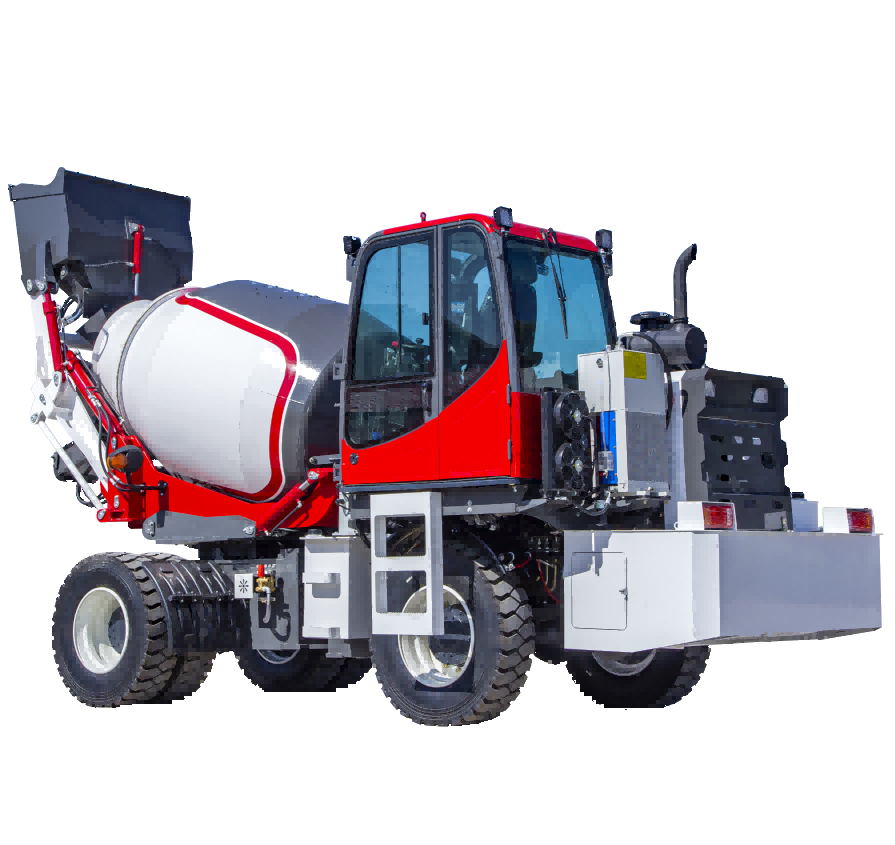

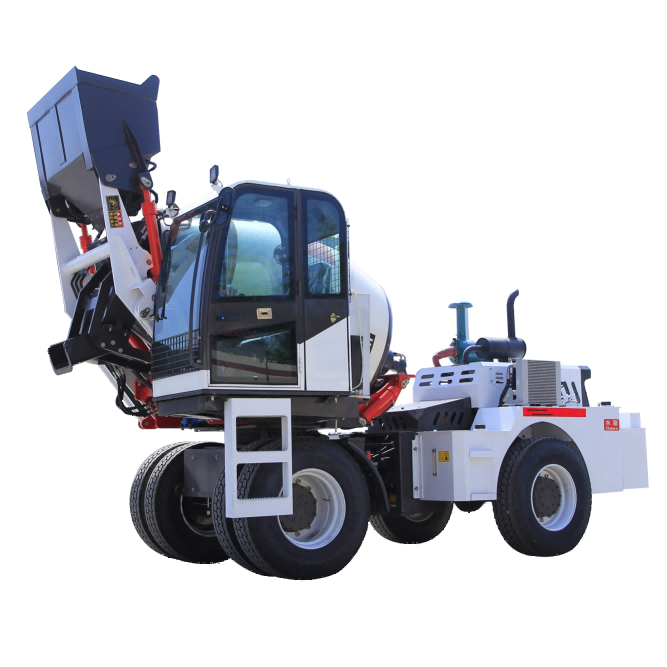

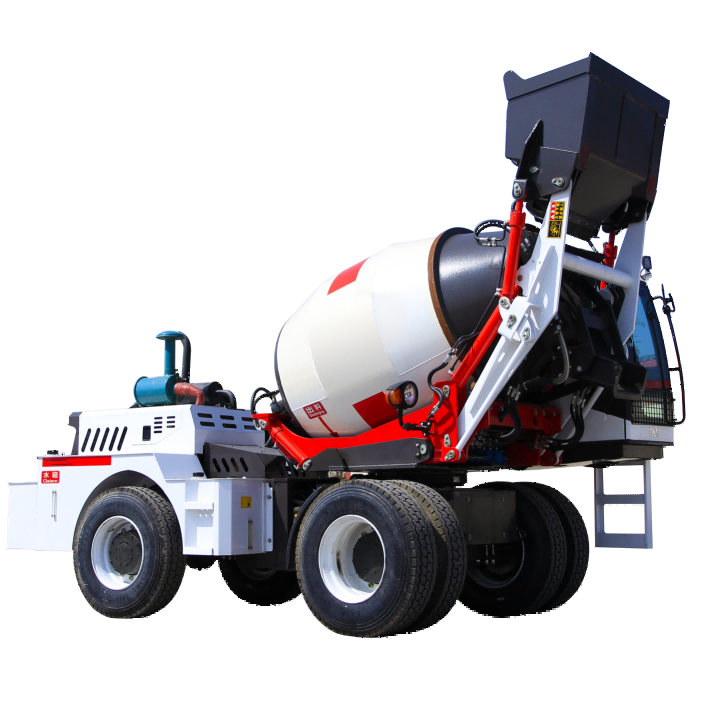

4.5-cubic-meter mixer truck
1、The 4.5-cubic-meter self-loading mixer truck, with "ultra-large capacity and efficient operation" as its core, is suitable for large-scale projects.
2、40.6% larger capacity than the 3.2-cubic-meter model, with greater single transportation volume, reducing transport frequency.
3、Integrates loading, mixing, transportation and unloading; single-person operation lowers labor costs.
4、The body balances stability and passability, adapting to various complex urban and rural road conditions.
5、4×4 drive with large-size tires enables stable operation on harsh terrains like muddy areas and steep slopes.
6、High-performance engine + advanced hydraulic system ensures uniform mixing and precise unloading, reducing waste.
7、Core components are from well-known brands, durable and easy to maintain, balancing large capacity and flexibility with outstanding cost-effectiveness.
1. Overall Introduction
This self - loading concrete mixer truck, with a 4.5m³ mixing capacity, is a powerful and versatile equipment designed for efficient concrete construction operations. It integrates loading, mixing, transporting, and unloading functions, making it an ideal choice for various construction scenarios.
2. Engine and Environmental Protection
Adopting advanced engine and emission control technology, this mixer truck achieves excellent energy conservation and environmental protection performance. The engine options include 4105 country ⅱ / 4102 supercharged country ⅲ, with power output at 85/90kw. This not only provides strong power for the whole machine but also reasonably controls fuel consumption, reducing operating costs while meeting environmental emission standards.

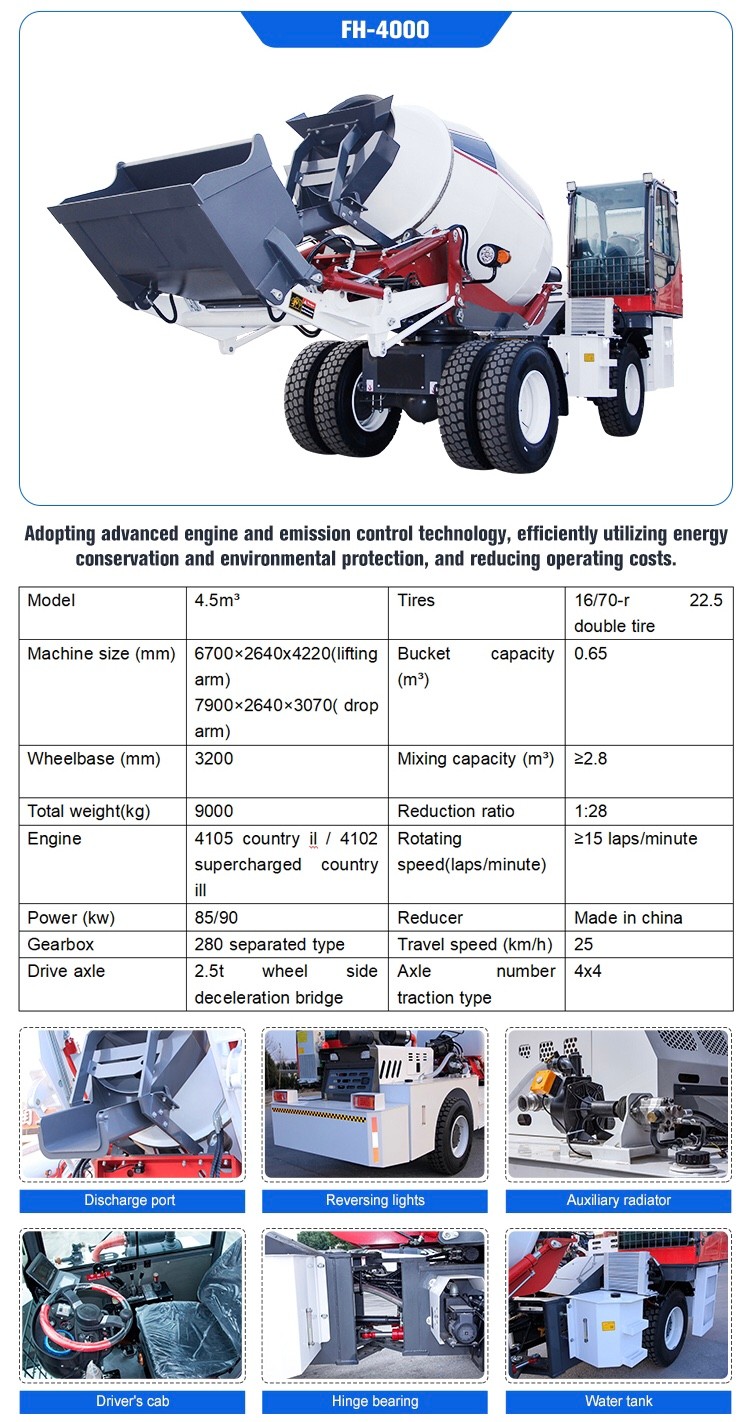

3. Dimensions and Structure
(1) Size
The machine has two sets of dimensions depending on the arm state. When the lifting arm is in use, the size is 6700×2640×4220mm, and when the drop arm is used, it is 7900×2640×3070mm. The wheelbase is 3200mm, which ensures a good balance between stability and flexibility. The total weight of the truck is 9000kg, making it suitable for a variety of road and construction site conditions.
(2) Tires and Drive
Equipped with 16/70 - r 22.5 double tires, the mixer truck has strong ground - gripping ability. The 4×4 drive axle (2.5t wheel side deceleration bridge) and 280 separated type gearbox form a powerful drive system. This configuration allows the truck to operate stably in complex terrains such as muddy depressions, steep slopes, and uneven roads, ensuring smooth construction progress.
4. Mixing and Loading Capacity
(1) Mixing - related Parameters
The bucket capacity is 0.65m³, and the effective mixing capacity can reach ≥2.8m³. The reduction ratio of the mixing system is 1:28, and the rotating speed is ≥15 laps/minute. With the advanced hydraulic control system and high - performance engine cooperation, it can achieve uniform mixing of concrete and accurate unloading, reducing material waste. The reducer, made in China, is durable and reliable, ensuring the long - term stable operation of the mixing system.
(2) Loading and Unloading
The integrated design enables seamless loading, mixing, transporting, and unloading processes. The self - loading function allows the truck to load raw materials independently, without the need for additional loading equipment, which greatly improves construction efficiency and reduces labor costs. Whether it is in large - scale real estate construction, road construction, or water conservancy facility construction, it can complete the concrete handling tasks efficiently.
5. Key Components and Durability

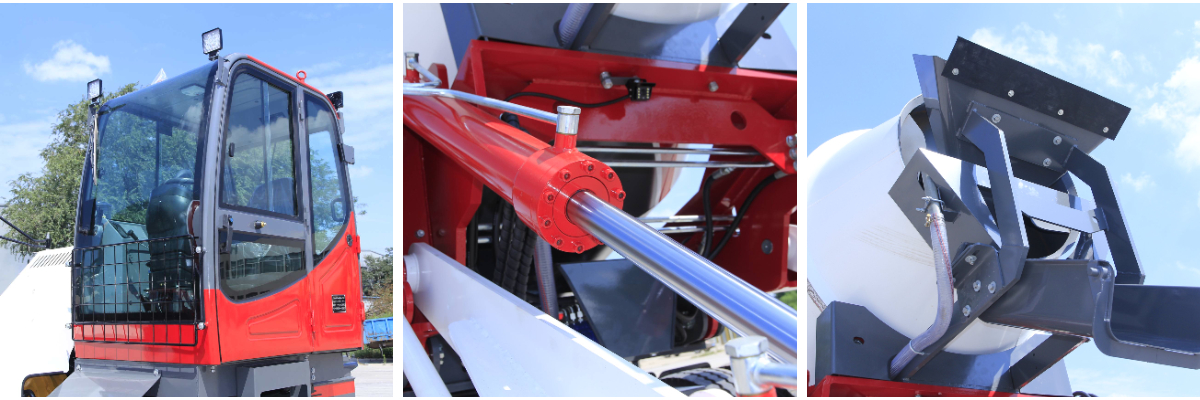

Key components of the mixer truck are selected and designed for durability. From the engine to the drive system, and then to the mixing and unloading mechanisms, each part is carefully manufactured. The use of well - known brand - level design concepts for key components ensures low maintenance costs during the use of the equipment. For example, the reversing lights, auxiliary radiator, driver's cab, hinge bearing, and water tank are all designed with practicality and durability in mind, ensuring the overall reliability of the mixer truck.
6. Operational Advantages
(1) Efficiency
The integration of multiple functions allows a single person to complete the entire operation process from loading to unloading, which significantly reduces labor input and improves construction efficiency. In large - scale construction projects such as large - scale real estate construction, provincial road construction, and large - scale water conservancy facility foundation engineering, it can give full play to its efficiency advantages, balance the ultra - large load capacity and flexible mobility, and avoid the resource waste caused by using oversized equipment.
(2) Adaptability
The body design takes into account both stability and passability. It can not only adapt to urban road conditions but also perform well in rural and complex construction site roads. Whether it is flat asphalt roads or rough and uneven rural dirt roads, the mixer truck can pass smoothly, ensuring that the construction progress is not affected by transportation conditions.
7. Cost - effectiveness
In terms of cost - effectiveness, this mixer truck is outstanding. Compared with large - scale professional mixing and transporting equipment, it avoids the waste of resources caused by excessive capacity, and compared with small - scale equipment, it can meet the needs of larger - scale construction operations. With low maintenance costs, durable components, and efficient operation performance, it is a cost - effective all - round equipment for medium - to - large - scale concrete construction projects.
