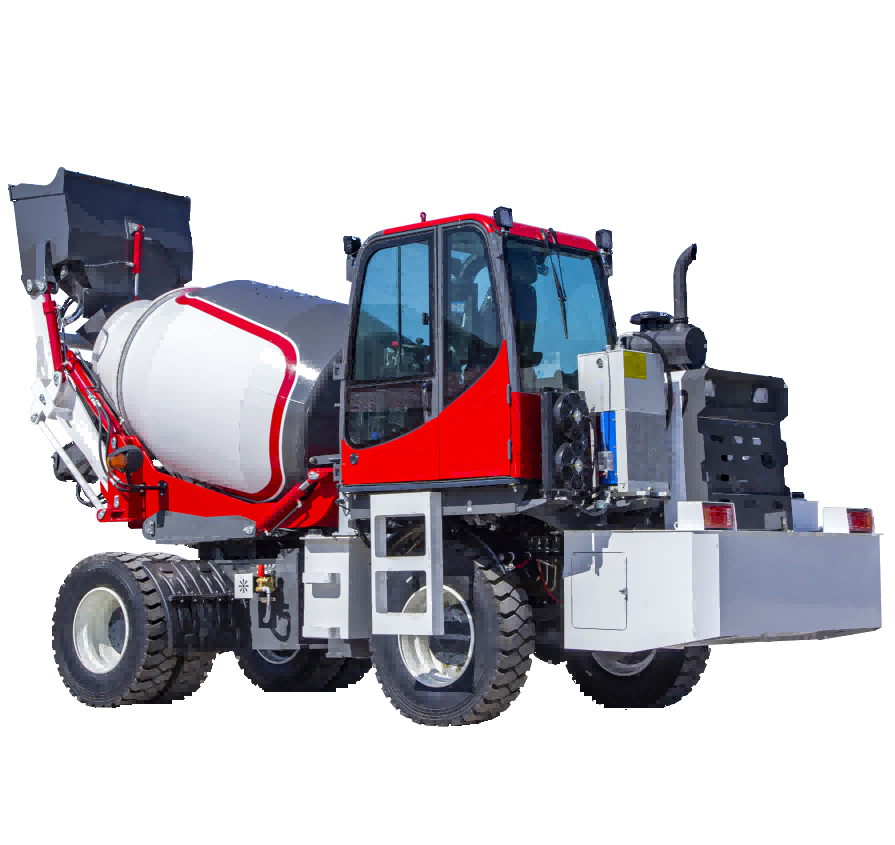

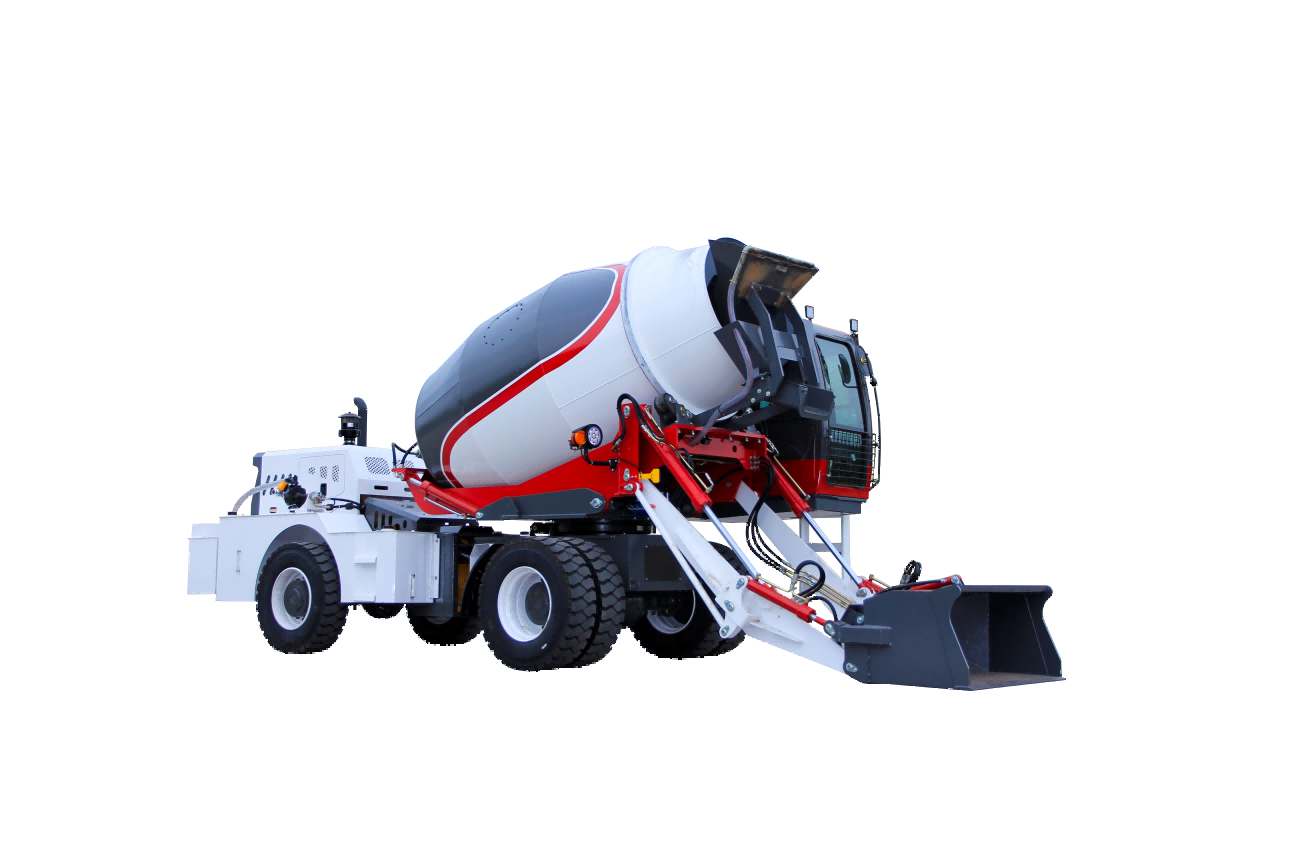

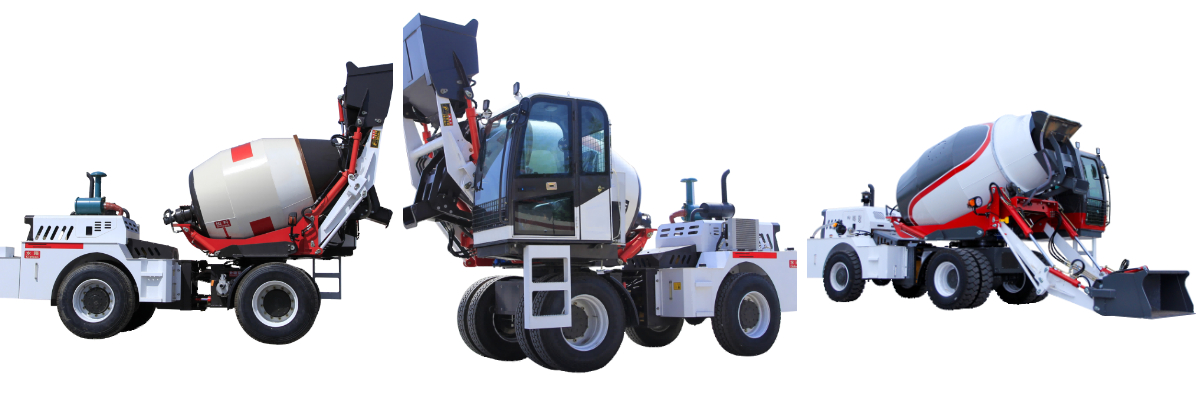

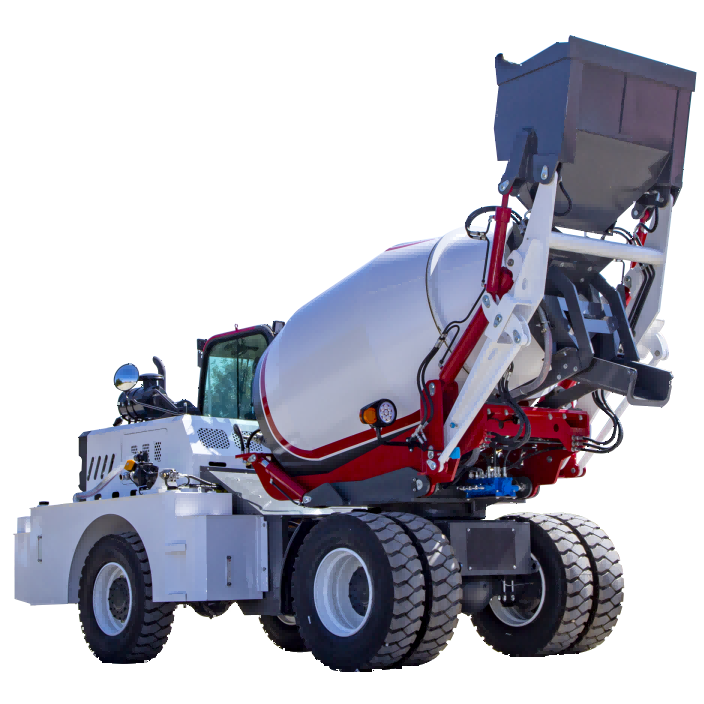

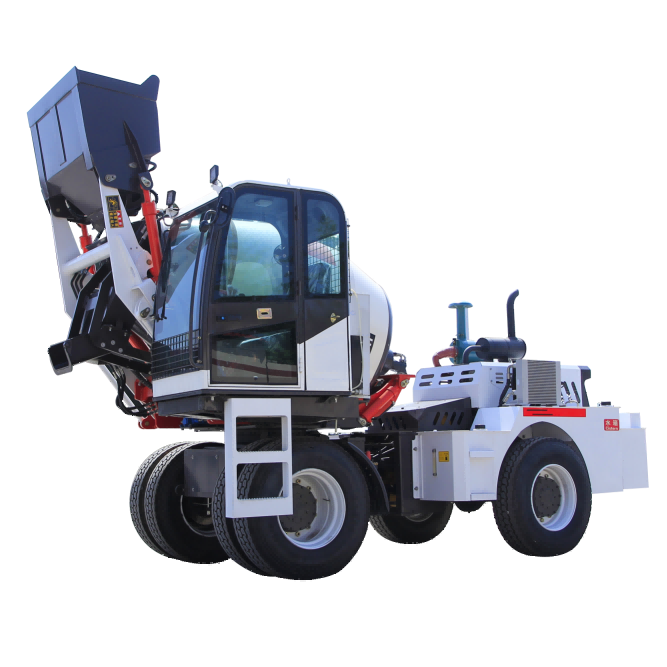

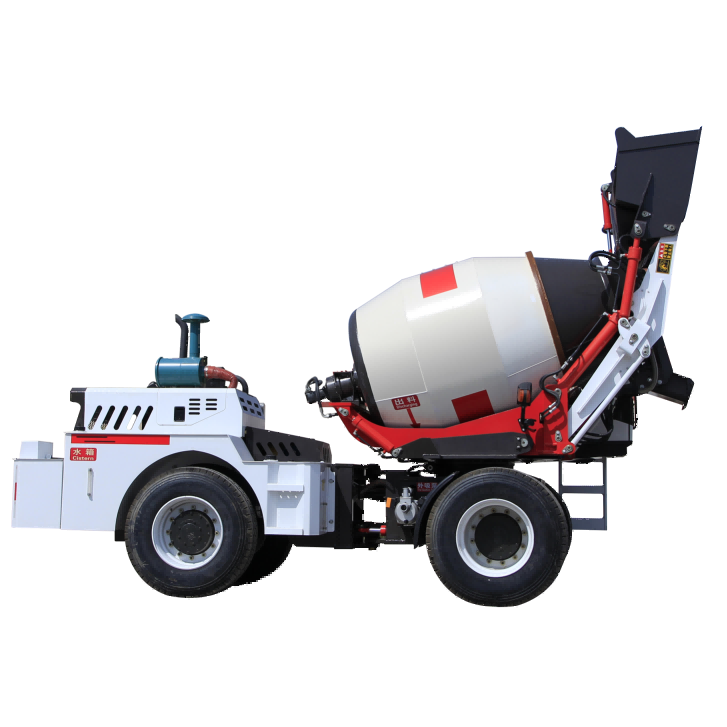

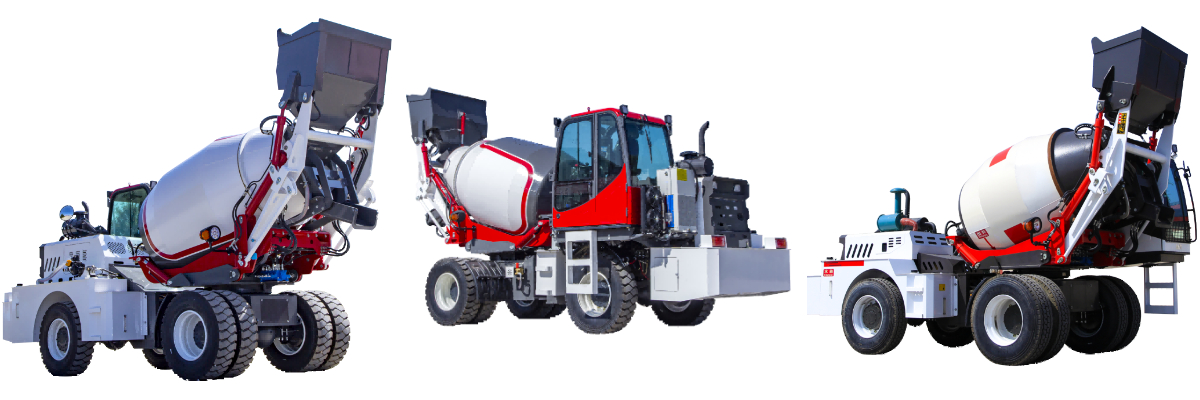

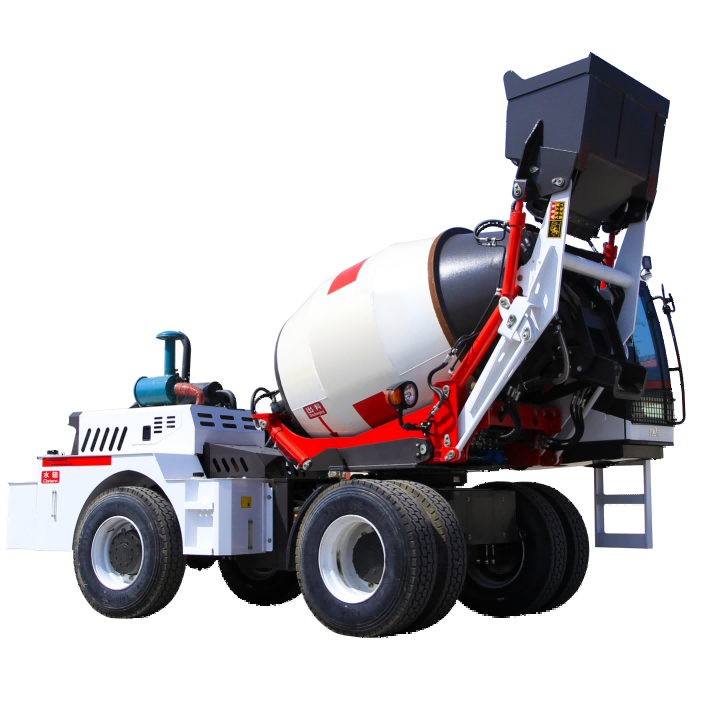

6.5-cubic-meter mixer truck
1、The 6.5-cubic-meter self-loading mixer’s core strength is "integrated operation capability," independently handling loading, mixing and unloading without external equipment.
2、Self-sufficiency fits remote sites or tight equipment scenarios, cutting process time and auxiliary machinery costs.
3、Moderate large capacity avoids small equipment’s frequent trips and large trucks’ site limits, balancing load and flexibility.
4、Boosts rural renovation, small factory construction efficiency by reducing unnecessary travel and speeding up progress.
5、Special mixing structure ensures uniform concrete, resists segregation, guaranteeing quality.
6、Easy-to-operate self-loading system allows single-person use, no professional teams needed, ideal for small crews.
7、Adapts to complex roads (muddy/undulating), with easy maintenance and durable core parts, balancing efficiency and flexibility for small-medium projects.
In the vast field of construction engineering, the 6.5-cubic-meter self-loading concrete mixer truck has become a capable assistant in numerous construction scenarios, thanks to its excellent performance and comprehensive advantages.

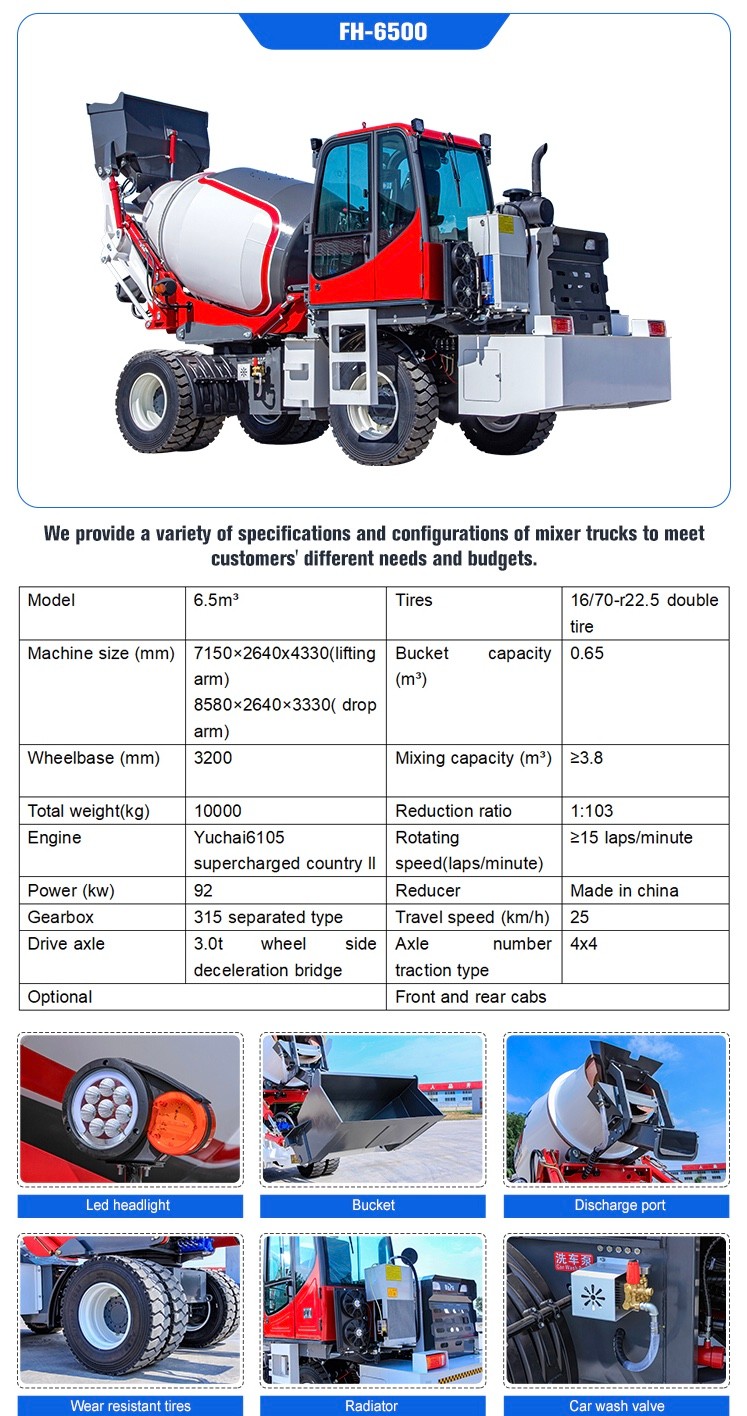

1. Powerful Power and Stable Reliability

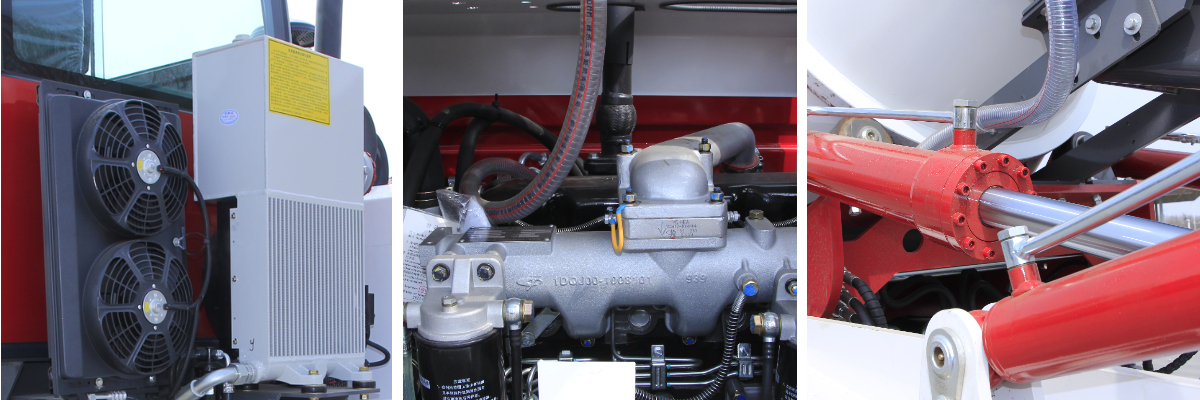

This mixer truck is equipped with a Yuchai 6105 turbocharged engine, with a power of up to 92 kilowatts. The powerful power system provides a solid guarantee for the vehicle's operation under various complex working conditions. Whether it is in a muddy construction site or a difficult road section requiring heavy-load climbing, it can easily cope with stable and lasting power output.
The design of the reinforced chassis further enhances the vehicle's load-bearing capacity. Compared with models of the same class, its load-bearing capacity is superior. This means that it can still maintain excellent stability under full load, ensuring the smooth progress of the construction process.
2. Large Capacity and Efficient Mixing
The 6.5-cubic-meter mixing volume gives this model a significant advantage in single loading capacity. This capacity avoids the hassle of frequent round trips of small equipment and is not restricted by site size like large mixer trucks. In projects such as rural renovation and small factory building construction, it can balance the single transportation volume and site flexibility, reduce unnecessary travel, and speed up the overall construction rhythm.
The mixing drum is carefully designed, and its volume can be compatible with a certain range of fluctuating material quantities, fully considering the possible temporary additional material requirements during the construction process and providing greater flexibility for the construction party.
At the same time, the vehicle adopts advanced mixing technology, combining double-helix mixing blades with an independent hydraulic system. The double-helix mixing blades can ensure uniform mixing of concrete during the mixing process, while the independent hydraulic system can achieve precise adjustment of the drum speed. Even under full load, the homogeneity of the concrete can still be maintained at a high level, effectively avoiding the occurrence of segregation problems.
3. Flexible Adaptability and Excellent Performance
The wheelbase of the entire vehicle has been strengthened to 3200 millimeters. This design makes the vehicle's stability at high speeds better than that of small mixer trucks, and it can take into account both construction site operations and road transportation scenarios. Whether it is short-distance movement within the construction site or long-distance transportation on the road, it can maintain a good driving state.
In terms of tire configuration, 16/70 r22.5 double tires are used. This type of tire has excellent grip and wear resistance, can adapt to various complex road conditions, and provides strong support for the stable driving of the vehicle.
The drive form is 4x4, which has strong off-road capability and passability, enabling it to drive freely under various harsh road conditions. The vehicle's driving speed can reach 25 kilometers per hour, which is at a relatively high level among vehicles of the same type and can improve transportation efficiency.
4. Detailed Design, Considerate and Practical

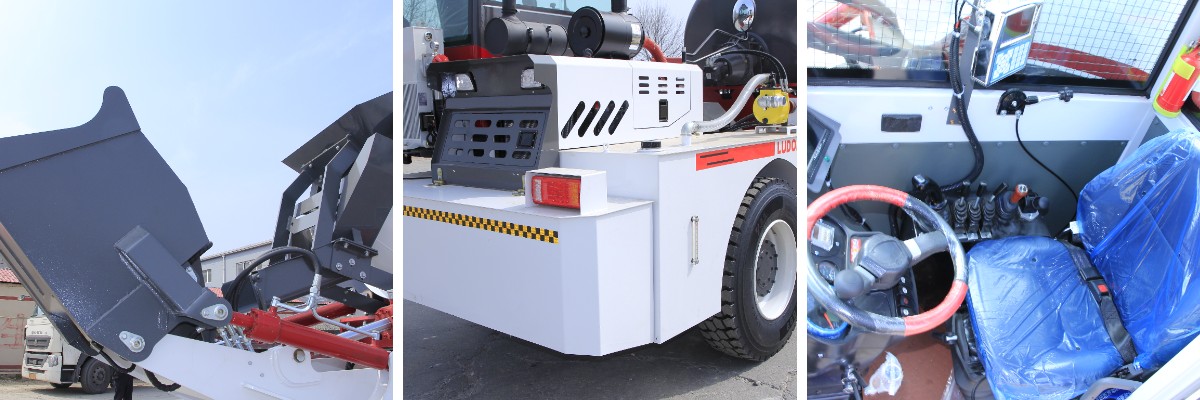

The hopper capacity is 0.65 cubic meters. This design not only ensures the efficiency of loading but also does not affect the overall flexibility of the vehicle due to an overly large hopper.
The reduction ratio is 1:103. This parameter allows the vehicle to maintain an appropriate speed during mixing and transportation, ensuring the quality of concrete and the progress of construction.
The mixing speed is ≥15 revolutions per minute. This speed range is carefully designed to minimize energy consumption while ensuring the mixing effect.
The standard wear-resistant lining and automatic lubrication system are important guarantees for the durability of the vehicle. The wear-resistant lining can effectively reduce the wear inside the mixing drum and extend the service life of the equipment; the automatic lubrication system can provide lubrication for key components regularly, reducing the wear rate of the equipment. The maintenance cycle is extended, greatly reducing maintenance costs and time.
In addition, the vehicle can also be optionally equipped with front and rear cabs. This design provides more convenience and comfort for the driver, adapting to different driving needs and working environments.
To sum up, the 6.5-cubic-meter self-loading concrete mixer truck, with its excellent performance, large capacity, flexible adaptability, stable reliability, and considerate and practical detailed design, has become an ideal choice for small and medium-sized projects. Whether in terms of performance, efficiency, or reliability, it can meet the needs of the construction party and provide strong support for the smooth progress of construction projects.
