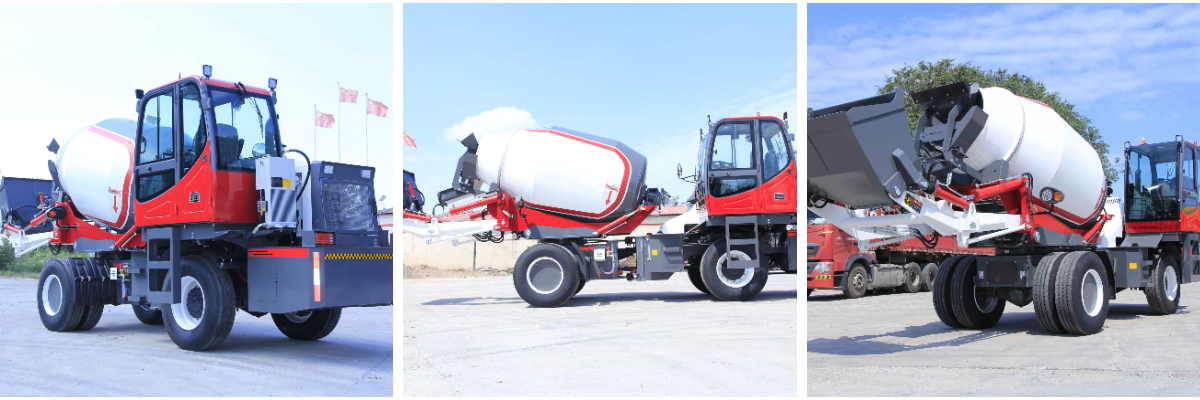

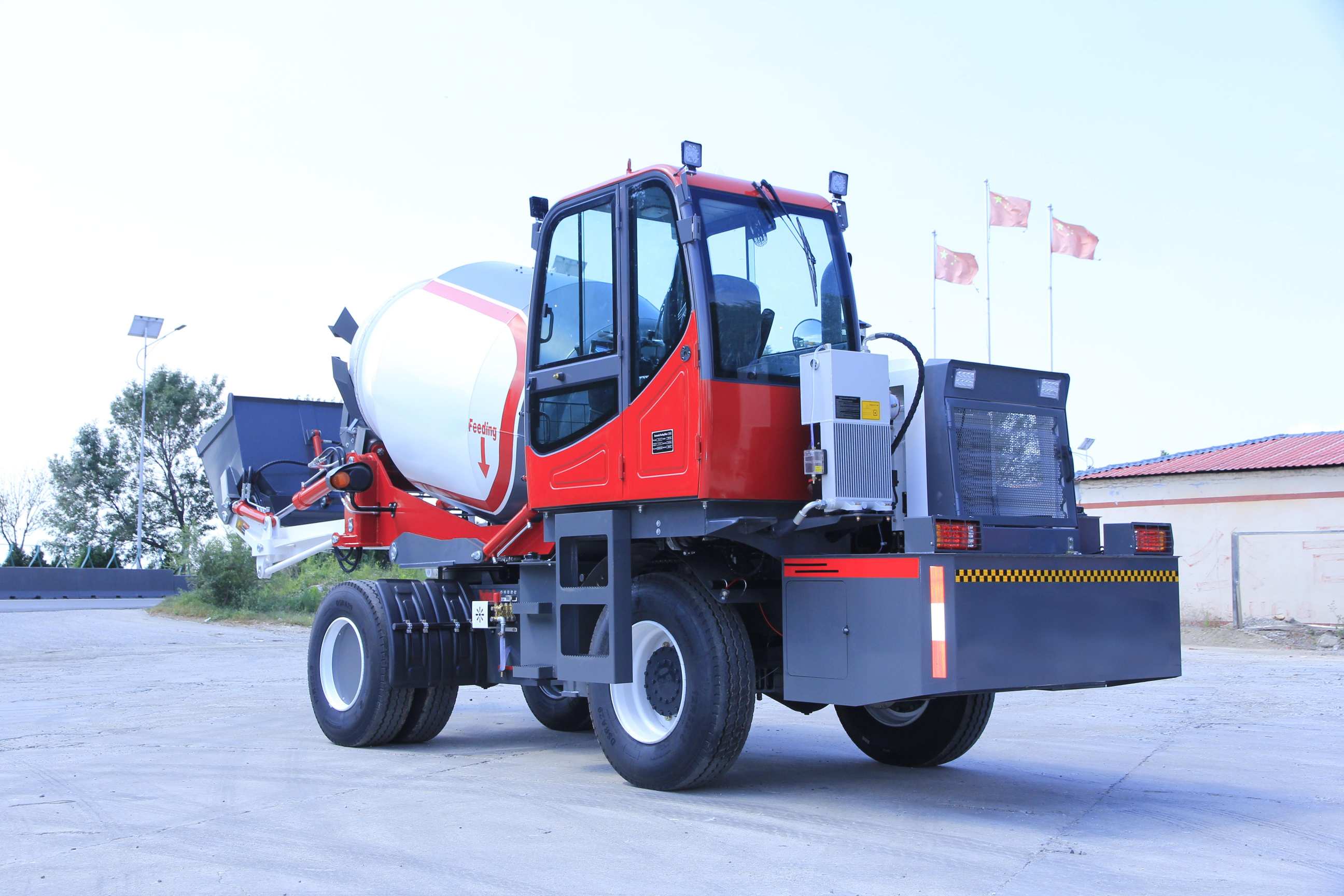

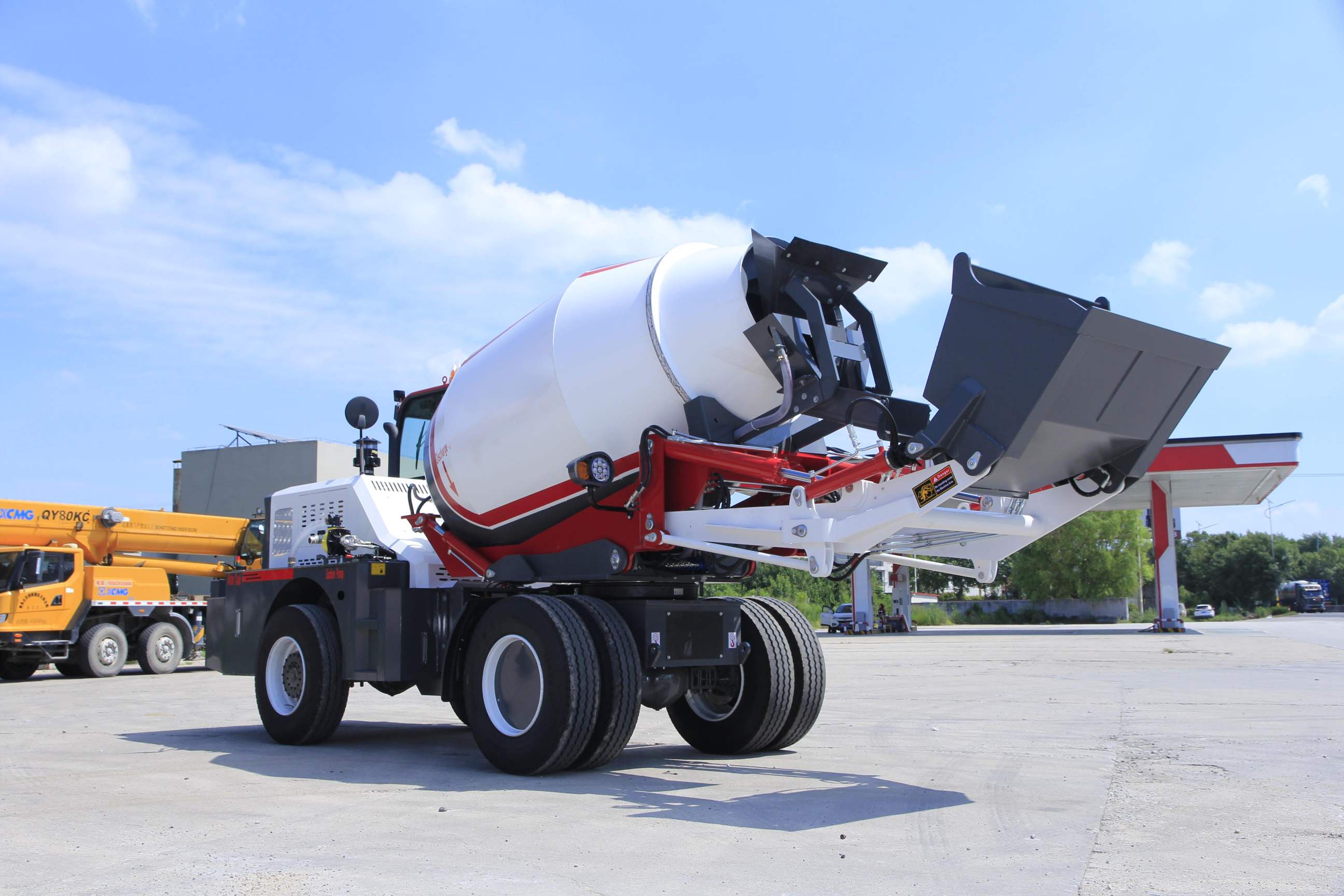

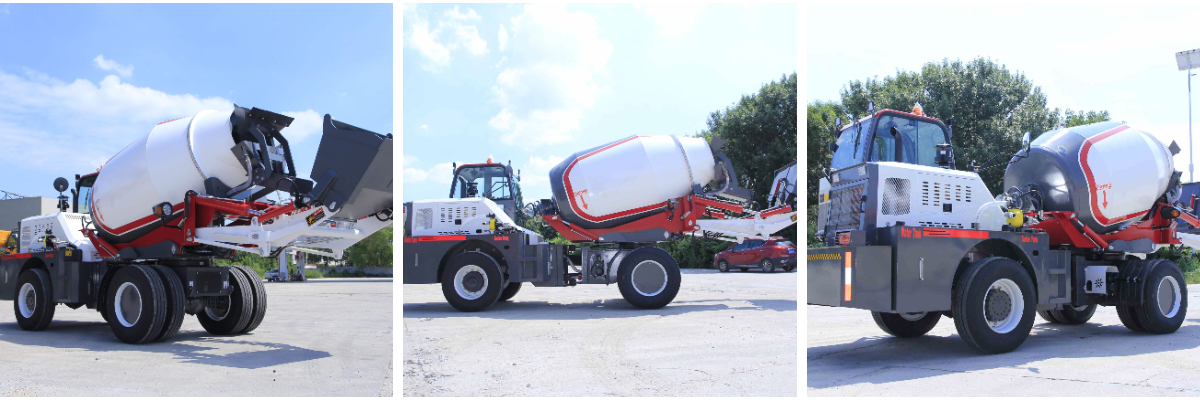

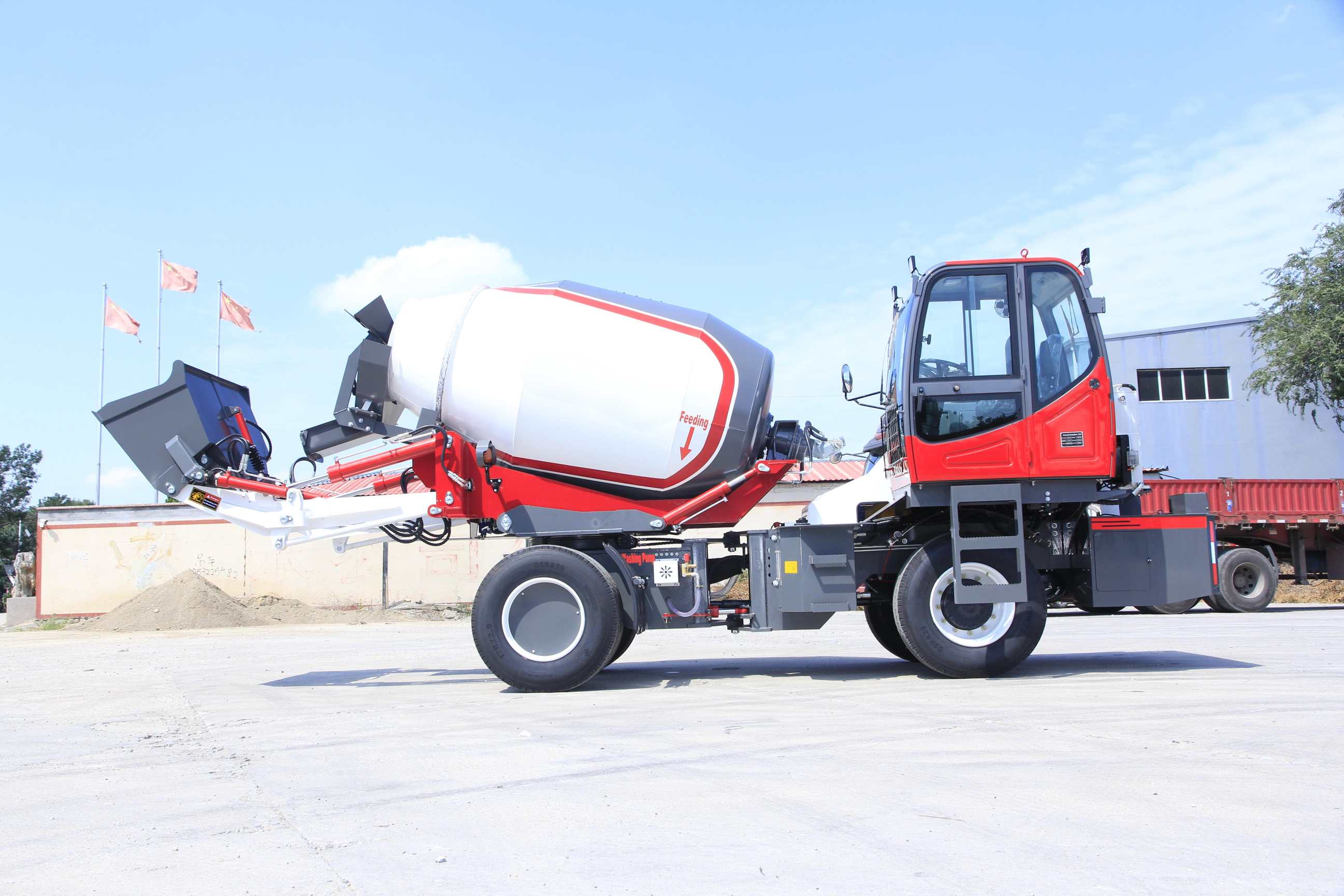

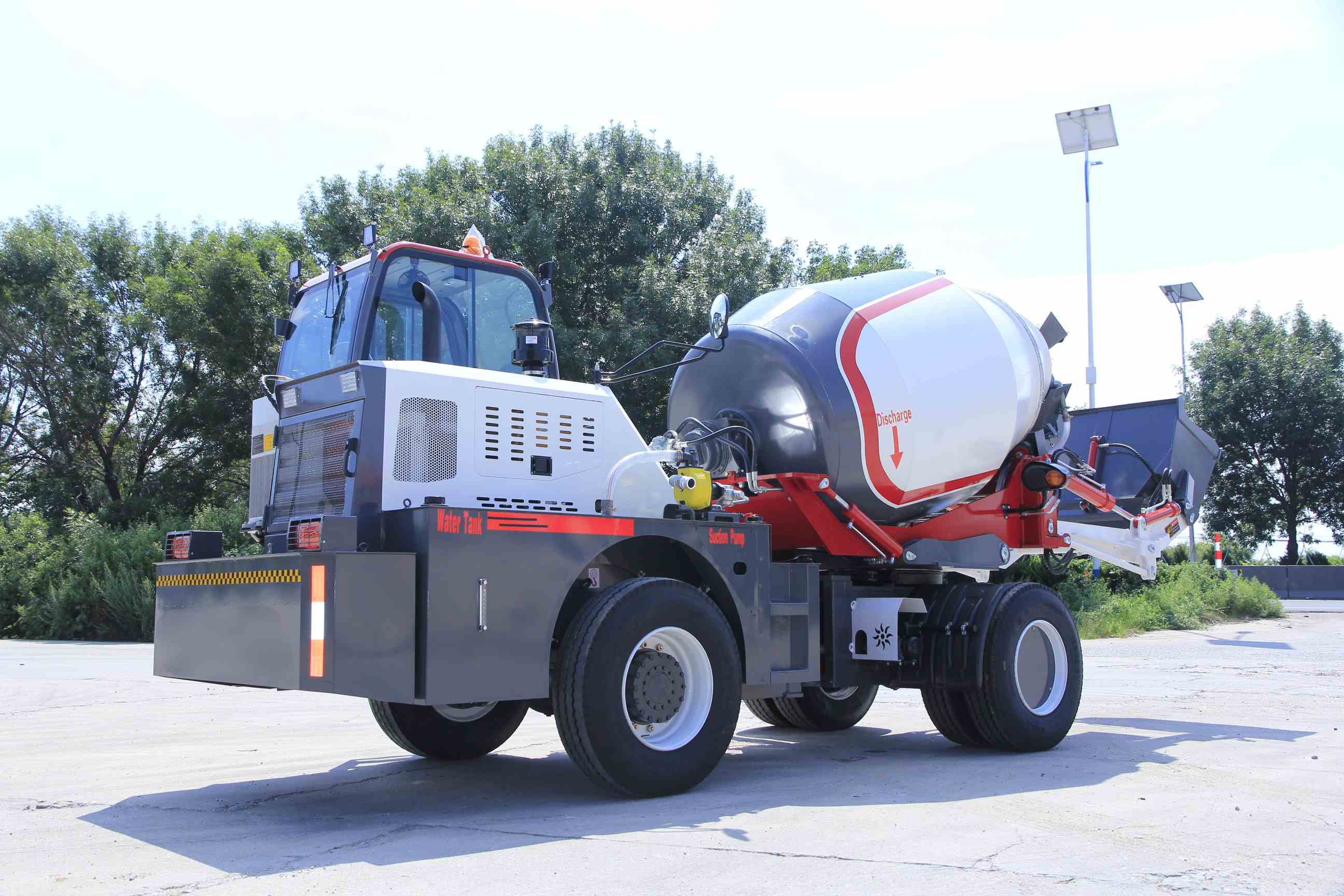

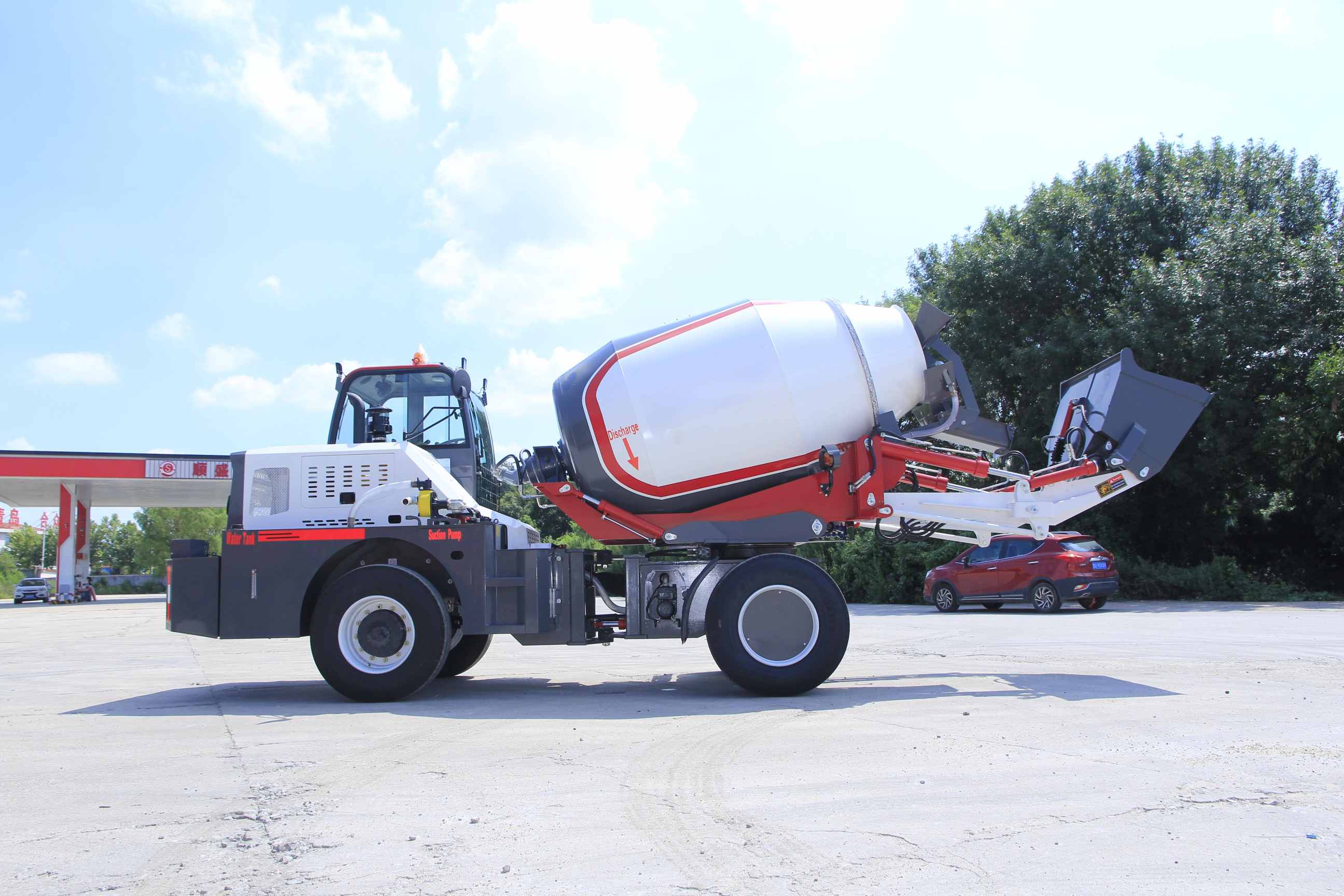

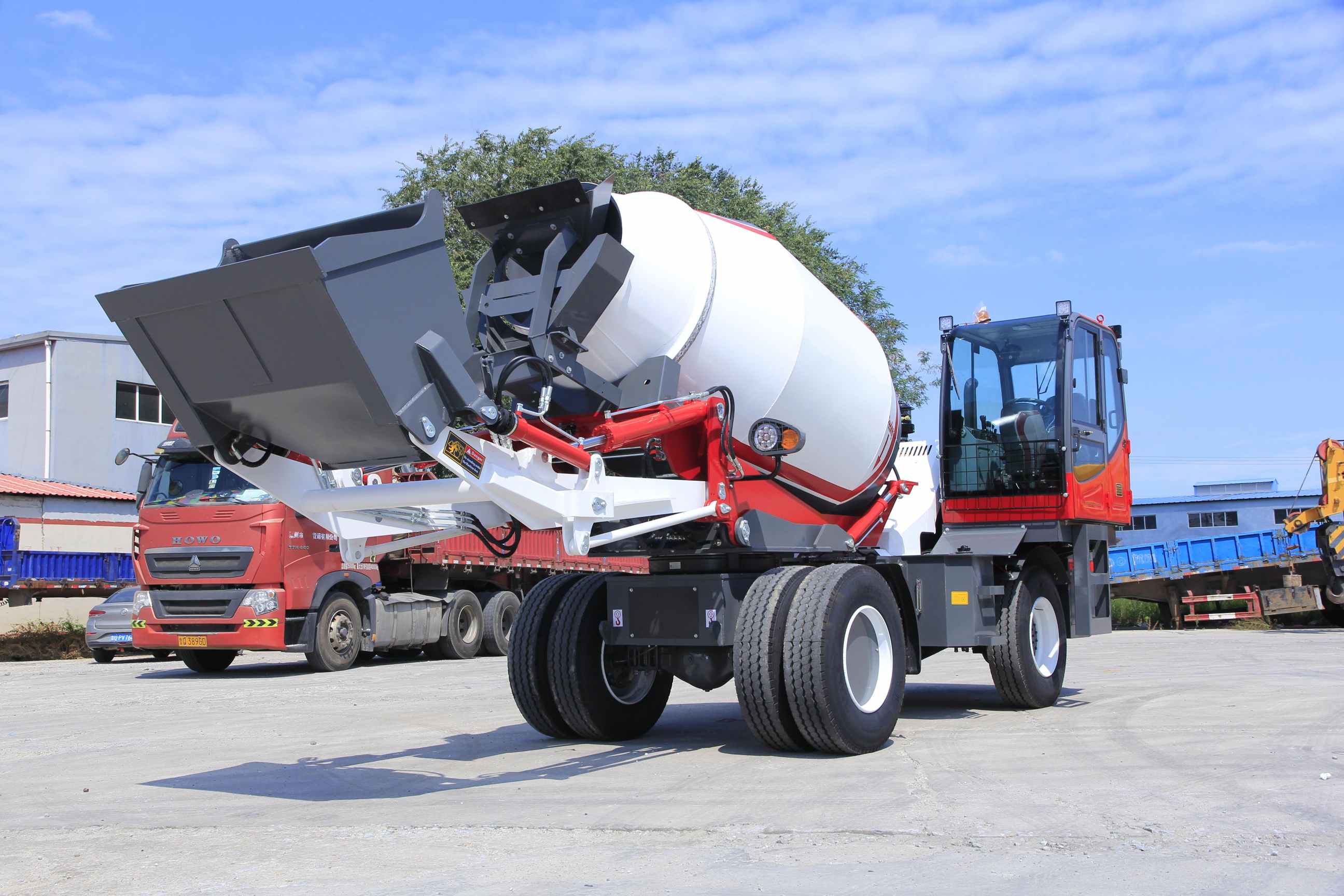

The 6.5 cubic meter self-loading concrete mixer truck, model FH-6500, is a high-efficiency equipment specially designed for small and medium-sized projects. It ingeniously integrates multiple practical functions such as automatic loading, precise mixing, and convenient unloading. It can carry out operations independently without the need for additional auxiliary equipment, which greatly reduces labor costs and equipment investment, bringing a new efficient experience to engineering construction.

The volume of the mixing drum is carefully designed to perfectly meet the actual needs of small and medium-sized projects. Its interior adopts advanced mixing technology, which can achieve extremely high uniformity of concrete during the mixing process, effectively avoiding the occurrence of concrete segregation and ensuring construction quality from the source. Whether it is a building structure with high requirements on concrete strength or a decoration project with special requirements on concrete workability, this mixer truck can easily handle it.

The body is designed to be compact and flexible with a small turning radius. This advantage enables it to shuttle freely and pass unimpeded in complex scenarios such as narrow construction sites and winding rural roads. Whether it is the renovation site of old residential areas in the city center or the road construction site in remote rural areas, it can operate flexibly, providing a strong guarantee for the smooth progress of the project.

Equipped with a powerful power system and matched with an efficient transmission device, the vehicle has excellent climbing ability. It can easily cope with both rugged mountain roads and construction sites with large slopes, meeting the needs of multi-terrain operation and transfer. Even in harsh environments, it can maintain stable power output to ensure that the project progress is not affected.

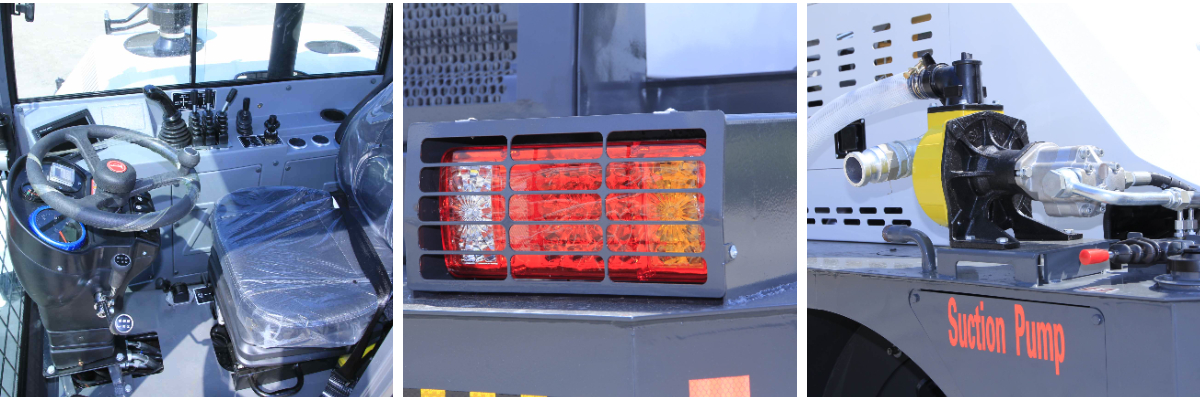

Intelligent operation is realized, with a convenient control panel. Operators can master it proficiently after simple training, which greatly reduces labor costs. At the same time, the design of large-capacity water tank and fuel tank reduces the number of refueling times, prolongs the continuous operation time, allows the project to proceed efficiently, and reduces the time waste caused by frequent refueling.

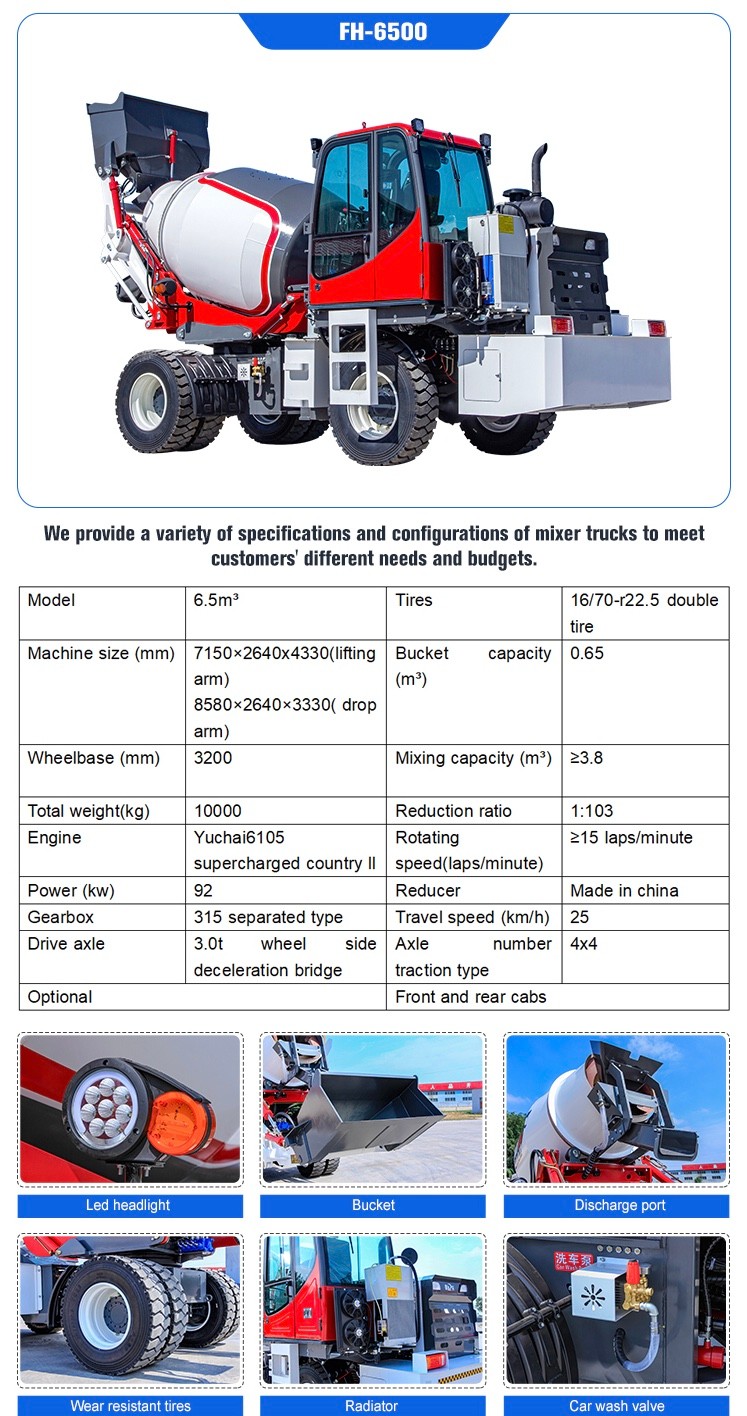

The specific parameters of the vehicle are as follows: The overall dimension is 7150×2640×4330 mm when the boom is extended, and 8580×2640×3330 mm when retracted; the wheelbase is 3200 mm; the total weight is 10000 kg; the engine adopts Yuchai 6105 turbocharged National Ⅱ engine with a power of 92 kW; the gearbox is 315 split type; the drive axle is 3.0-ton wheel-side deceleration axle; the tire specification is 16/70-22.5 double tire; the hopper capacity is 0.65 cubic meters; the mixing capacity is not less than 3.8 cubic meters; the reduction ratio is 1:103; the rotation speed of the mixing drum is not less than 15 revolutions per minute; the reducer is made in China; the driving speed is 25 kilometers per hour; the driving form is 4×4. In addition, front and rear cabs can be optionally installed to further improve the comfort and safety of operators.

We provide professional after-sales service and have an experienced after-sales team. Team members have solid professional knowledge and skills and can provide customers with all-round support. Whether it is the installation and commissioning of equipment, daily maintenance, or various problems encountered during use, we will respond in a timely manner and provide effective solutions to ensure that customers can use our products without worries.
