Product Details of 7.5 Cubic Meter Self-loading Concrete Mixer Truck

1. Product Overview

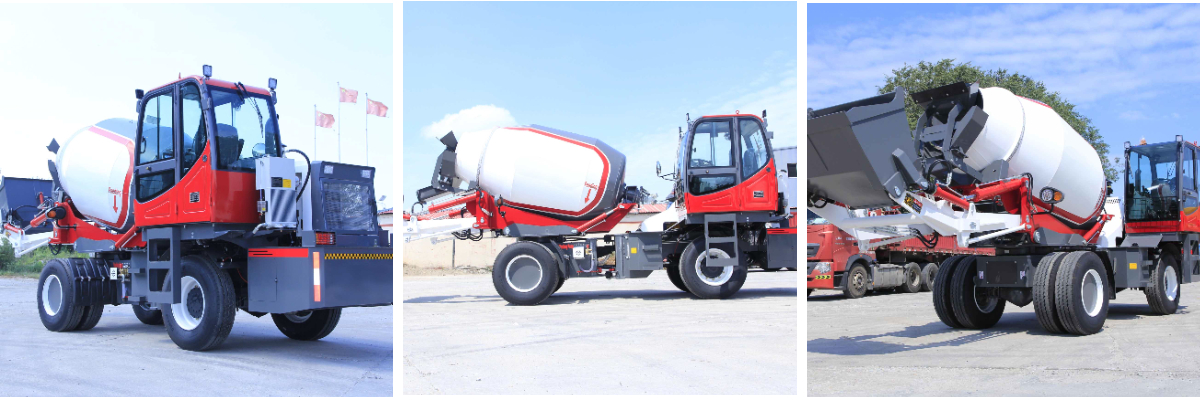

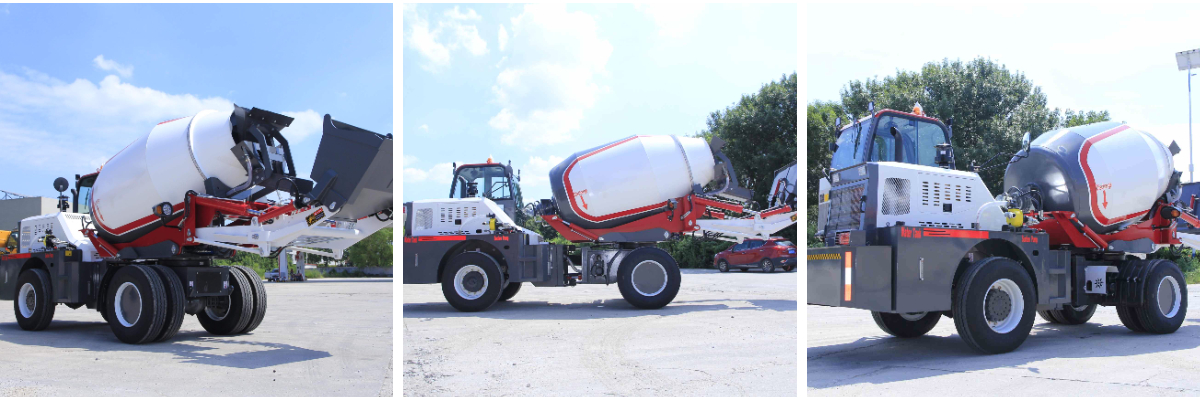

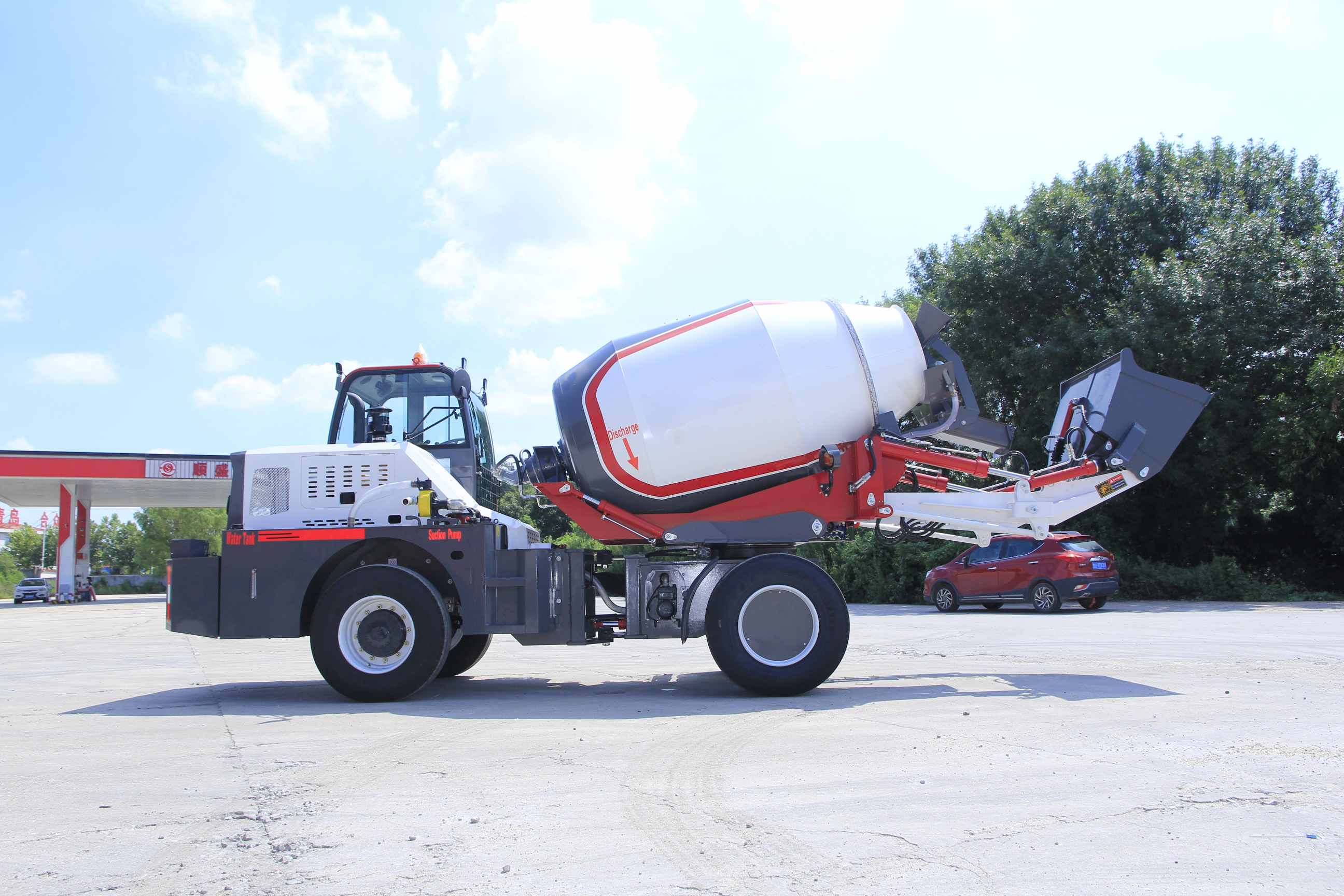

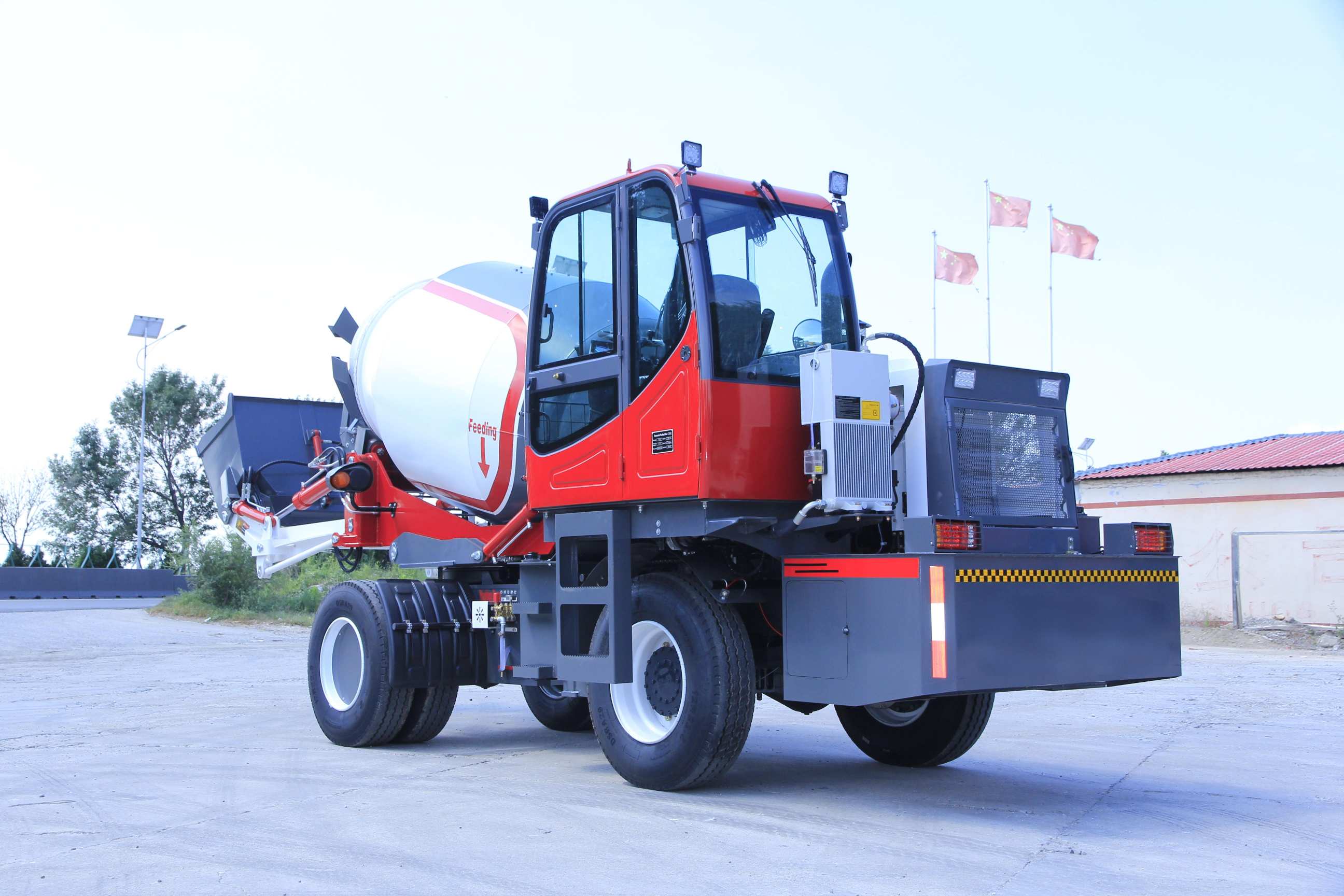

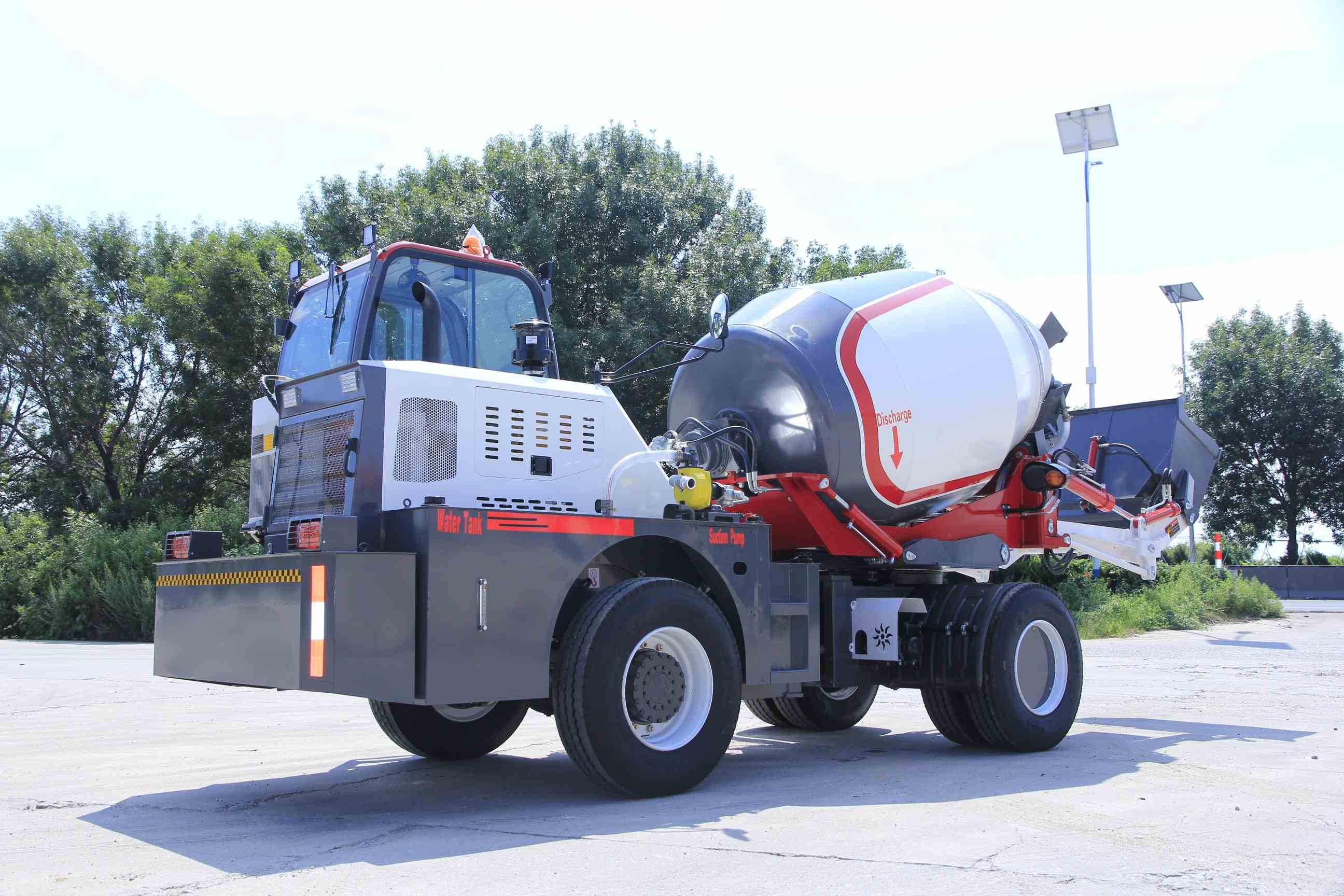

This 7.5 cubic meter self-loading concrete mixer truck, model 7500, is a comprehensive engineering equipment that integrates loading, mixing, and unloading functions. With advanced technology and excellent performance, it has become an efficient choice in small and medium-sized engineering construction. It can complete tasks excellently whether in narrow construction sites or complex rural roads.

2. Powerful Power System

The engine adopts Yuchai 1605 turbocharged engine with a power of up to 92kw, and the power output is strong and stable. The gearbox is of 315 split type, which is matched with an efficient transmission device to make power transmission smoother. The drive axle adopts 30 front axle and 30s wet rear axle. This configuration not only ensures the load-bearing capacity of the vehicle but also greatly improves its passability and climbing ability in complex terrains. It can easily cope with both rugged mountain roads and muddy construction sites.

3. Efficient Mixing Performance

The mixing capacity is 7.5 cubic meters, and the actual mixing capacity is not less than 4.5 cubic meters, which can meet the concrete demand of small and medium-sized projects. The reduction ratio of the mixing drum is 1:103, and the rotation speed is not less than 15 revolutions per minute, which ensures uniform mixing of concrete during the mixing process, effectively prevents the occurrence of segregation, and thus ensures the construction quality. At the same time, the mixing drum is reasonably designed, which is convenient for cleaning and maintenance.

4. Convenient Loading and Unloading

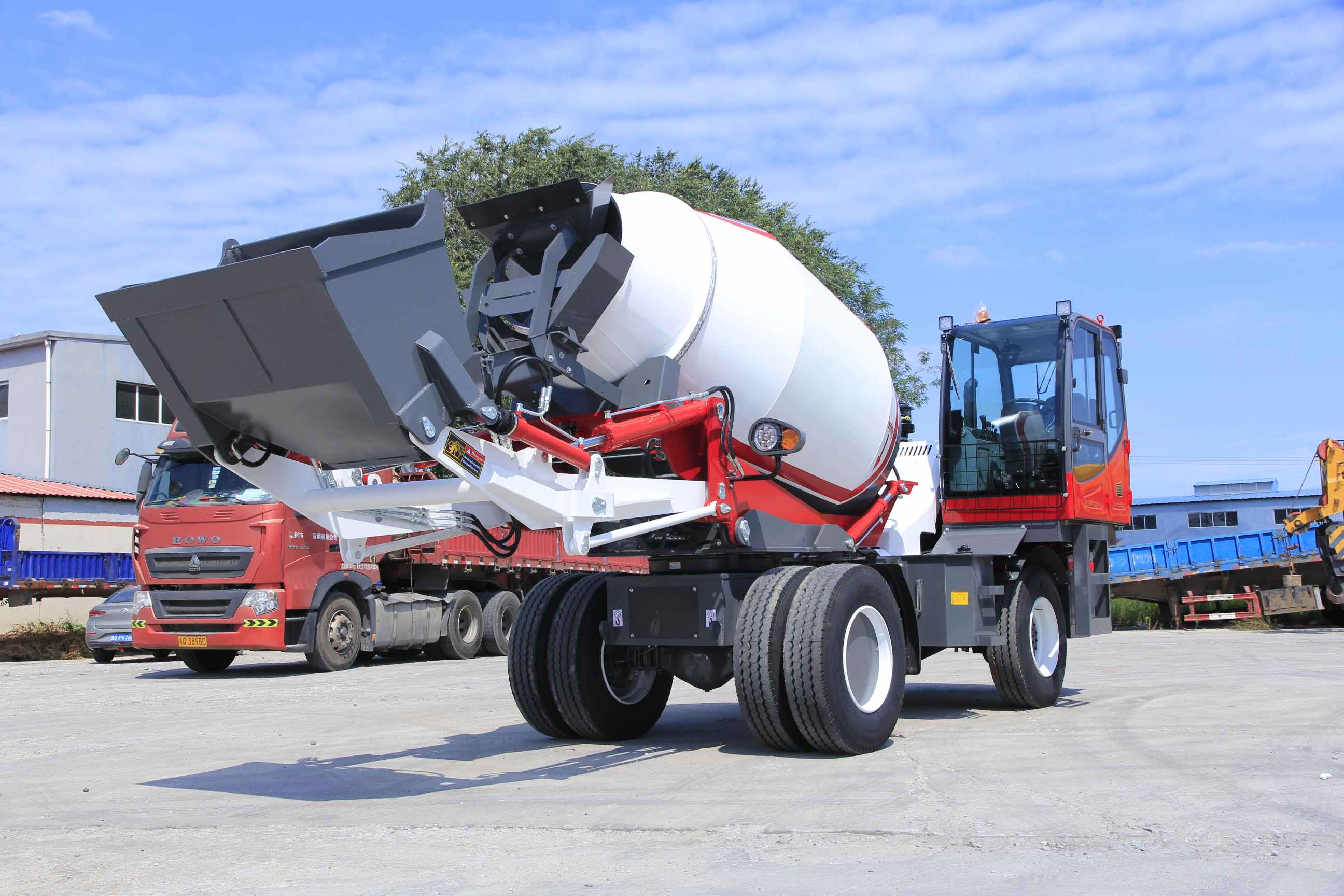

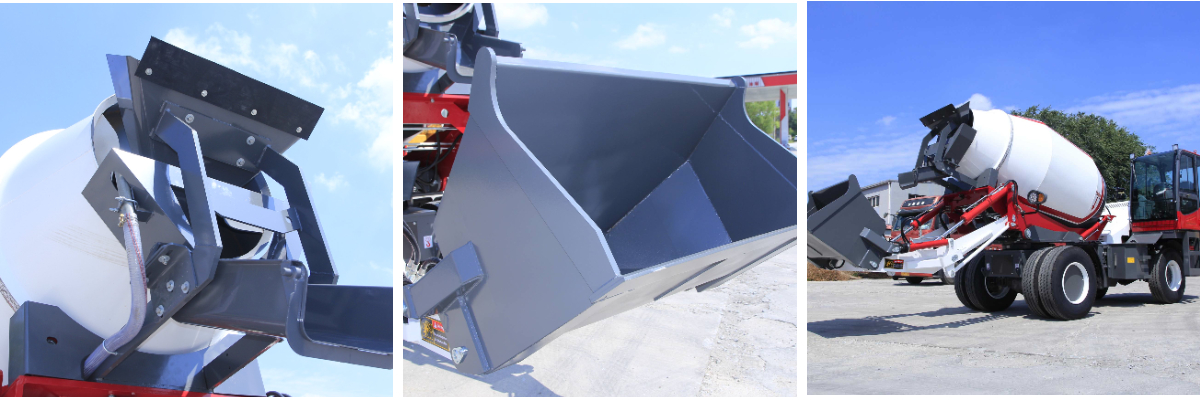

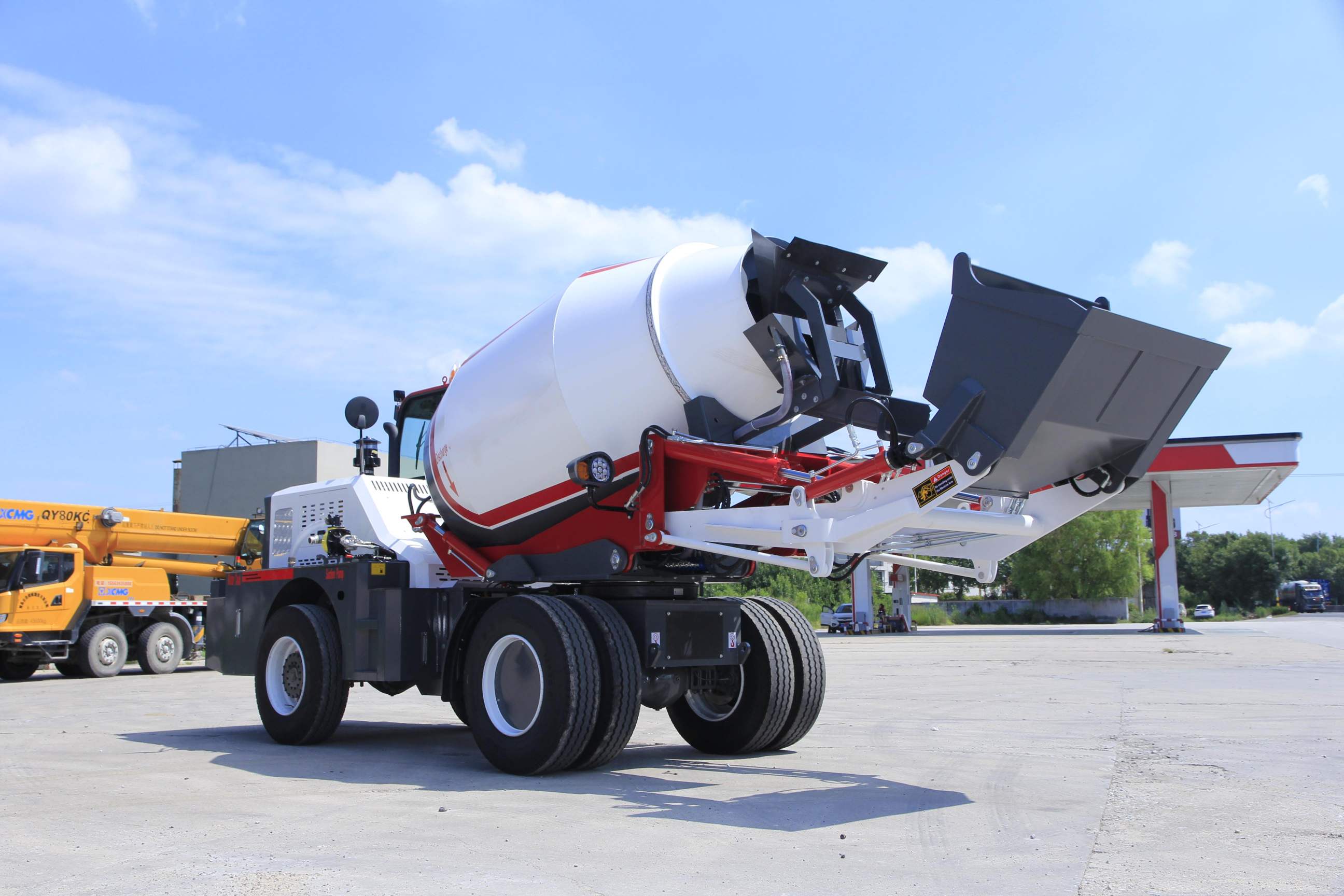

Equipped with a hopper with a capacity of 0.7 cubic meters, the self-contained loading device can independently complete the automatic loading of materials such as sand, gravel, and cement without the assistance of additional equipment. This design greatly improves the loading efficiency and reduces labor and equipment investment. The discharge port is scientifically and reasonably designed, which facilitates the smooth discharge of concrete, and the discharge speed is fast, which can meet the requirements of the project schedule.

5. Flexible Body Design

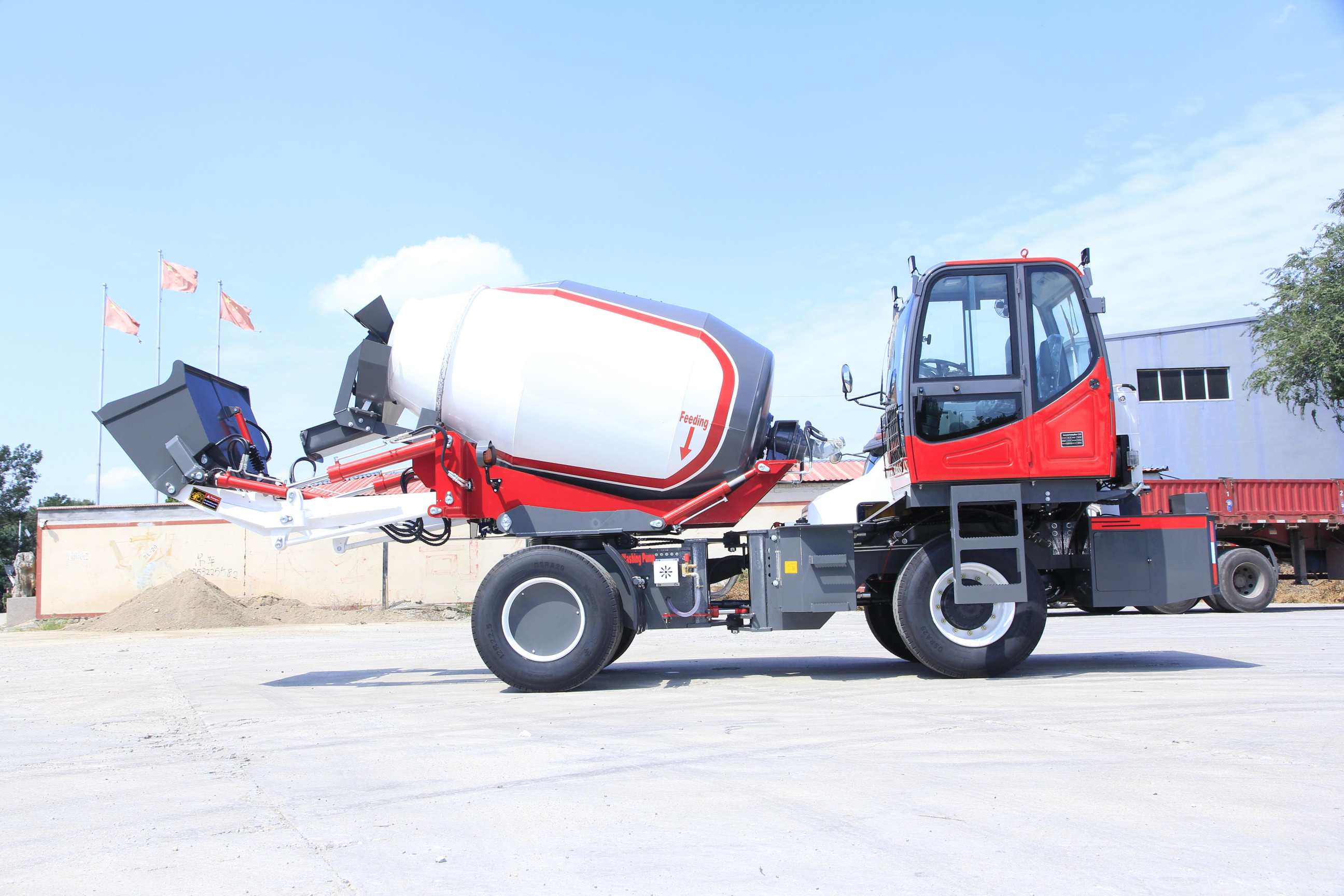

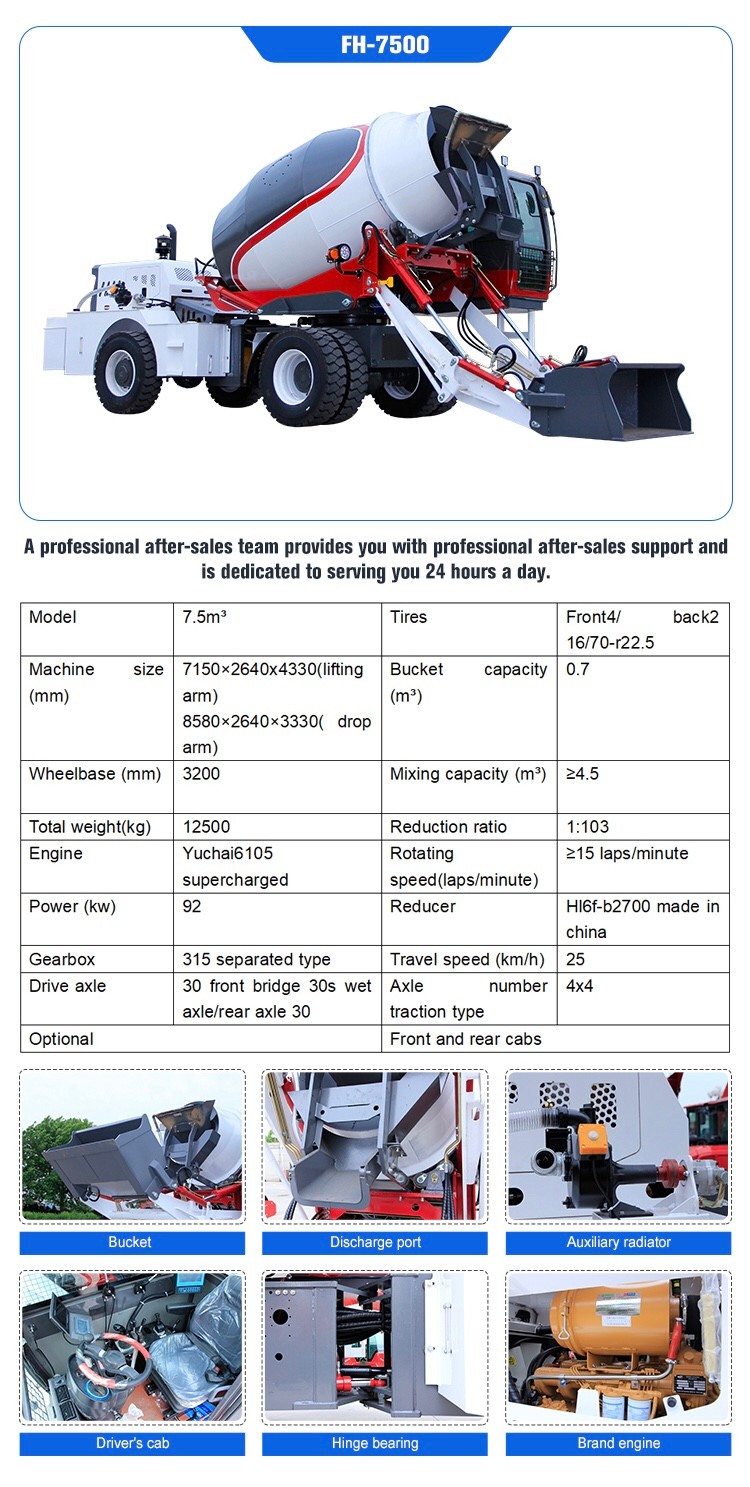

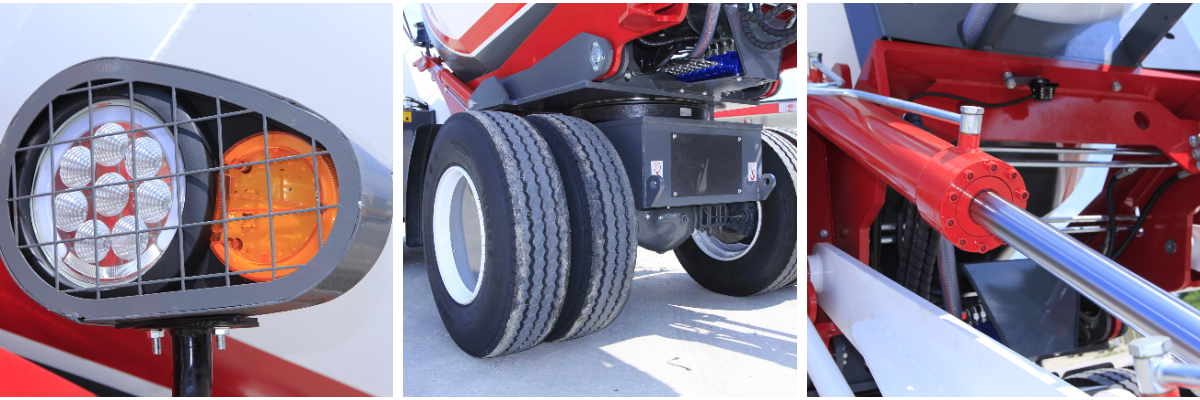

In terms of the overall vehicle size, when the boom is extended, the length, width, and height are 7150mm, 2640mm, and 4330mm respectively; when the boom is retracted, the length, width, and height are 8580mm, 2640mm, and 3330mm. The wheelbase is 3200mm, and this size design makes it flexible in various working conditions. The body is compact with a small turning radius, which is suitable for complex scenarios such as narrow construction sites and rural roads, and is convenient for passage. The tires adopt the 16/70-R22.5 specification with 4 front tires and 2 rear tires, which have strong grip and can adapt to various road conditions. The vehicle's driving speed can reach 25km/h, meeting the transfer requirements.

6. Reliable Safety Performance

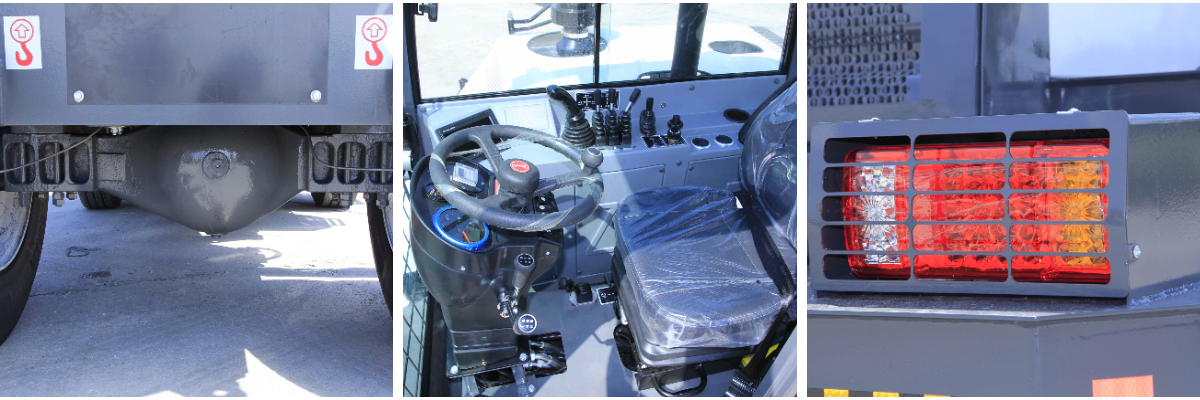

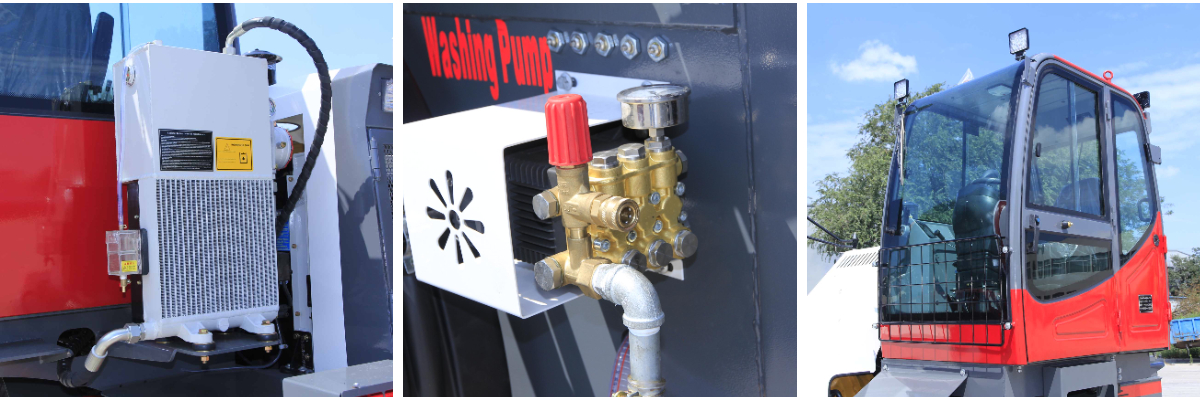

The total weight of the vehicle is 12500kg, which ensures the stability during operation. At the same time, front and rear cabs can be optionally installed to provide a more comfortable and safe working environment for operators. The configuration of the auxiliary radiator ensures the heat dissipation performance of the vehicle during long-term operation, avoiding the impact on work efficiency and safety due to overheating. The design of the articulated bearing makes the vehicle steering more flexible, further improving the safety of operation.

7. High-quality After-sales Service

We have a professional after-sales team that provides you with 24-hour professional after-sales support. Whether it is the installation and commissioning of equipment or daily maintenance, our team will serve you throughout the process to ensure that the problems you encounter during use can be solved in a timely manner, so that you have no worries.

In short, this 7.5 cubic meter self-loading concrete mixer truck has become an ideal choice for small and medium-sized projects with its powerful power, efficient mixing performance, convenient loading and unloading, flexible body design, reliable safety performance, and high-quality after-sales service. It will bring higher efficiency and better quality assurance to your engineering construction.
