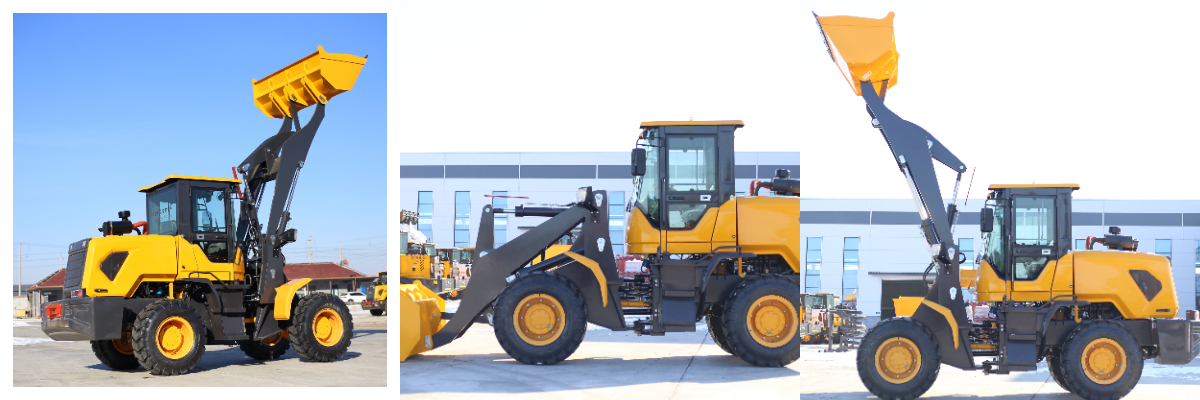

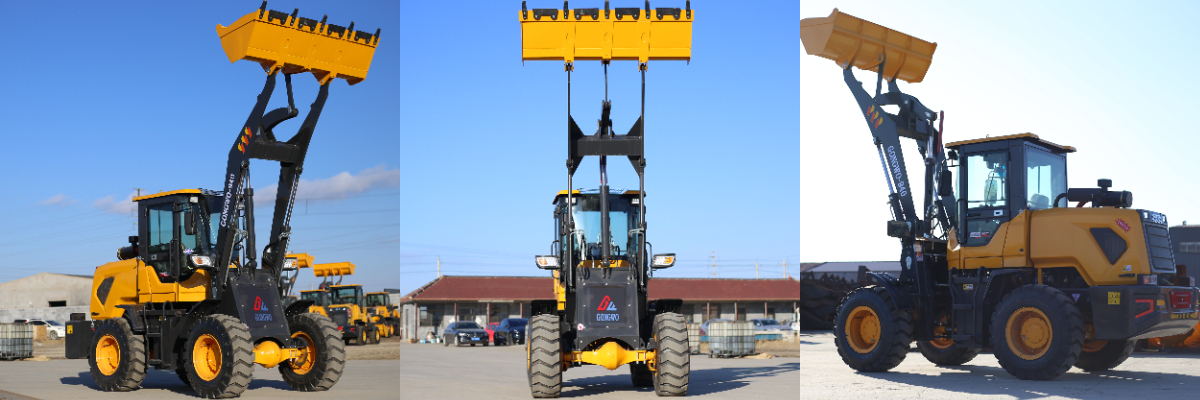

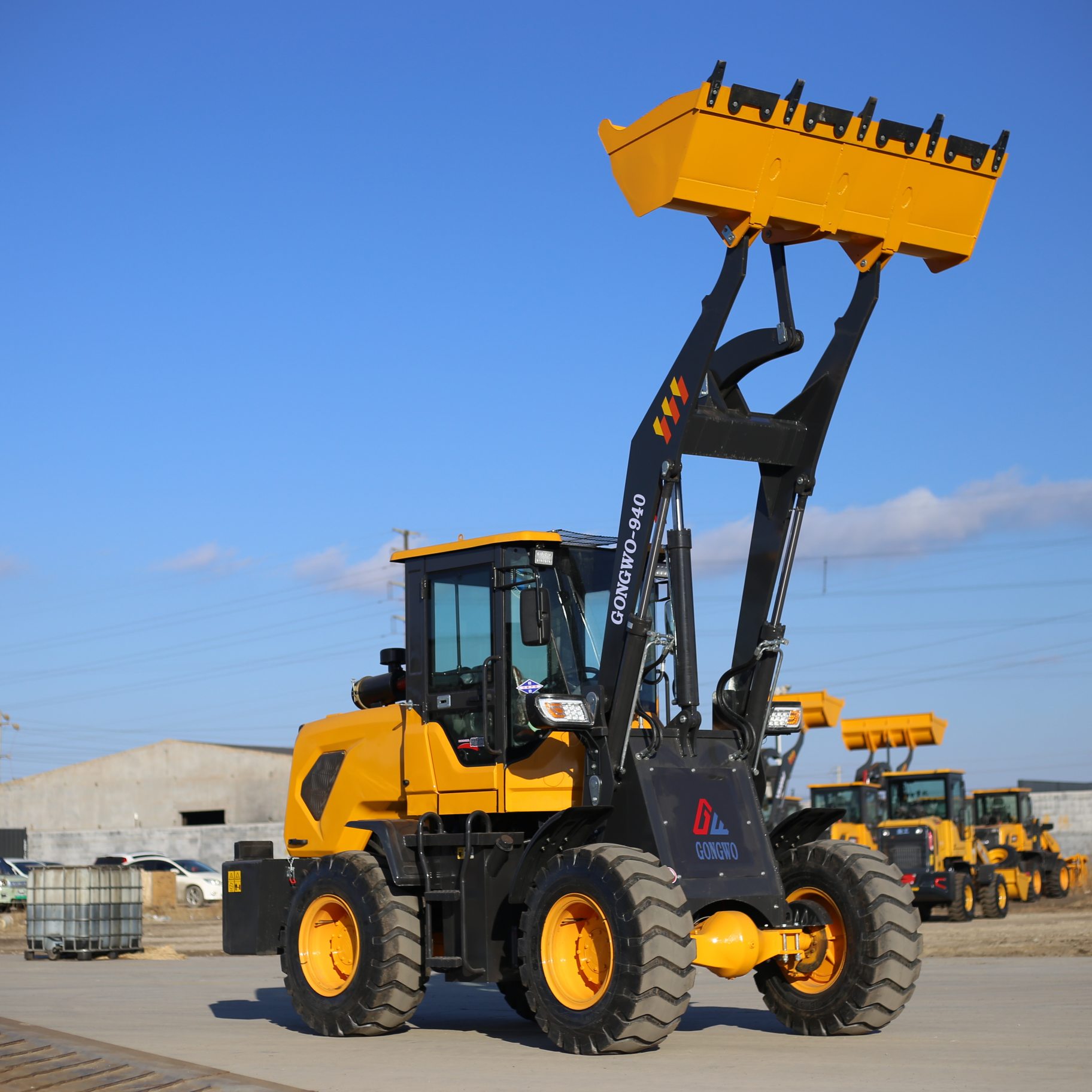

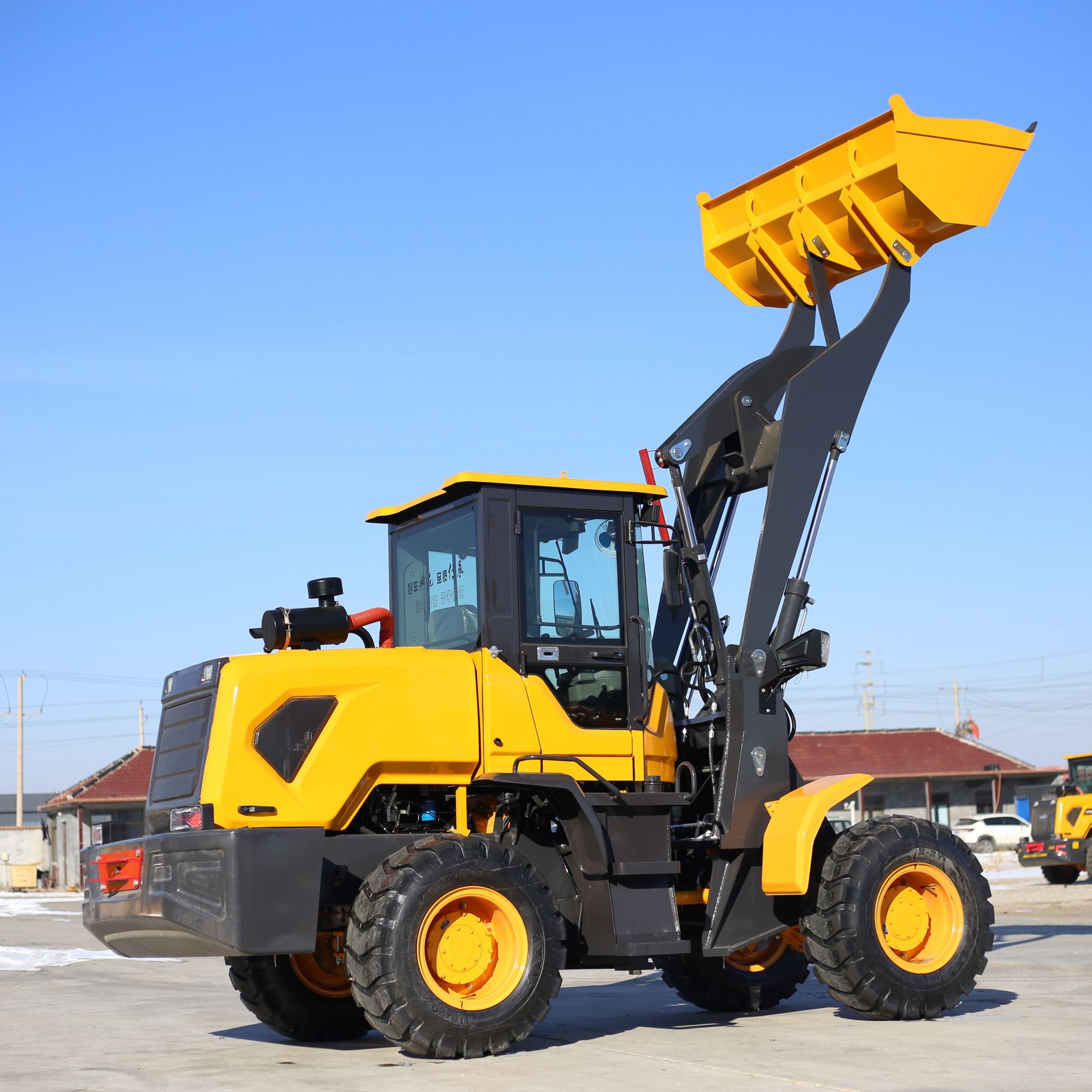

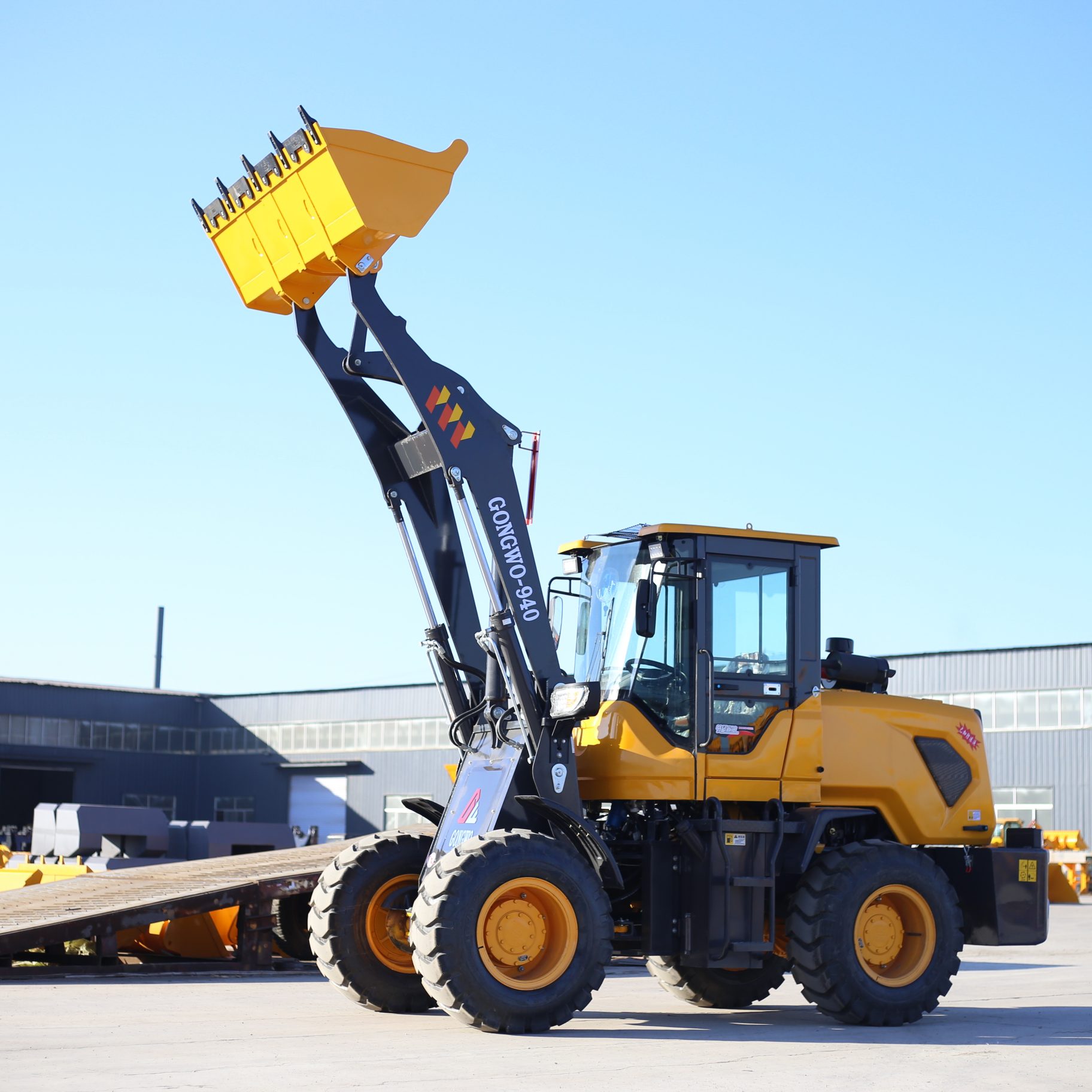

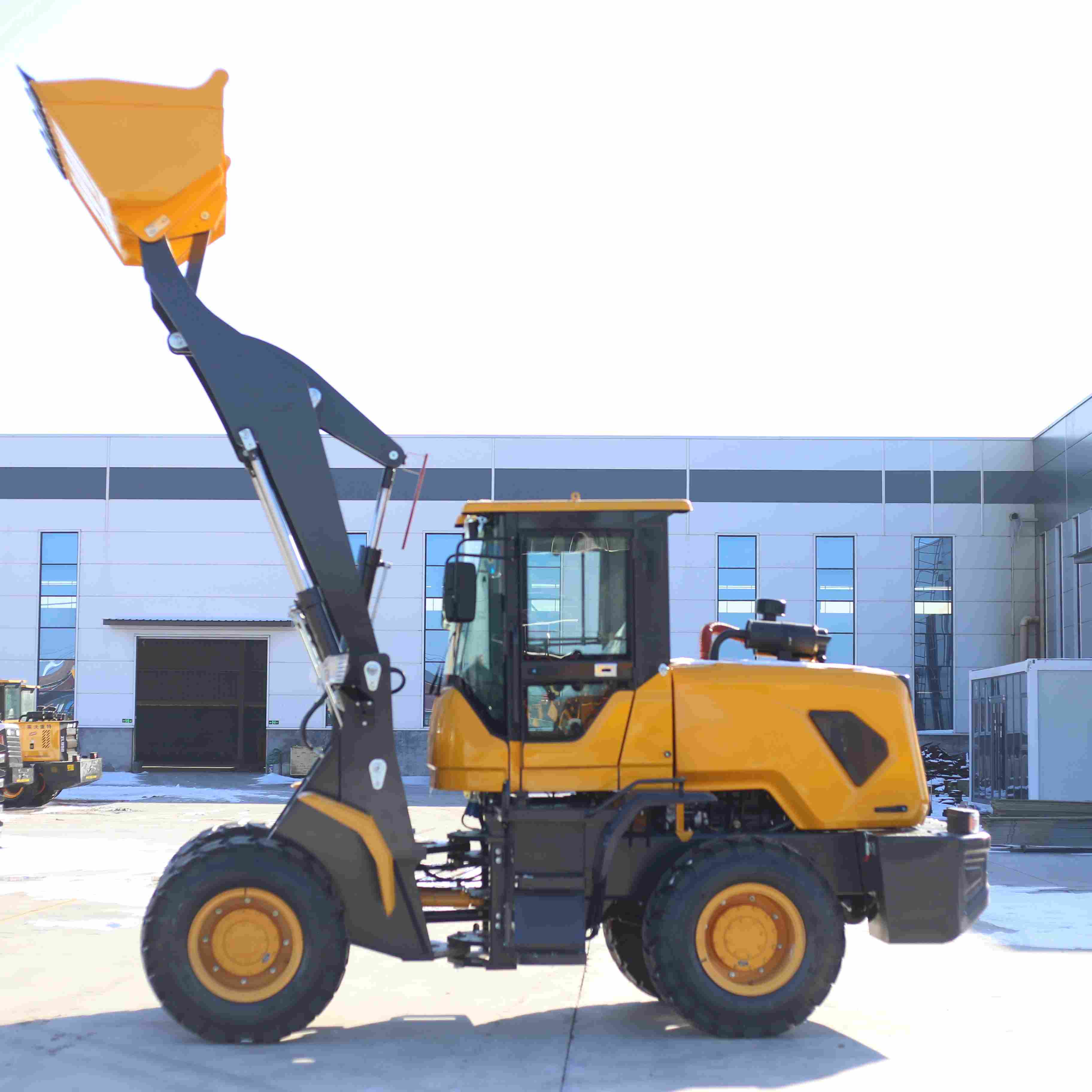

5.5-Ton Wheel-Type Loader
GW940 wheel loader
Flexible and mobile: Equipped with large diameter wheels, it has excellent maneuverability and can move flexibly in different terrains and narrow spaces
Quick loading and unloading: Equipped with a powerful hydraulic system and efficient bucket, it can quickly complete loading and unloading tasks, improving work efficiency.
Efficient handling capacity: It has a large loading capacity and can quickly and efficiently handle various materials, such as earthwork, coal, ore, construction waste, etc.
Versatility: Equipped with various auxiliary devices and tools, such as buckets, soil scrapers, forks, etc., allowing it to perform multiple tasks in different operating scenarios.
This 5.5-ton excavator, with overall dimensions of 5860×2000×2850mm and an operating weight of 5500kg, features a compact and flexible design, making it suitable for narrow working scenarios.
It is equipped with a 4102 supercharged engine, delivering strong power. Fitted with a 265 torque converter and a dual high-low speed continuously variable transmission, along with four-wheel drive combined with medium and large wheel-side deceleration, it ensures stable driving and efficient power transmission.
The bucket has a capacity of 1m³ (2000mm in width) and a rated load capacity of 2000kg. The unloading height reaches 3500mm and can be raised to 4.2 meters, 4.5 meters, or 4.8 meters as needed, with an unloading distance of ≥1000mm, meeting various loading and unloading requirements.
Equipped with 1670-20 tires, combined with a 2500mm wheelbase, 1560mm track width, and a minimum ground clearance of 330mm, it boasts excellent off-road performance, handling complex terrains with ease, and stands as a highly efficient and reliable choice for engineering operations.
Model | GW940 |
Trademark | Walker |
whole vehicle Weight | 4900 kg |
Standard Bucket Capacity | 0.8-1.0 cbm |
Rated load | 2000 kg |
Bucket width | 1300 mm |
Engine | WEICHAI&YUNNEI-4102turbo |
Engine power | 76 kw |
Tire | 1670-20 |
lifting time | 4.6 s |
falling time | 4.1 s |
Overall dimension( LxWxH) | 5860*2000*2850mm |
Wheelbase | 2500 mm |
Wheel track | 1560 mm |
OPERATING RANGE | |
Maximum unloading height | 3500 mm |
Load and Unload Mode | front discharge |
Drive Bridge Type | Wheel side reduction axle |
working hydraulic system | Mechanical single joystick or Hydraulic Pilot |
Walking Mode | Wheeled |
Service brake | Air hydraulic disc brake |
parking brake
| hand operated |
Control Type | automatic transmission |
Drive system | Torque converter hydraulic transmission |
Number of cylinders | 4 |

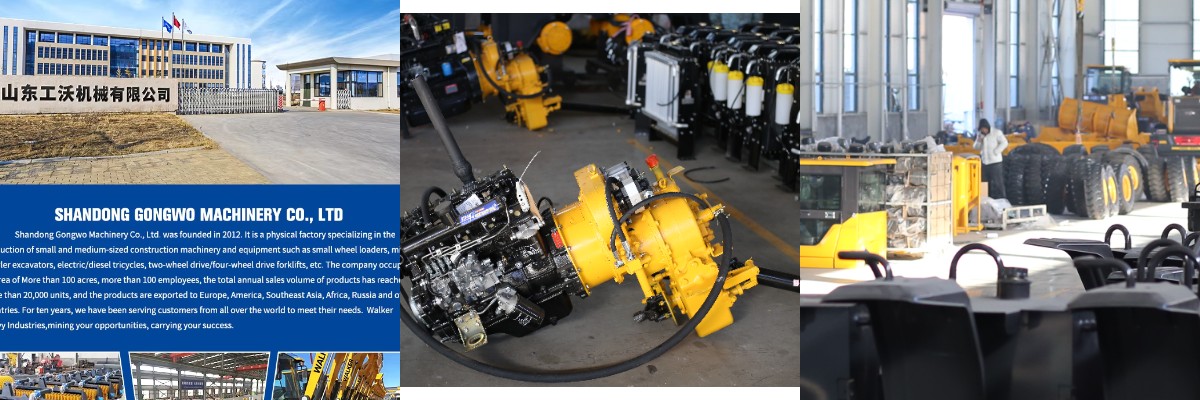

Shandong Gongwo Machinery Co., Ltd. mainly produces, develops and sells small crawler excavators, small wheel loaders, diesel tricycles, forklifts, dump trucks and other construction machinery. The company covers an area of 26,000 square meters and is divided into welding workshops, excavator production workshops, skid loader production frames, electric forklift production workshops, CNC equipment production workshops, etc. Our company's equipment products focus on exporting globally, and we have distributors in many countries around the world, such as the United States, Russia, Europe, Africa, etc. We welcome friends from all over the world who are engaged in construction machinery to visit our head office in China for guidance.
